HVAC Module Components 1 of 2

HVAC Module Components 1 of 2

Component Name Callout
Air Temperature Actuator- Driver 1
Blower Motor- Auxiliary (CJ4+AQ9) 2
Blower Motor- Auxiliary (CJ4+AV8) 3
Mode Actuator- Auxiliary (CJ4) 4

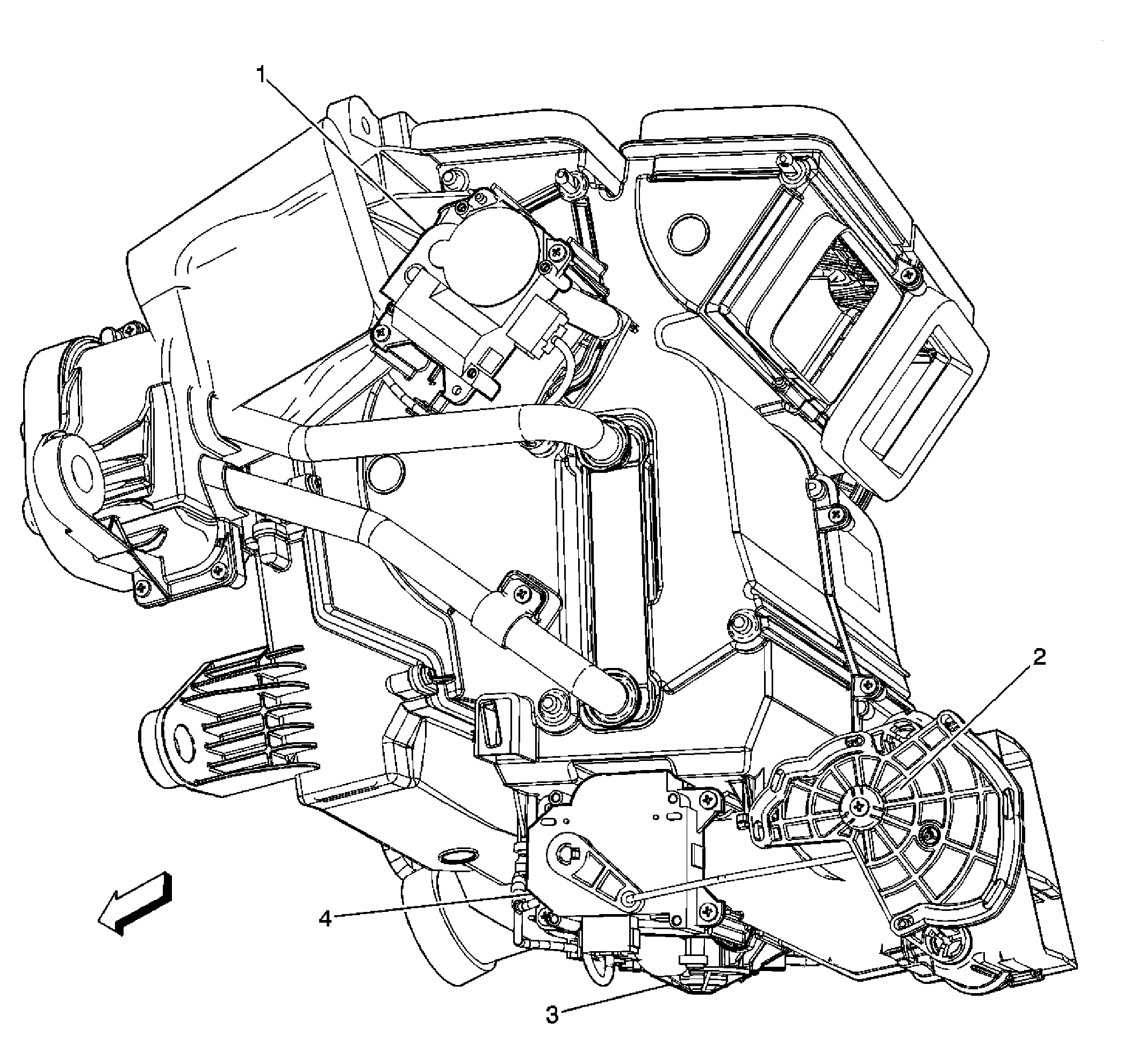

Fig 1: HVAC Module Components 1 of 2
GM1656933Courtesy of GENERAL MOTORS COMPANY
