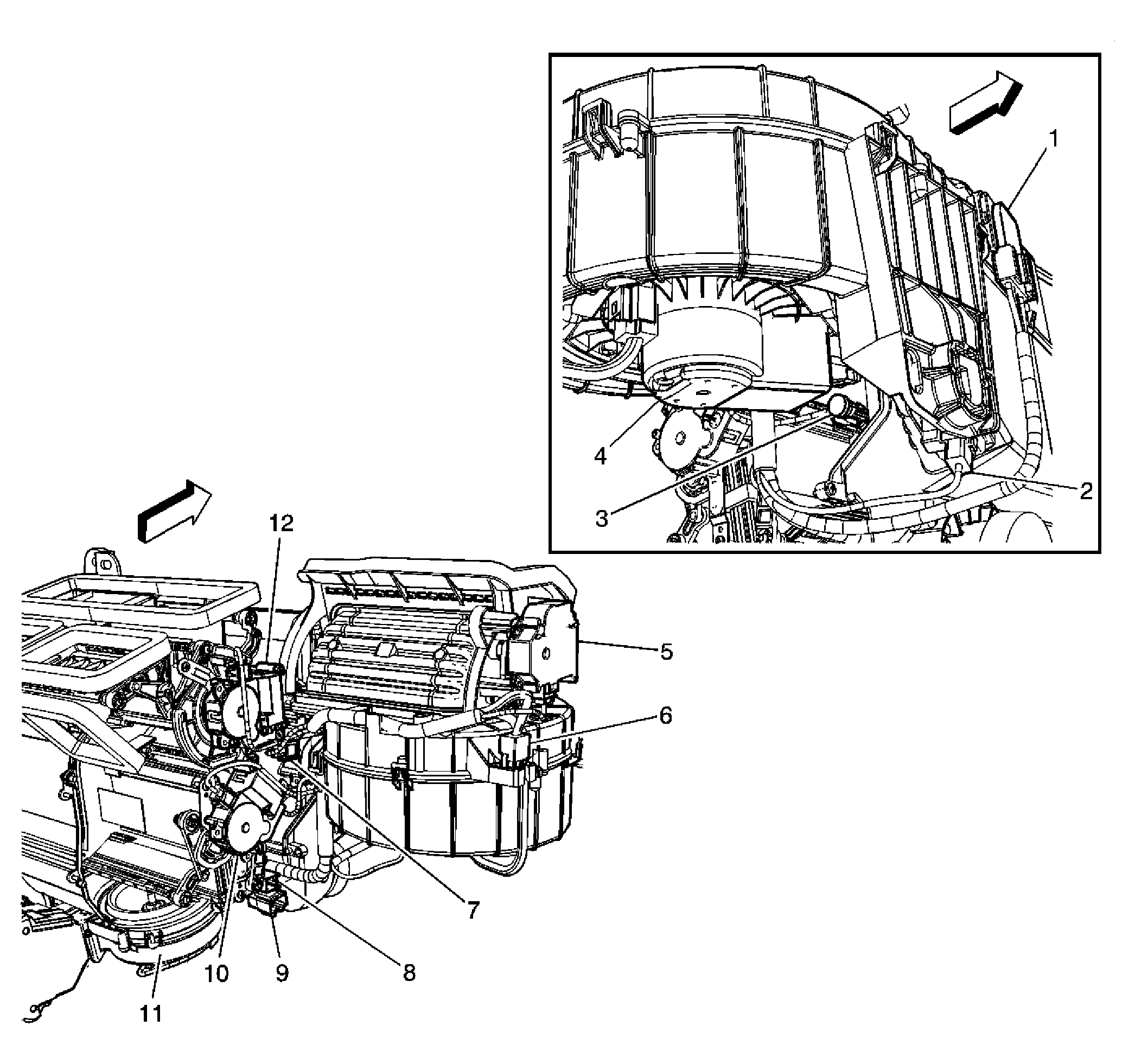

HVAC Module Components 2 of 2
HVAC Module Components 2 of 2
| Component Name | Callout |
|---|---|
| Blower Motor Control Module | 1 |
| Blower Motor Control Module - Auxiliary (CJ4) | 2 |
| Evaporative Temperature Sensor | 3 |
| Blower Motor | 4 |
| Recirculation Actuator | 5 |
| X206 HVAC Harness to Body Harness | 6 |
| Air Temperature Actuator - Front Passenger | 7 |
| X204 HVAC Harness to I/P Harness | 8 |
| X202 HVAC Harness to I/P Harness | 9 |
| Air Temperature Actuator - Rear Passenger | 10 |
| Blower Motor - Auxiliary (CJ4) | 11 |
| Mode Actuator | 12 |
