Seat Temperature Switch




Component Connector End Views

Heated Seat Switch - Left Rear (KA6)

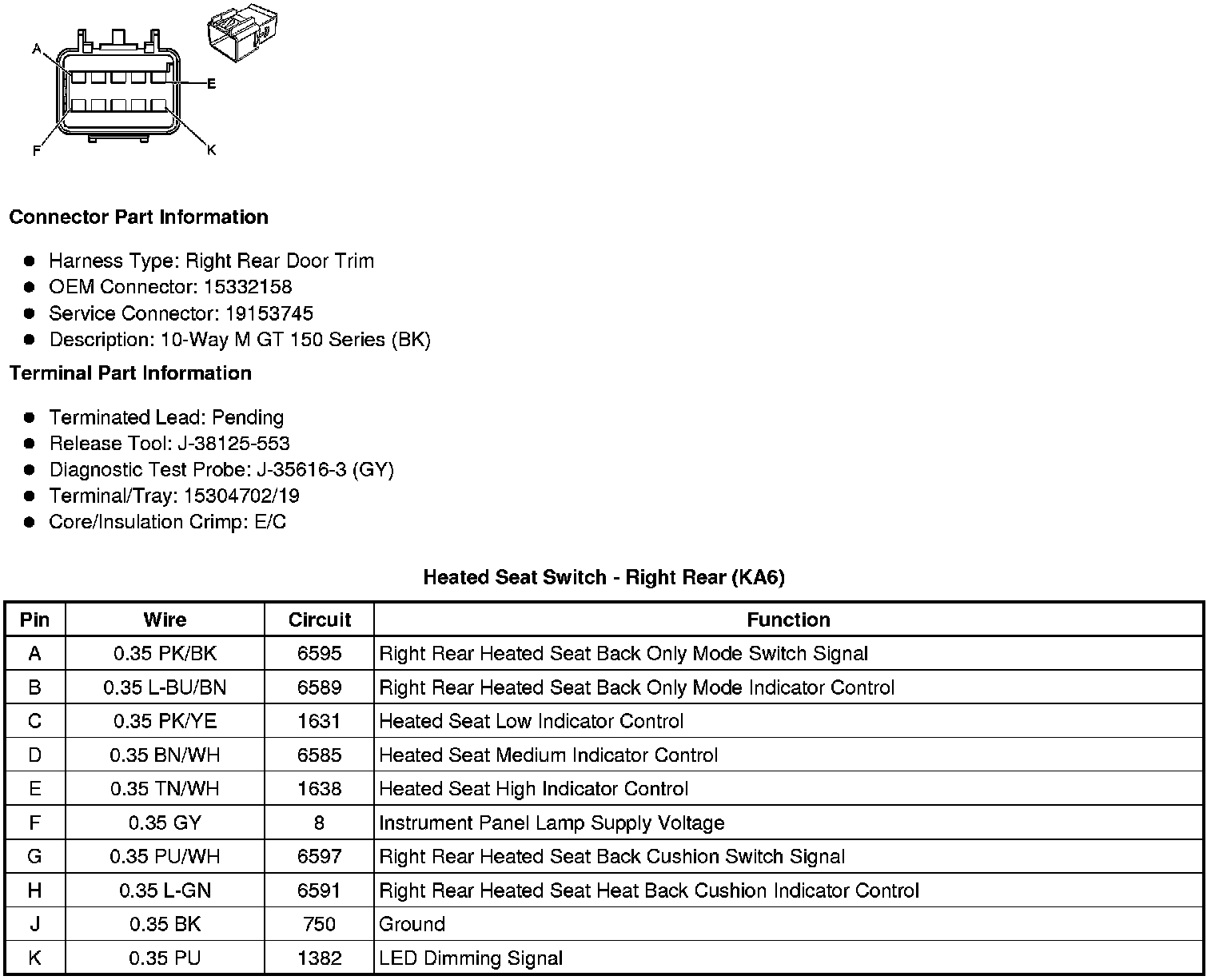

Heated Seat Switch - Right Rear (KA6)
