Telescoping Wheel Switch




Component Connector End Views

Telescoping Actuator X1 (N37)






Telescoping Actuator X2 (N37/A45)

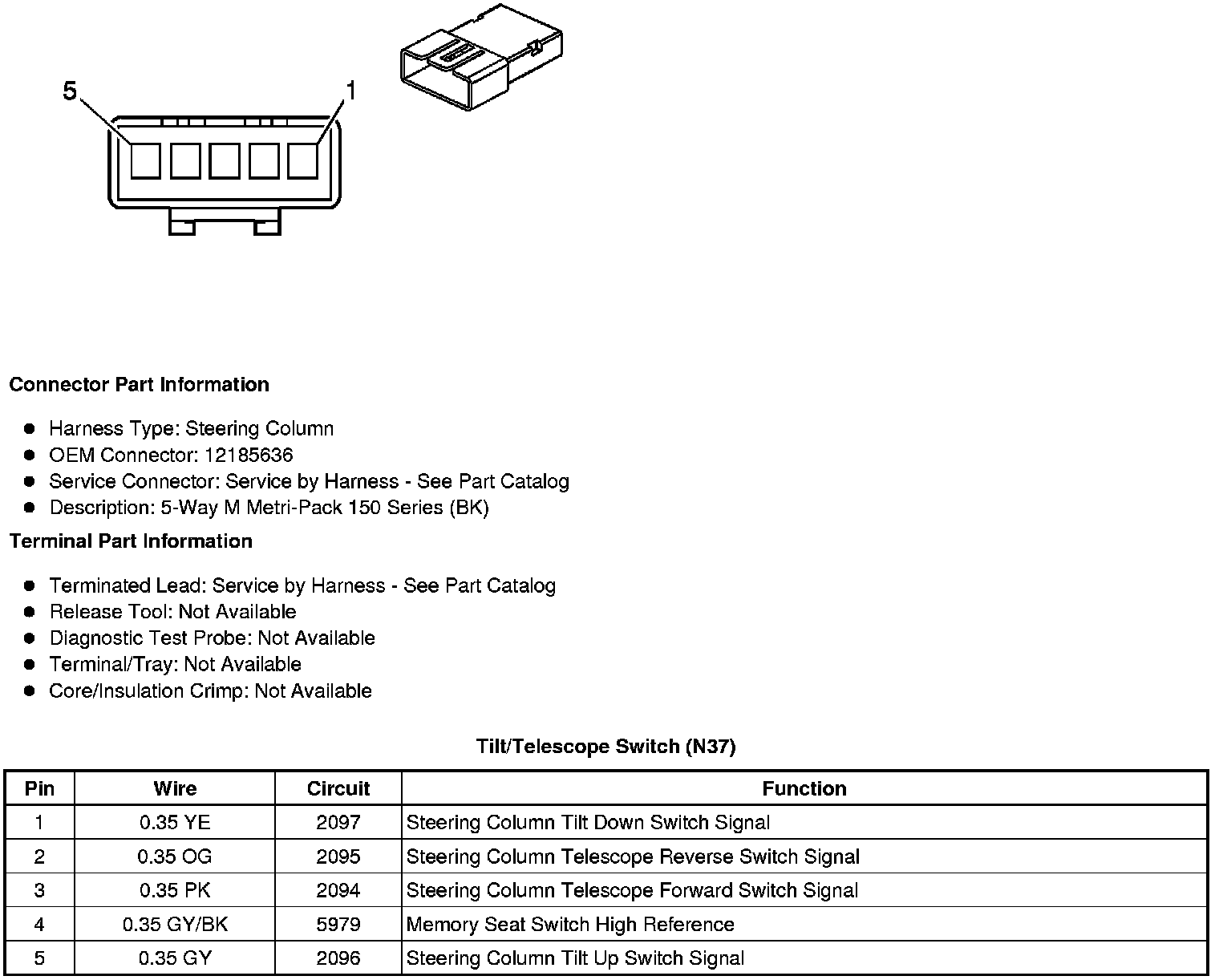

Tilt/Telescope Switch (N37)
