Refrigerant Pressure Sensor / Switch: Locations

Front of Vehicle/Engine Compartment Component Views

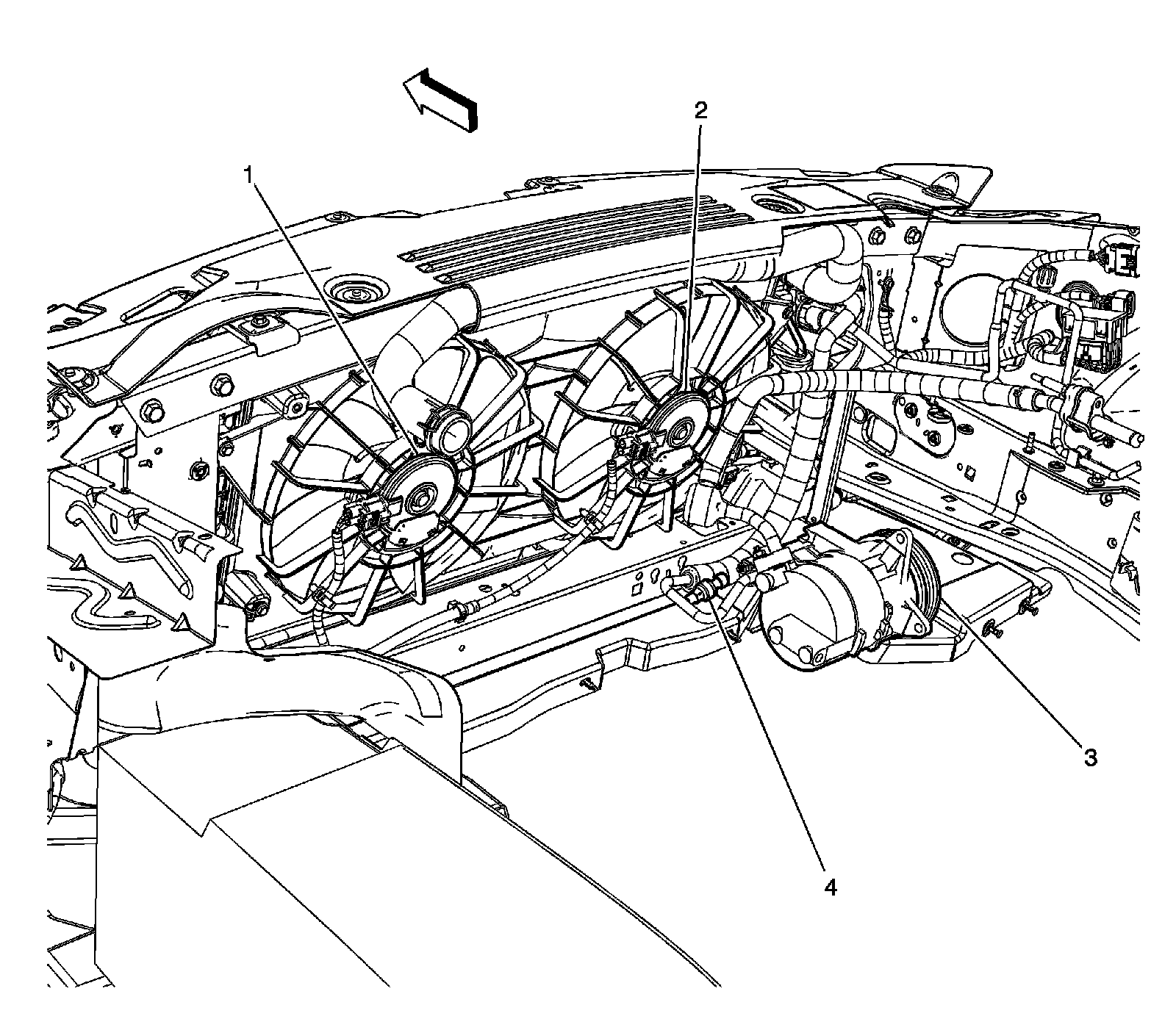

Cooling Fans and Exterior A/C Components




1 - Engine Cooling Fan - Left
2 - Engine Cooling Fan - Right
3 - A/C Compressor Clutch
4 - A/C Refrigerant Pressure Sensor
