Overhead Console

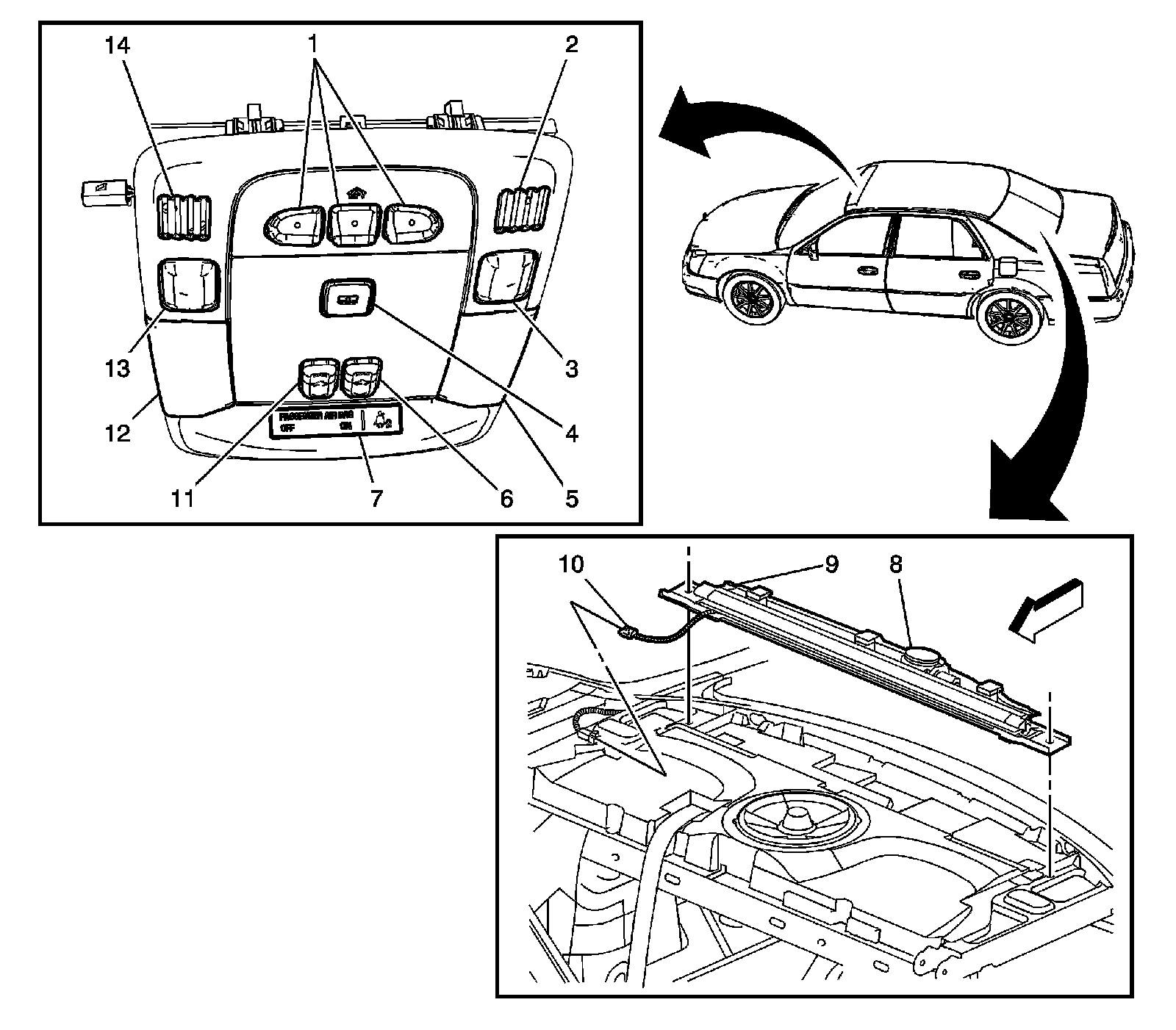

Passenger Compartment/Roof Component Views

Overhead Console




1 - Garage Door Opener Buttons (UG1)
2 - Noise Compensation Microphone (UQA)
3 - Courtesy Lamp Switch - Right Front
4 - Sun Shade Switch (DE9)
5 - Courtesy Lamp - Right Front
6 - Sunroof Vent Switch (CF5)
7 - Inflatable Restraint PASSENGER OFF/ON Indicator
8 - Rear Window Sunshade Module
9 - Rear Window Sunshade Assembly
10 - X395
11 - Sunroof Open Switch (CF5)
12 - Courtesy Lamp - Left Front
13 - Courtesy Lamp Switch - Left Front
14 - Cellular Microphone (UE1)
