Liftgate Window Weatherstrip Replacement

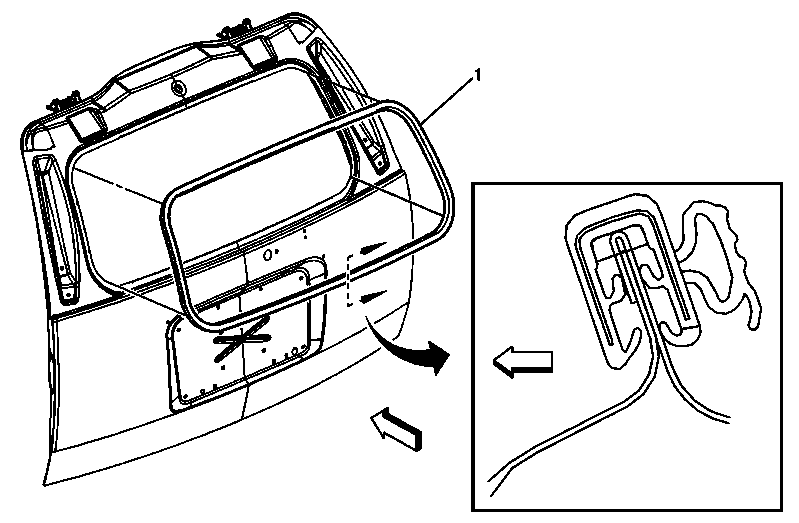

Fig 1: Liftgate Window Weatherstrip
GM1672146Courtesy of GENERAL MOTORS CORP.
Liftgate Window Weatherstrip Replacement

Callout Component Name
Preliminary Procedure
Open the liftgate window.
1 Liftgate Weatherstrip
TIP:  Disconnect the electrical from the rear window defogger.
