Moveable Window Wiring Schematics: Left

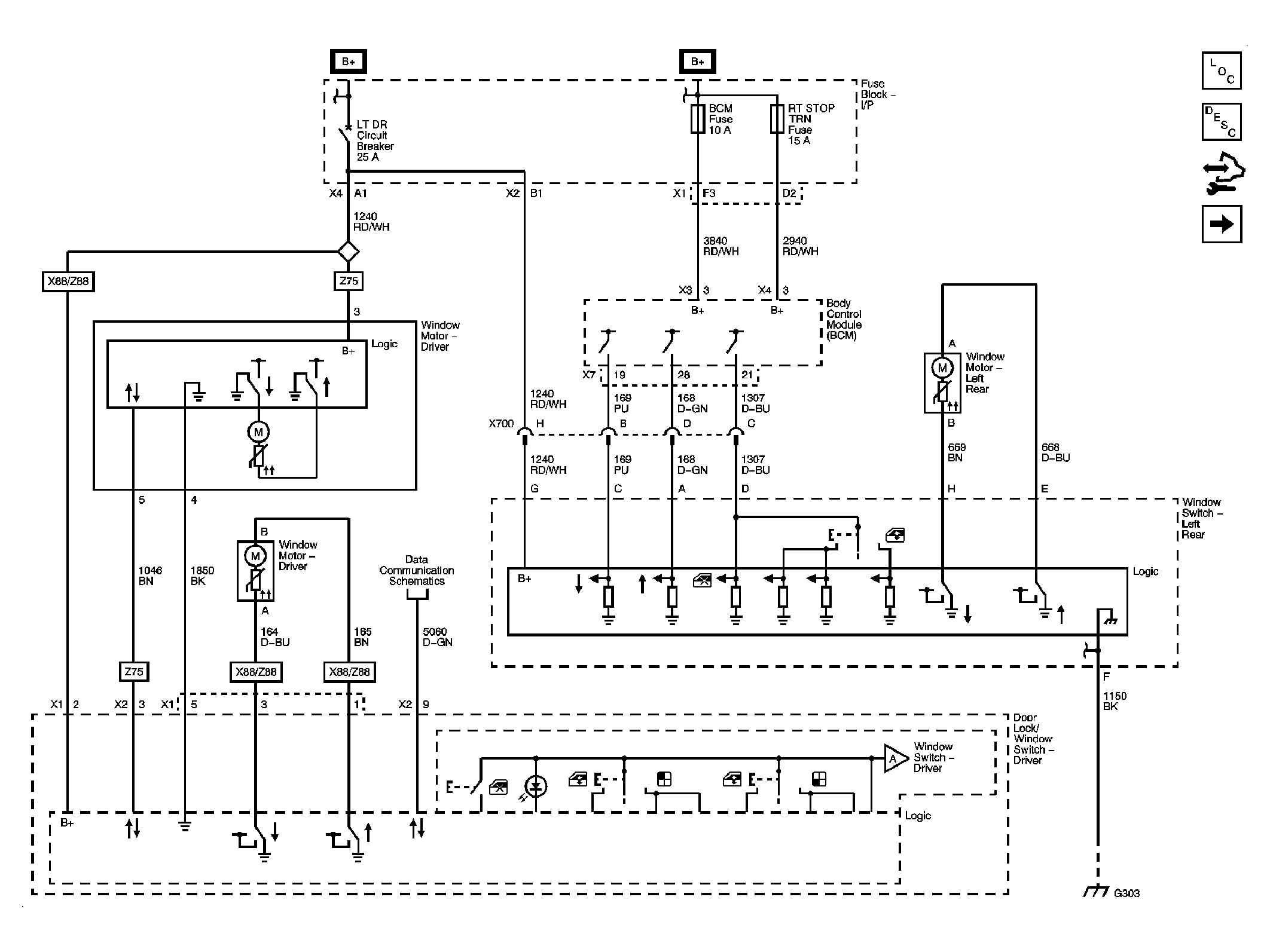

Fig 1: Left Wiring Schematic

GM2399172

Courtesy of GENERAL MOTORS CORP.
