Cadillac
>>
2011
>>
Escalade EXT
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communications System
>>
Wiring Schematics
>>
Data Communication Wiring Schematics
>>
Low Speed Bus- JX200 (1 of 3)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Low Speed Bus- JX200 (1 of 3)

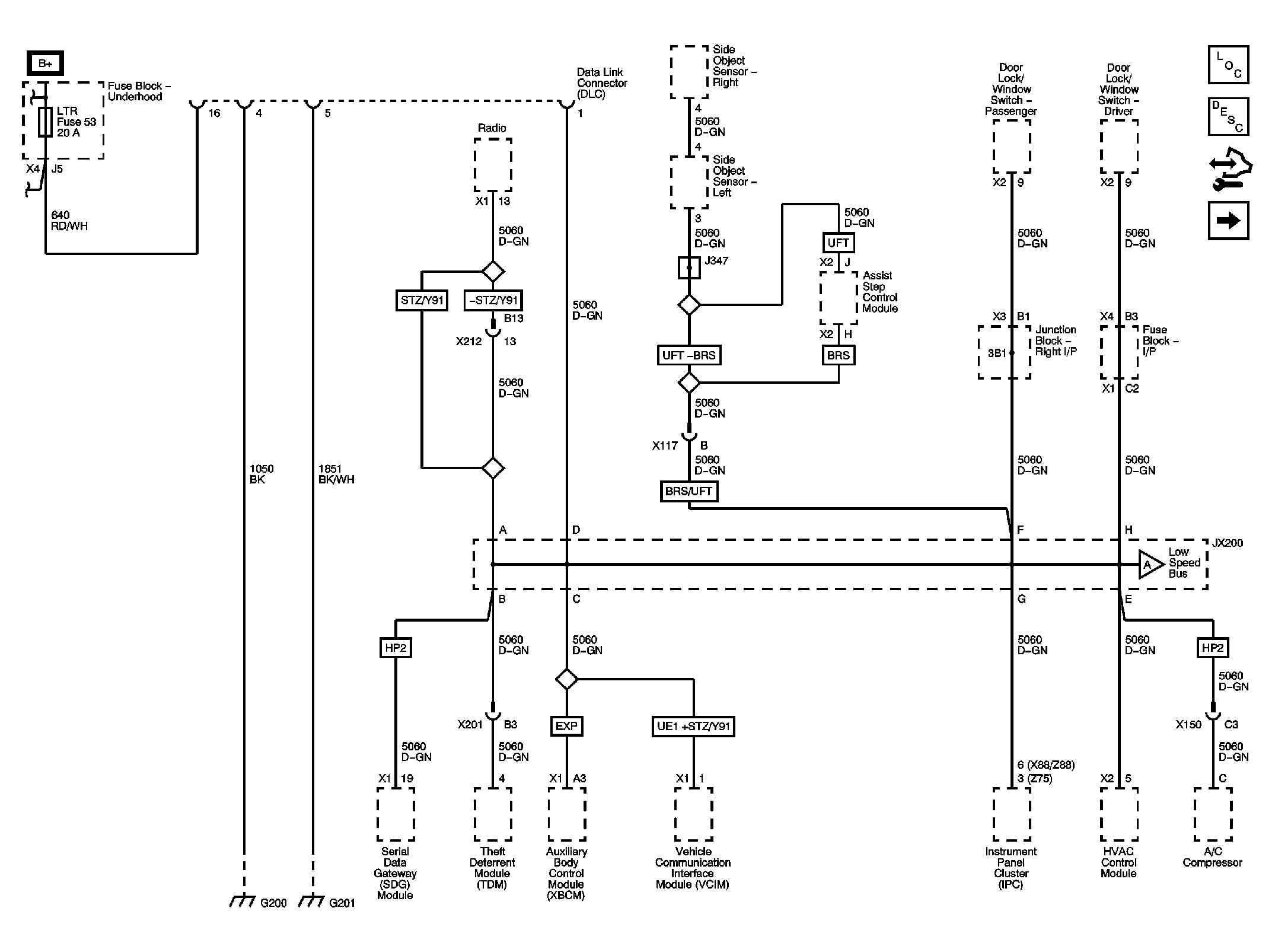

Fig 1: Low Speed Bus- JX200 (1 of 3) Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
