Front Stabilizer: Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Detach the steering shaft from the steering gear and linkage.
Remove in the order indicated in the illustration.
Install in the reverse order of removal.
Inspect the wheel alignment and adjust it if necessary. See WHEEL ALIGNMENT .

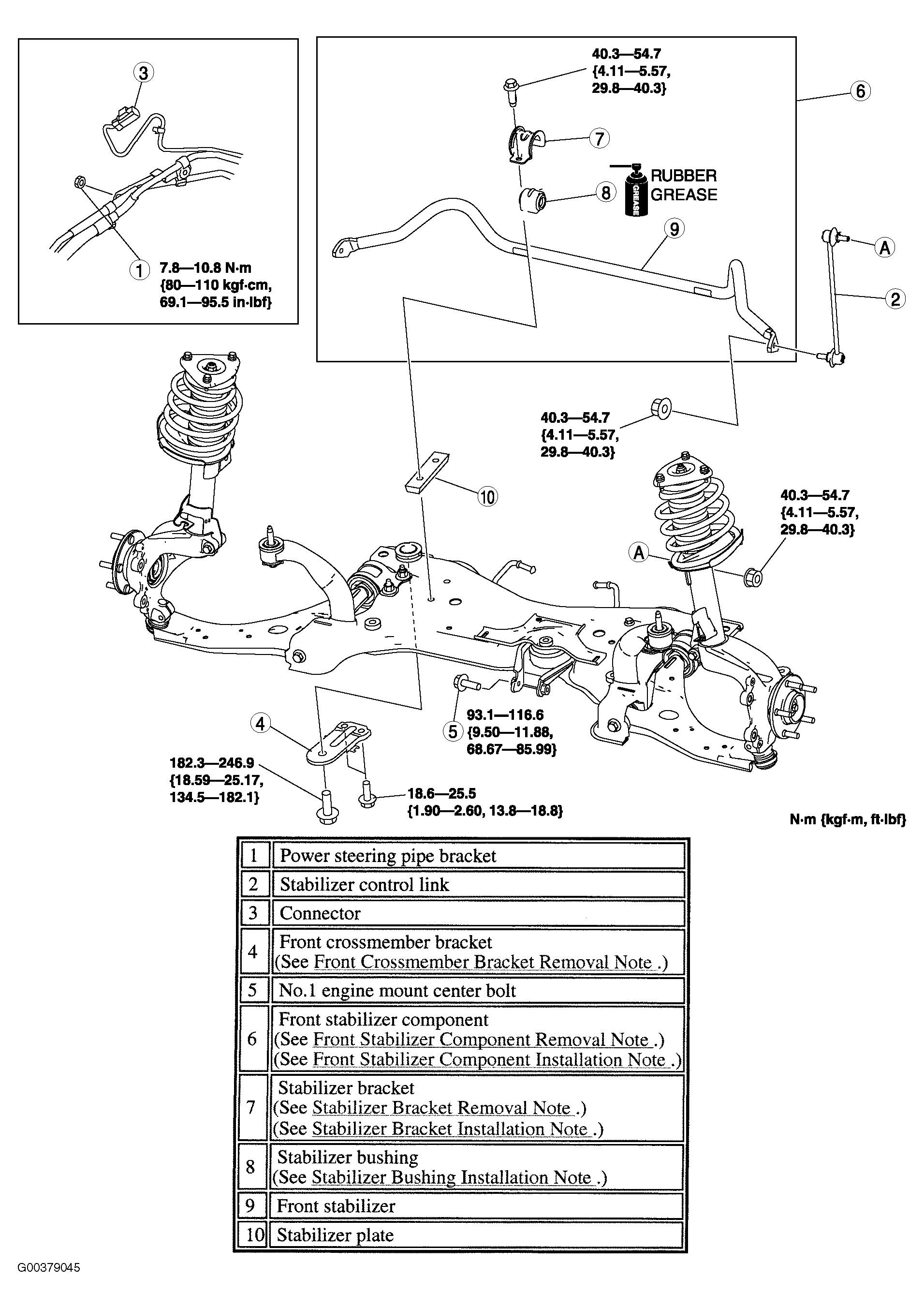

Fig 1: Front Stabilizer With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
