Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the headlamp switch to the vehicle.
  2. Connect the headlamp switch to the instrument panel cluster trim plate by pushing on the switch in order to engage the retainers on the instrument panel cluster trim plate.
  3. Connect the electrical connector to the headlamp switch.
  4. Install the instrument panel cluster trim plate. Refer to TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER .

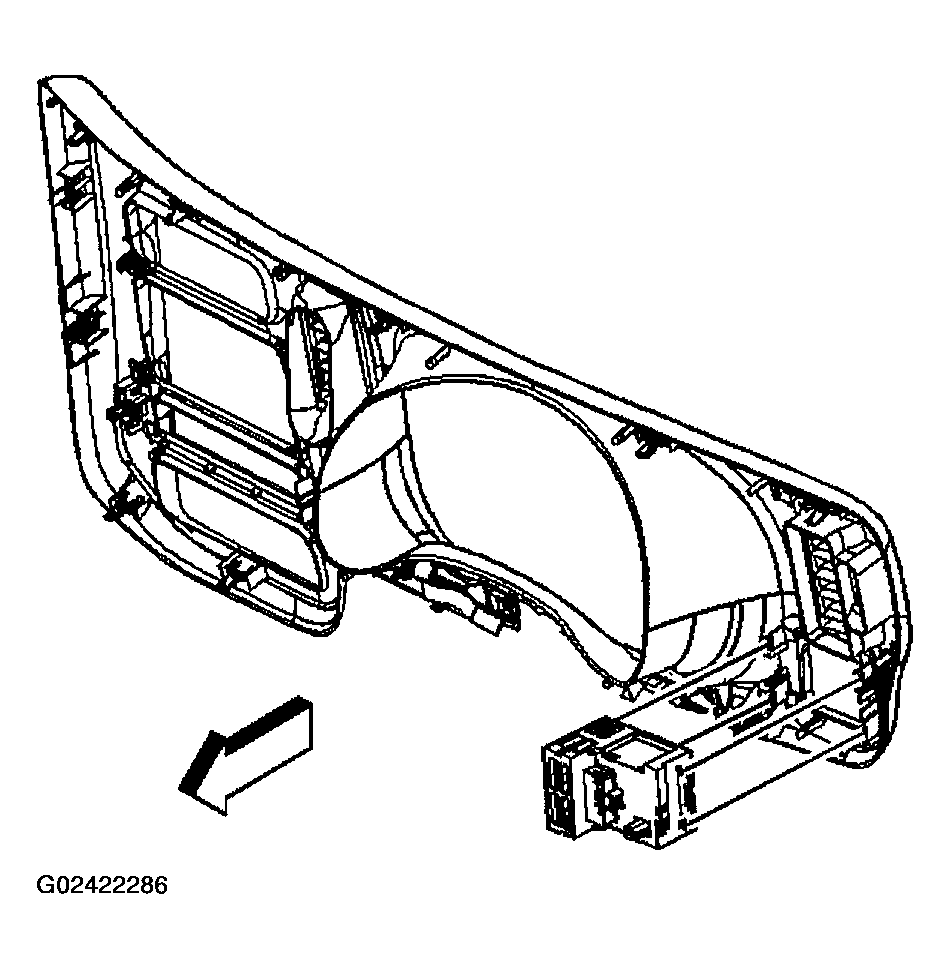

    Fig 1: Installing Headlamp Switch
    G02422286Courtesy of GENERAL MOTORS CORP.
