Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the I/P module switch electrical connector.

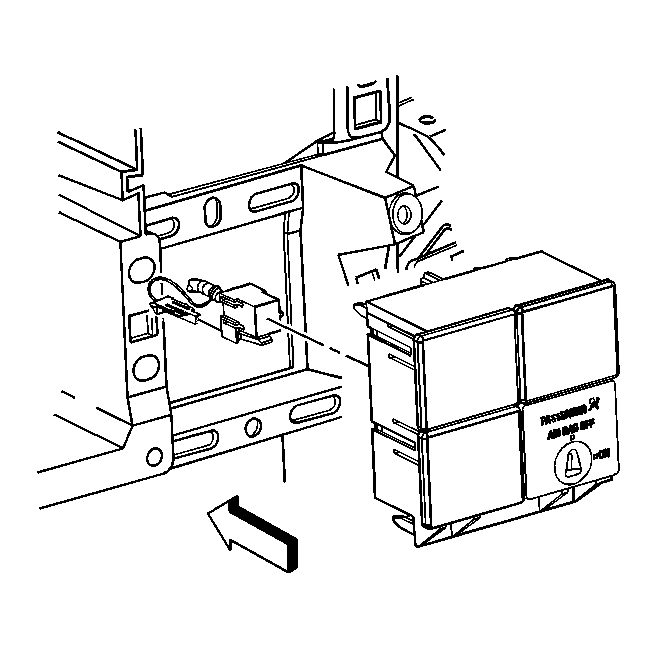

    2. Fig 1: I/P Module Switch
    GM412186Courtesy of GENERAL MOTORS CORP.
  2. Install the I/P module switch into the lower right opening of the switch plate panel.
  3. Install the instrument panel trim bezel. Refer to Bezel Replacement - Instrument Panel (I/P) Cluster in Instrument Panel, Gages and Console.
