Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Snap the jounce bumper to the mounting cup. Use the 4WD 15-series and, the 2WD 25/35-series supplies.

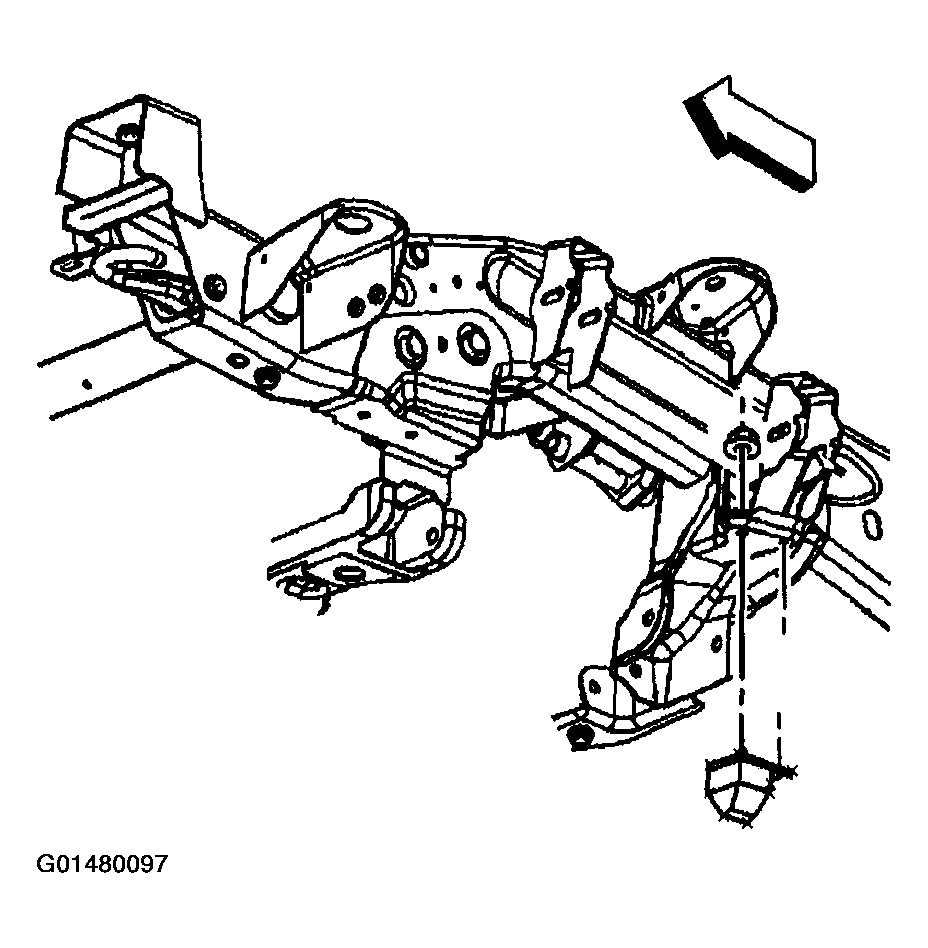

Fig 1: Snap Jounce Bumper To Mounting Cup
Courtesy of GENERAL MOTORS CORP.
Install the jounce bumper. Use the 4WD 15-series and, the 2WD 25/35-series supplies.
NOTE: Refer to FASTENER NOTICE .
Install the nut to the jounce bumper stud.
Tighten

Tighten the nut to 30 N.m (22 lb ft).
Remove the safety stands.
Lower the vehicle.

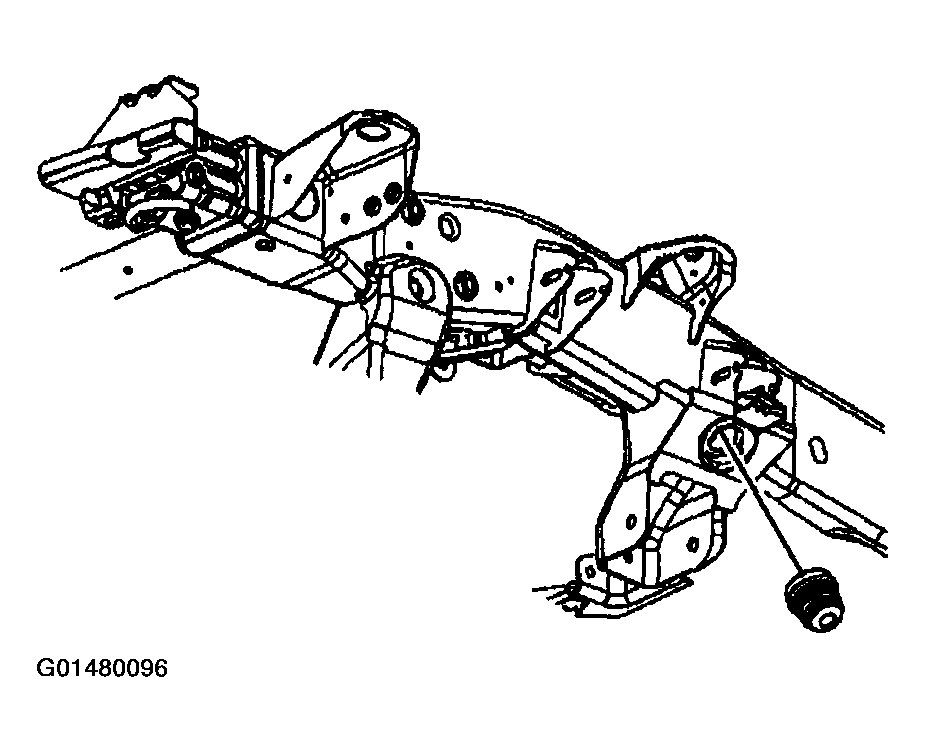

Fig 2: Install Nut To Jounce Bumper Stud

Courtesy of GENERAL MOTORS CORP.
