Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Remove the I/P cluster bezel. Refer to BEZEL REPLACEMENT-INSTRUMENT PANEL (I/P) CLUSTER .
Insert a flat bladed tool between the Bezel assembly and the console.
Pry the bezel from the console outwards partially in order to gain access to the connectors.
Disconnect the electrical connectors (1).
Remove the bezel from the console.
Remove the CD player from the console

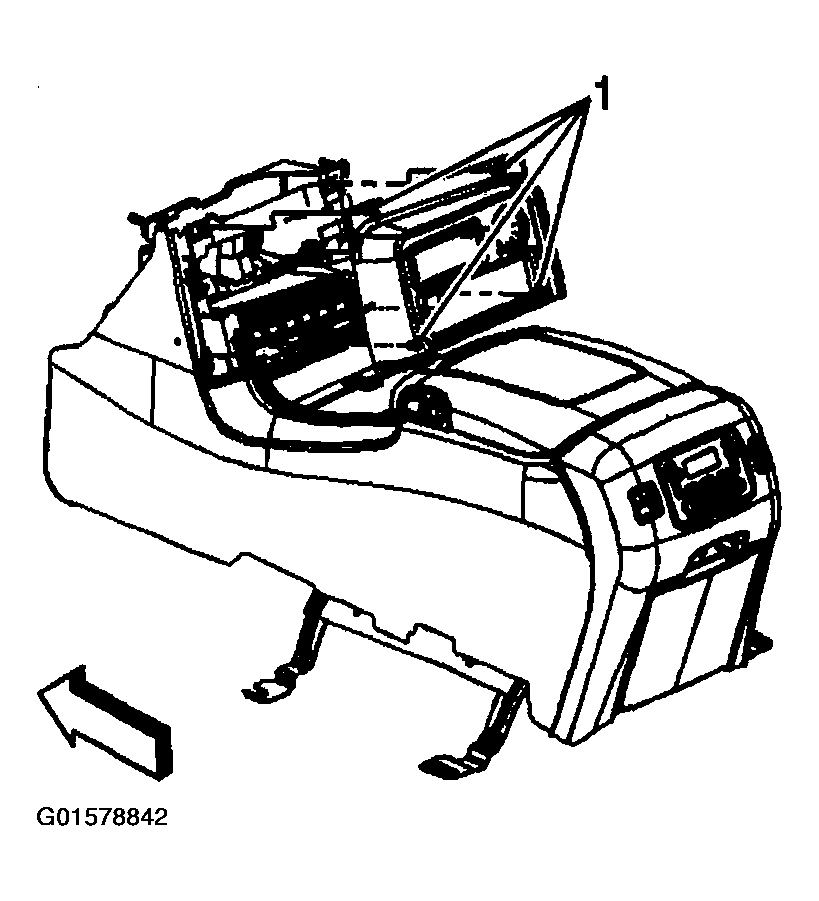

Fig 1: Remote CD Player
Courtesy of GENERAL MOTORS CORP.
