Starter Generator Control Module (SGCM) - C2

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

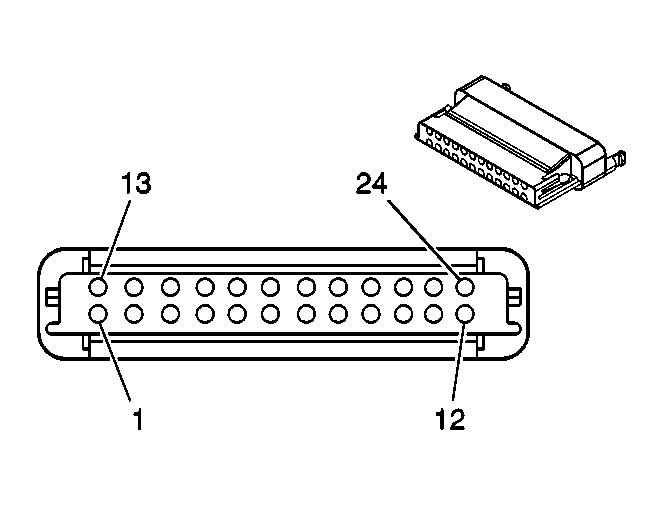

Fig 1: Starter Generator Control Module (SGCM) - C2 Connector End Views

Courtesy of GENERAL MOTORS CORP.

Starter Generator Control Module (SGCM) - C2 Connector Parts Information

Connector Part Information

OEM: 12129225
Service: See Catalog
Description: 24-Way F (GY)

Terminal Part Information

Terminal/Tray: 16-02-1110/20
Core/Insulation Crimp: H/H
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

Starter Generator Control Module (SGCM) - C2 Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	OG	1440	Battery Positive Voltage
2	D-BU	5094	Module Temperature Signal
3	PK	639	Run/Crank Ignition 1 Voltage
4	GY	7620	Resolver Motor Negative
5	WH	7619	Resolver Motor Positive
6	D-BU	1382	LED Dimming Signal/LED Dimming Supply
7	D-GN	1788	Traction Control Switch Signal
8	PU	1551	Ground
9	BN/OG	7437	Generator Control
10	-	-	Not Used
11	-	-	Not Used
12	OG	225	Generator Turn On Signal
13	TN	1705	Drain Wire
14	L-BU	5095	Module Temperature Low Reference
15	PU	5087	High Voltage Interlock Loop Signal
16	PU	5087	High Voltage Interlock Loop Signal
17	GY	1782	Drain Wire
18	-	-	Not Used
19	BN	9019	-
20	YE	7617	Resolver Signal #2
21	L-GN	7623	Hill Hold Valve #2 Control
22	BN	1792	Drain Wire
23	-	-	Not Used
24	-	-	Not Used
