Electronic Brake Control Module (EBCM)(10 Series)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

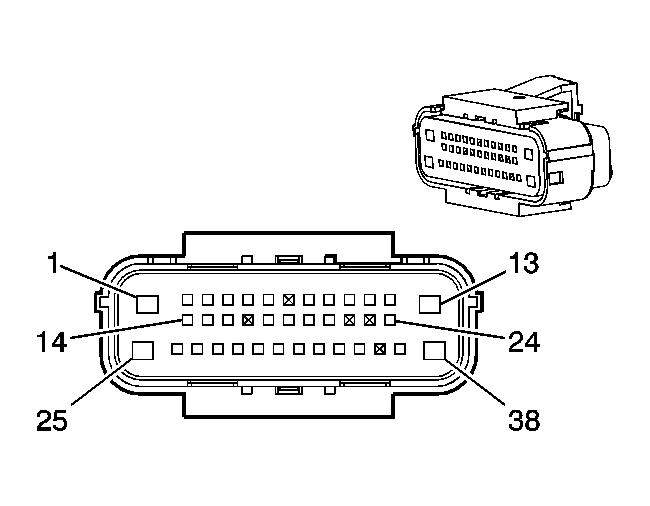

Fig 1: Electronic Brake Control Module (EBCM)(10 Series) Connector End View

Courtesy of GENERAL MOTORS CORP.

Electronic Brake Control Module (EBCM)(10 Series) Connector Parts Information

Connector Part Information

OEM: 13531176
Service: 19115671
Description: 38-Way F Receptacle 0.64 2.8 Series, Sealed (BK)

Terminal Part Information

Pins: 1, 13, 25, 38
Terminal/Tray: 15304720/19
Core/Insulation Crimp: 4/5
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Pins: 2-12, 14-24, 26-37
Terminal/Tray: 15304719/19
Core/Insulation Crimp: E/5
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Electronic Brake Control Module (EBCM)(10 Series) Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	RD/BK	442	Battery Positive Voltage
2	GY	6044	Steering Angle Sensor 5-Volt Reference
3	TN/BK	7334	Active Booster Solenoid Control Low
4	L-GN	6043	Steering Angle Sensor Signal
5	-	-	Not Used
6	D-GN	872	Right Front Wheel Speed Sensor Signal
7	-	-	Not Used
8	YE	6046	Steering Angle Sensor Phase A
9	GY	6044	Steering Angle Sensor 5-Volt Reference
10	OG	6030	Brake Vacuum Sensor Signal
11	D-GN/WH	817	Vehicle Speed Signal
12	OG/BK	6045	Steering Angle Sensor Low Reference
13	BK	2150	Ground
14	YE	2501	High Speed GMLAN Serial Data Bus-
15	TN	2501	High Speed GMLAN Serial Data Bus-
16	PU/WH	7333	Active Booster Solenoid Control High
17	-	-	Not Used
18	GY/WH	7065	Wheel Speed Sensor Supply Voltage Right Front
19	GY/BK	7128	Wheel Speed Sensor Supply Voltage Right Rear
20	TN	884	Left Rear Wheel Speed Sensor Signal
21	GY/WH	7064	Wheel Speed Sensor Supply Voltage Left Front
22-23	-	-	Not Used
24	L-GN/BK	6432	CAN Bus Low Serial Data
25	RD	1640	Battery Positive Voltage
26	YE/BK	2500	High Speed GMLAN Serial Data Bus+
27	TN/BK	2500	High Speed GMLAN Serial Data Bus+
28	YE/BK	6032	Brake Vacuum Sensor Low Reference
29	D-BU	6047	Steering Angle Sensor Phase B
30	TN	6048	Steering Angle Sensor Phase C
31	BN	882	Right Rear Wheel Speed Sensor Signal
32	D-GN	2087	Steering Wheel Position Sensor 5-Volt Reference
33	GY/BK	7127	Wheel Speed Sensor Supply Voltage Left Rear
34	L-BU/BK	830	Left Front Wheel Speed Sensor Signal
35	L-BU	5986	Serial Data Communication Enable
36	-	-	Not Used
37	TN/WH	6433	CAN Bus High Serial Data
38	BK	2150	Ground
