Object Detection Wiring Schematics

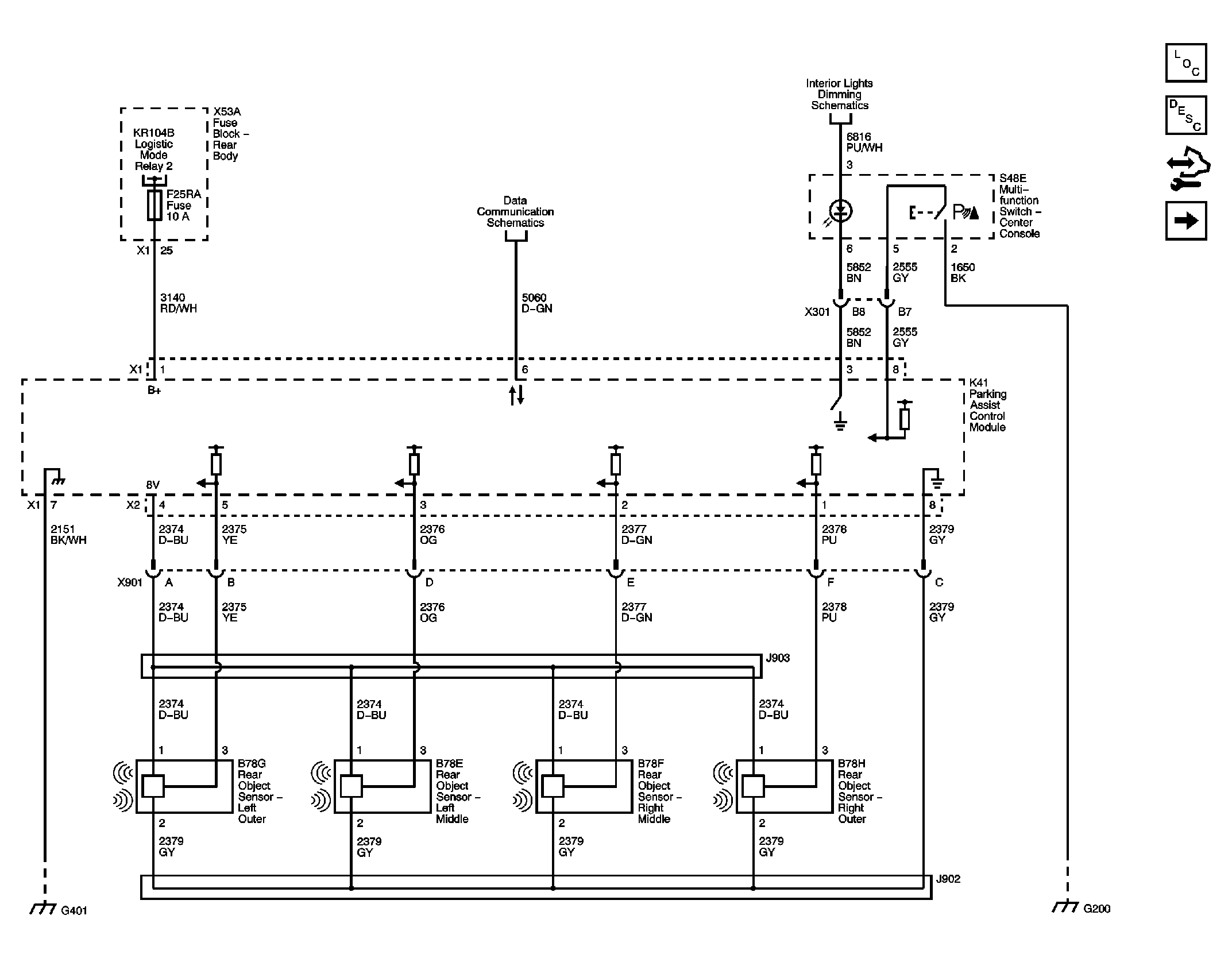

Fig 1: Power, Ground, and Rear Sensors Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

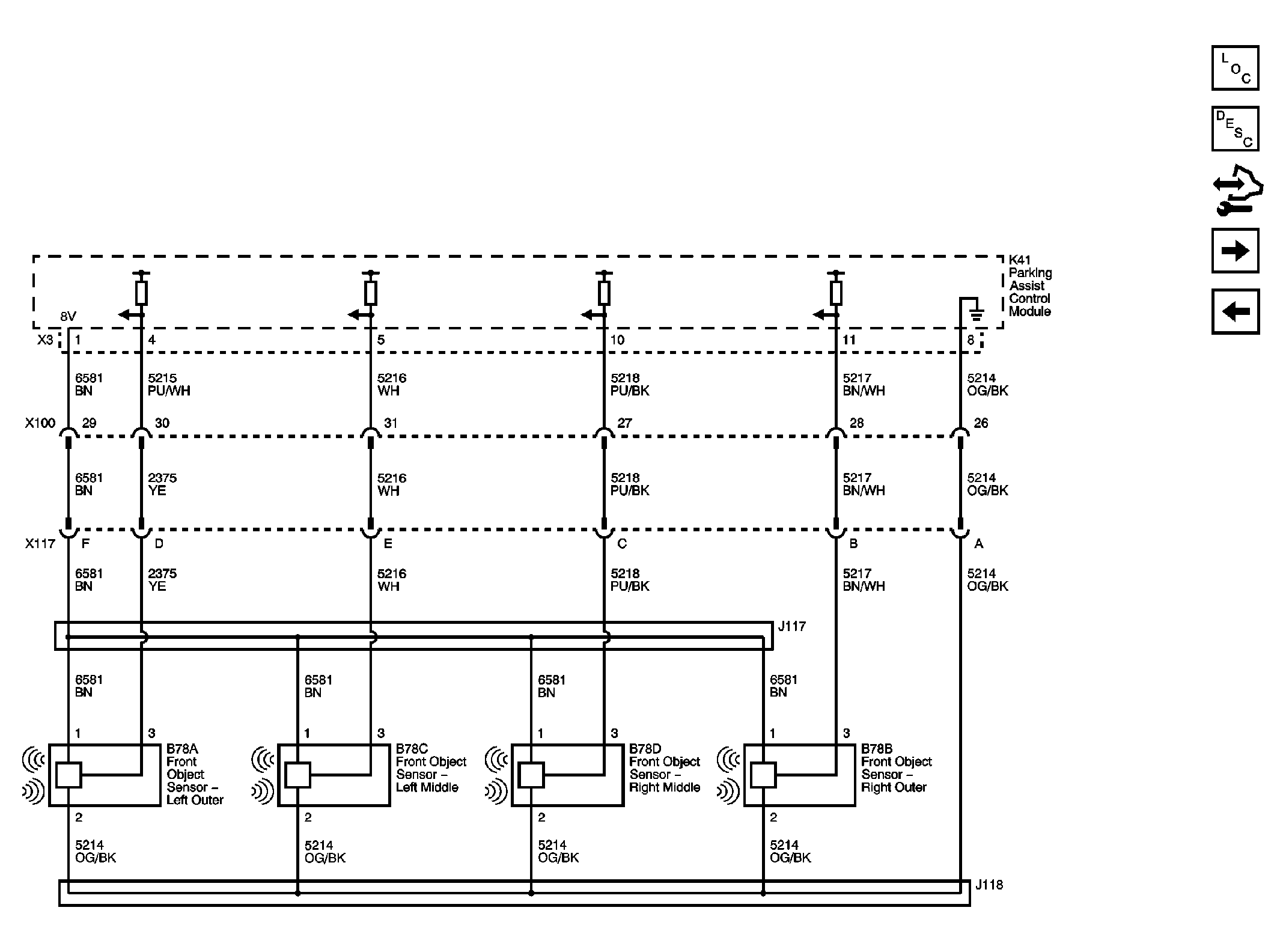

Fig 2: Front Sensors Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

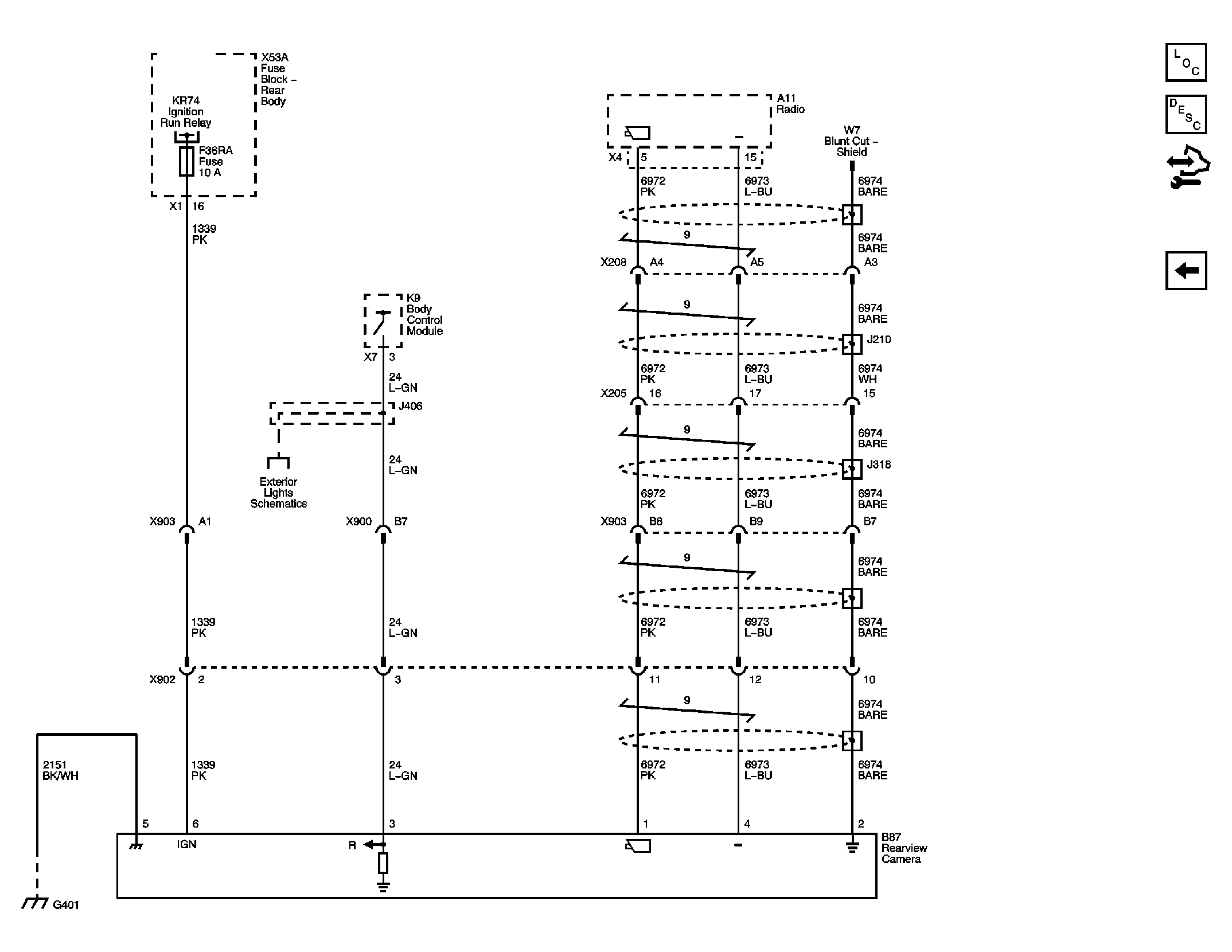

Fig 3: Rear Vision Camera Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
