Oxygen Sensor: Diagrams




Component Connector End Views

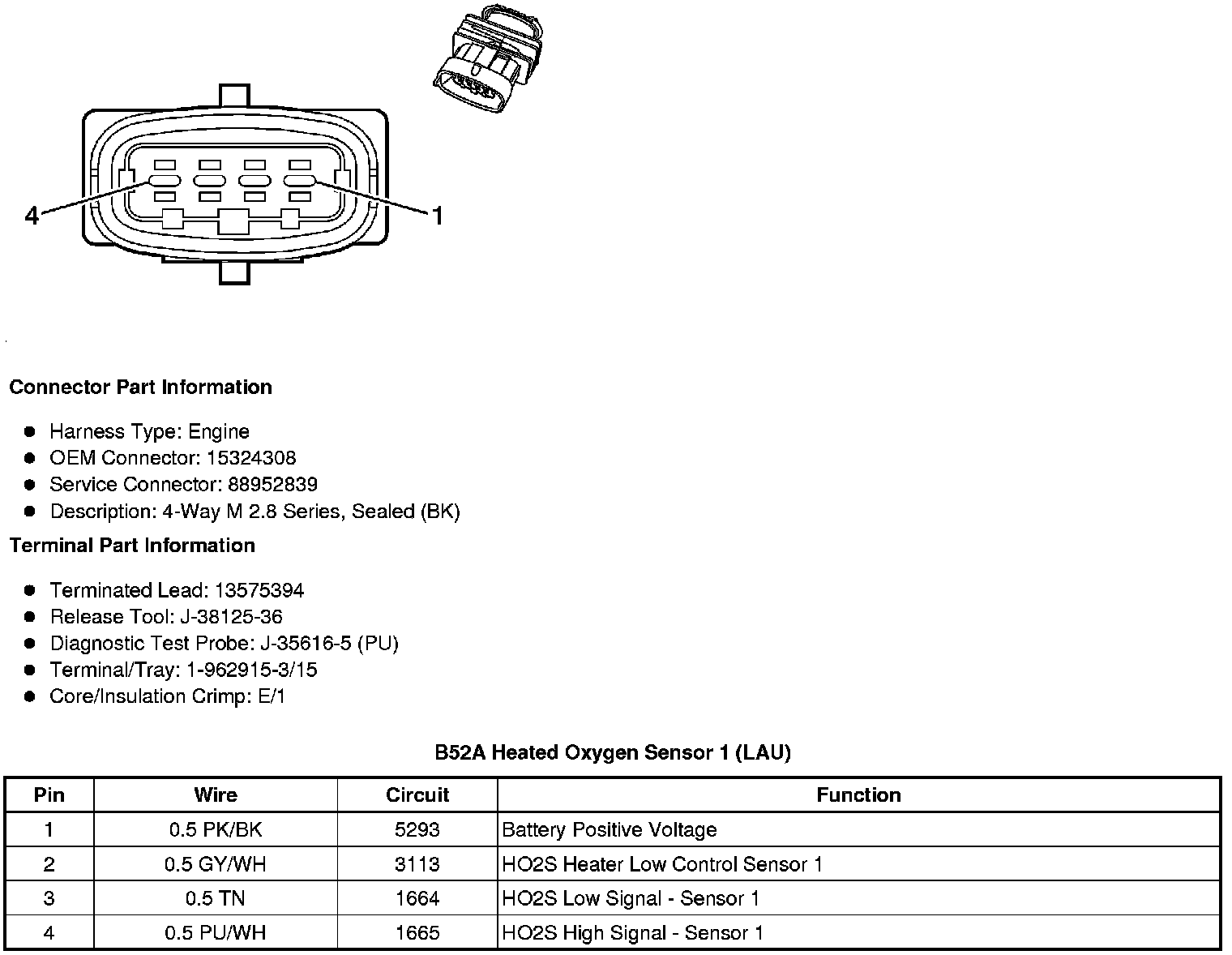

B52A Heated Oxygen Sensor 1 (LAU)

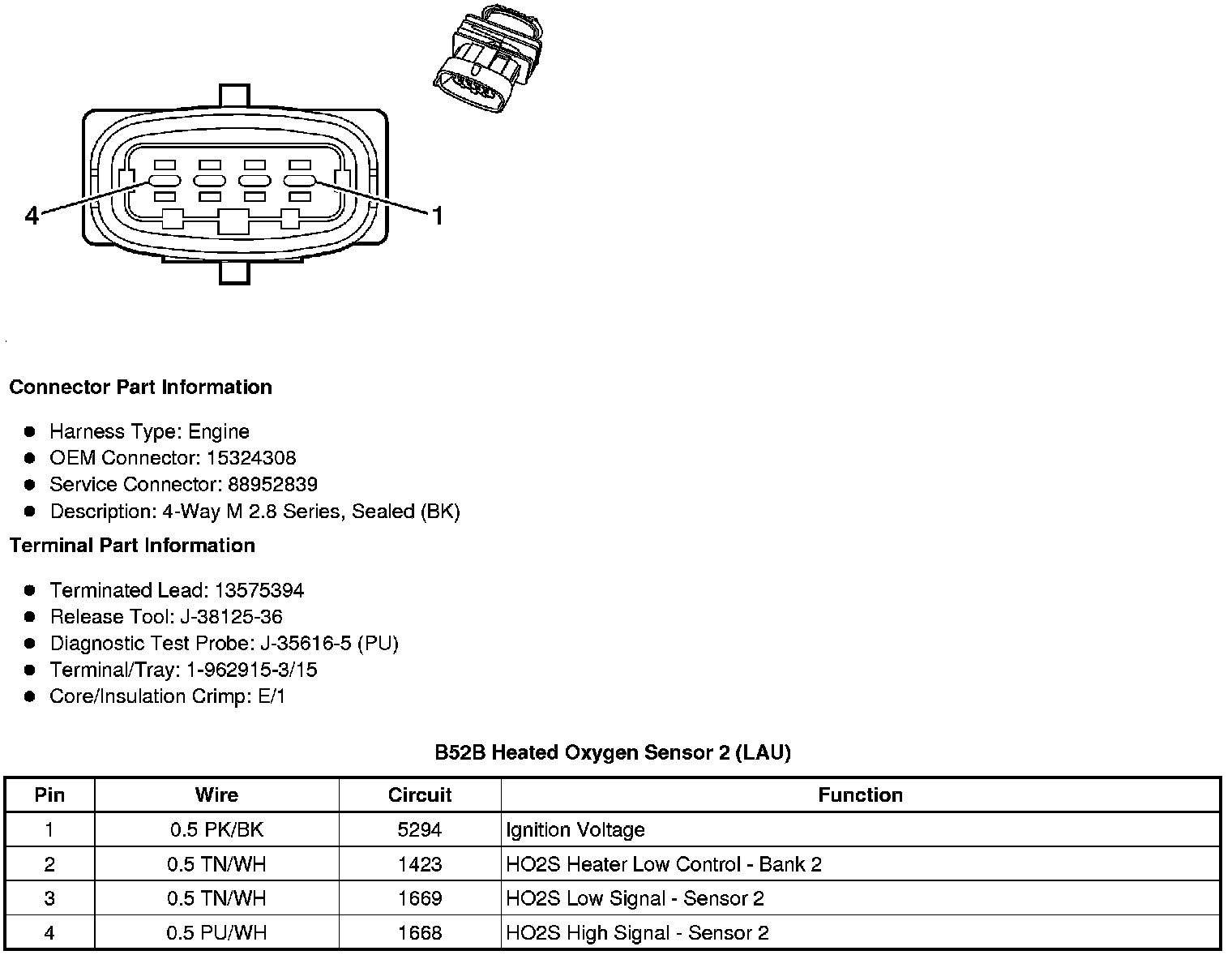

B52B Heated Oxygen Sensor 2 (LAU)
