Manifold Pressure/Vacuum Sensor: Diagrams




Component Connector End Views

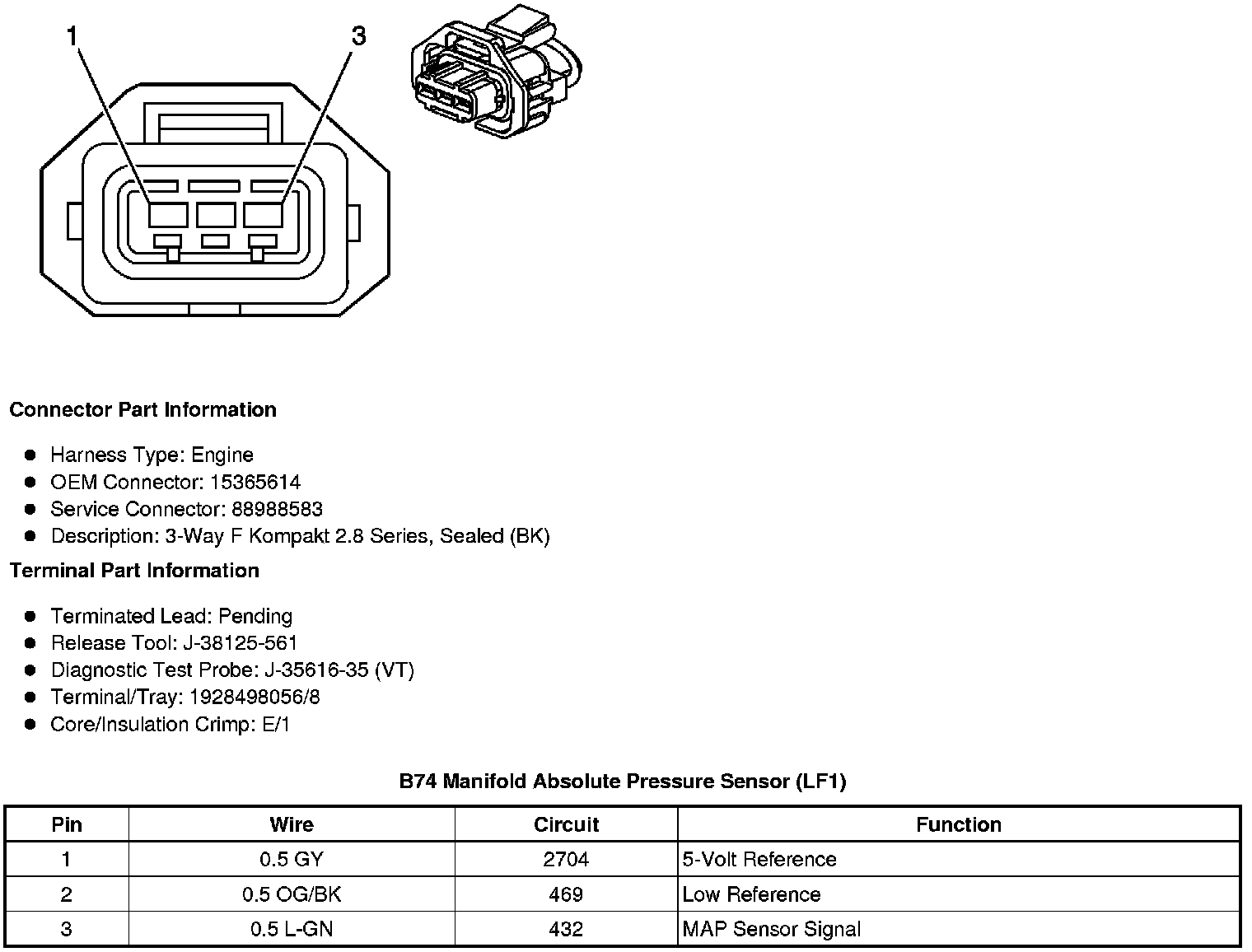

B74 Manifold Absolute Pressure Sensor (LF1)





B192 Throttle Inlet Absolute Pressure Sensor (LF1)
