Power Seat Motor Position Sensor




Component Connector End Views

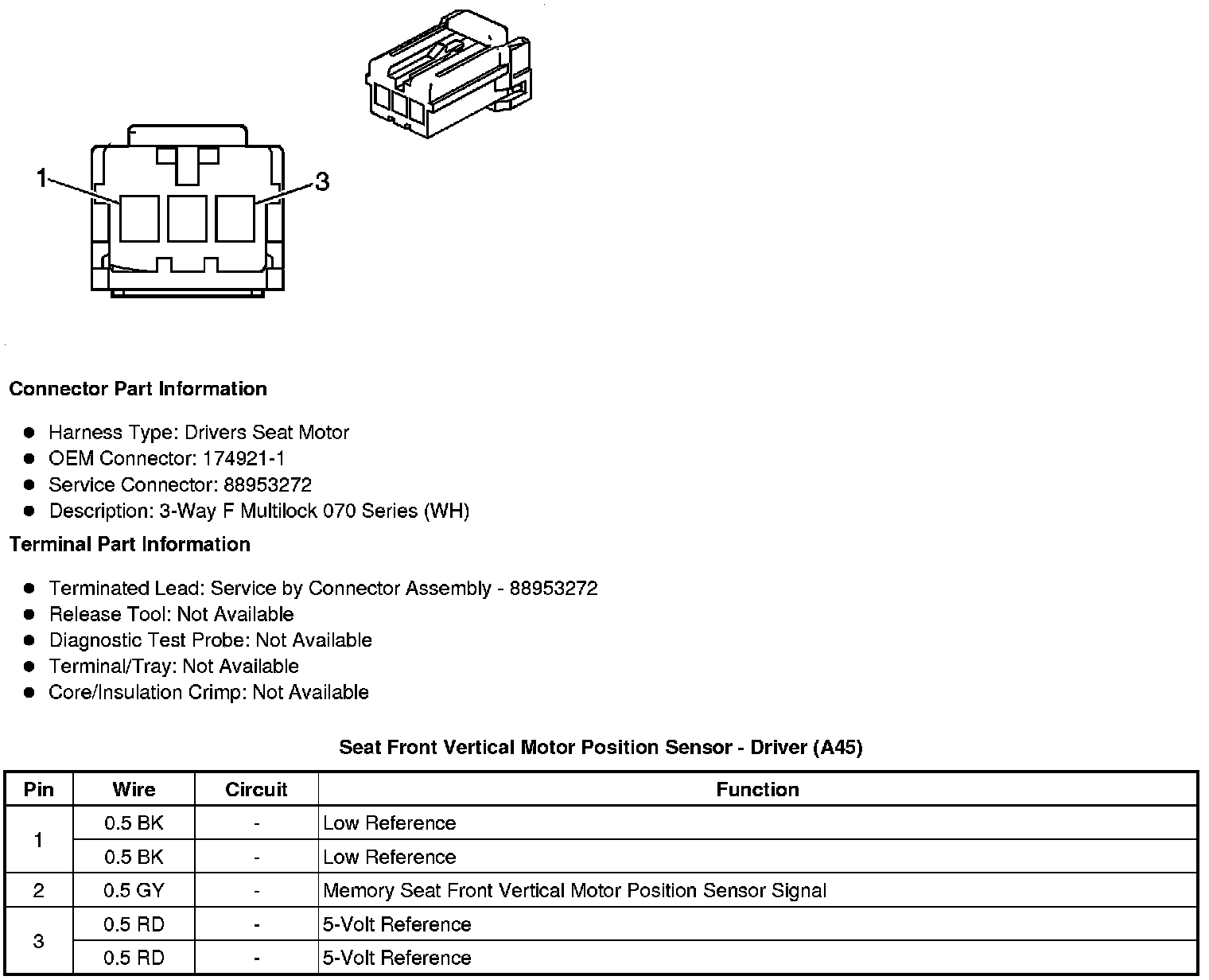

Seat Front Vertical Motor Position Sensor - Driver (A45)

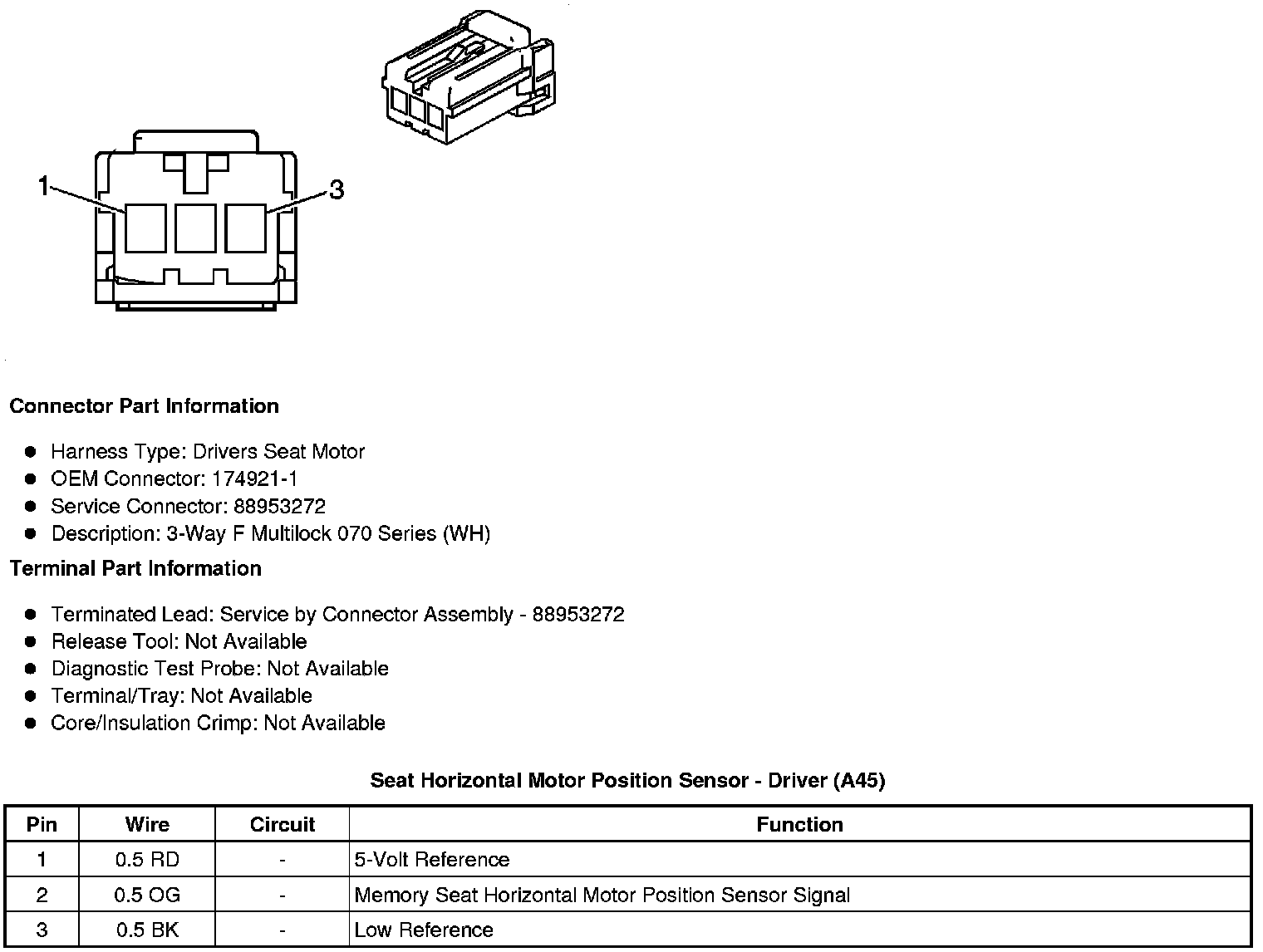

Seat Horizontal Motor Position Sensor - Driver (A45)

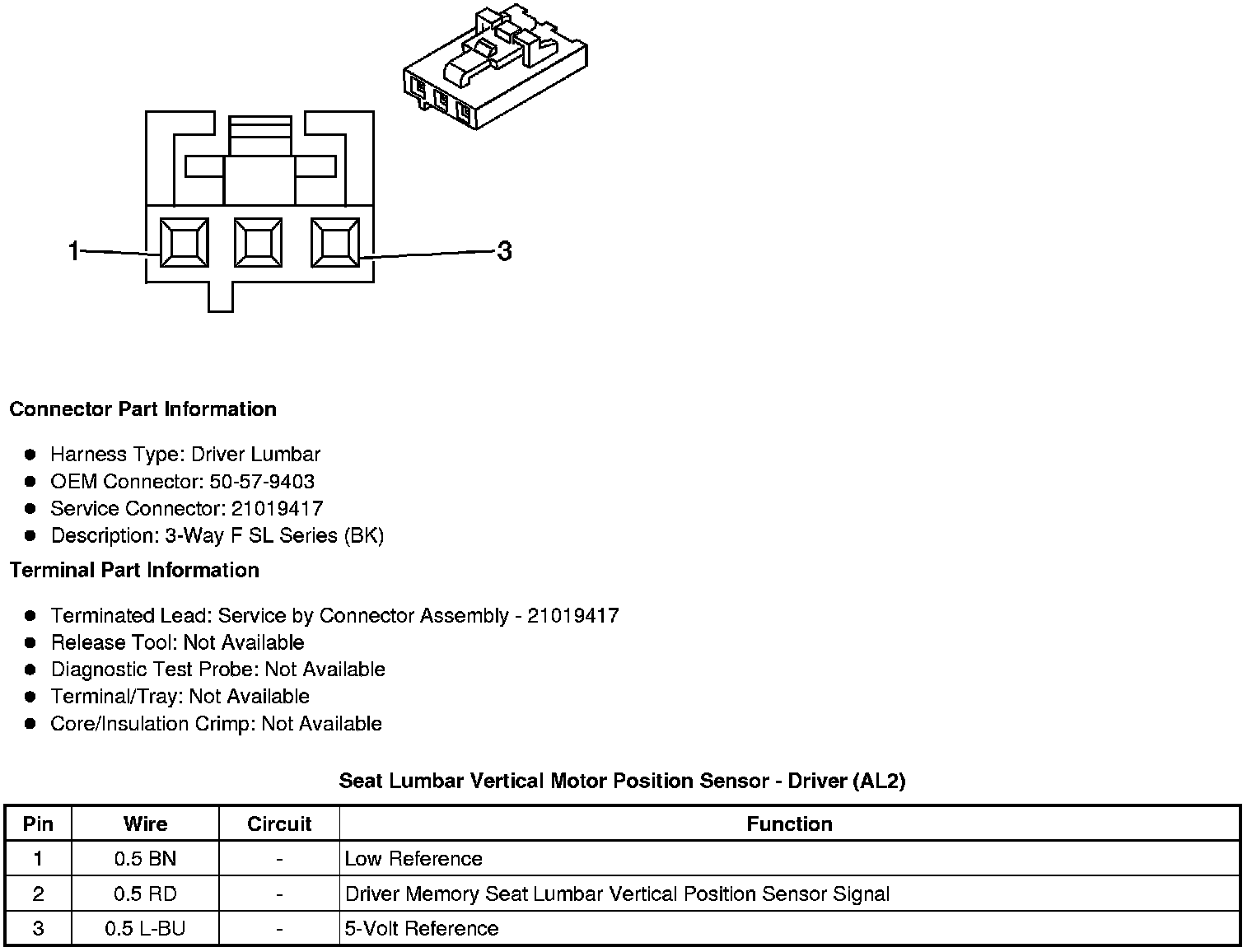

Seat Lumbar Vertical Motor Position Sensor - Driver (AL2)

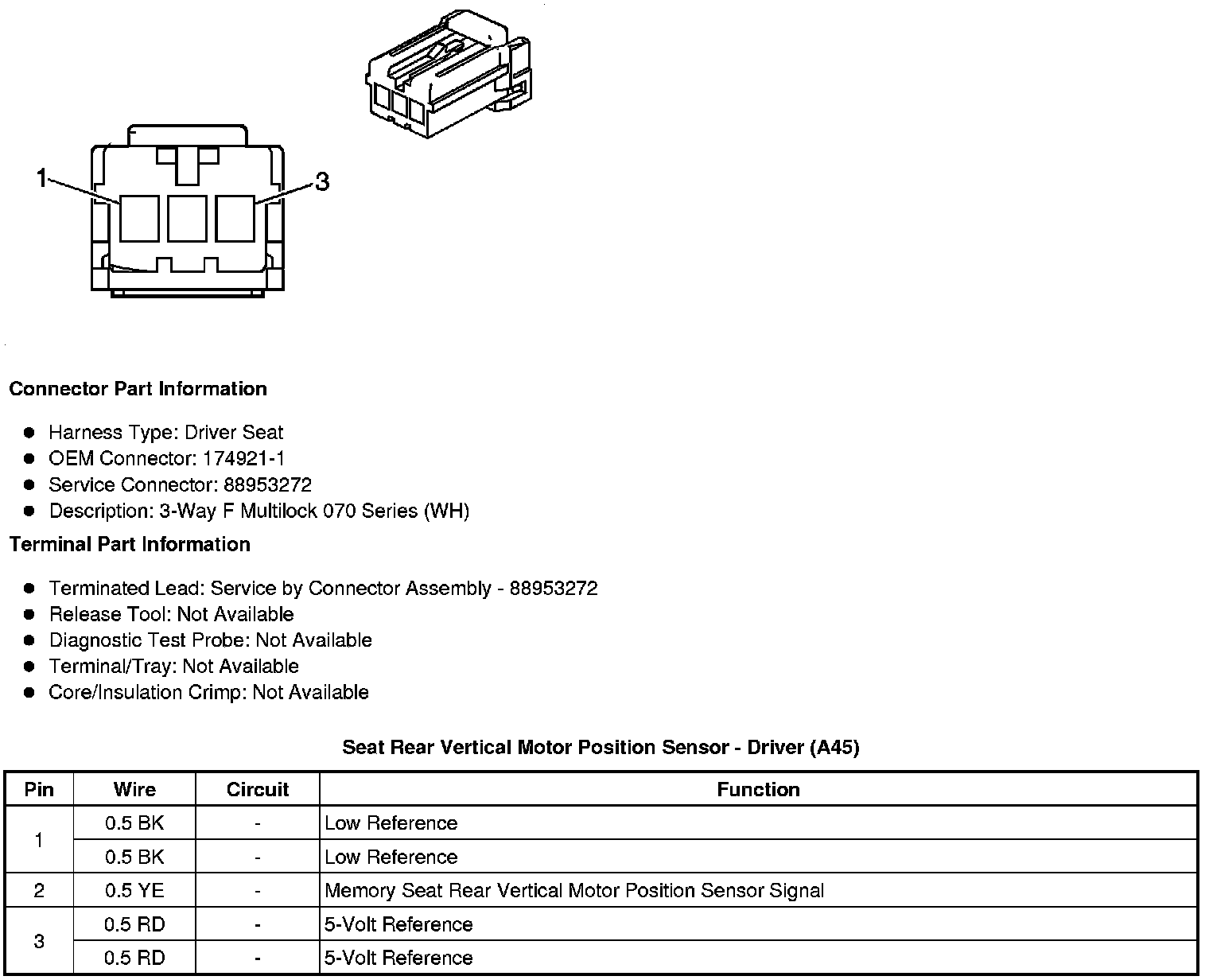

Seat Rear Vertical Motor Position Sensor - Driver (A45)

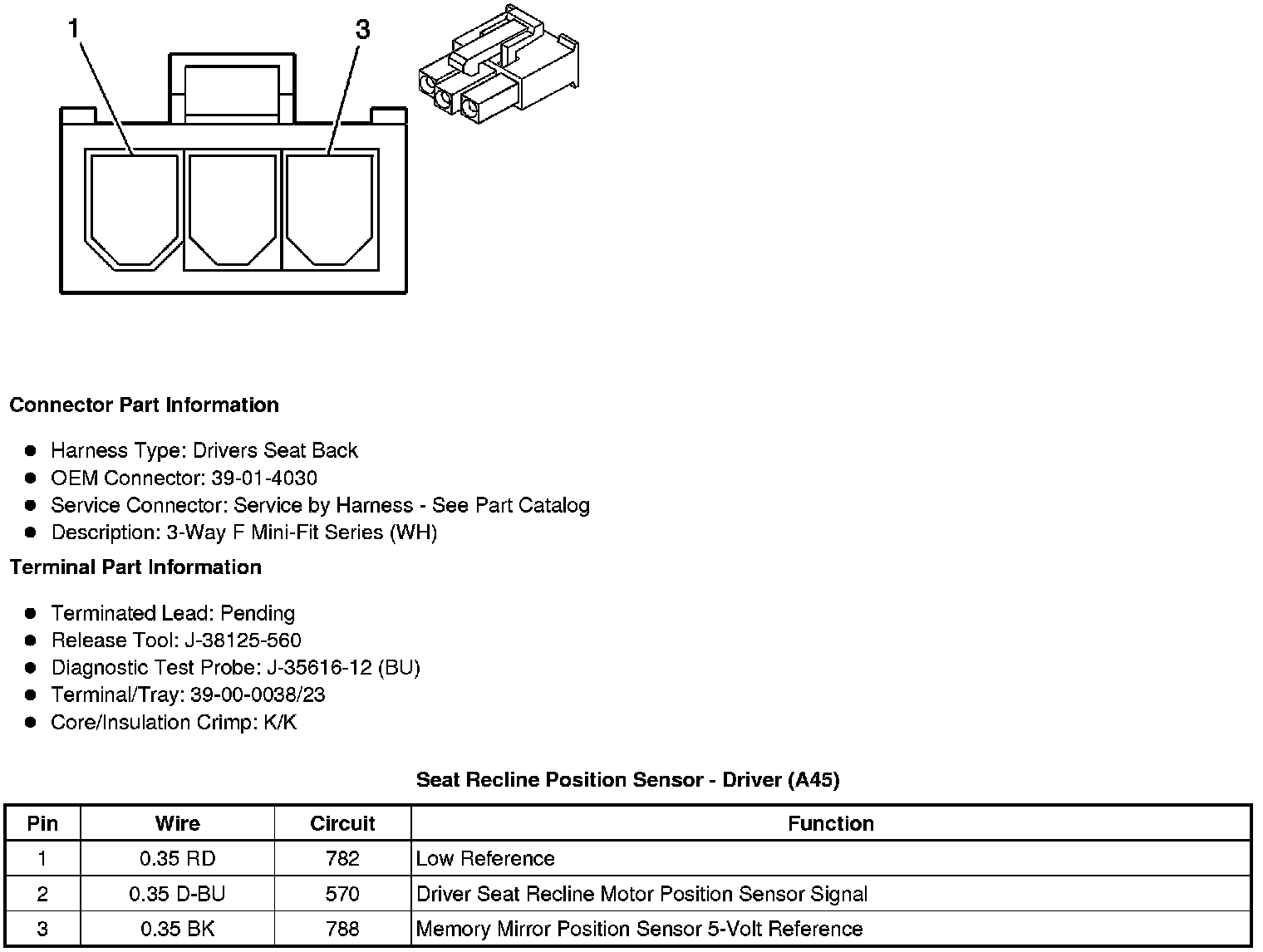

Seat Recline Position Sensor - Driver (A45)
