Steering Control Module




Component Connector End Views

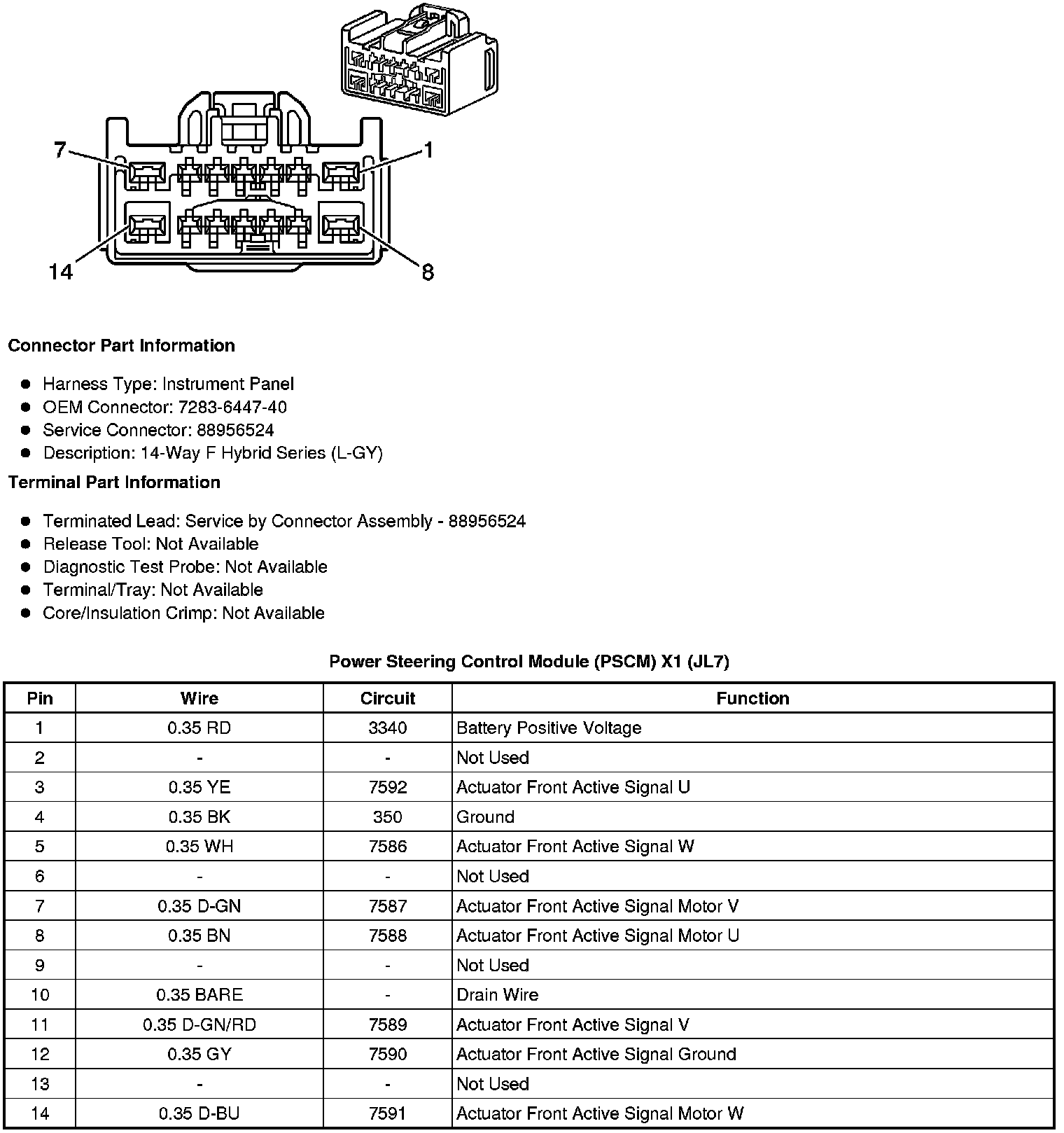

Power Steering Control Module (PSCM) X1 (JL7)

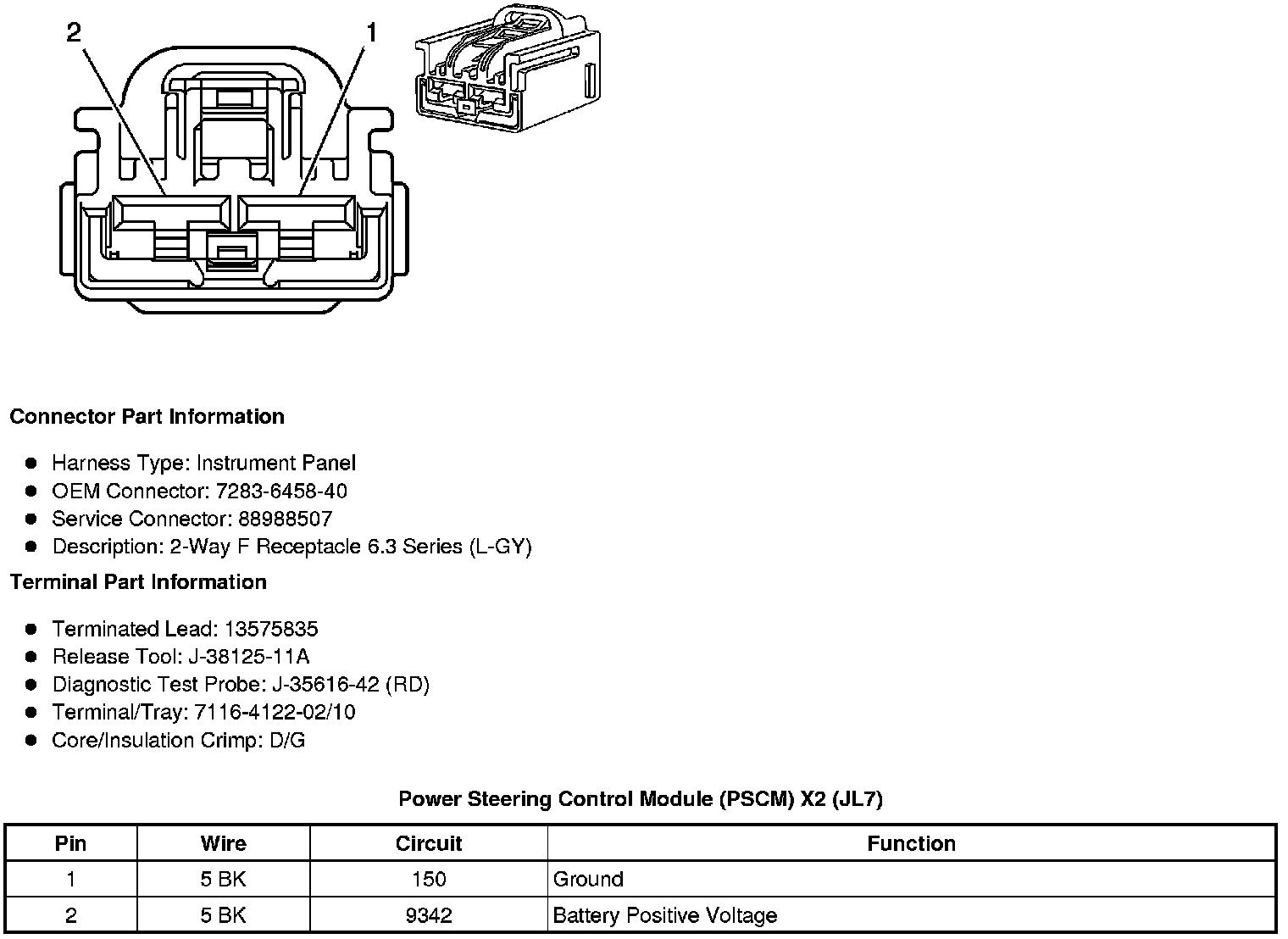

Power Steering Control Module (PSCM) X2 (JL7)

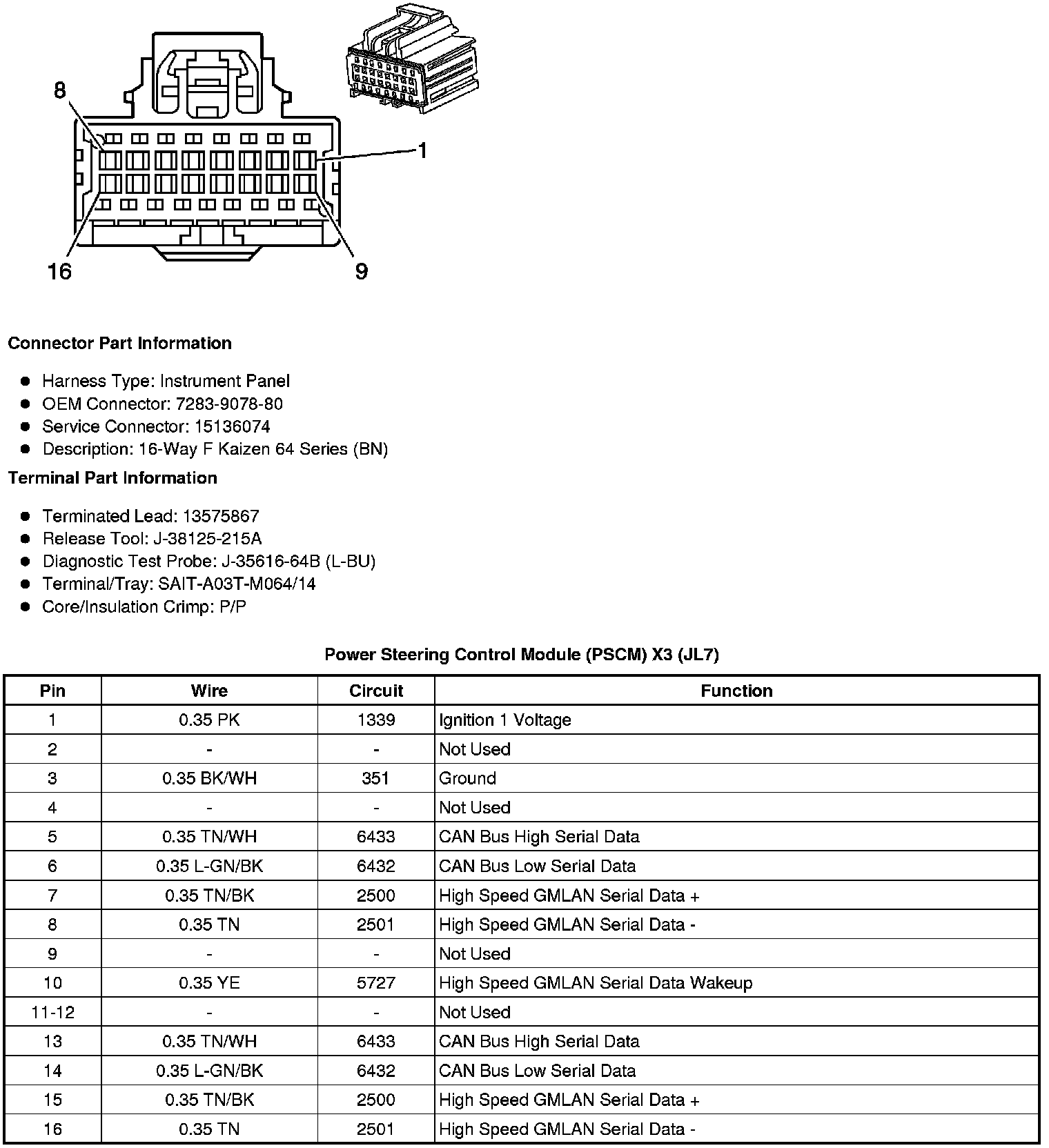

Power Steering Control Module (PSCM) X3 (JL7)
