Television / Monitor




Component Connector End Views

Digital Video Disc (DVD) Display - Driver Seat Headrest X1 (SPO Accessory)





Digital Video Disc (DVD) Display - Driver Seat Headrest X2 (SPO Accessory)

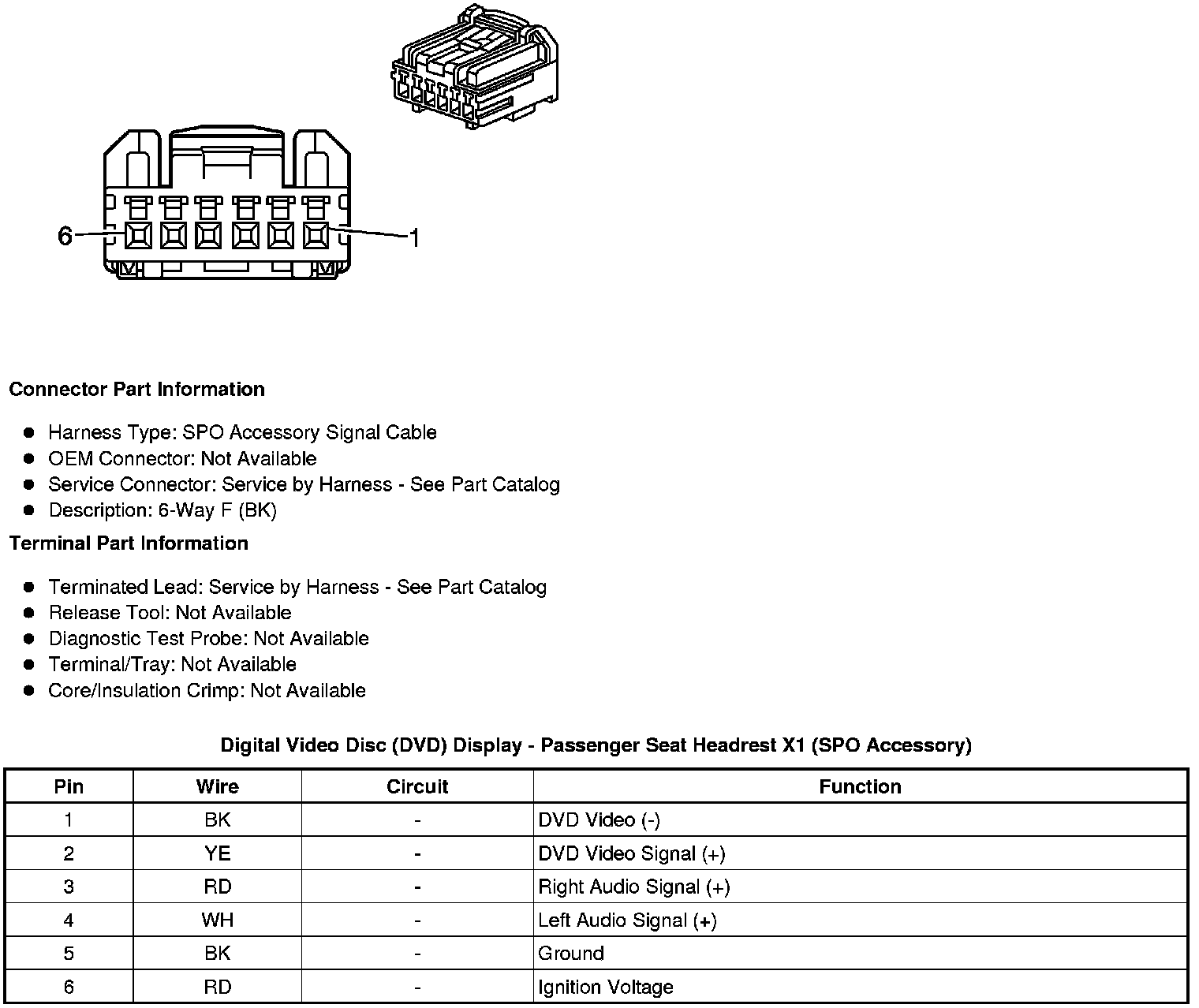

Digital Video Disc (DVD) Display - Passenger Seat Headrest X1 (SPO Accessory)

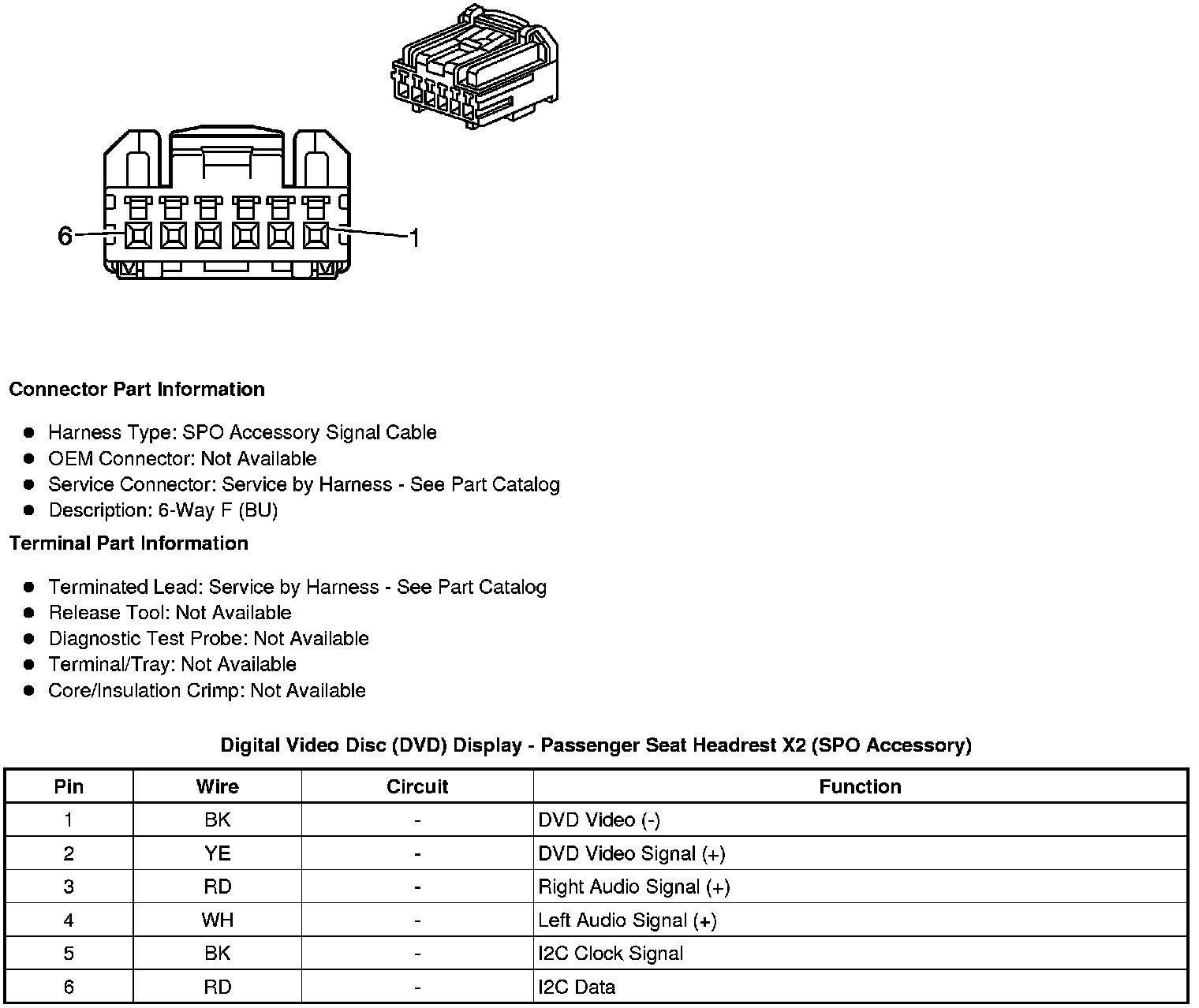

Digital Video Disc (DVD) Display - Passenger Seat Headrest X2 (SPO Accessory)
