Body Control Systems




Body Control System Schematics

IPM Power, Ground and DLC

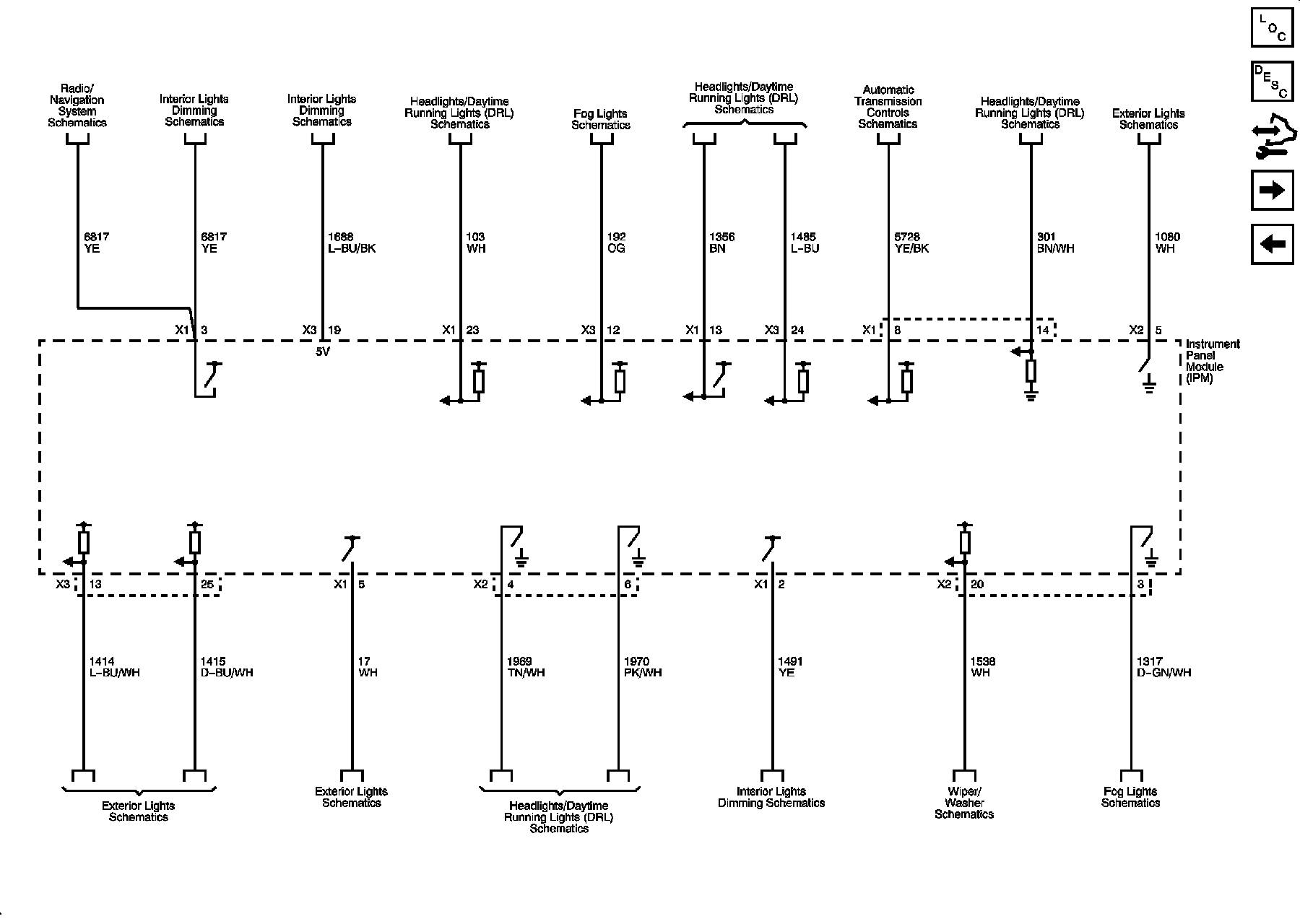

IPM Input and Outputs (1 of 3)

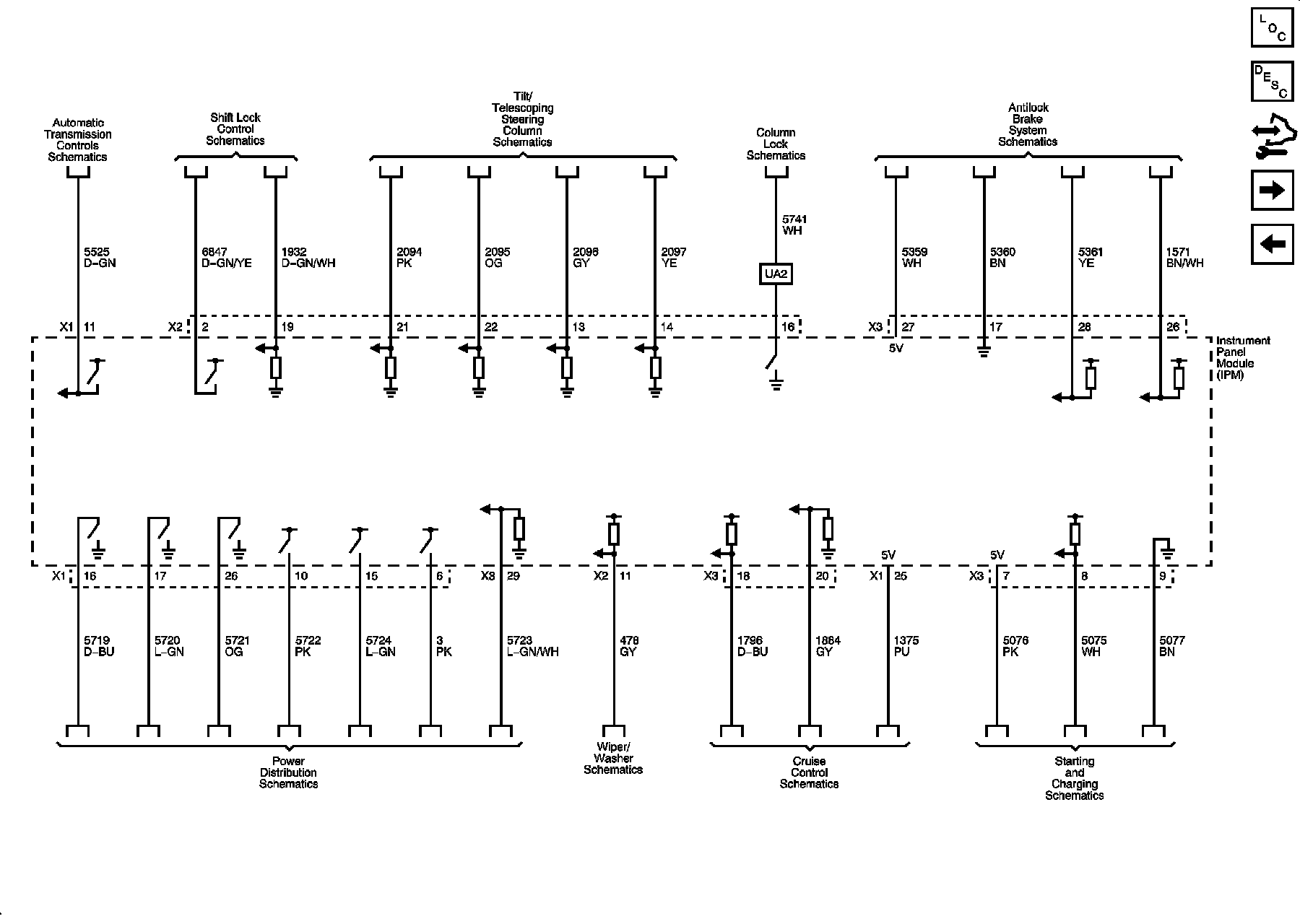

IPM Input and Outputs (2 of 3)





IPM Input and Outputs (3 of 3)





RIM Power, Ground and DLC

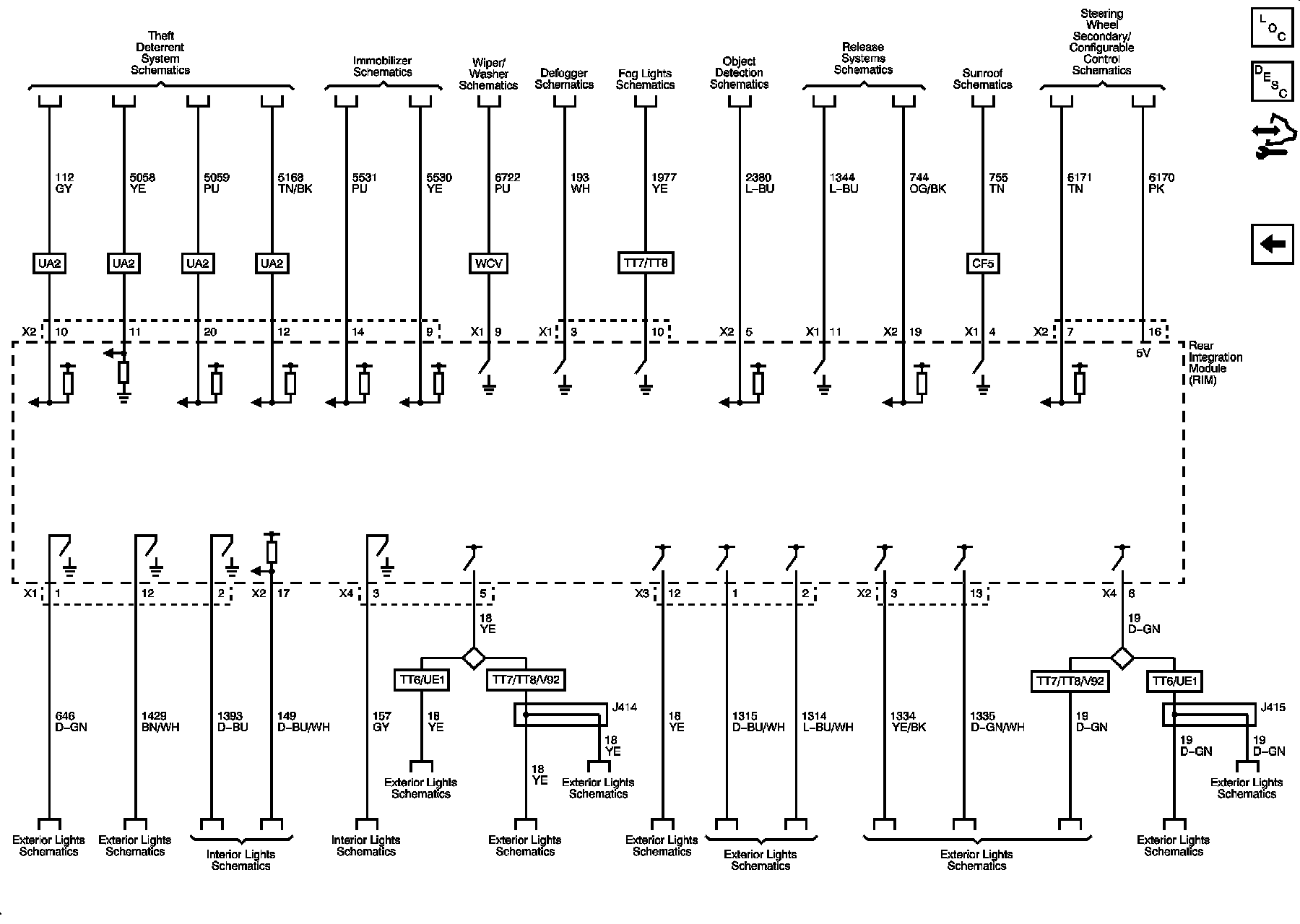

RIM Inputs and Outputs
