Battery Tray: Service and Repair

Battery Tray Replacement

Removal Procedure

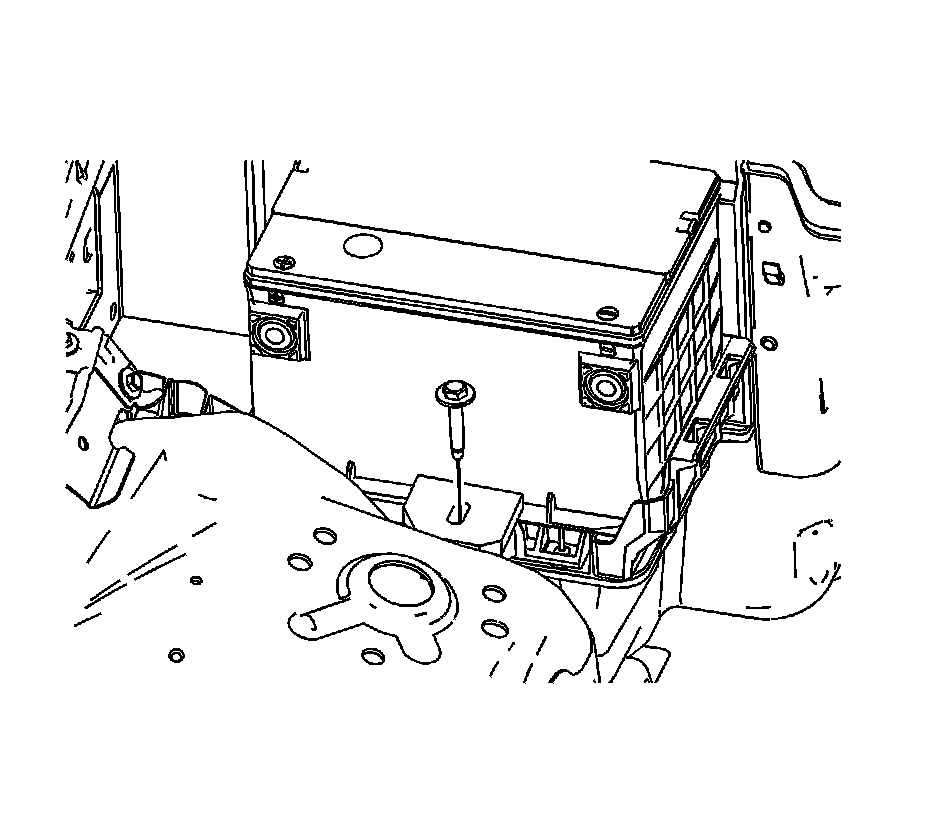

1. Remove the battery from the vehicle. Refer to Battery Replacement (Side Post) (Battery Replacement (Side Post))Battery Replacement (Top Post) (Battery Replacement (Top Post)).

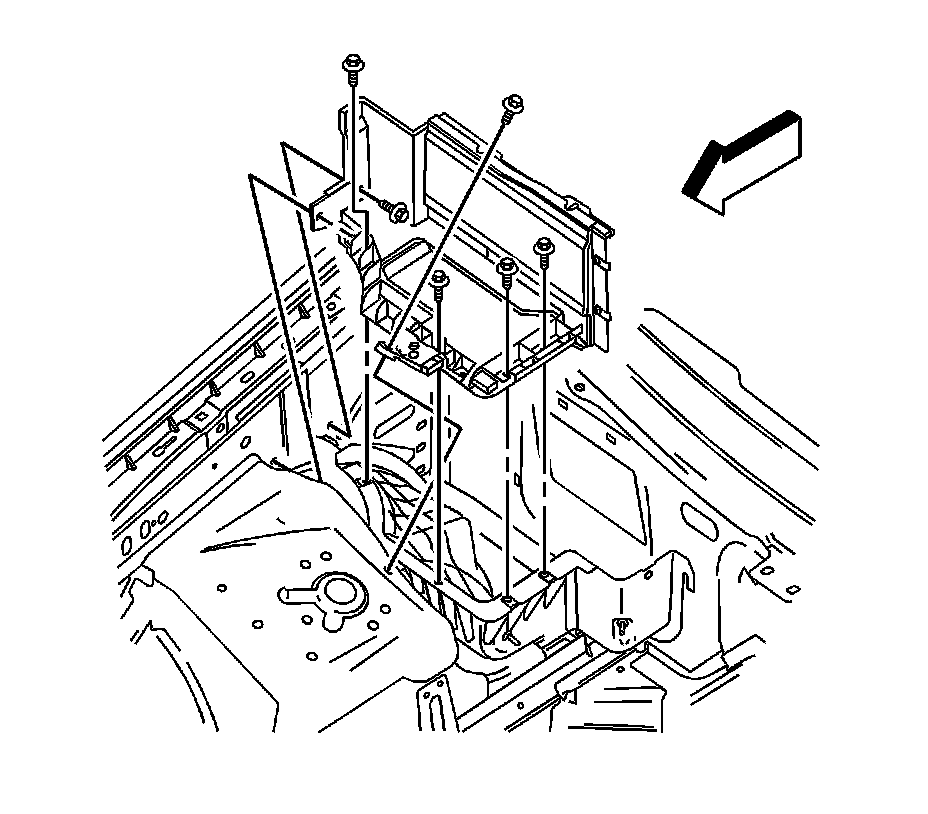

2. Remove the bolts from the battery tray.
3. Remove the battery tray from the vehicle.

Installation Procedure




1. Install the battery tray into the vehicle.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the battery tray bolts and tighten to 6 Nm (53 lb in).




3. Install the battery into the vehicle. Refer to Battery Replacement (Side Post) (Battery Replacement (Side Post))Battery Replacement (Top Post) (Battery Replacement (Top Post)).
