Installation Procedure

    Fig 1: Identifying BPMV & EBCM
    GM1906543Courtesy of GENERAL MOTORS COMPANY
  1. Clean the sealing surfaces of the BPMV and the EBCM.
  2. Install the EBCM (1) to the BPMV.
    3. Fig 2: View of EBCM Electrical Connector and Screws
    GM1906542Courtesy of GENERAL MOTORS COMPANY
  3. Install the EBCM screws (1).

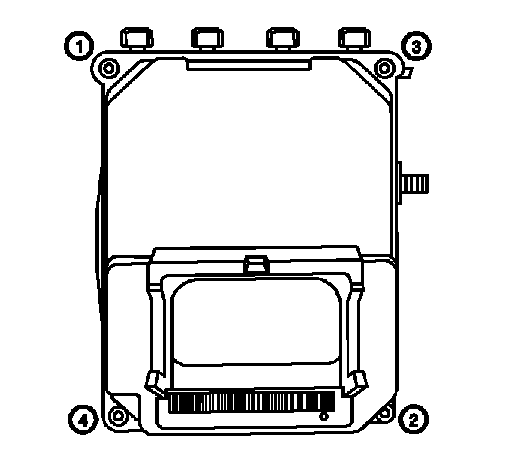

    4. Fig 3: Identifying EBCM Screw Tightening Sequence
    GM782378Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  4. Tighten the EBCM screws in the sequence shown (1-4) to 3 N.m (26 lb in).
  5. Connect the EBCM electrical connector.
  6. Position the washer solvent container and install the fasteners. Refer to Windshield Washer Solvent Container Replacement (With CE4) , Windshield Washer Solvent Container Replacement (Without CE4) .
  7. Install the front air deflector shield. Refer to Front Air Deflector Replacement .
  8. Lower the vehicle.
  9. If installing a new EBCM, program the EBCM. Refer to Control Module References .
  10. Perform the Diagnostic System Check - Vehicle .
