Door Control Module Schematics




Door Control Module Schematics

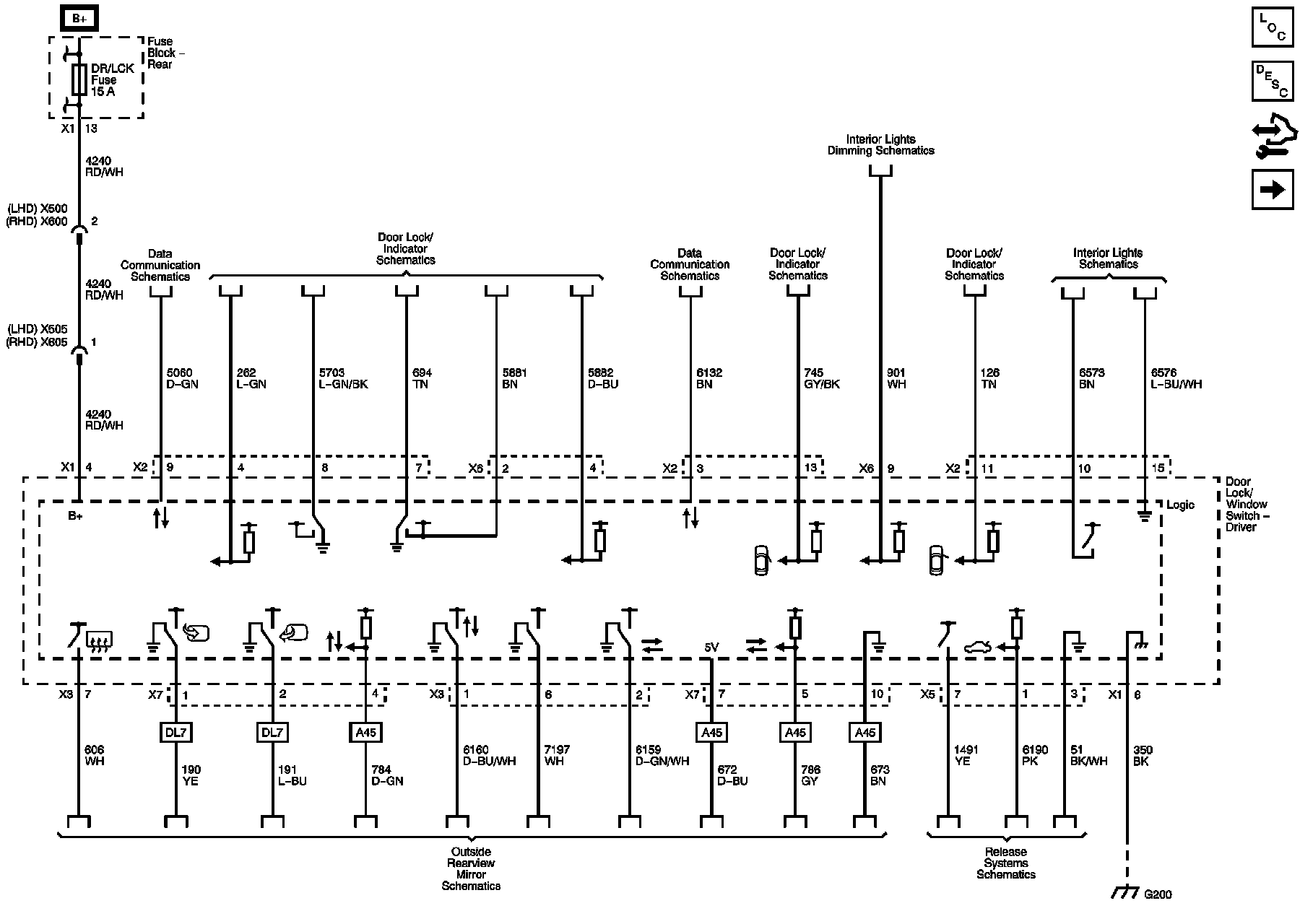

Driver Door Module (1 of 2)





Driver Door Module (2 of 2)

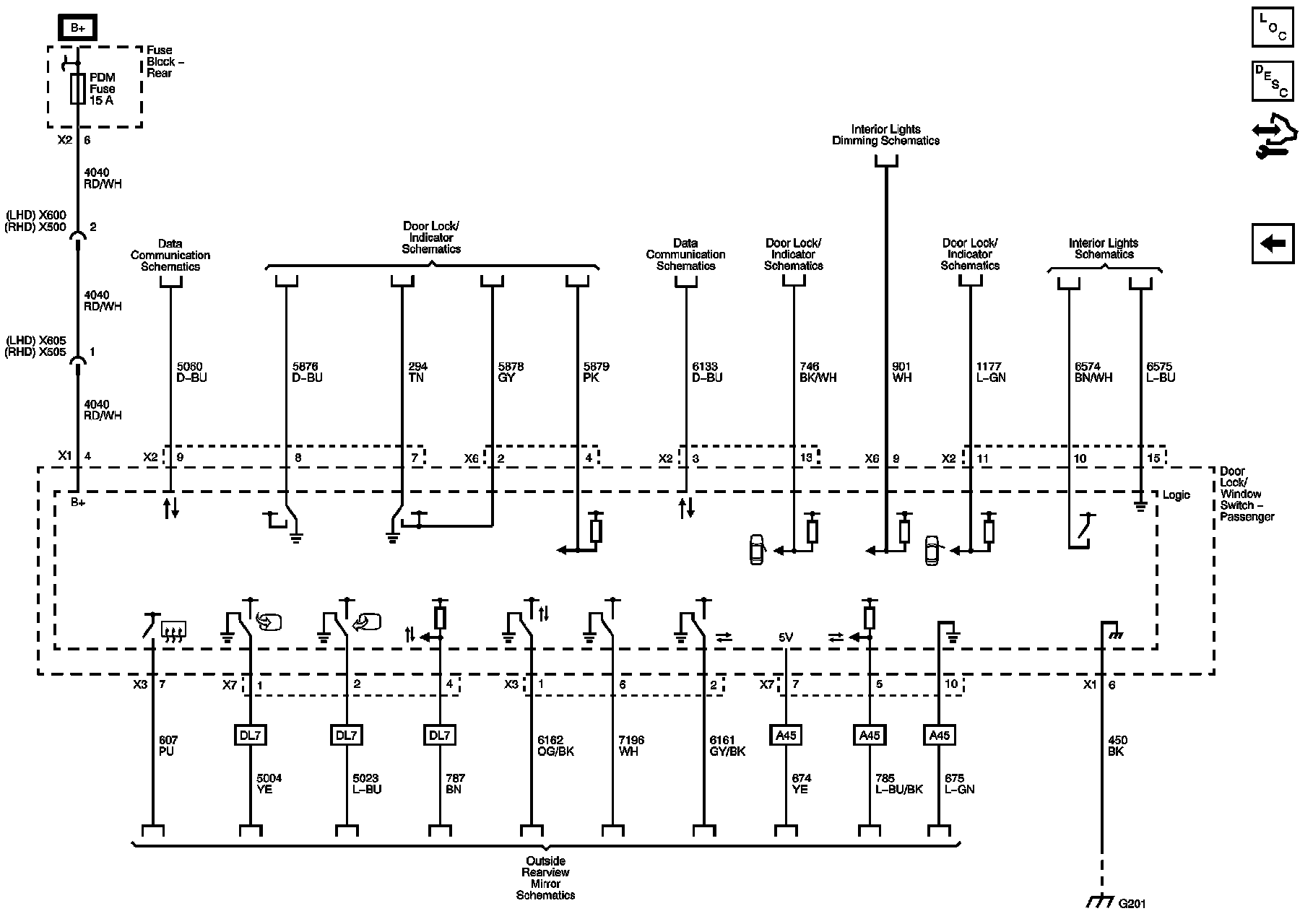

Front Passenger Door Module
