Manifold Pressure/Vacuum Sensor: Locations

Powertrain Component Views

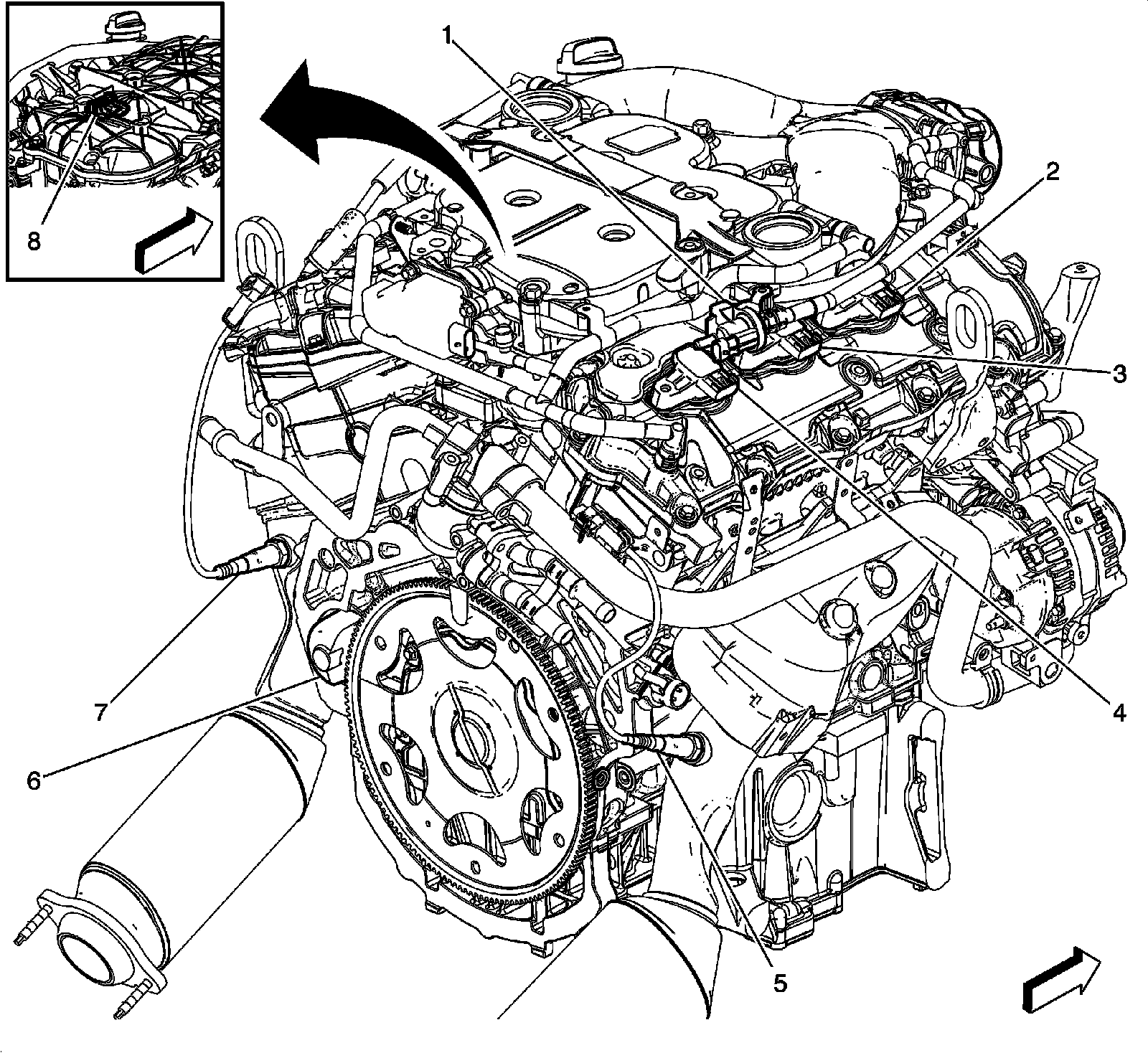

Engine Components - Right Rear (LFW or LFX)




1 - Evaporative Emissions (EVAP) Canister Purge Solenoid Valve
2 - Ignition Coil 1
3 - Ignition Coil 3
4 - Ignition Coil 5
5 - Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1
6 - Starter Motor
7 - Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1
8 - Manifold Absolute Pressure (MAP) Sensor (LF1)
