Window Switch - Driver

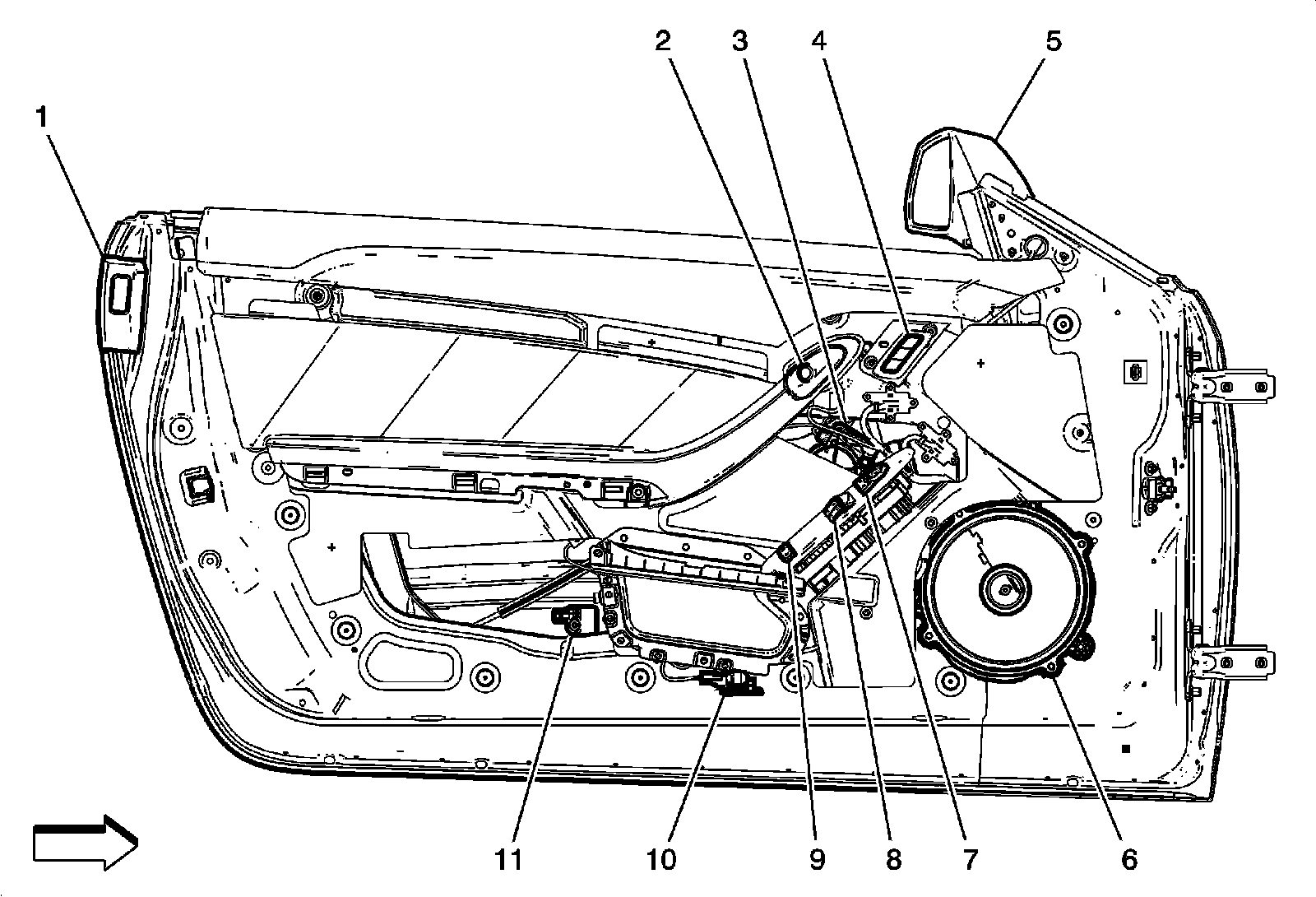

Door Component Views

Drive Door Components (Coupe)




1 - Door Handle Switch - Driver
2 - Door Latch Release Switch
3 - Window Motor - Driver
4 - Memory/Heated Seat Switch - Driver
5 - Outside Rearview Mirror - Driver
6 - Speaker - Left Door
7 - Outside Rearview Mirror Switch
8 - Window Switch - Driver
9 - Door Lock Switch - Driver
10 - Door Courtesy Lamp - Driver
11 - Inflatable Restraint Side Impact Sensor (SIS) - Left
