Brake Pedal Position Sensor Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

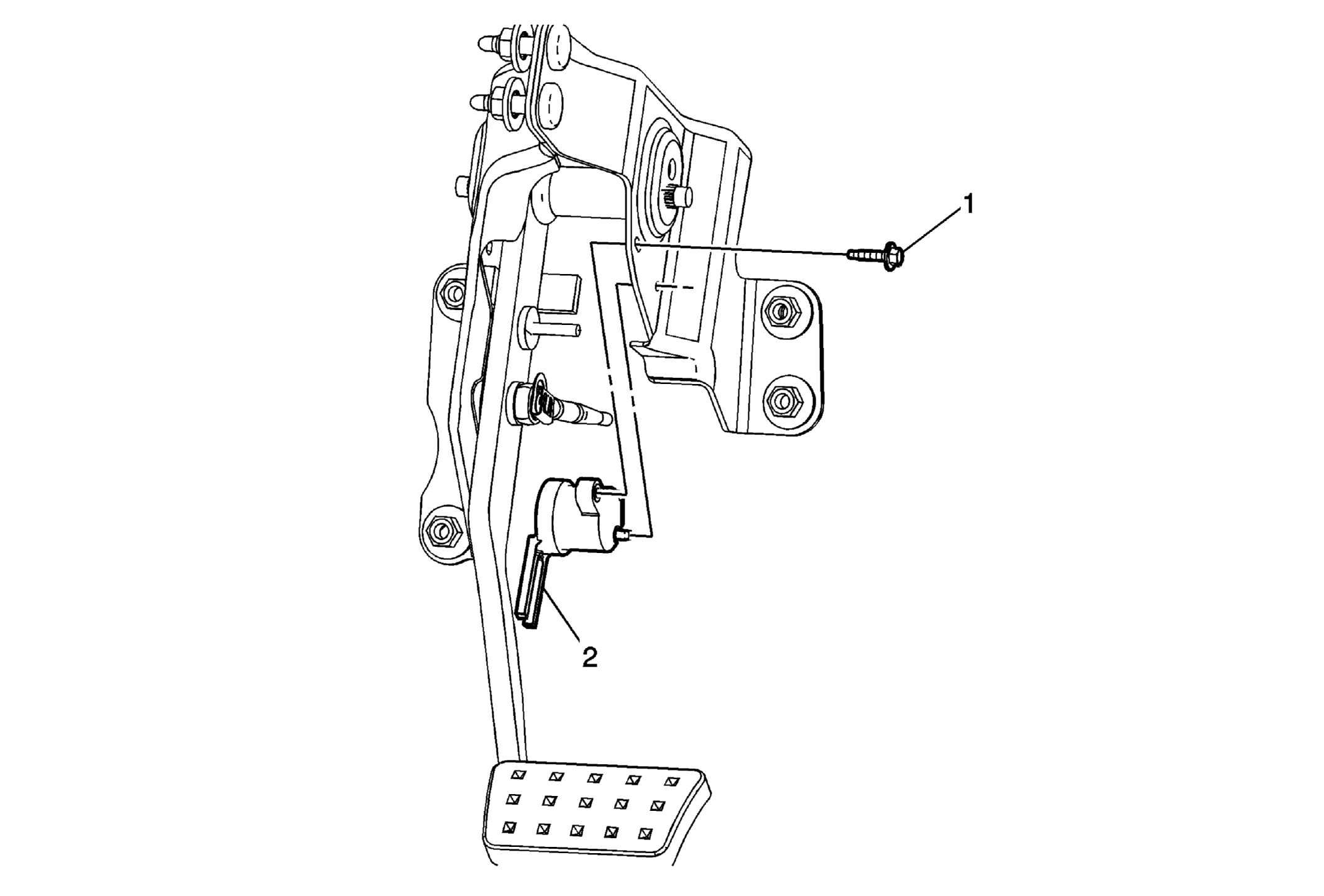

Fig 1: Brake Pedal Position Sensor Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the driver side knee bolster. Refer to Driver Knee Bolster Replacement .
1	Brake Pedal Position Sensor Bolt NOTE: Refer to Fastener Notice . Procedure: Remove the sensor bolt. Tighten: 9 N.m (80 lb in)
2	Brake Pedal Position Sensor Procedure Disconnect the electrical connector. Pull the sensor away from the bracket. Recalibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration .

Callout

Component Name

Preliminary Procedure:
Remove the driver side knee bolster. Refer to Driver Knee Bolster Replacement .

Brake Pedal Position Sensor Bolt

NOTE: Refer to Fastener Notice .

Procedure:
Remove the sensor bolt.

Tighten: 9 N.m (80 lb in)

Brake Pedal Position Sensor

Procedure

Disconnect the electrical connector.
Pull the sensor away from the bracket.
Recalibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration .
