Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

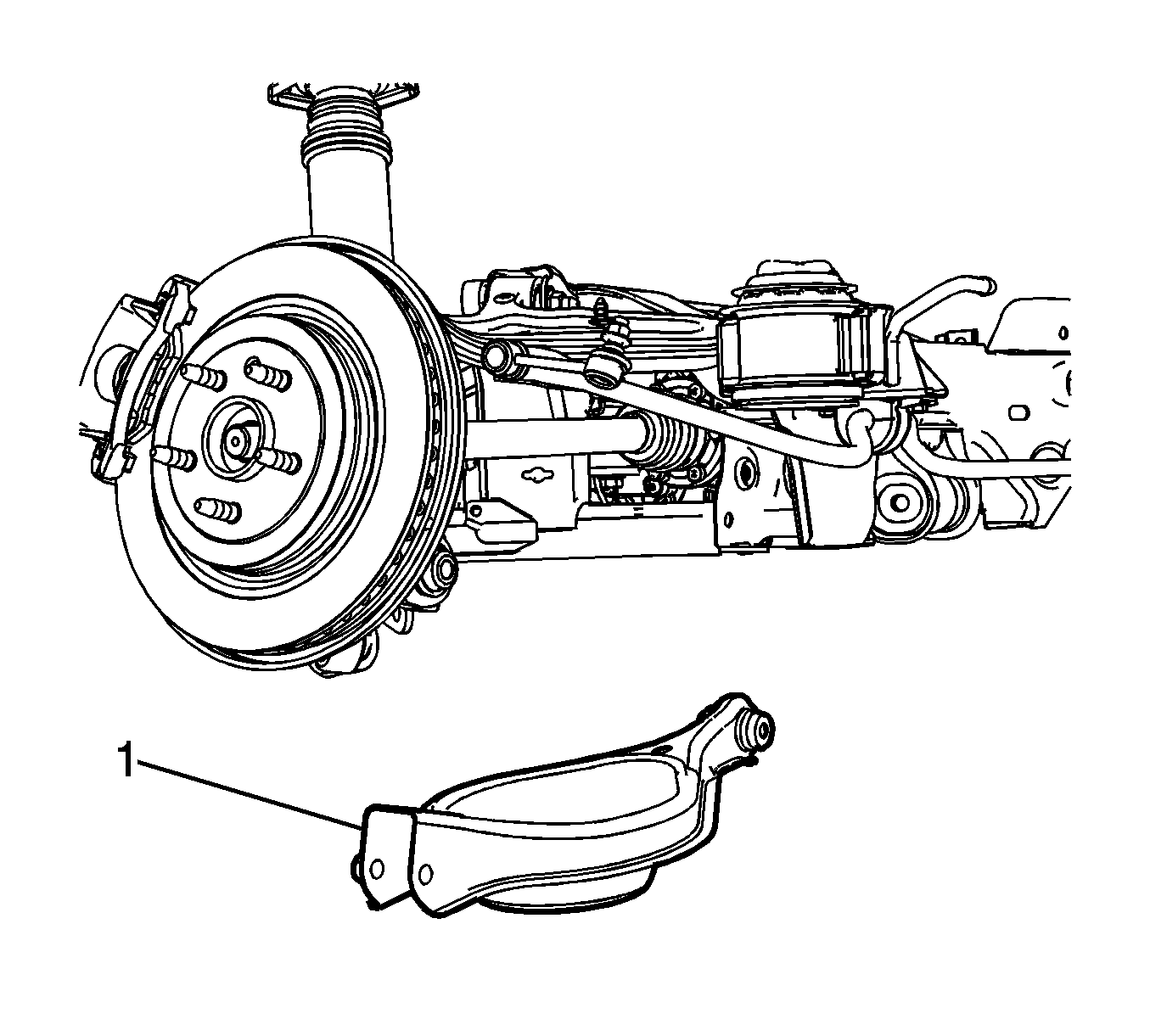

Fig 1: View of Lower Control Arm

Courtesy of GENERAL MOTORS CORP.

Position the lower control arm in the frame (1).

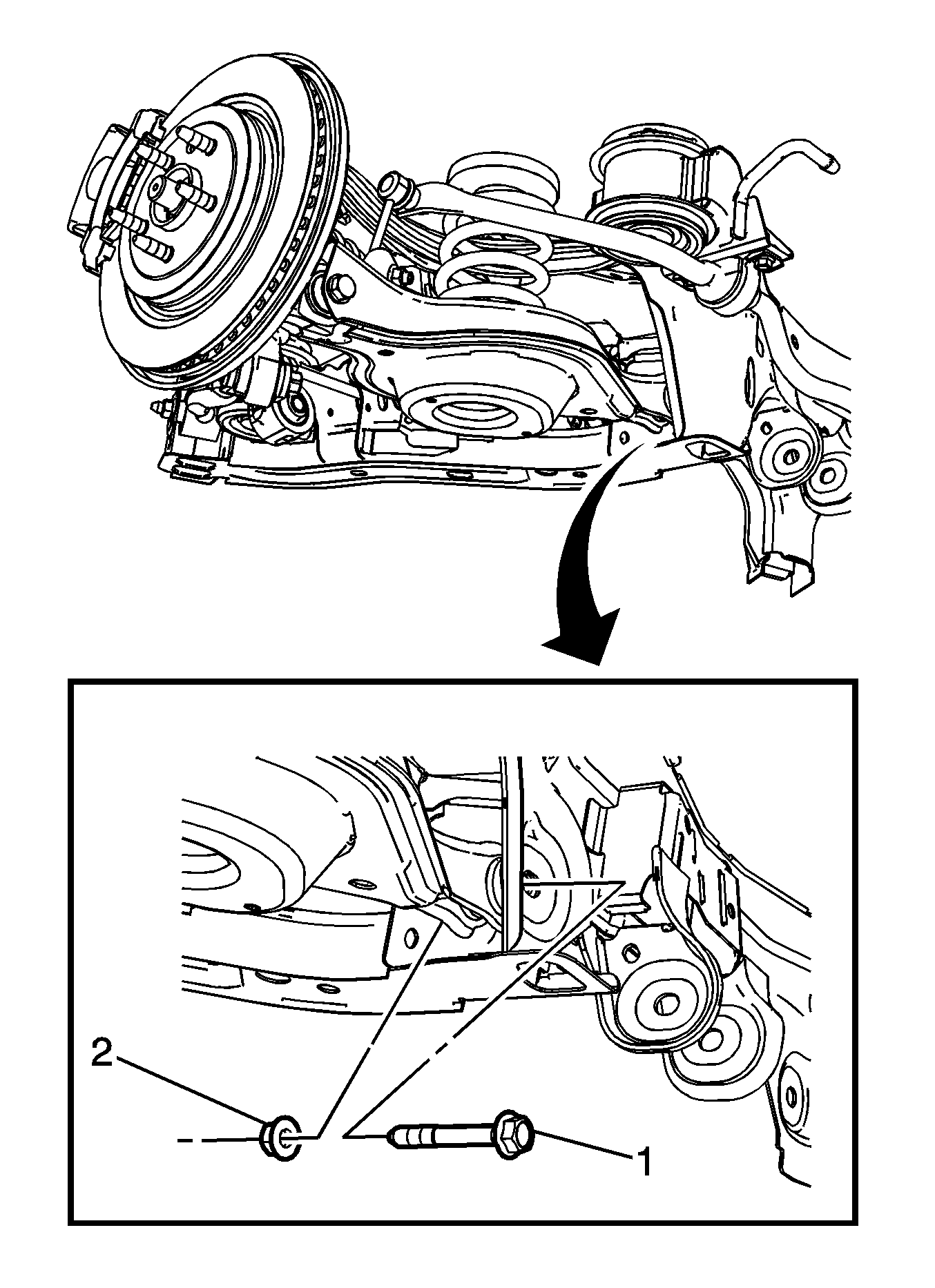

Fig 2: View Of Lower Control Arm To Frame Mounting Bolt

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: In steps 2 through 5, leave all the bolts loose to aide in the alignment of all the suspension components prior the to tighten to the final torque specifications.

NOTE: Refer to Fastener Notice .

Install the lower control arm to frame mounting bolt (1) and nut (2).
Tighten: Tighten the lower control arm mounting bolt to 135 N.m (100 lb ft).
Install the rear coil spring from the lower control arm. Refer to Rear Spring, Insulator, and Jounce Bumper Replacement .

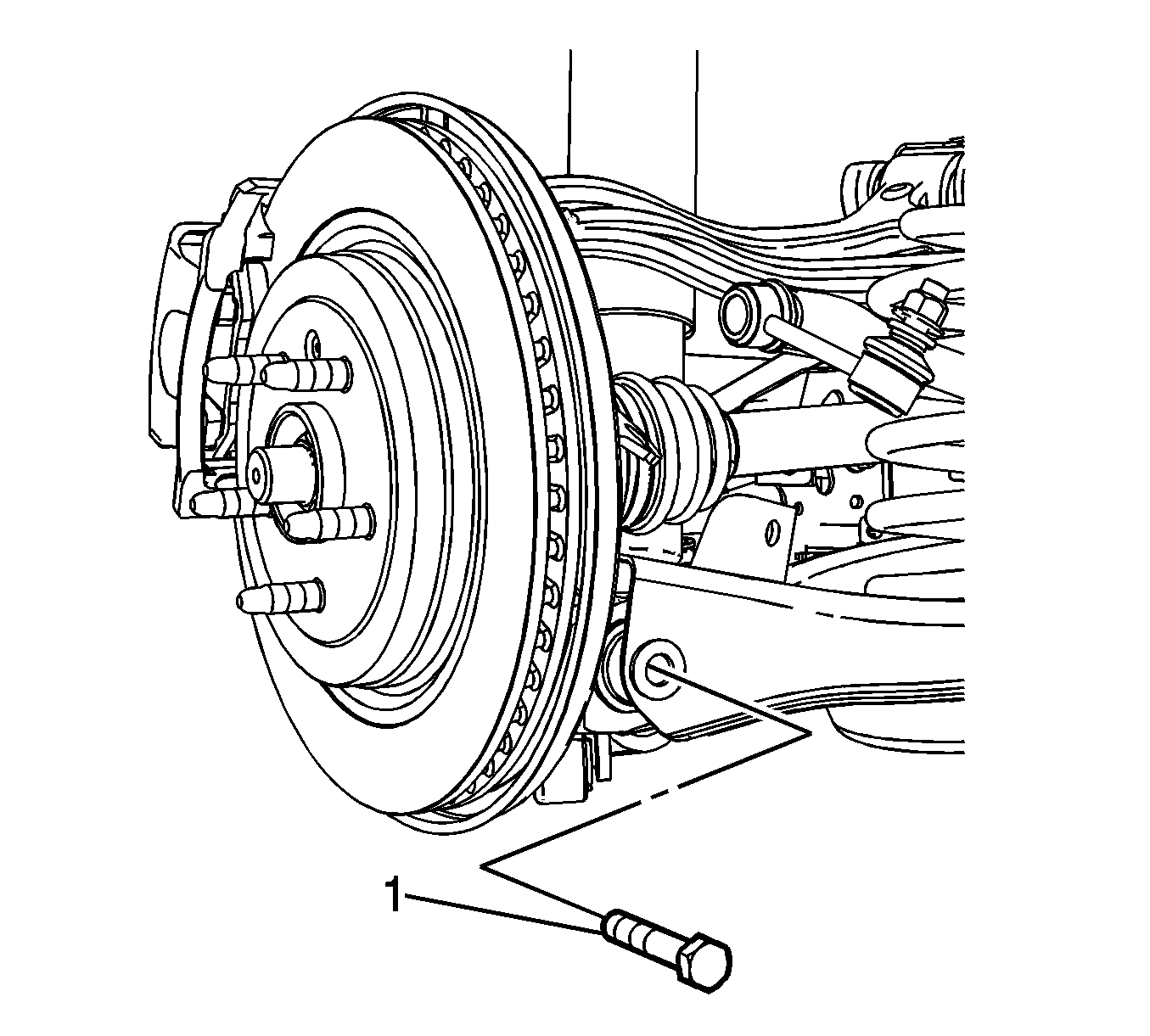

Fig 3: Identifying Lower Control Arm Assembly

Courtesy of GENERAL MOTORS CORP.

Install the lower control arm bolt in the knuckle (1).
Tighten: Tighten the lower control arm mounting bolt to 160 N.m (118 lb ft).
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Remove the support and lower the vehicle.
Align the rear suspension. Refer to Wheel Alignment Specifications .
