Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

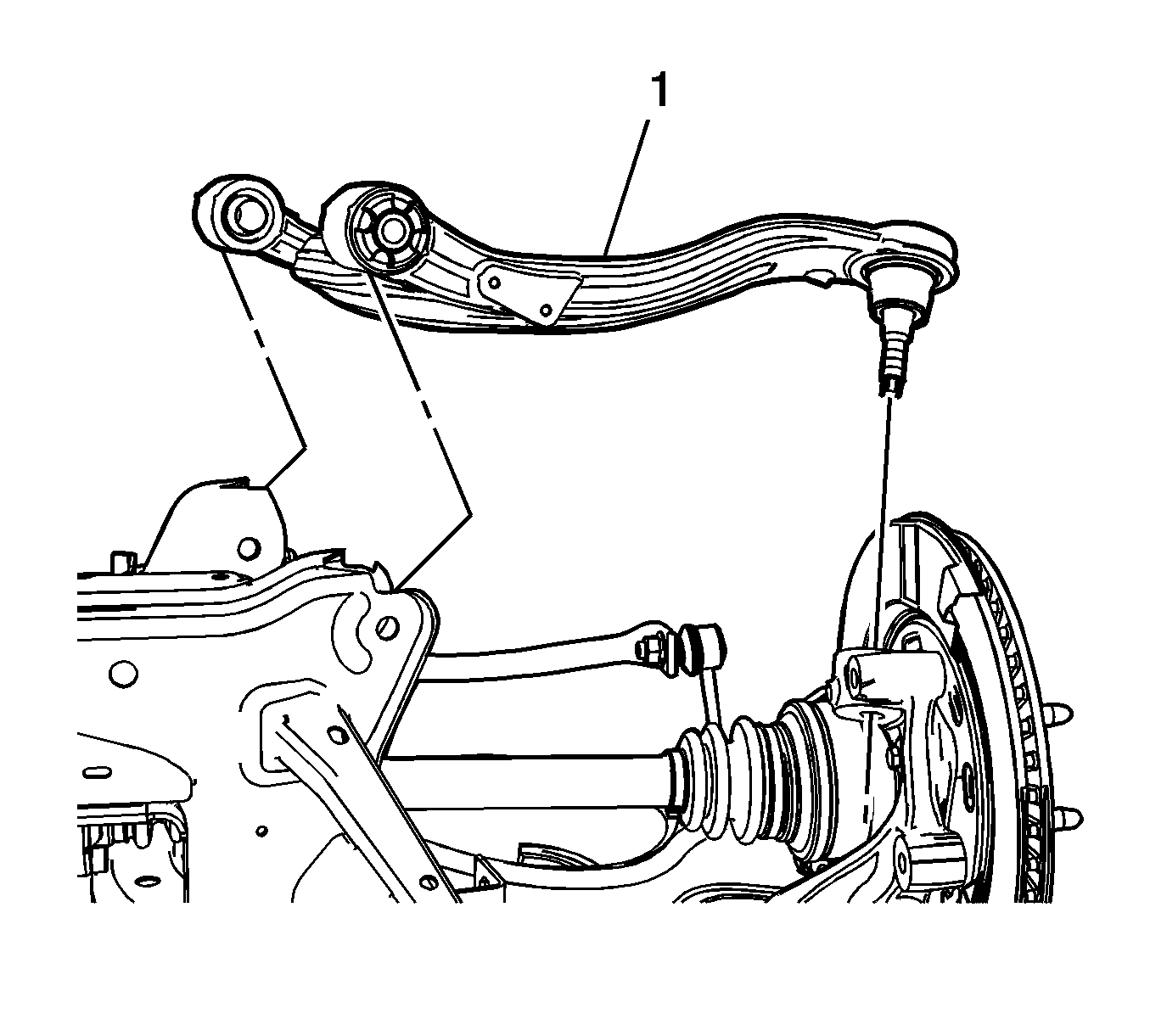

Fig 1: Identifying Upper Control Arm Positioning

Courtesy of GENERAL MOTORS CORP.

Position the upper control arm (1) in the frame.

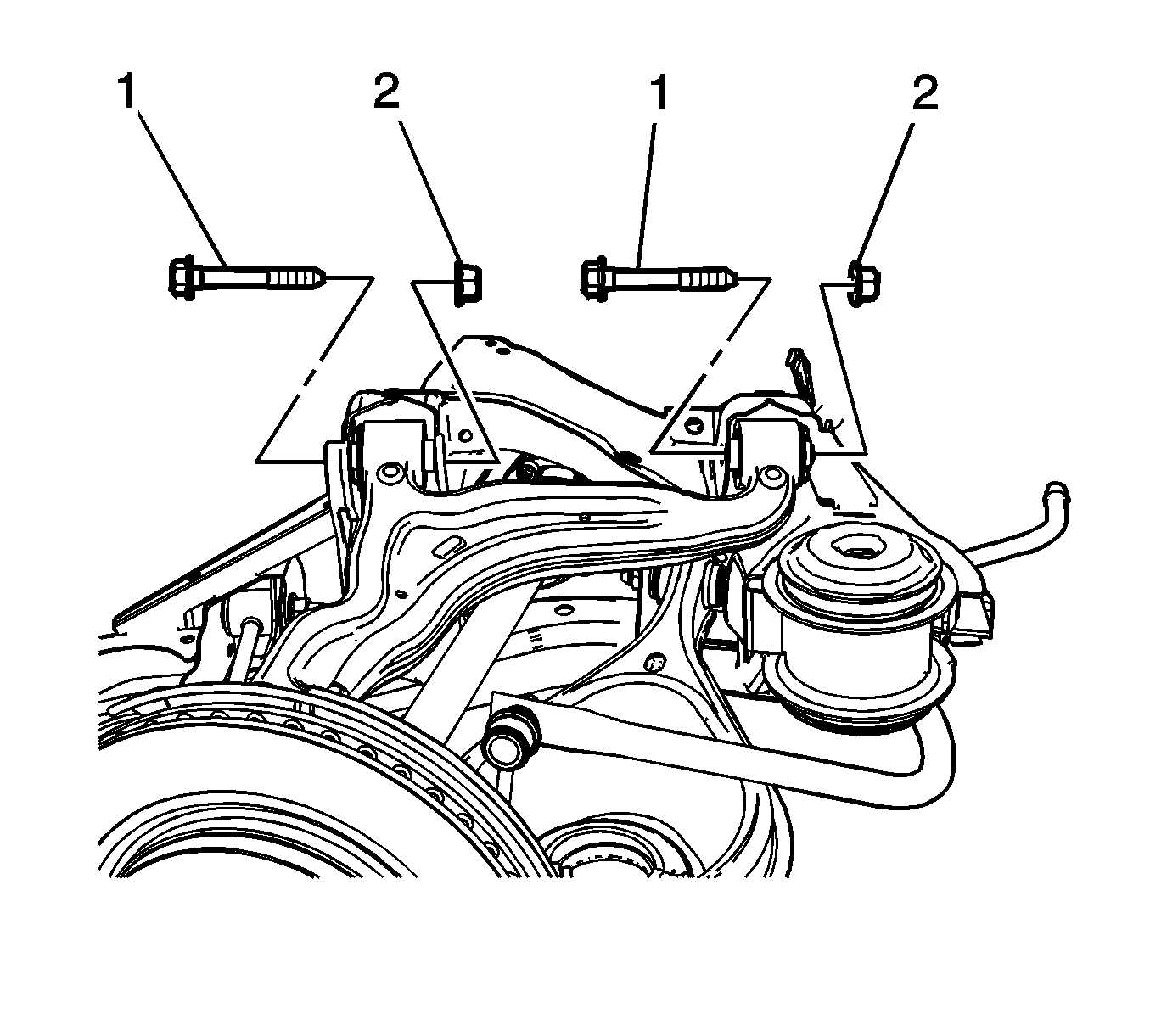

Fig 2: View of Upper Control Arm Assembly

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the upper control arm mounting bolts (1) and the retaining nuts (2).
Tighten: Tighten the mounting bolts to 150 N.m (111 lb ft).

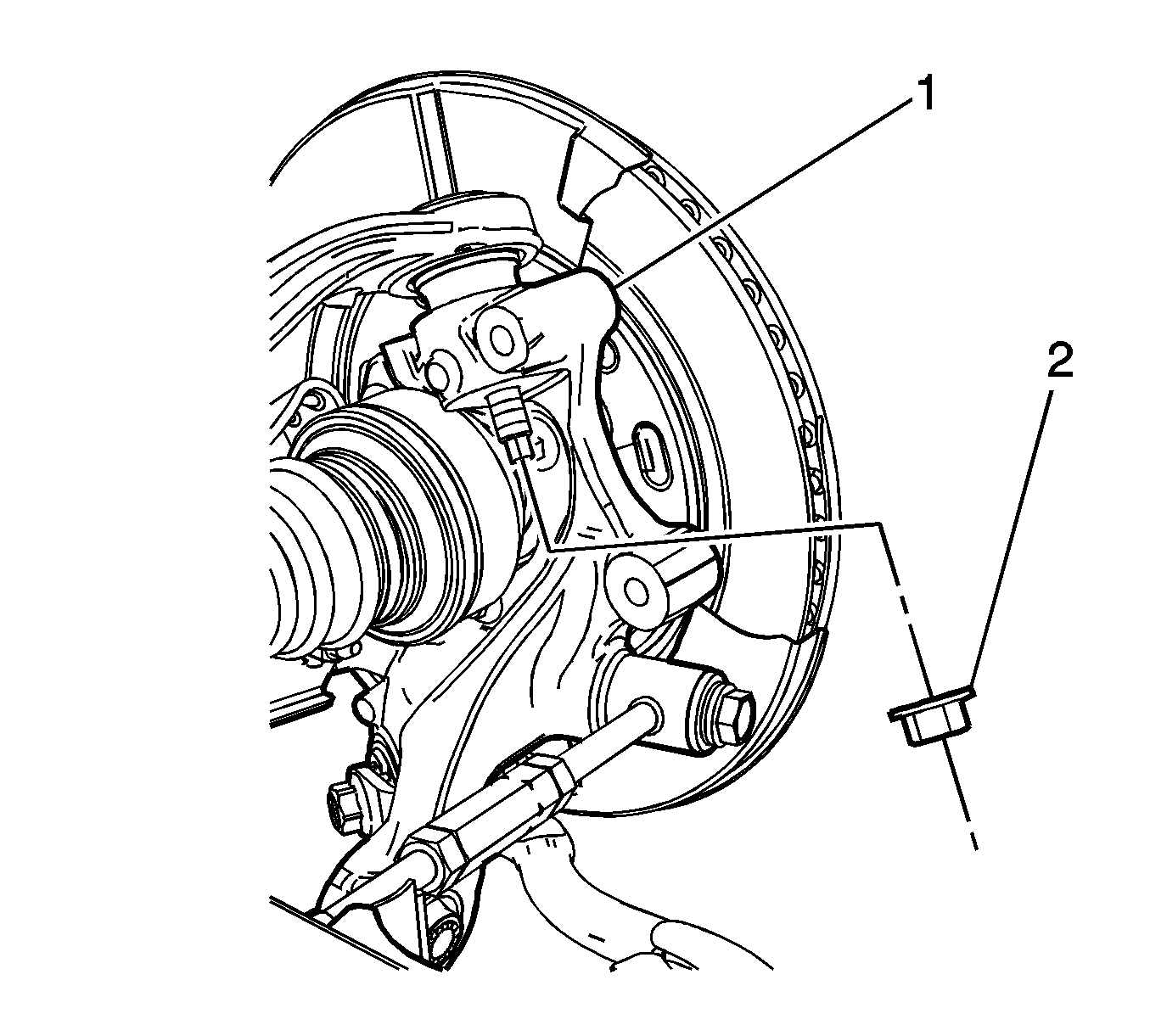

Fig 3: View of Upper Ball Joint Assembly

Courtesy of GENERAL MOTORS CORP.

Install the upper ball joint (1) to the knuckle (2).
Tighten: Tighten the upper ball joint nut to 20 N.m (15 lb ft) plus an additional 210 degree turn.
Install the brake caliper mounting bracket. Refer to REAR BRAKE CALIPER BRACKET REPLACEMENT .
Install the shock absorber. Refer to Shock Absorber Replacement
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation
Remove the support and lower the vehicle.
Check the rear wheel alignment. Refer to Wheel Alignment Specifications .
