Front Seat Lumbar Control Switch Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front seat adjuster switch bezel. Refer to Driver Seat and Passenger Seat Adjuster Switch Bezel Replacement . |
|

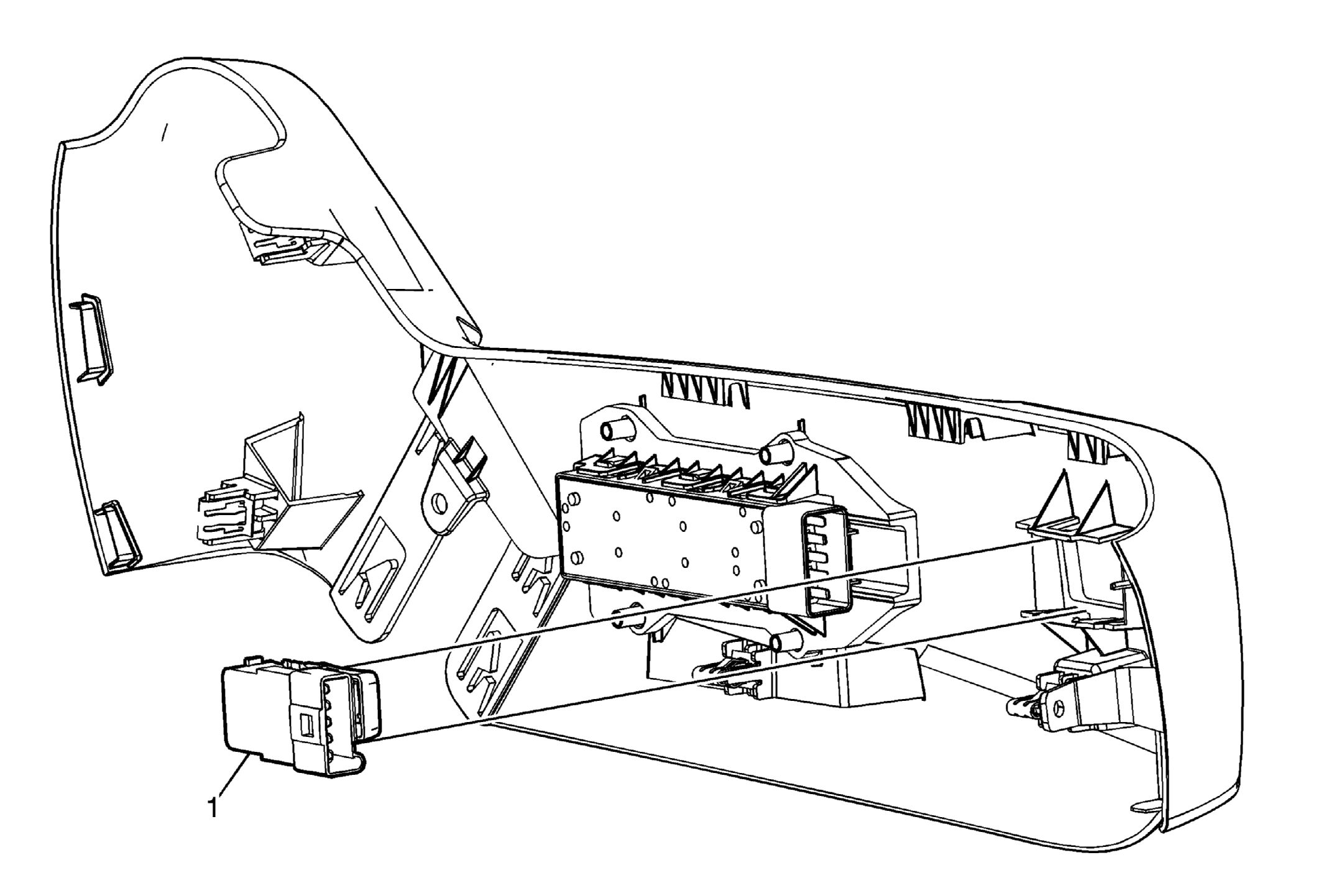

| 1 | Front Seat Lumbar Control Switch Tip: Use a flat-bladed tool to release the switch from the switch bezel. |
