Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

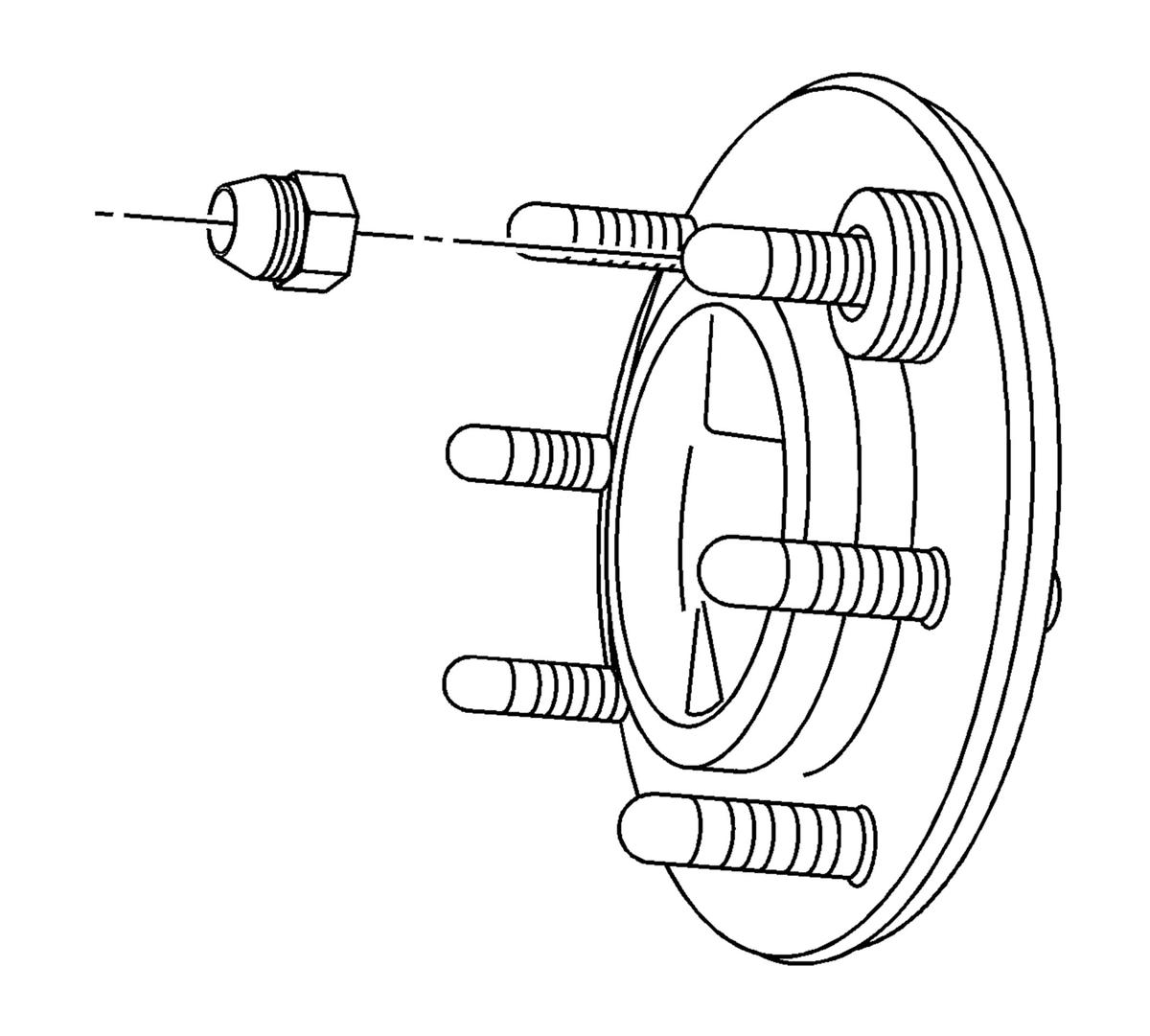

    Fig 1: View Of Wheel Nut & Studs
    GM1688057Courtesy of GENERAL MOTORS CORP.
  1. Install a new stud. Use washers and a wheel nut and pull the new stud into the hub.
  2. Install the brake rotor. Refer to Front Brake Rotor Replacement (1500 Series) or Front Brake Rotor Replacement (2500 Series) .
  3. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
  4. Lower the vehicle.
