Ignition Lock Cylinder - Non EPS

The non EPS ignition lock cylinder uses 8 of the 10 key cut positions, 1-8 when counting from the key head. The tumbler orientations alternate in adjacent locations from side to side with 4 tumblers on each side.

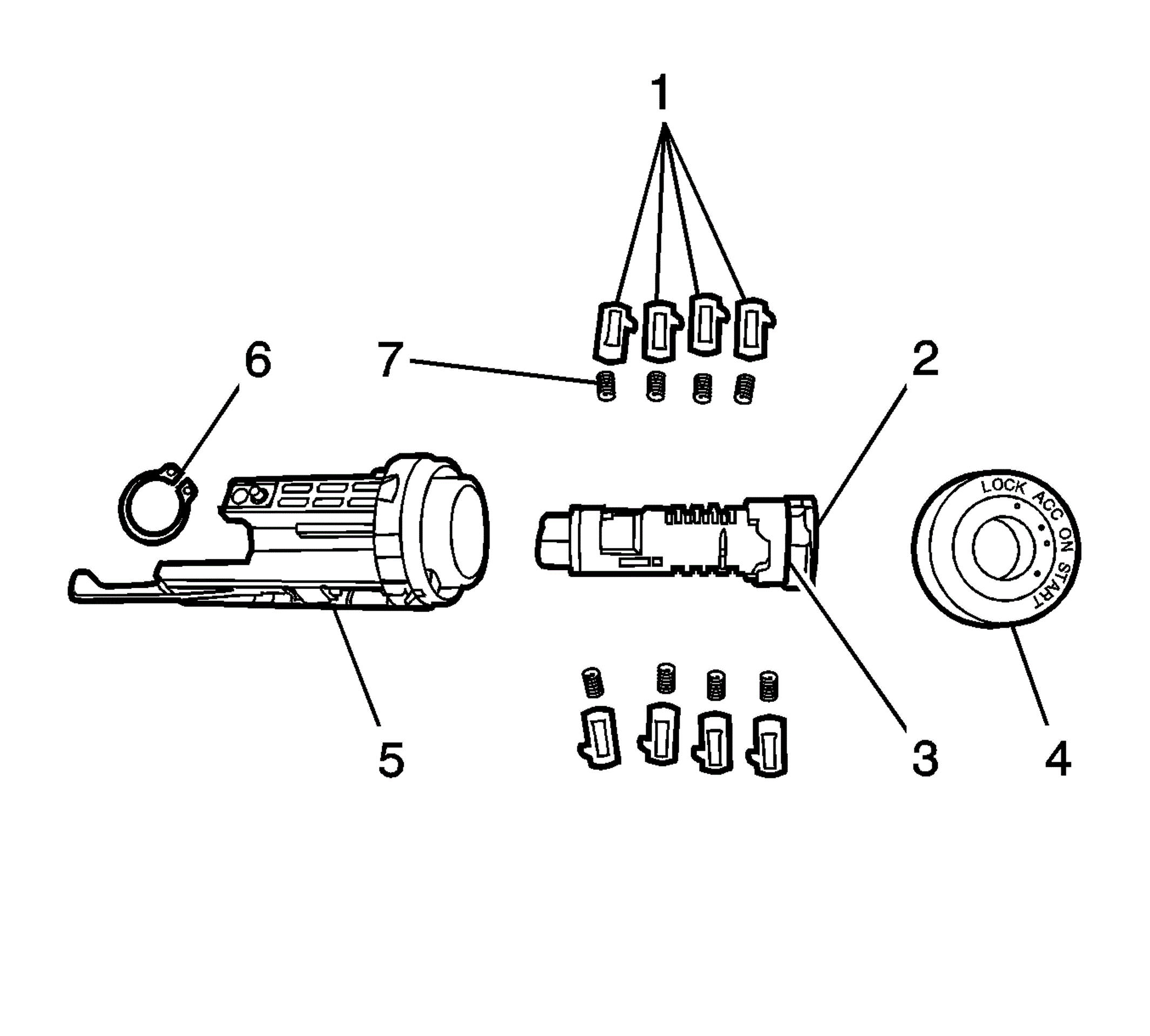

Fig 1: Case Assembly
Courtesy of GENERAL MOTORS CORP.
NOTE: The ignition lock cylinder tumblers (1) are not self retaining and must be held in place if the key is not fully inserted in the lock cylinder (2), or until the lock cylinder (2) is assembled into the case assembly (5).
1. Hold the uncoded cylinder assembly (2) positioned so the side with the security plug (3) faces to the left of the key head.
2. Insert one tumbler spring (7) into each of the 4 tumbler spring holes.
3. The first tumbler (1) to be loaded will be key cut position 1, the first number in the key code. Install this tumbler in the tumbler slot closest to the head of the lock cylinder (2), the end where the key is inserted.
4. Advancing one tumbler slot at a time, install tumblers 3, 5, and 7 sequentially on the same side as tumbler 1.
5. Turn the lock cylinder over and insert one tumbler spring (7) into each of the 4 tumbler spring holes on the opposite side of the lock cylinder.
6. Insert tumbler 2 into the tumbler slot closest to the head of the lock cylinder (2), the end where the key is inserted.
7. Advancing one tumbler slot at a time, install tumblers 4, 6, and 8 sequentially on the same side as tumbler 2.
8. Check for correct tumbler loading by holding the tumblers (1) in position and inserting the correct key into the lock cylinder. All tumblers (1) should be flush with the housing of the lock cylinder.
9. Lightly lubricate the tumblers and small detent recessed areas the tumblers are in with GM Super Lube GM P/N 12346241 or equivalent light lithium grease.
10. Insert the key into the coded lock cylinder (2) and hold the lock cylinder positioned so the side with the security plug (3) faces to the left of the key head.

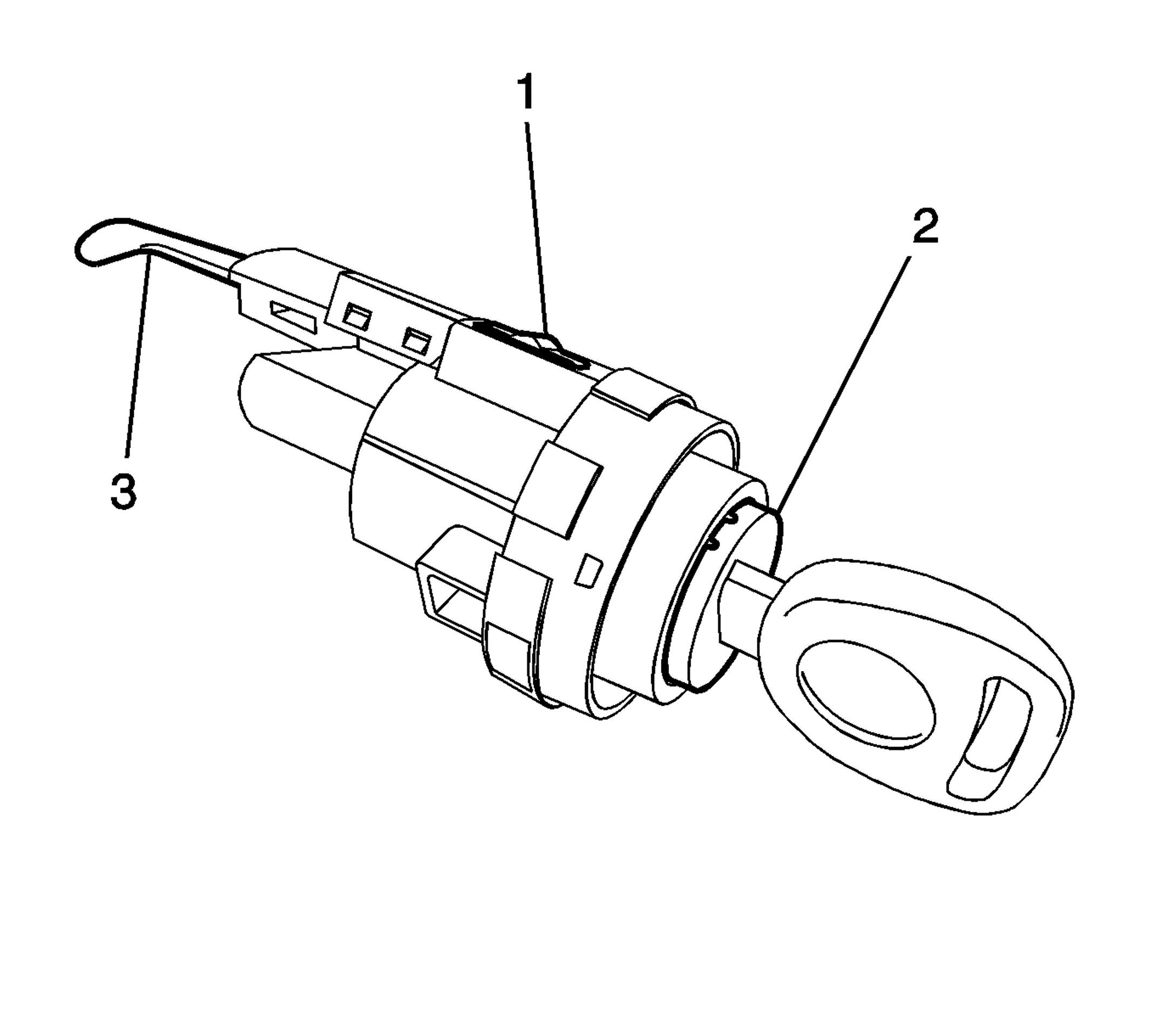

Fig 2: Lock Cylinder
Courtesy of GENERAL MOTORS CORP.
11. Hold the ignition lock housing positioned so the security plug actuator lever (3) also faces to the right of the key head.
12. Push the exposed end of the security plug actuator lever (3) toward the center of the lock cylinder housing (1) and hold it. Insert the coded lock cylinder (2) with the key in it into the ignition lock cylinder housing (1) until the cap is flush with the housing.
13. Rotate the keyed lock cylinder counterclockwise slightly until it stops and detents outward slightly. The key should be able to be removed and the lock cylinder should remain in the housing.

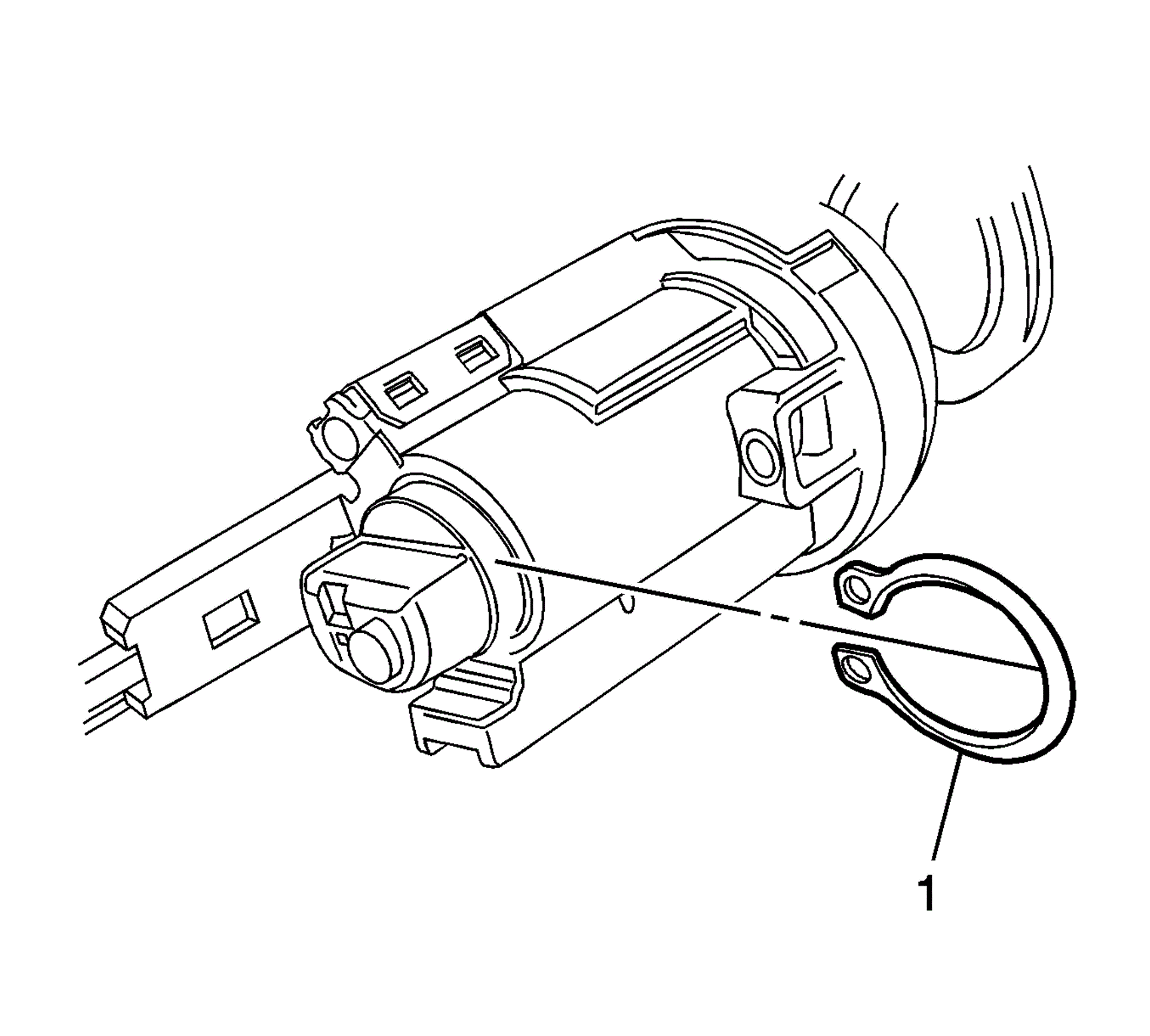

Fig 3: Retaining Clip
Courtesy of GENERAL MOTORS CORP.
14. Install the retaining clip (1) onto the coded lock cylinder where it comes out of the back of the lock cylinder housing.
Fig 4: Case Assembly
Courtesy of GENERAL MOTORS CORP.
15. Install the trim cap (4) on the ignition lock assembly.
