Video System Schematics

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

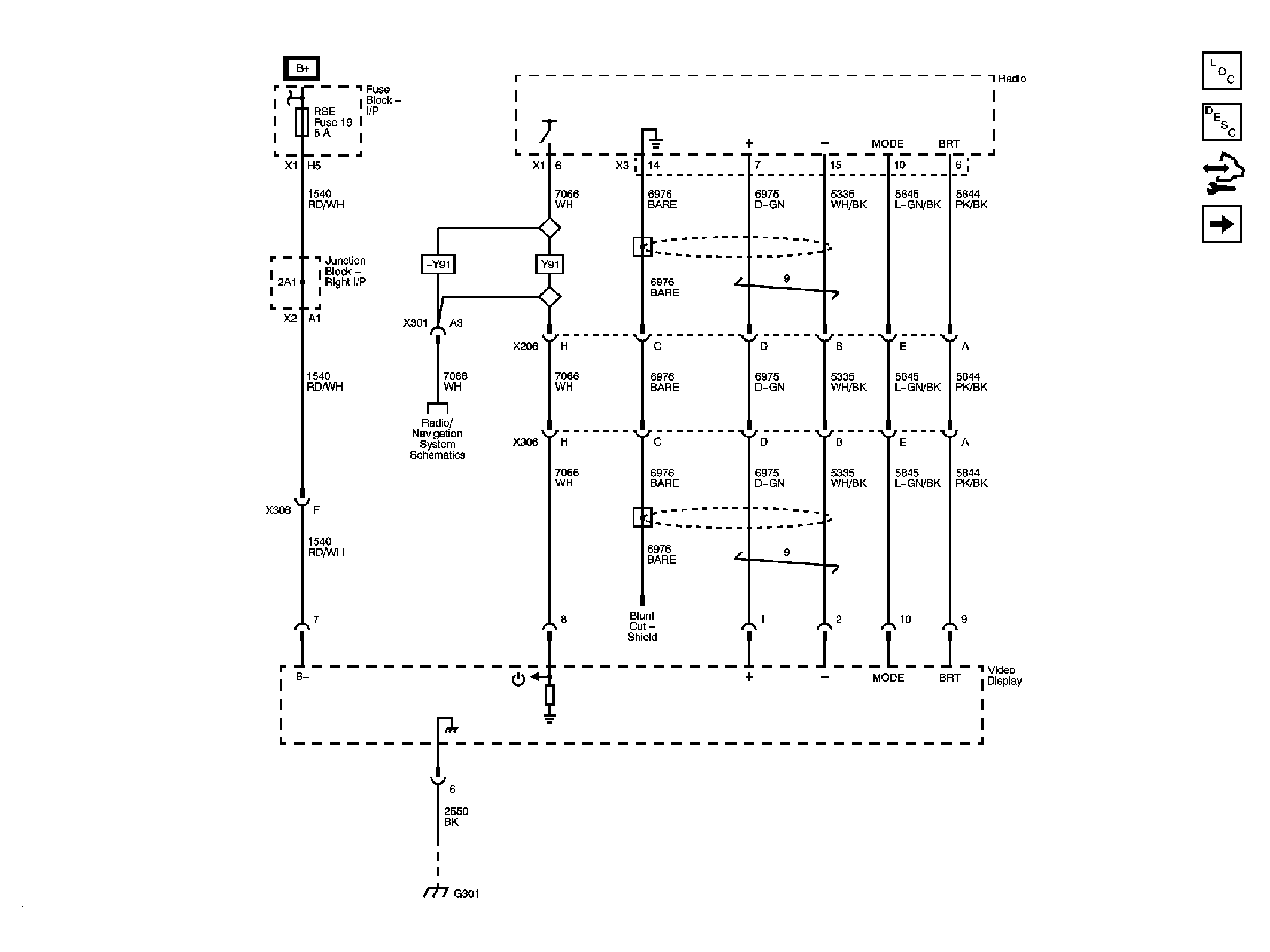

Fig 1: Display Power, Ground, and Video Signals
GM2224064Courtesy of GENERAL MOTORS CORP.

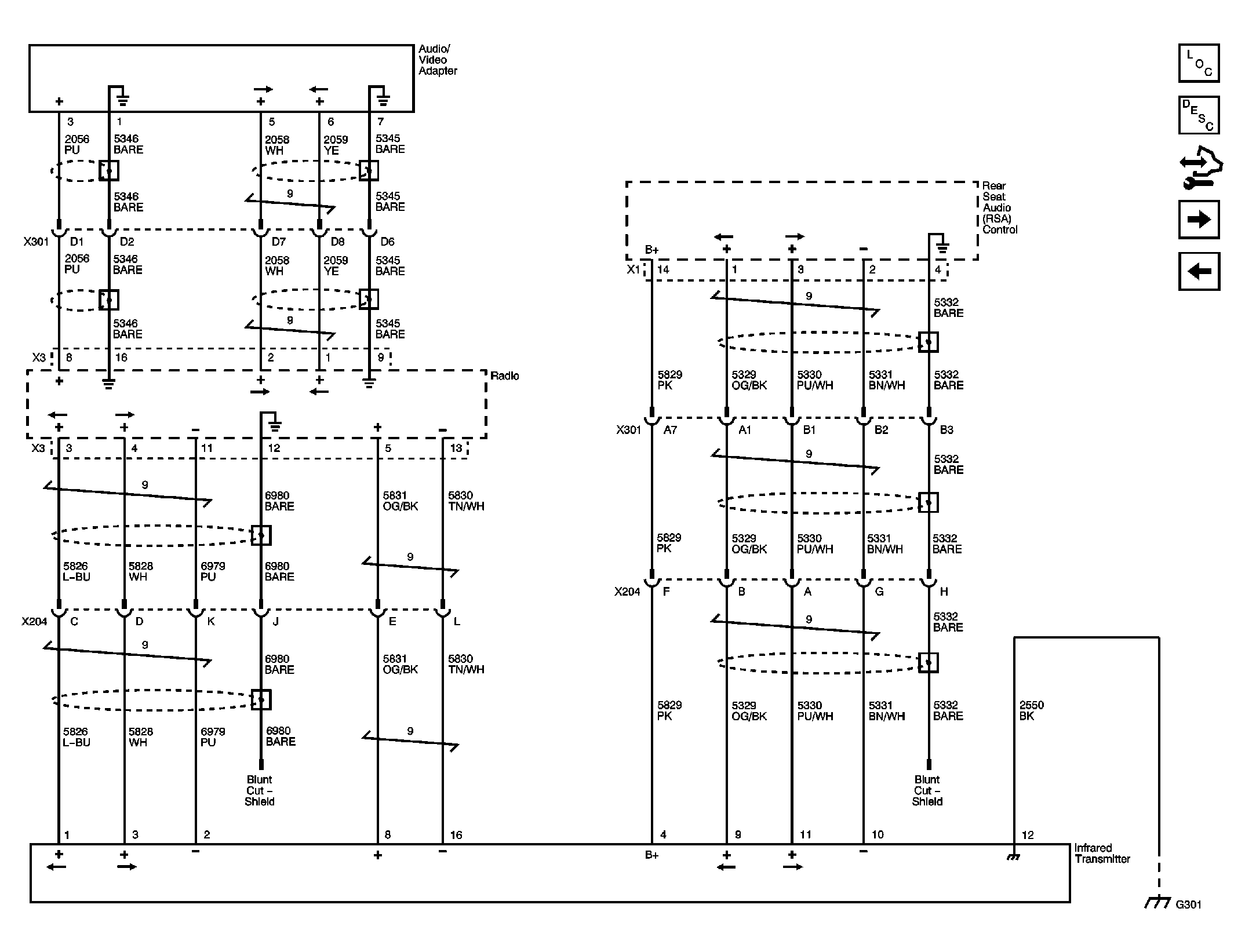

Fig 2: Audio Signals
GM2224065Courtesy of GENERAL MOTORS CORP.

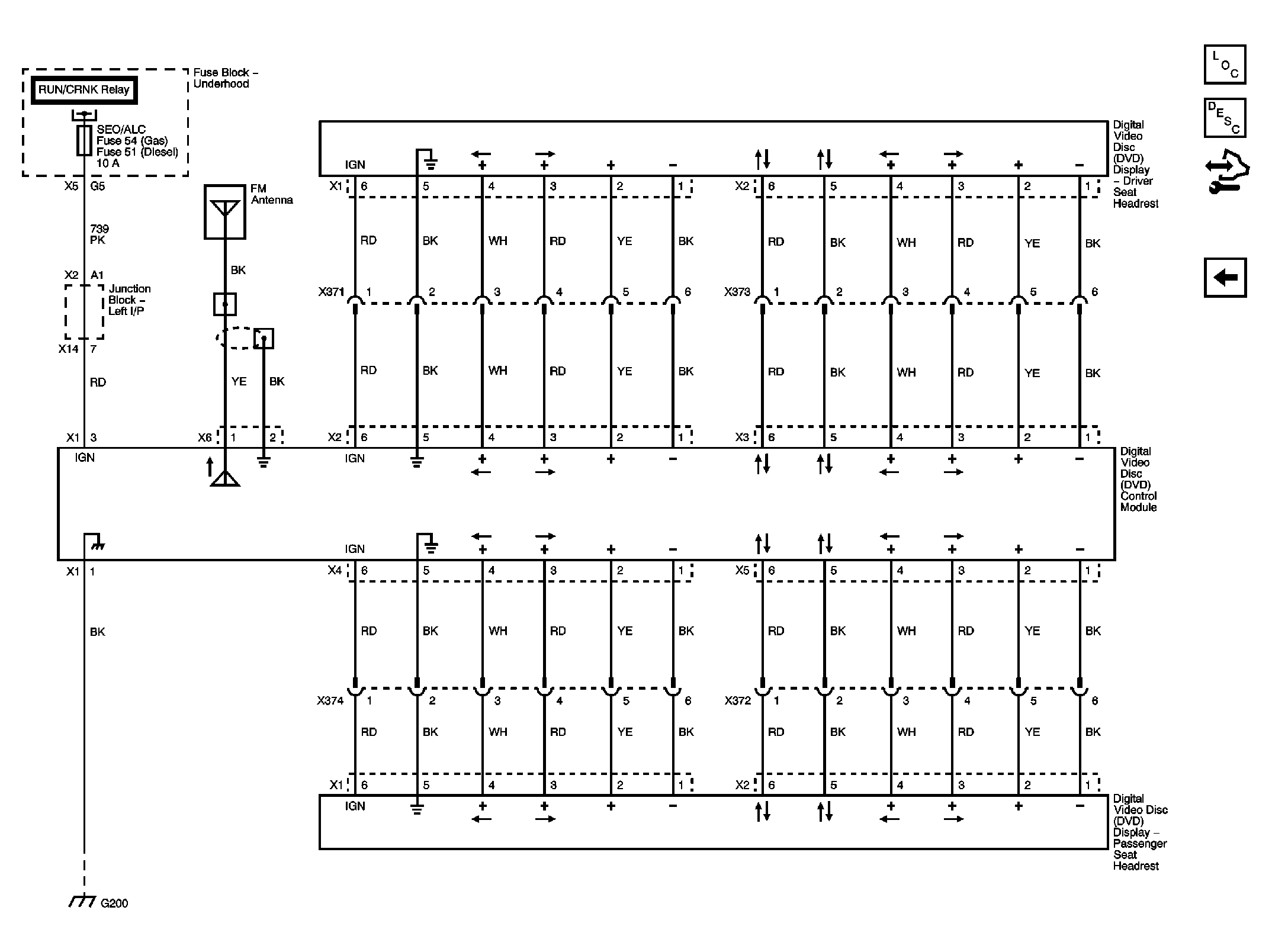

Fig 3: Dual DVD Headrest System (SPO DVD)
GM2334464Courtesy of GENERAL MOTORS CORP.
