Rear Spring Front Stop Replacement

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

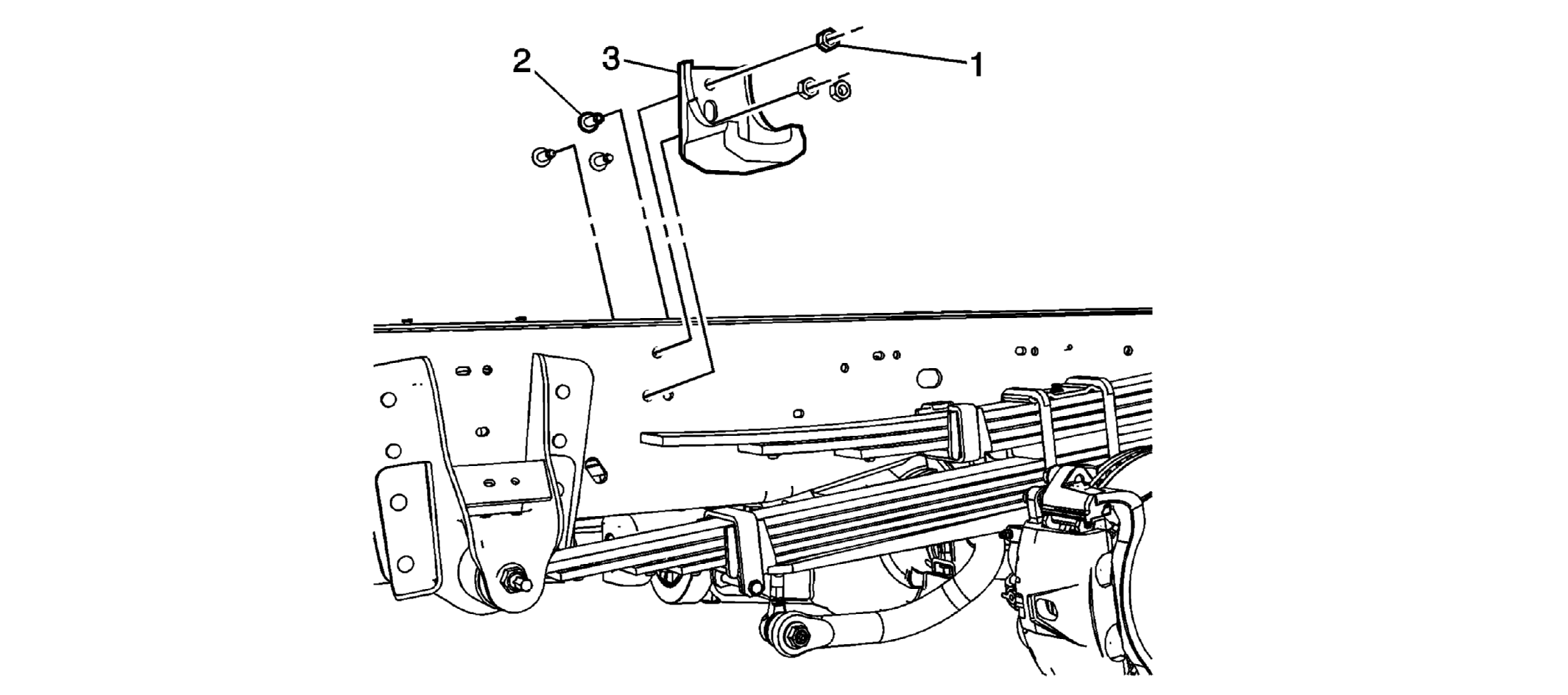

Fig 1: Rear Spring Front Stop

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
1	Rear Spring Stop Bolts (Qty: 3) NOTE: For the left rear front spring stop, the fuel tank must be removed to gain access to the spring stop mounting bolts. Refer to Fuel Tank Replacement (35 Reg/Ext/Crew Cab With 34 Gal Tank) or Fuel Tank Replacement (15 Ext/Crew Cab With 26 Gal Tank) or Fuel Tank Replacement (15/25 Reg/Ext/Crw Cab With 34 Gal Tnk) or Fuel Tank Replacement (15 Rec Cab With 26 Gal Tank) or Fuel Tank Replacement (25 Ext/Crew Cab With 26 Gal Tank)
2	Rear Spring Stop Nuts (Qty: 3) CAUTION: Refer to Component Fastener Tightening Caution . Tighten: Tighten the bolt to 50 N.m (37 lb ft).
3	Rear Front Spring Stop
