Behind the I/P Components (9L4)

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

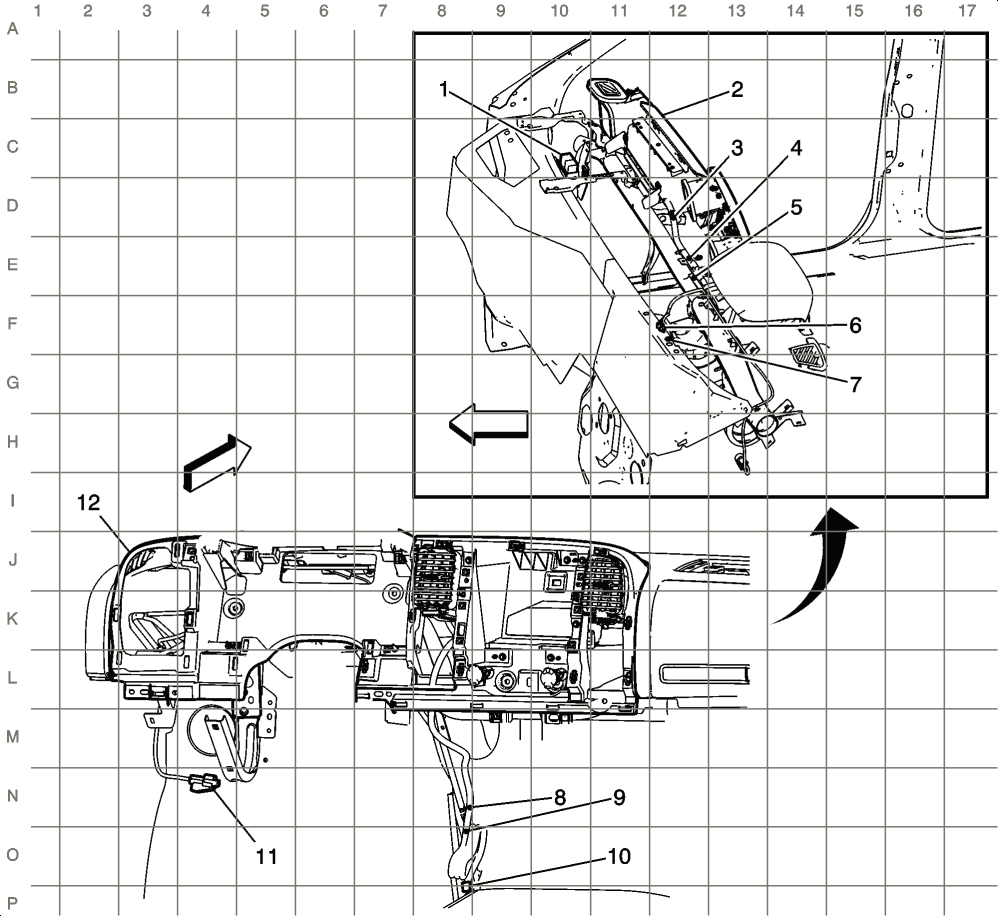

Fig 1: Behind the I/P Components (9L4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Mobile Radio
2	I/P Structure - Right Side
3	J224
4	J219
5	J209
6	X219
7	X214
8	J210
9	J211
10	Blunt Cut - Mobile Radio Provision
11	X226
12	Instrument Panel
