Behind the I/P Components (C67/C42)

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

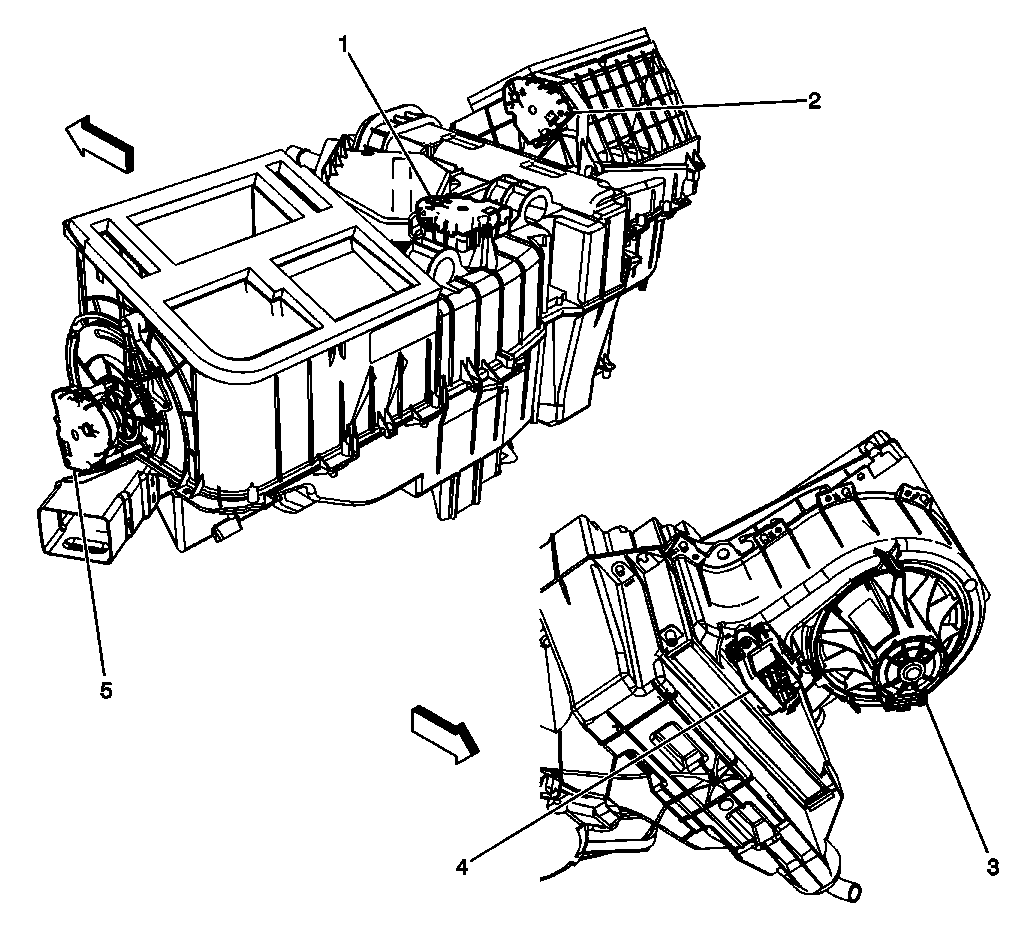

Fig 1: Behind the I/P Components (C67/C42)
GM1860666Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Air Temperature Actuator
2 Recirculation Actuator (C67)
3 Blower Motor
4 Blower Motor Control Module
5 Mode Actuator
