Blower Motor Control Module X2

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

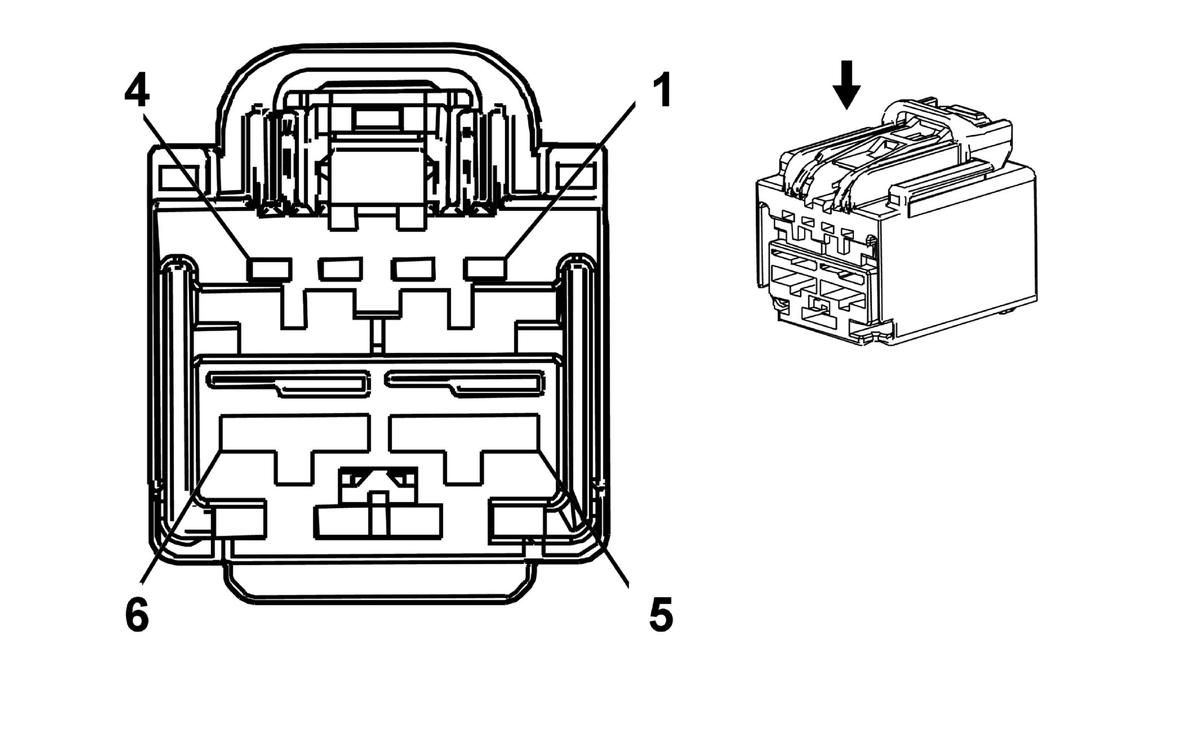

Fig 1: Blower Motor Control Module X2 Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1-2	-	-	Not Used
3	0.35 PU/WH	754	Blower Motor Speed Control
4	-	-	Not Used
5	5 BK	1050	Ground
6	3 RD	542	Battery Positive Voltage

Connector Part Information

Harness Type: HVAC
OEM Connector: 13520671
Service Connector: 88988512
Description: 6-Way F GT 150 6.3 Series (BK)

Terminal Part Information

Terminal/Tray: Service by Harness - See Part Catalog
Core/Insulation Crimp: Not Available
Release Tool/Test Probe: Not Available
