Installation Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

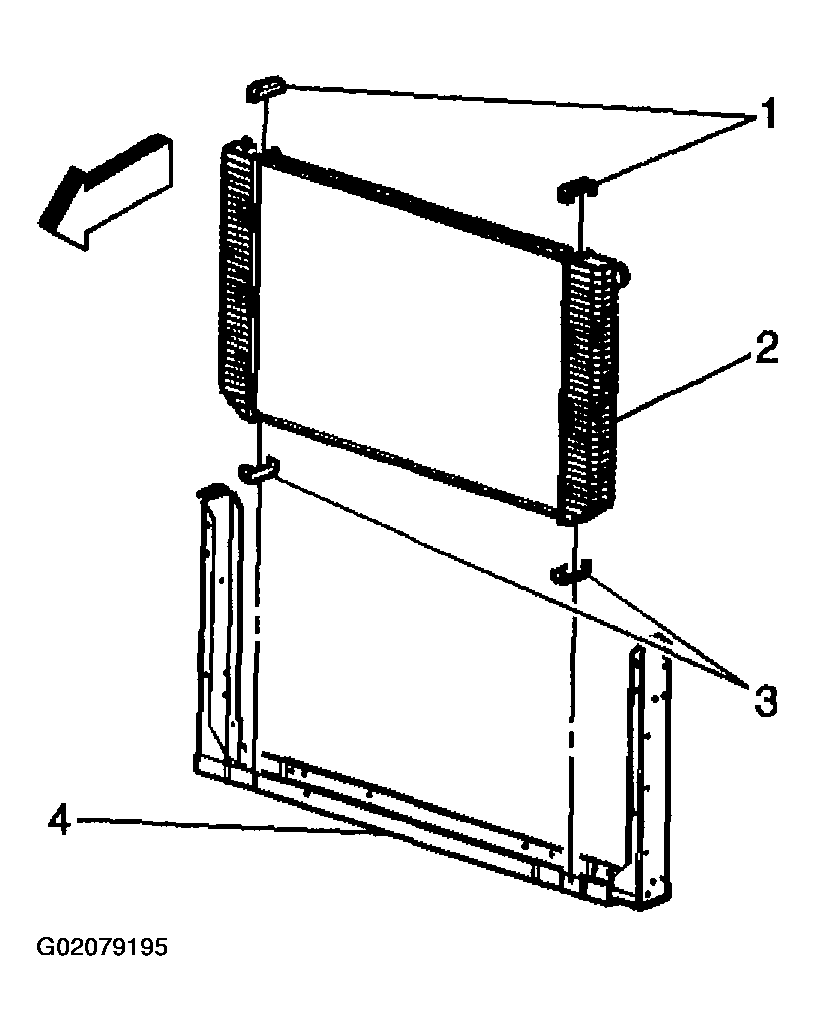

- Install the radiator insulators (1,3).
- Install the radiator (2).
CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

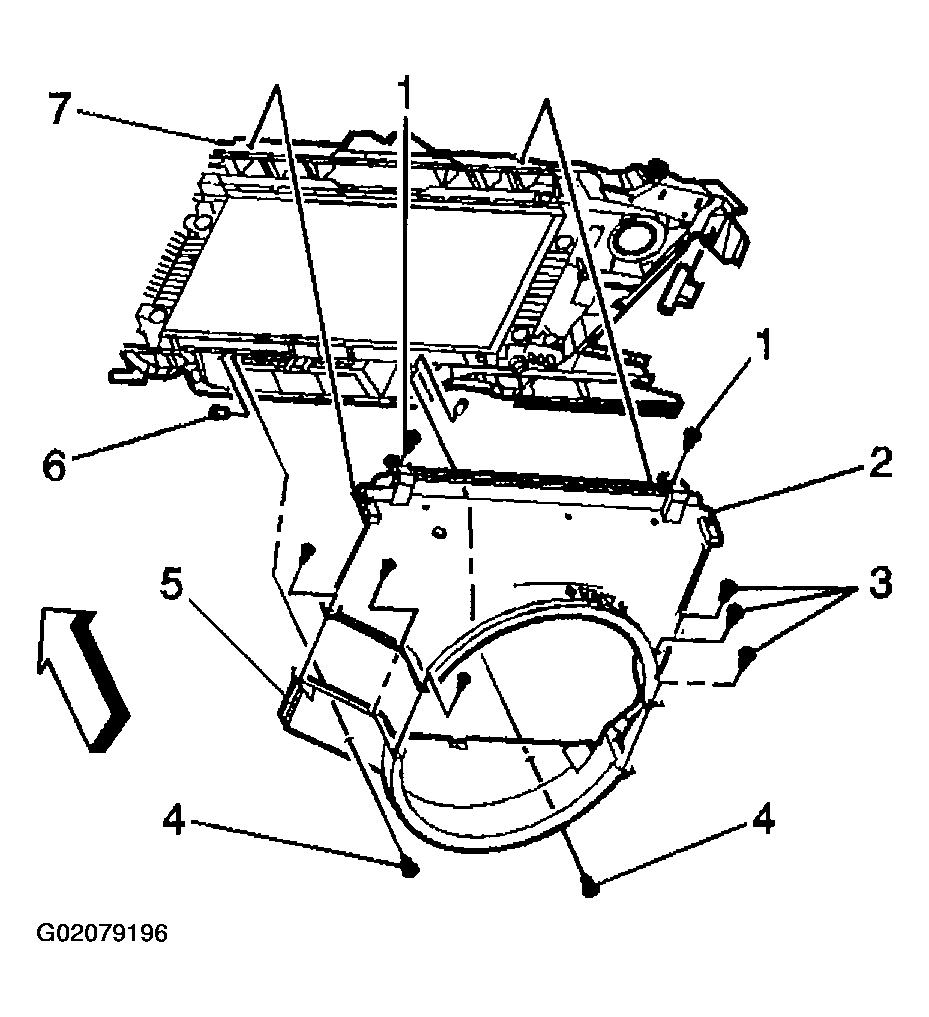

- Install the fan shroud bolts (1) to the top of the radiator support.
Tighten
Tighten the bolts to 6 N.m (53 in lbs).
- Install the fan shroud bolts (3) to the sides of the fan shroud.
Tighten
Tighten the bolts to 6 N.m (53 in lbs).
- Install the engine oil cooler lines. Refer to Engine Oil Cooler Pipe/Hose Quick Connect Fitting .
- Install the automatic transmission oil cooler lines. Refer to OIL COOLER LINES for 4L60-E or OIL COOLER LINES for 4L80-E.

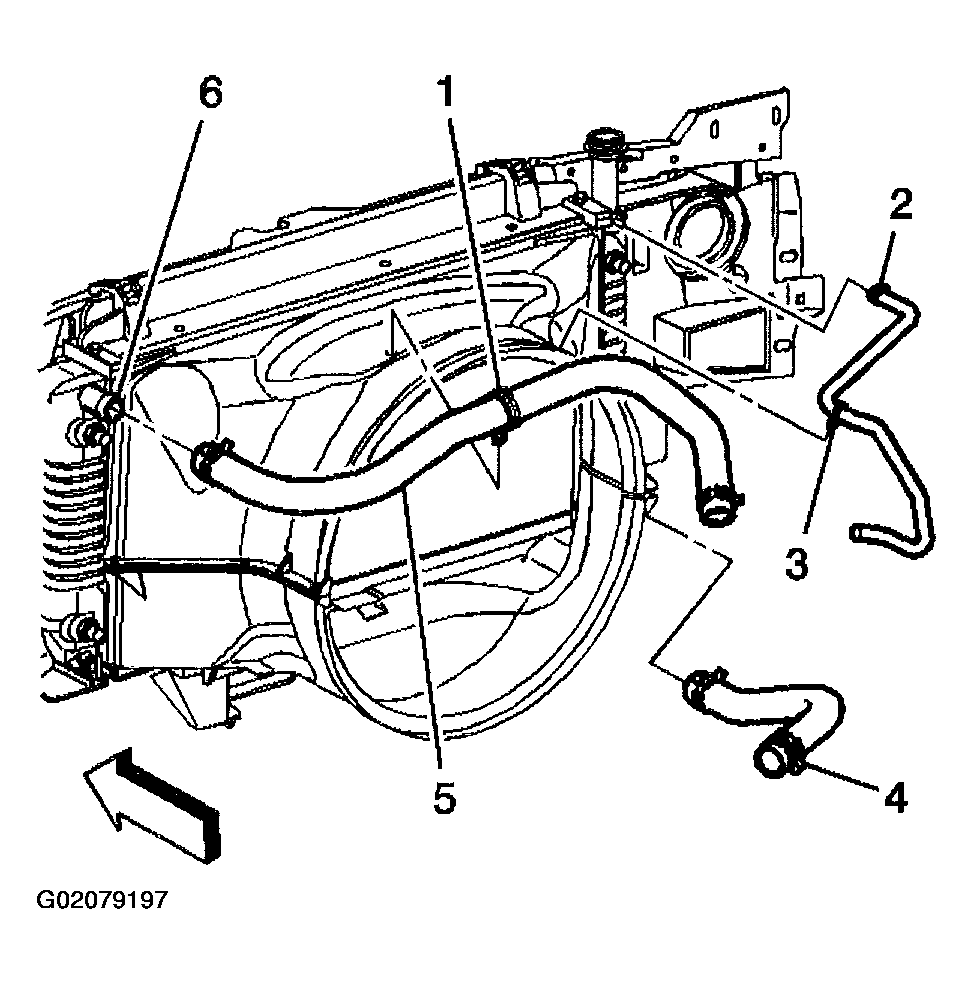

- Install the radiator outlet hose (4) to the radiator.
- Install the radiator outlet clamp to the radiator outlet using the J 38185 .
- Install the radiator inlet hose (5) to the radiator.
- Install the hose clamp at the radiator inlet housing using the J 38185 .
- Install the outlet heater hose (2).
- Install the outlet heater hose clamp using the J 39529 .
- Install the coolant recovery reservoir. Refer to Coolant Recovery Reservoir Replacement .
- Inspect the automatic transmission fluid level.
- Inspect the engine oil level.
