Powertrain Control Module

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

The PCM has a "learning" ability which allows it to make minor corrections for fuel system variations. PCM is mounted on top radiator support. See Fig 1 . If battery power is interrupted, a vehicle performance change may be noticed. PCM module corrects itself, and normal performance returns if vehicle is allowed to "relearn" optimum control conditions. "Relearning" occurs when vehicle is driven at normal operating temperature under part throttle, moderate acceleration and idle conditions.

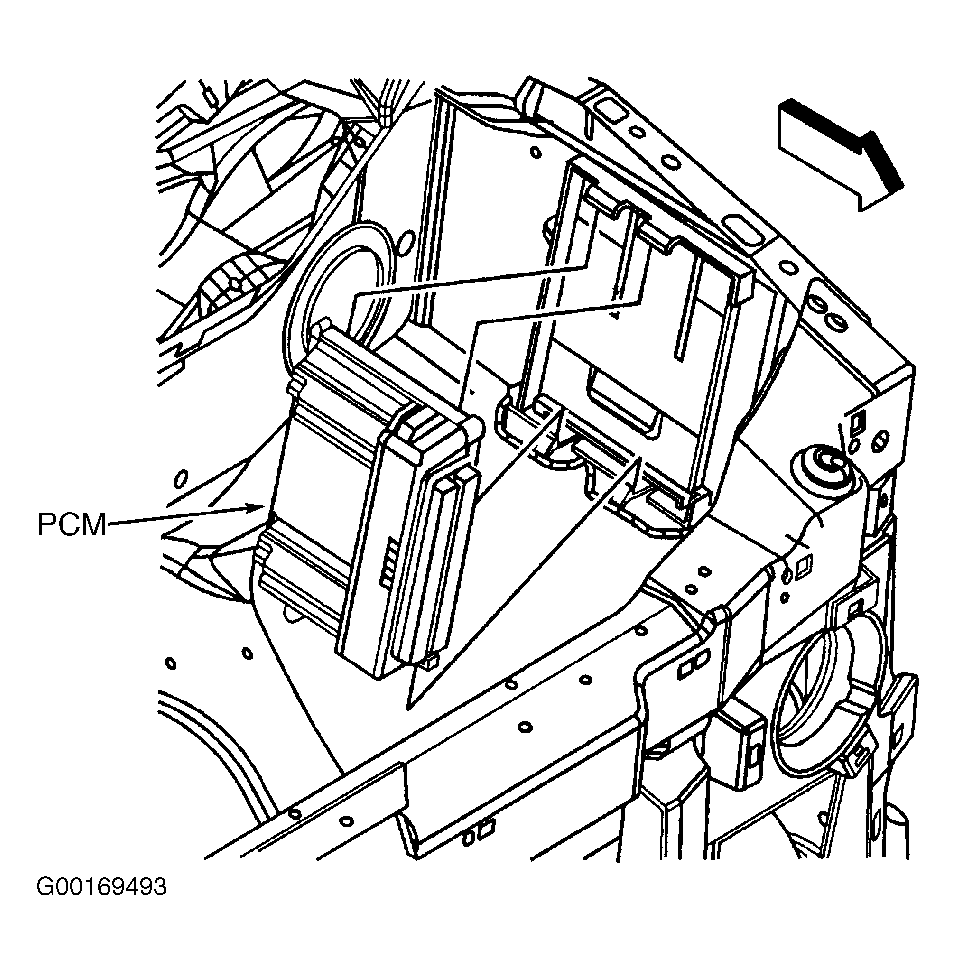

Fig 1: Locating PCM
G00169493Courtesy of GENERAL MOTORS CORP.
