Lighting Systems Component Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Left Front Of Vehicle - Sealed Headlamp

G02422153

Courtesy of GENERAL MOTORS CORP.

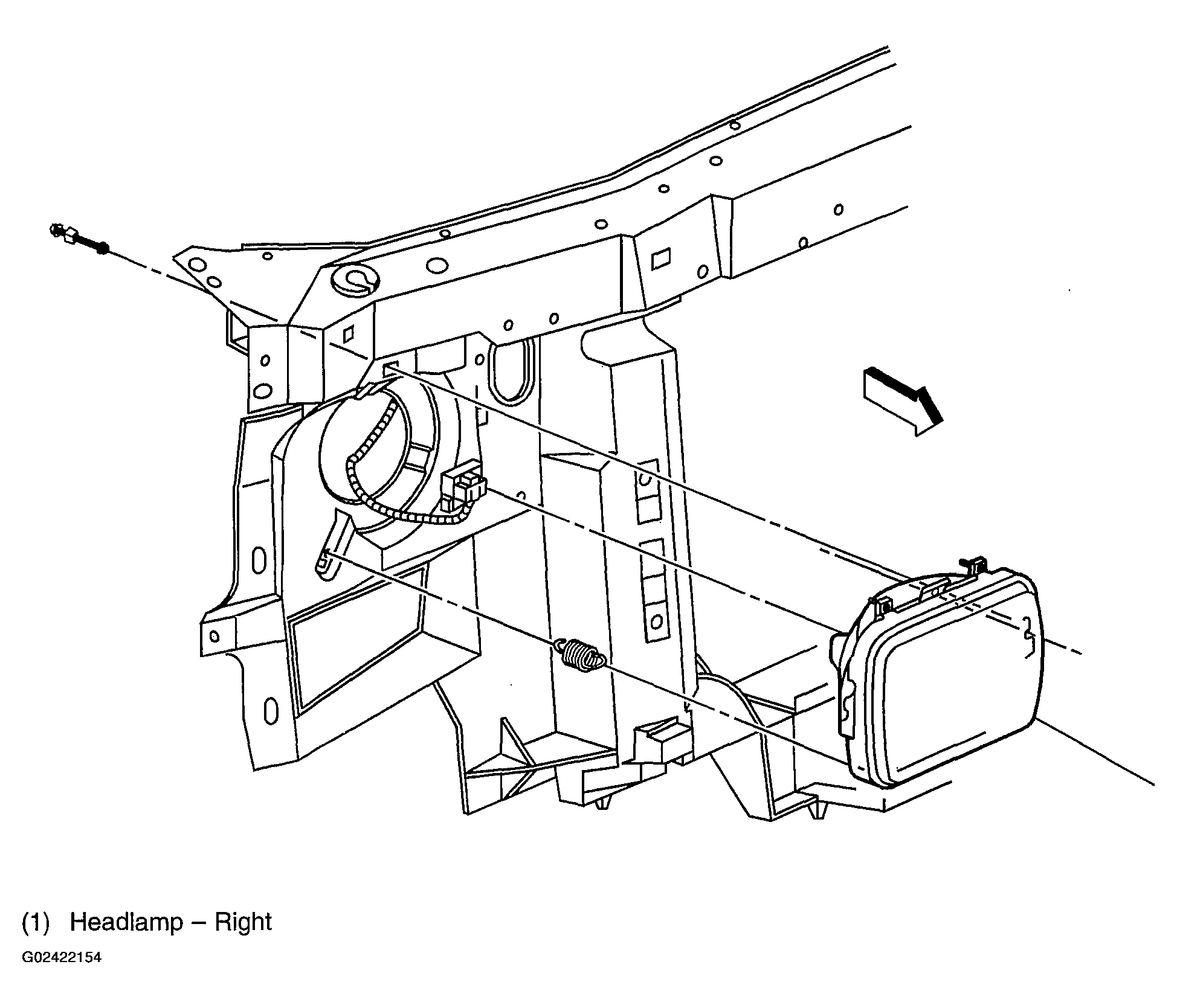

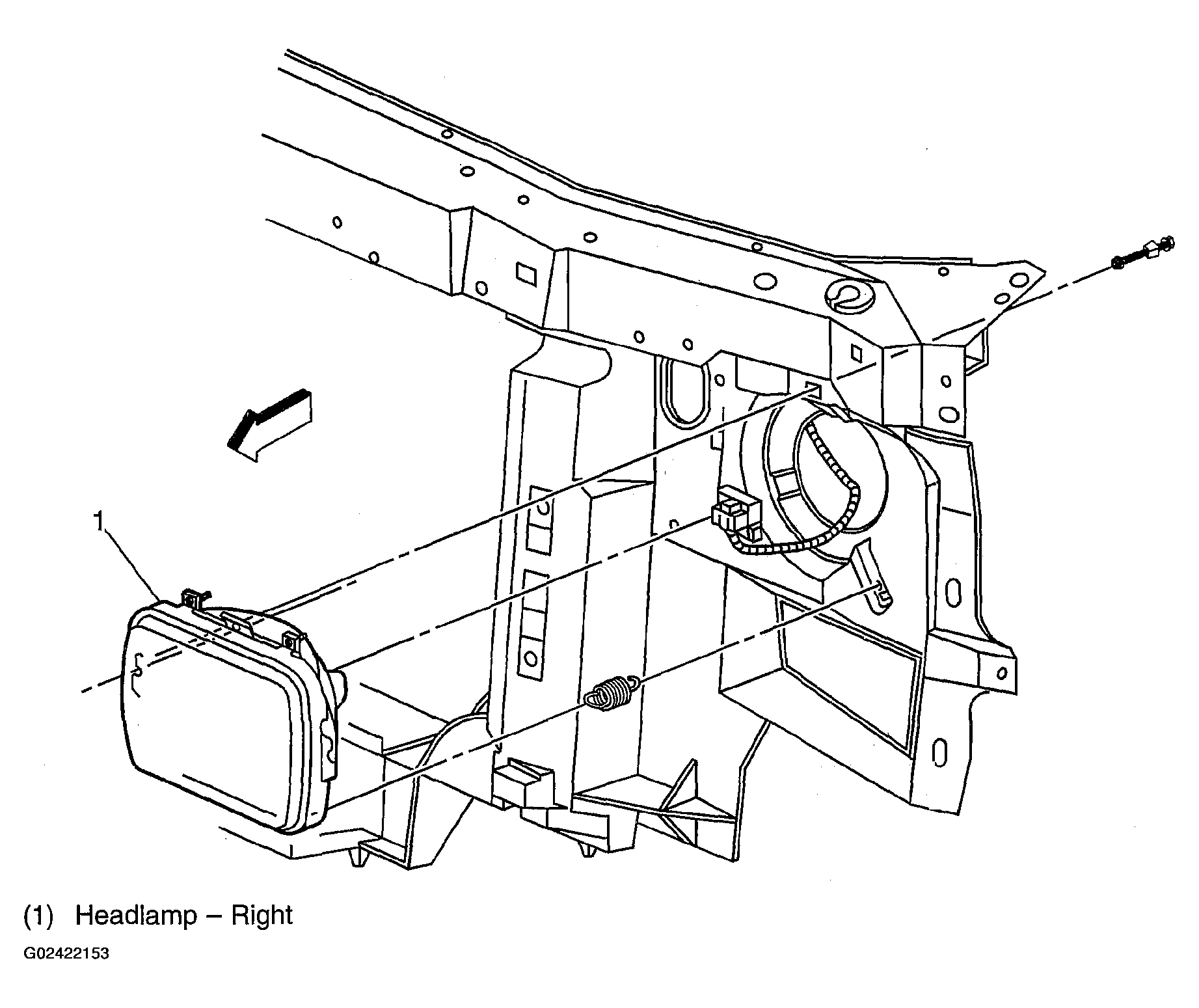

Fig 2: Right Front Of Vehicle - Sealed Headlamp

G02422154

Courtesy of GENERAL MOTORS CORP.

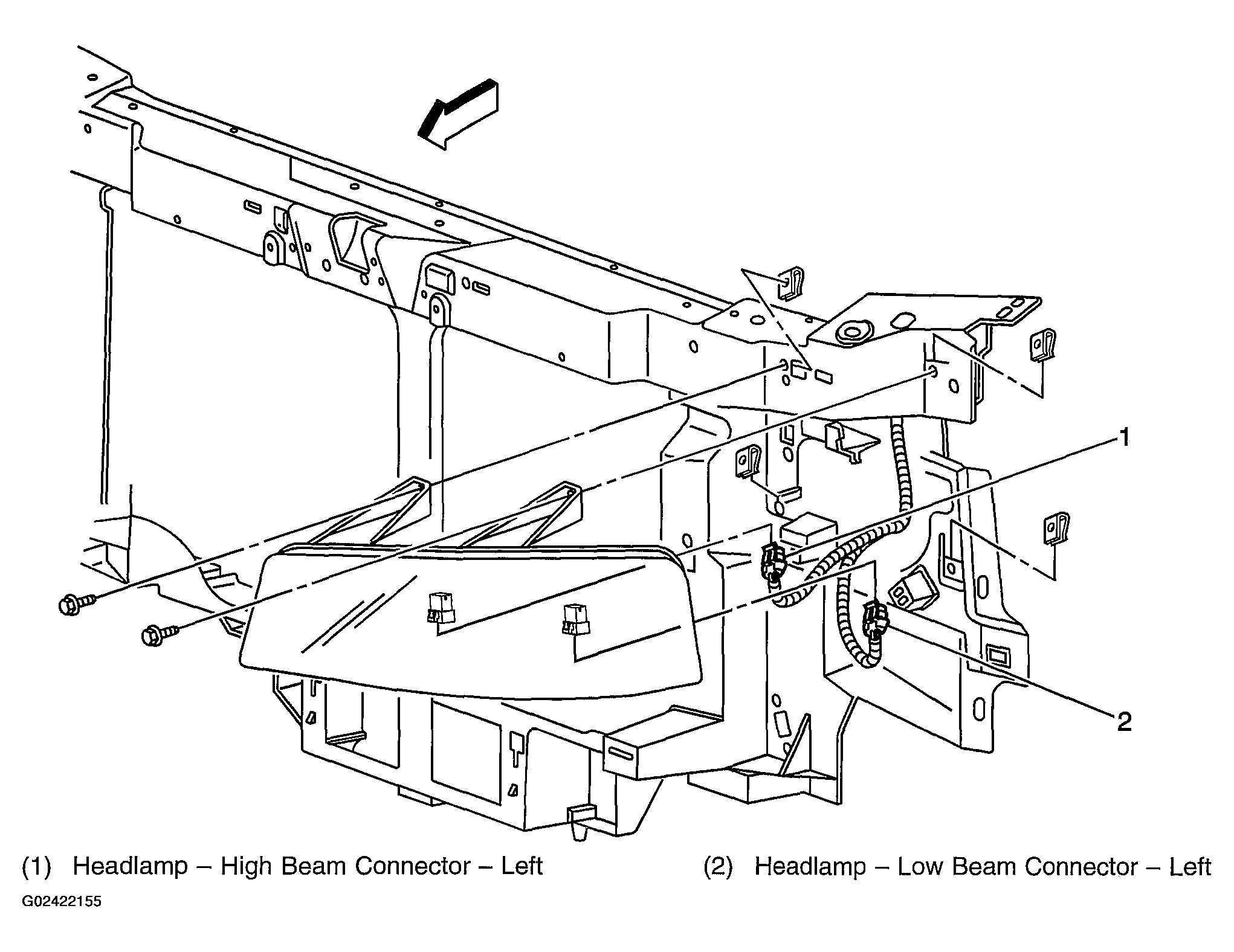

Fig 3: Left Front Of Vehicle - Composite Headlamp

G02422155

Courtesy of GENERAL MOTORS CORP.

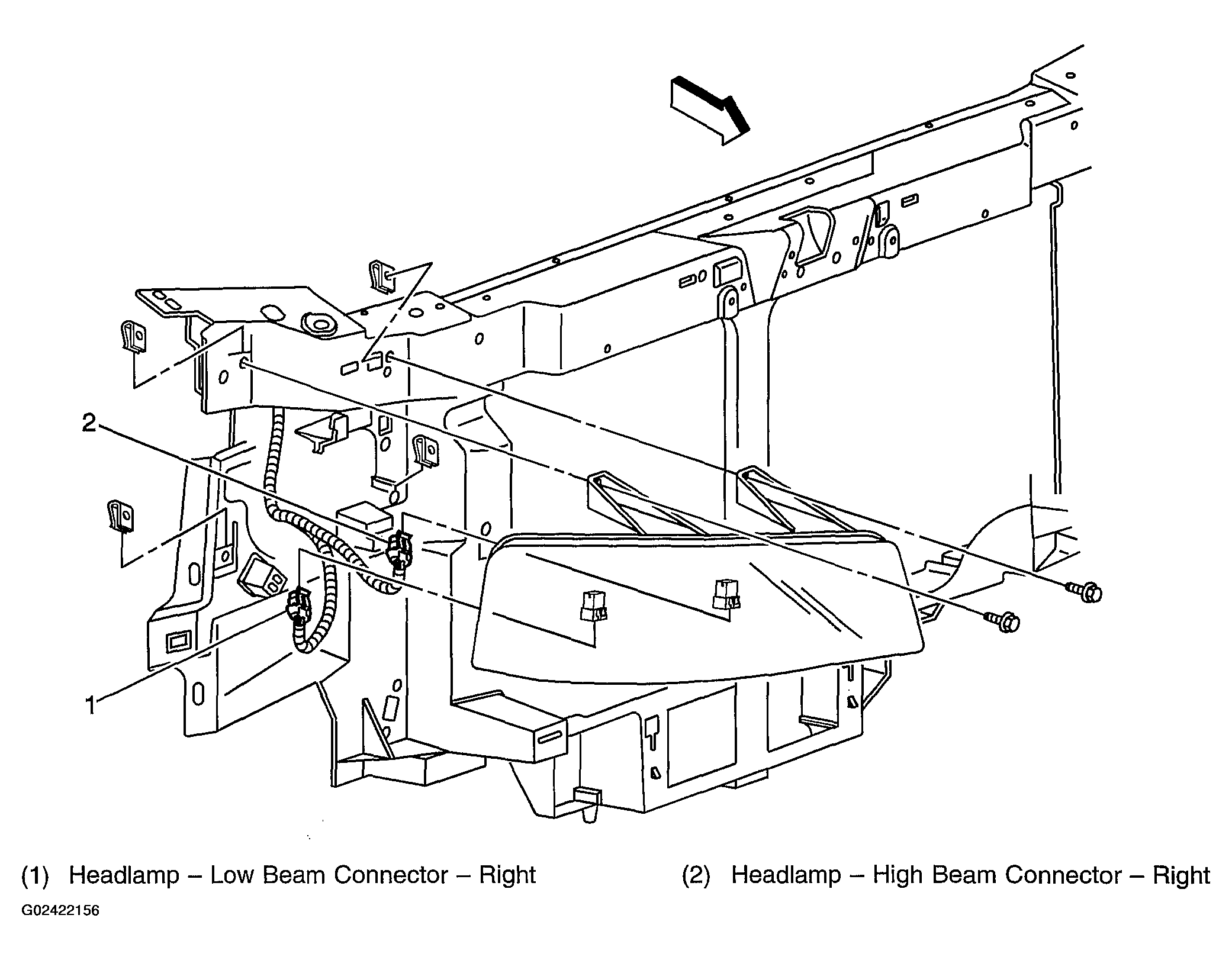

Fig 4: Right Front Of Vehicle - Composite Headlamp

G02422156

Courtesy of GENERAL MOTORS CORP.

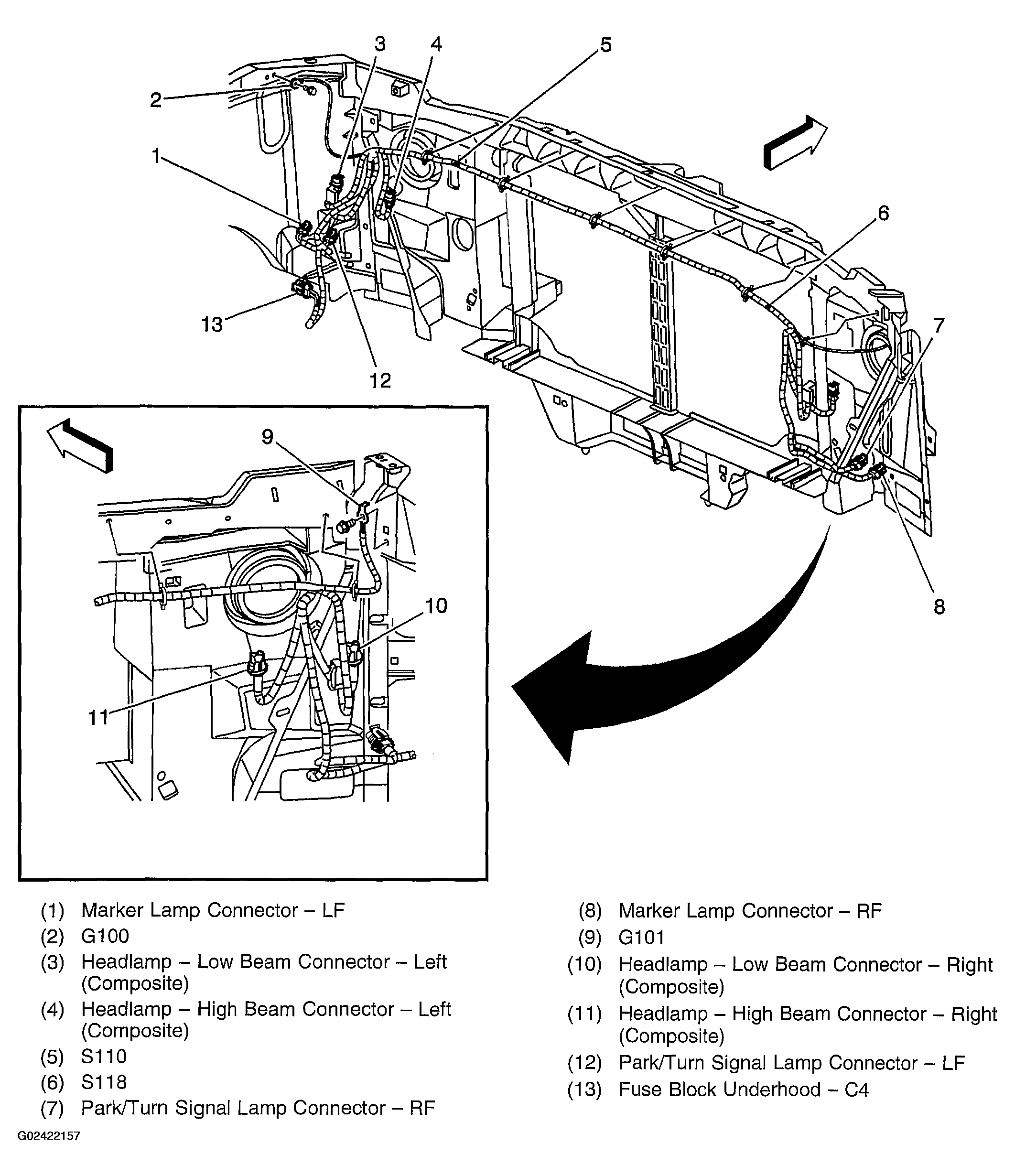

Fig 5: Forward Lamps Harness Routing

G02422157

Courtesy of GENERAL MOTORS CORP.

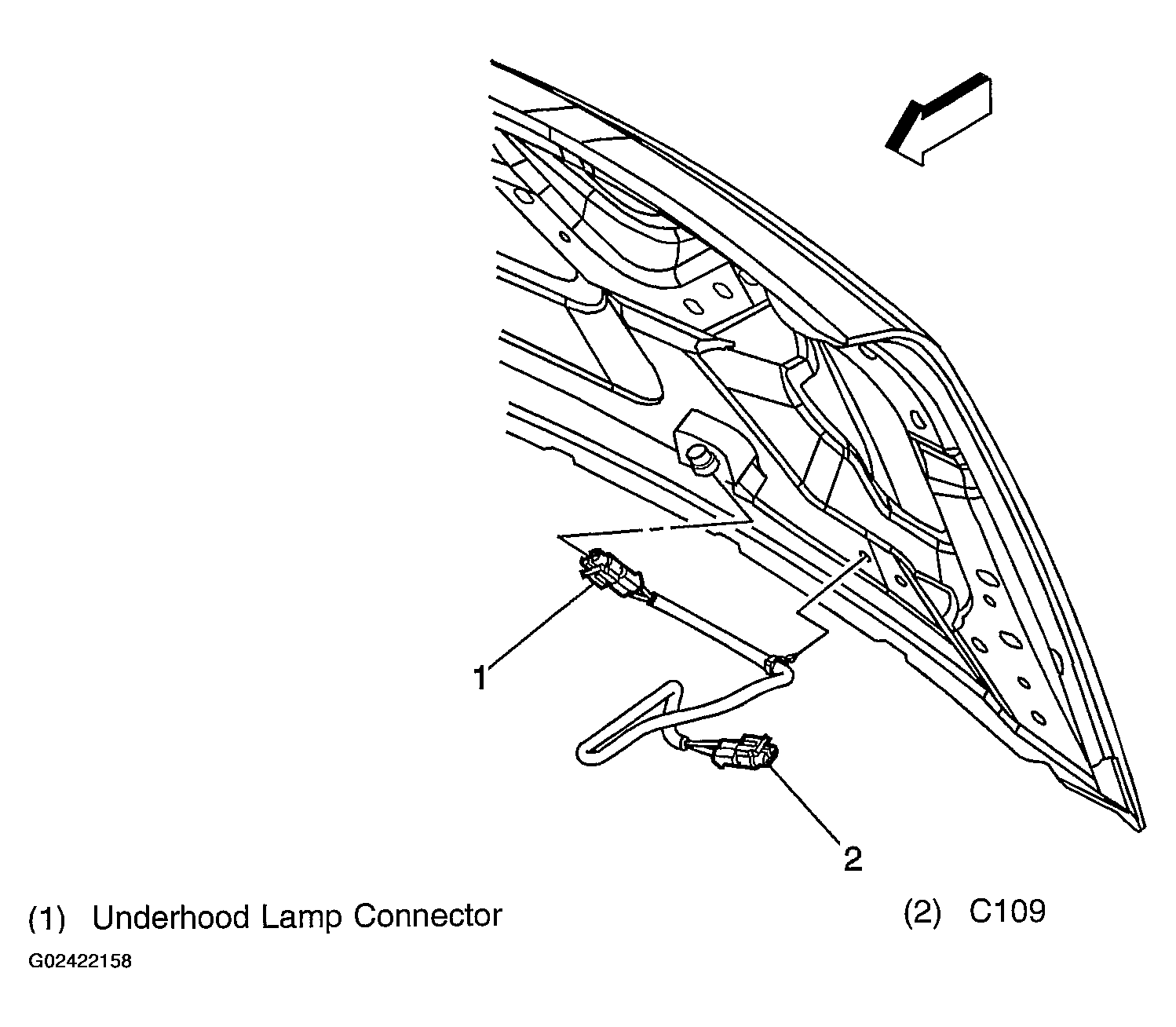

Fig 6: Underhood Lamp Harness

G02422158

Courtesy of GENERAL MOTORS CORP.

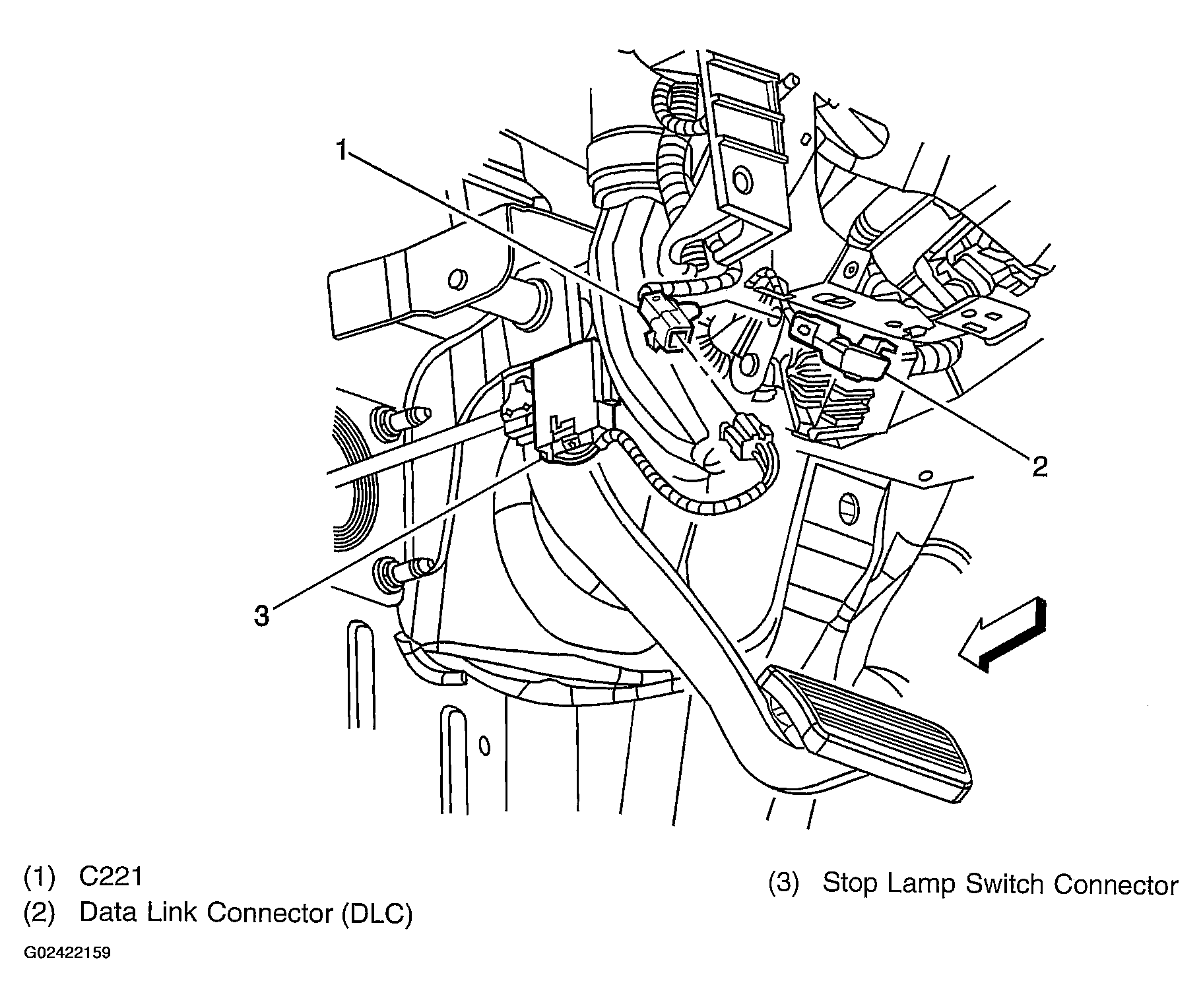

Fig 7: I/P Harness Routing - Left Side Of I/P

G02422159

Courtesy of GENERAL MOTORS CORP.

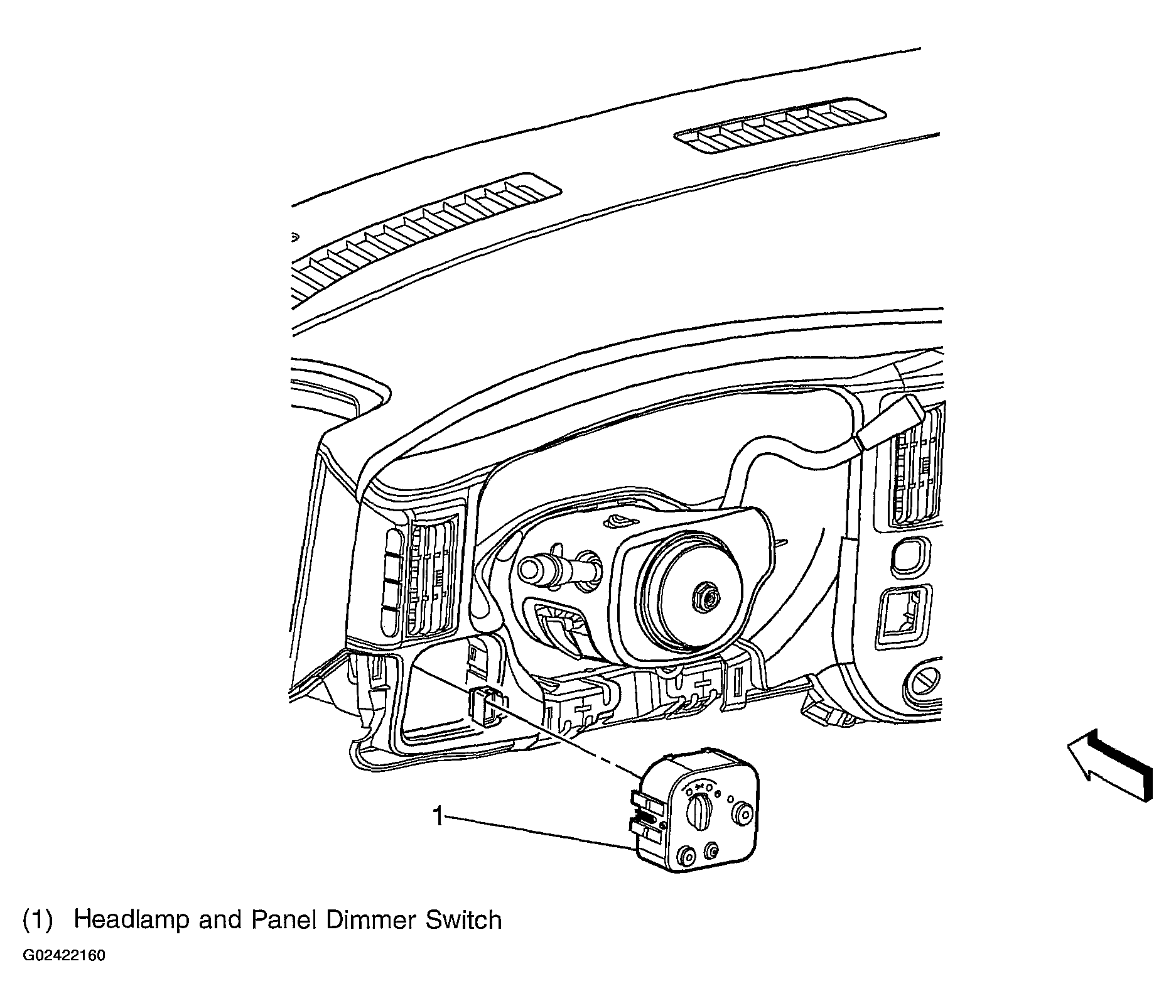

Fig 8: Left Side Of I/P

G02422160

Courtesy of GENERAL MOTORS CORP.

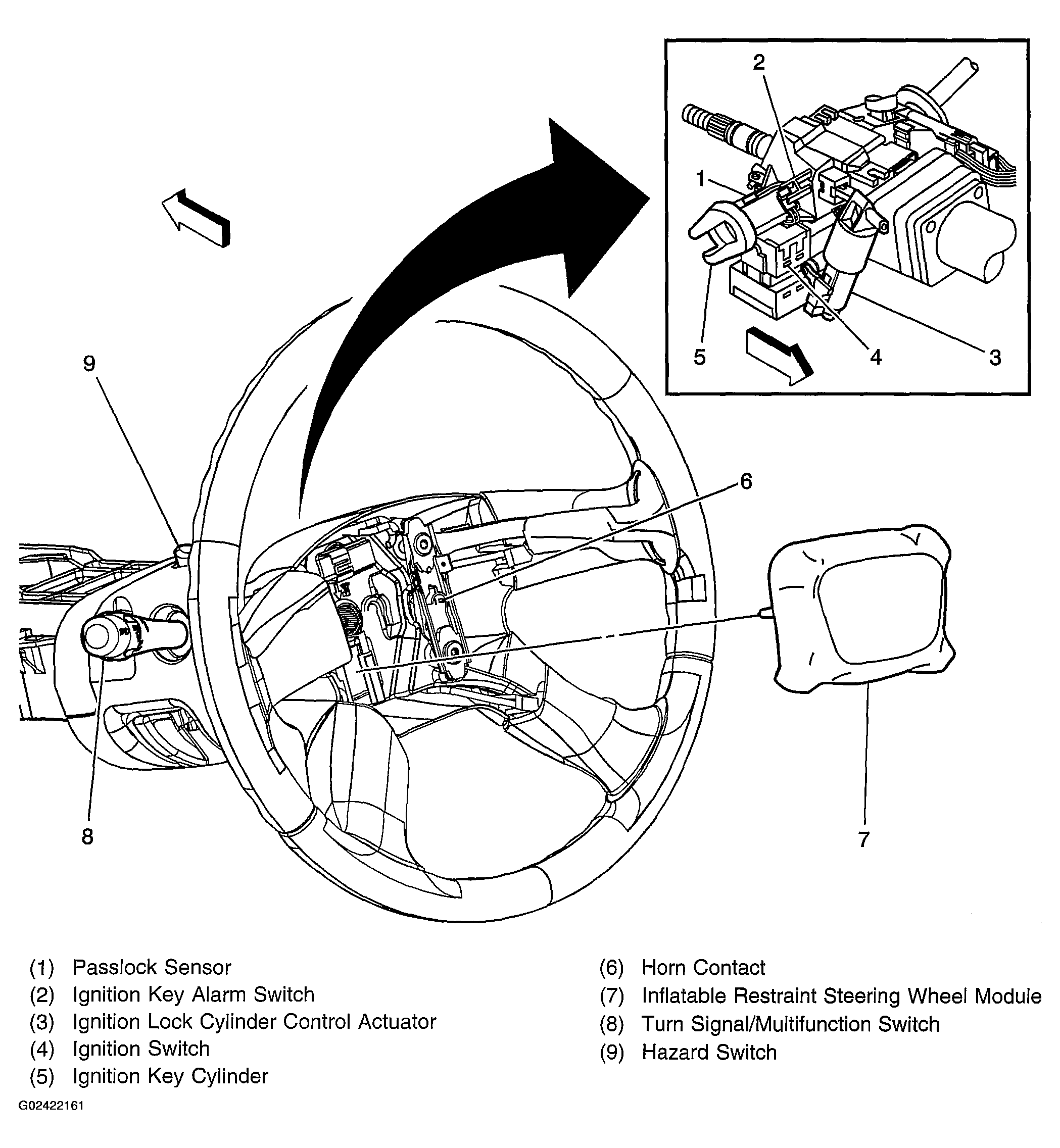

Fig 9: Upper Steering Column

G02422161

Courtesy of GENERAL MOTORS CORP.

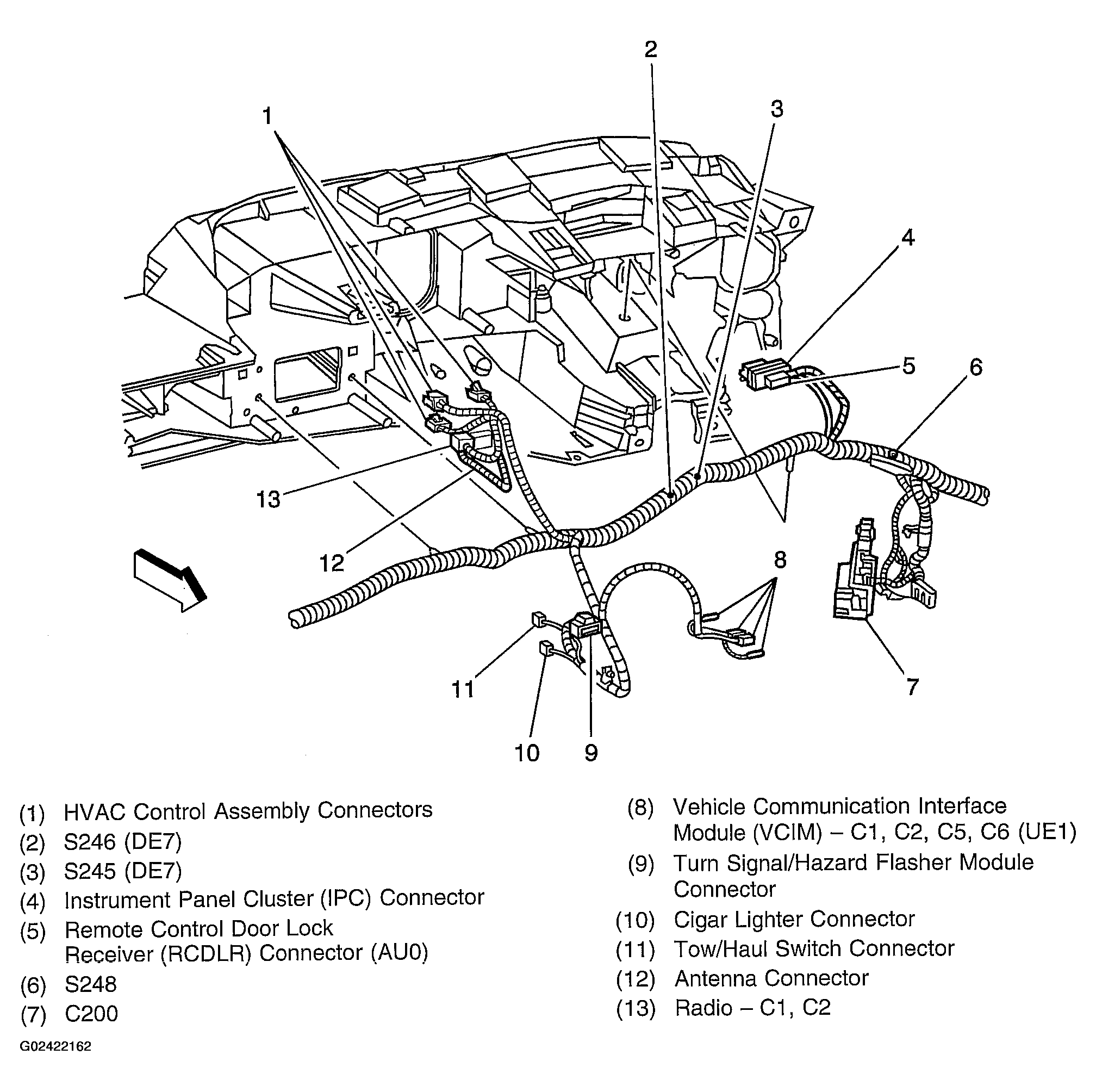

Fig 10: I/P Harness Routing - Center Of I/P

G02422162

Courtesy of GENERAL MOTORS CORP.

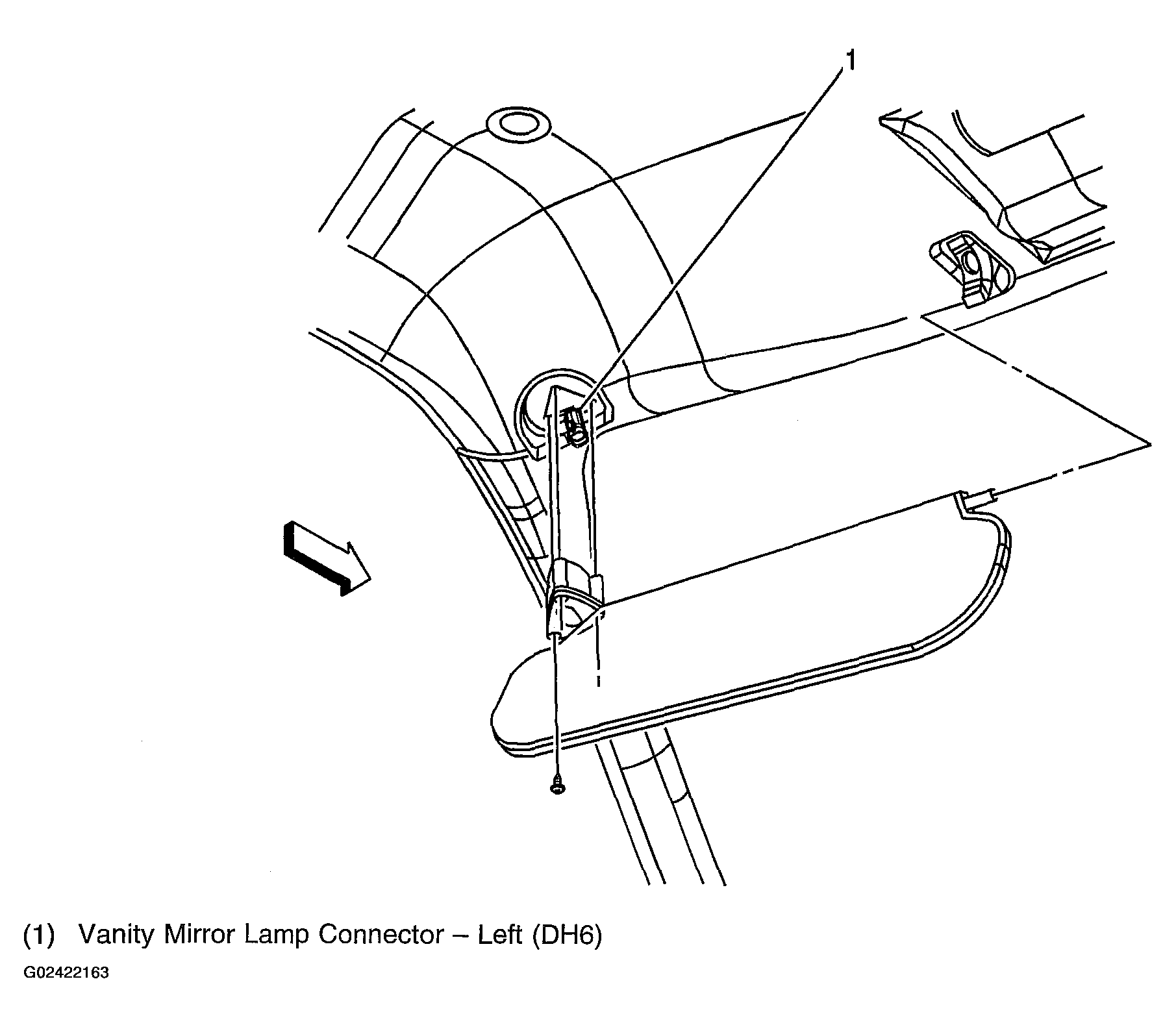

Fig 11: Upper Left Front Of Passenger Compartment

G02422163

Courtesy of GENERAL MOTORS CORP.

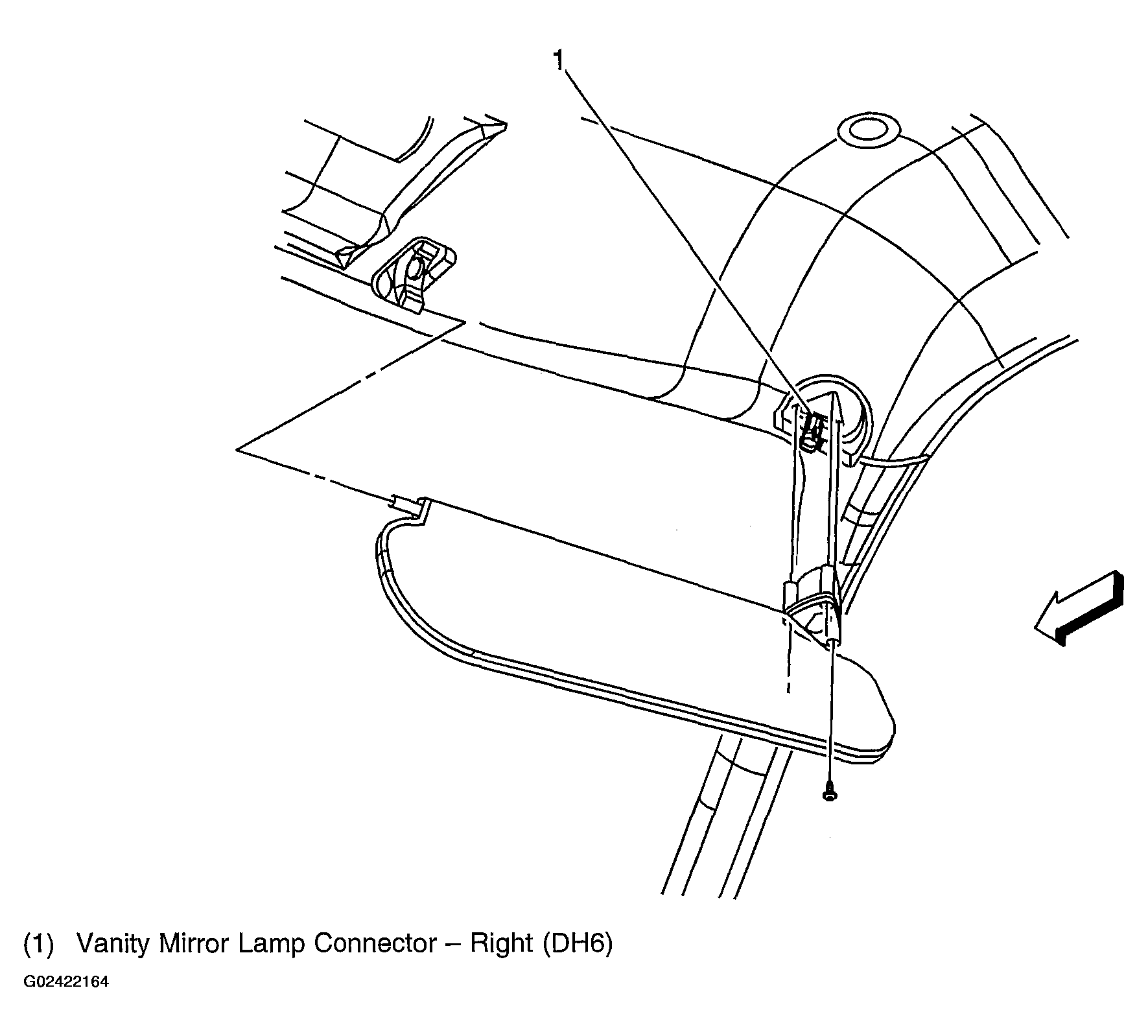

Fig 12: Upper Right Front Of Passenger Compartment

G02422164

Courtesy of GENERAL MOTORS CORP.

Fig 13: Driver Door

G02422165

Courtesy of GENERAL MOTORS CORP.

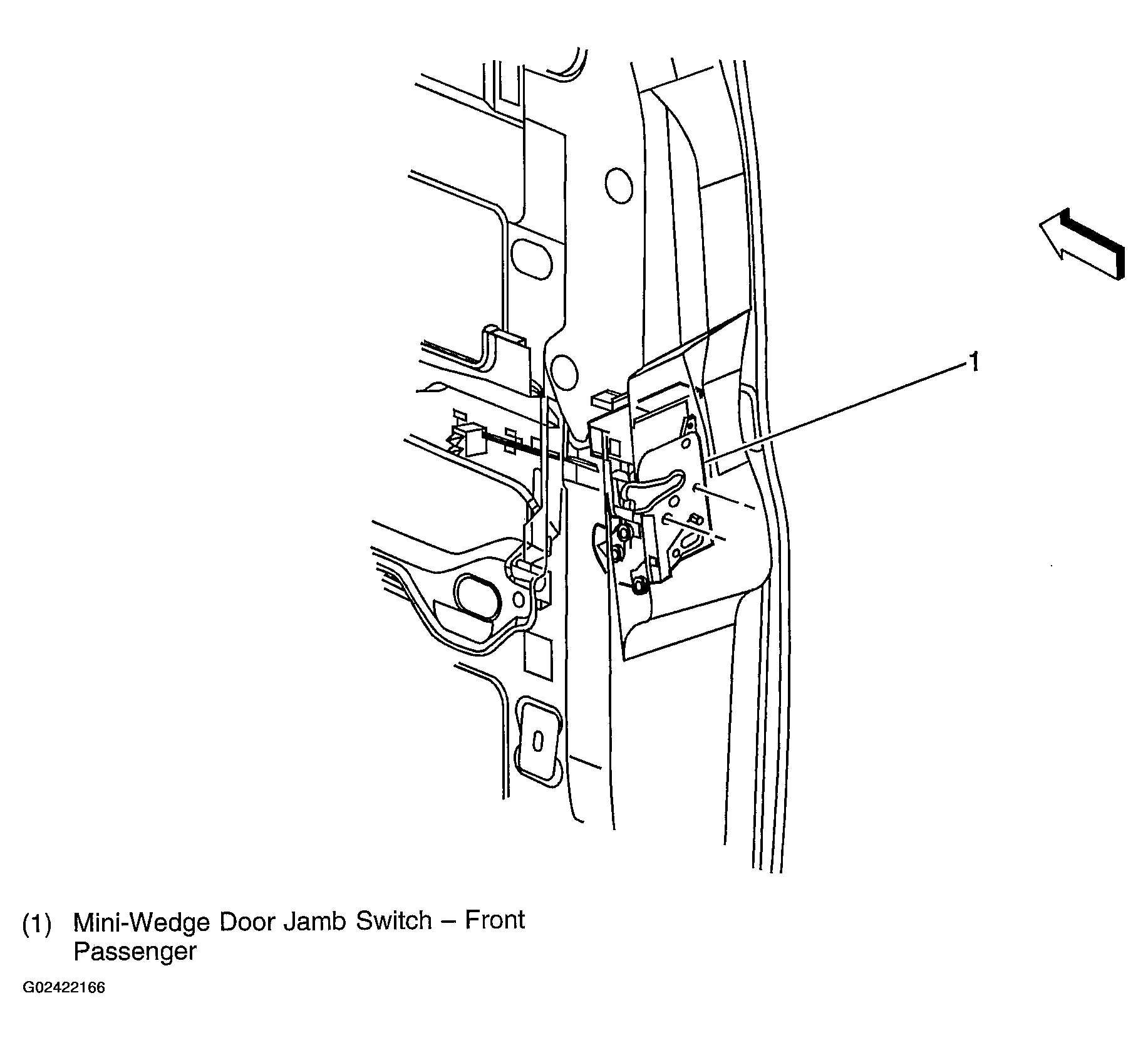

Fig 14: Front Passenger Door

G02422166

Courtesy of GENERAL MOTORS CORP.

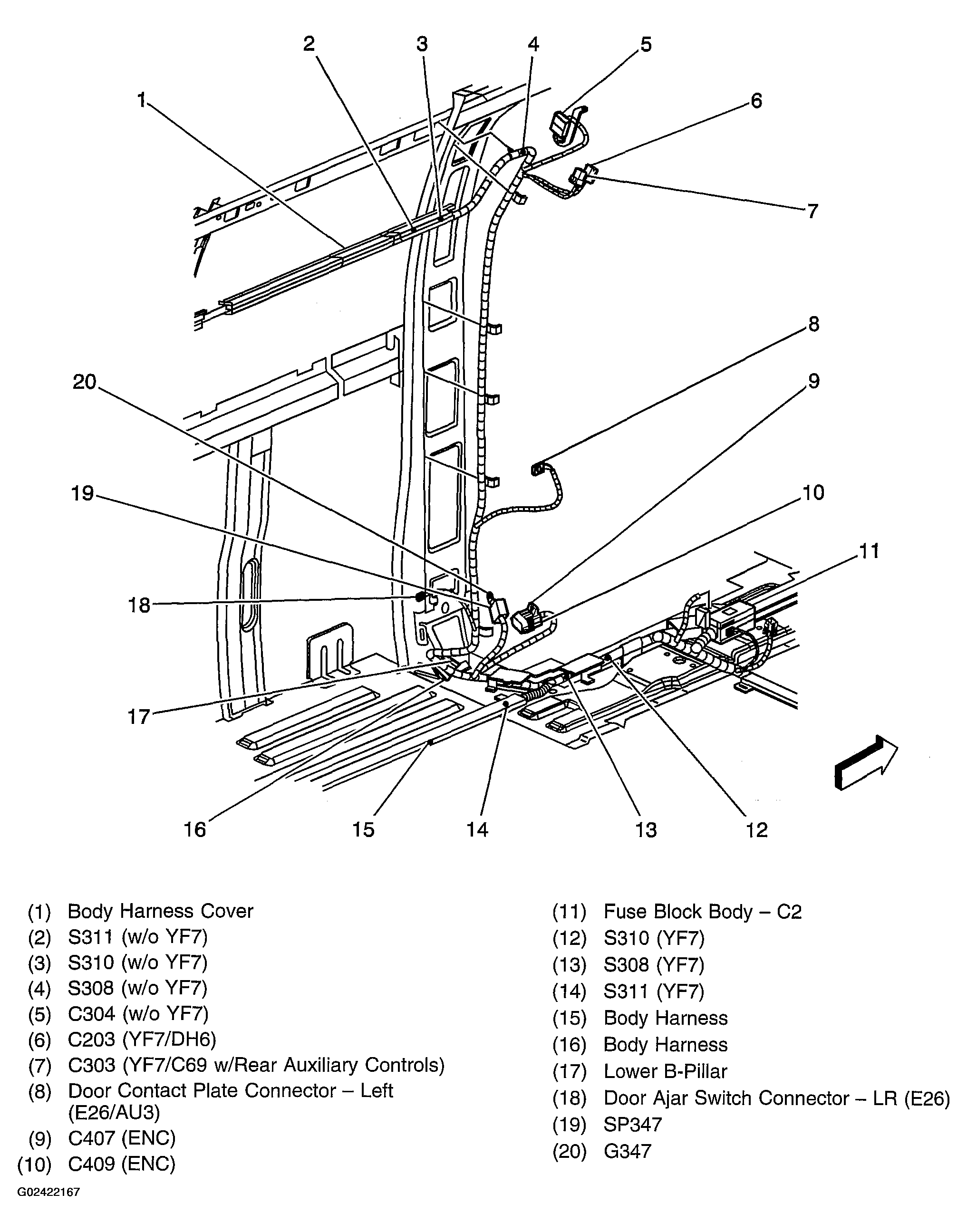

Fig 15: Body Harness Routing - Left B-Pillar (Passenger/Cargo)

G02422167

Courtesy of GENERAL MOTORS CORP.

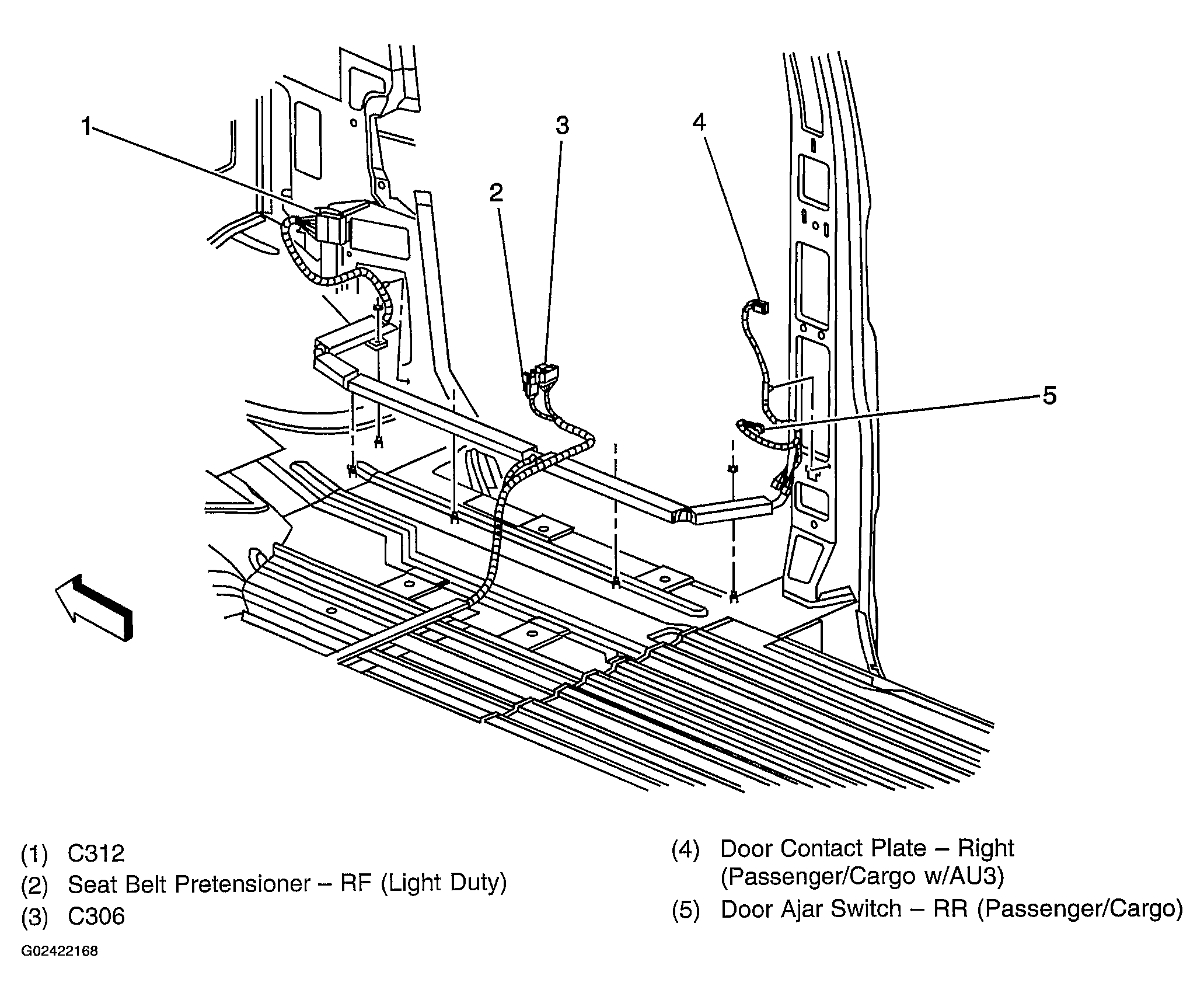

Fig 16: Body Harness Routing - Right B-Pillar

G02422168

Courtesy of GENERAL MOTORS CORP.

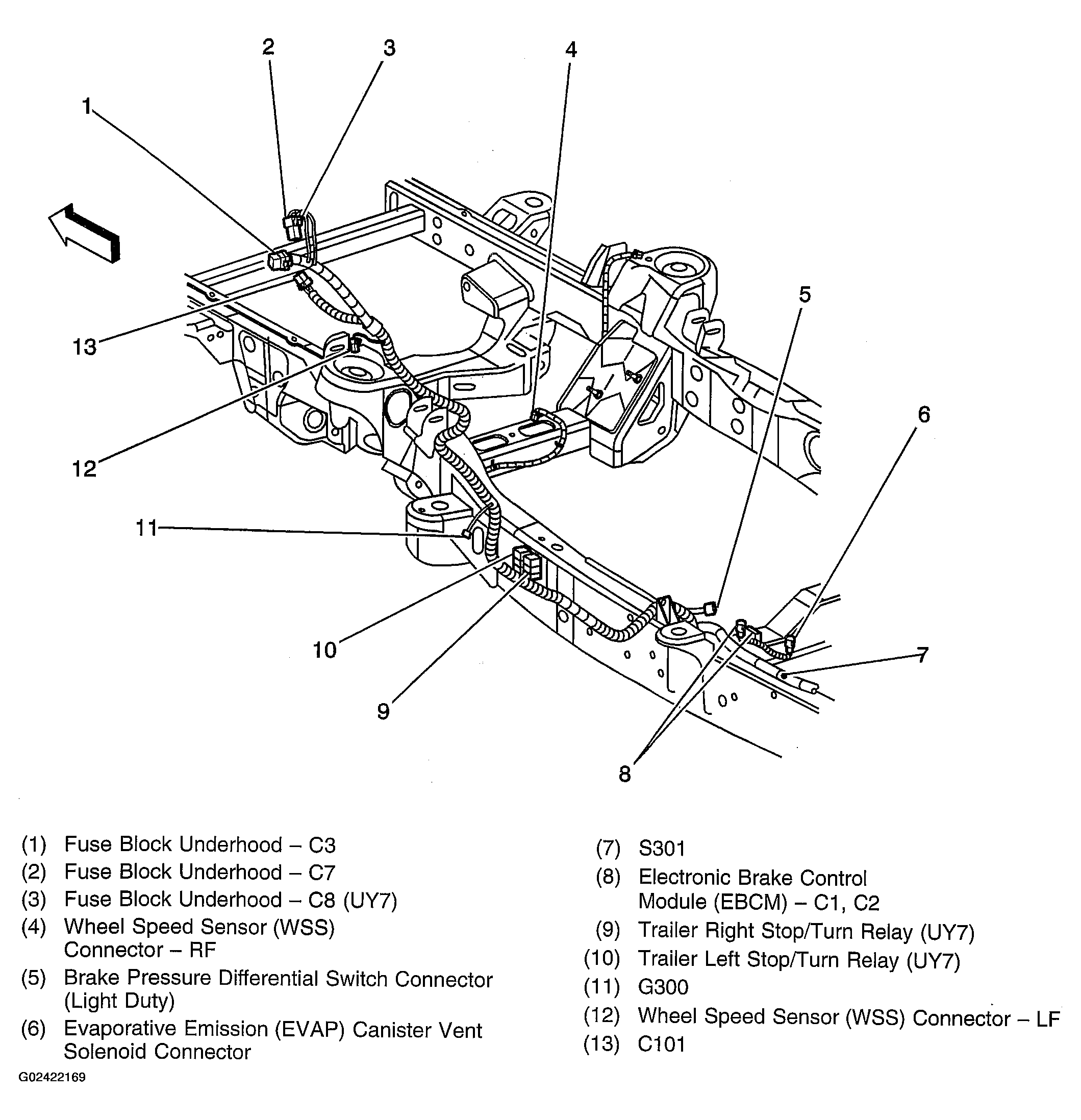

Fig 17: Chassis Harness Routing (Passenger/Cargo)

G02422169

Courtesy of GENERAL MOTORS CORP.

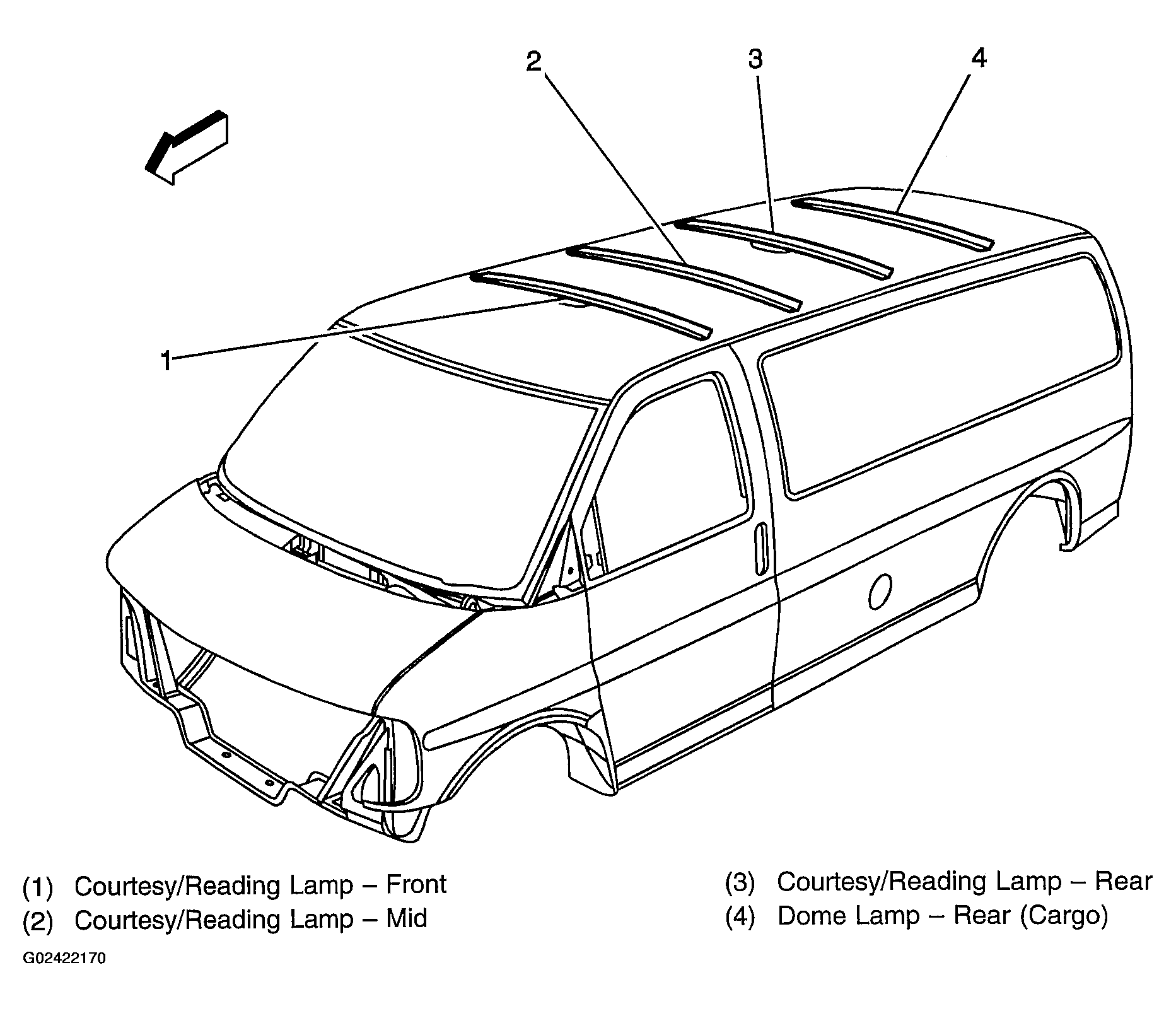

Fig 18: Headliner (Passenger/Cargo)

G02422170

Courtesy of GENERAL MOTORS CORP.

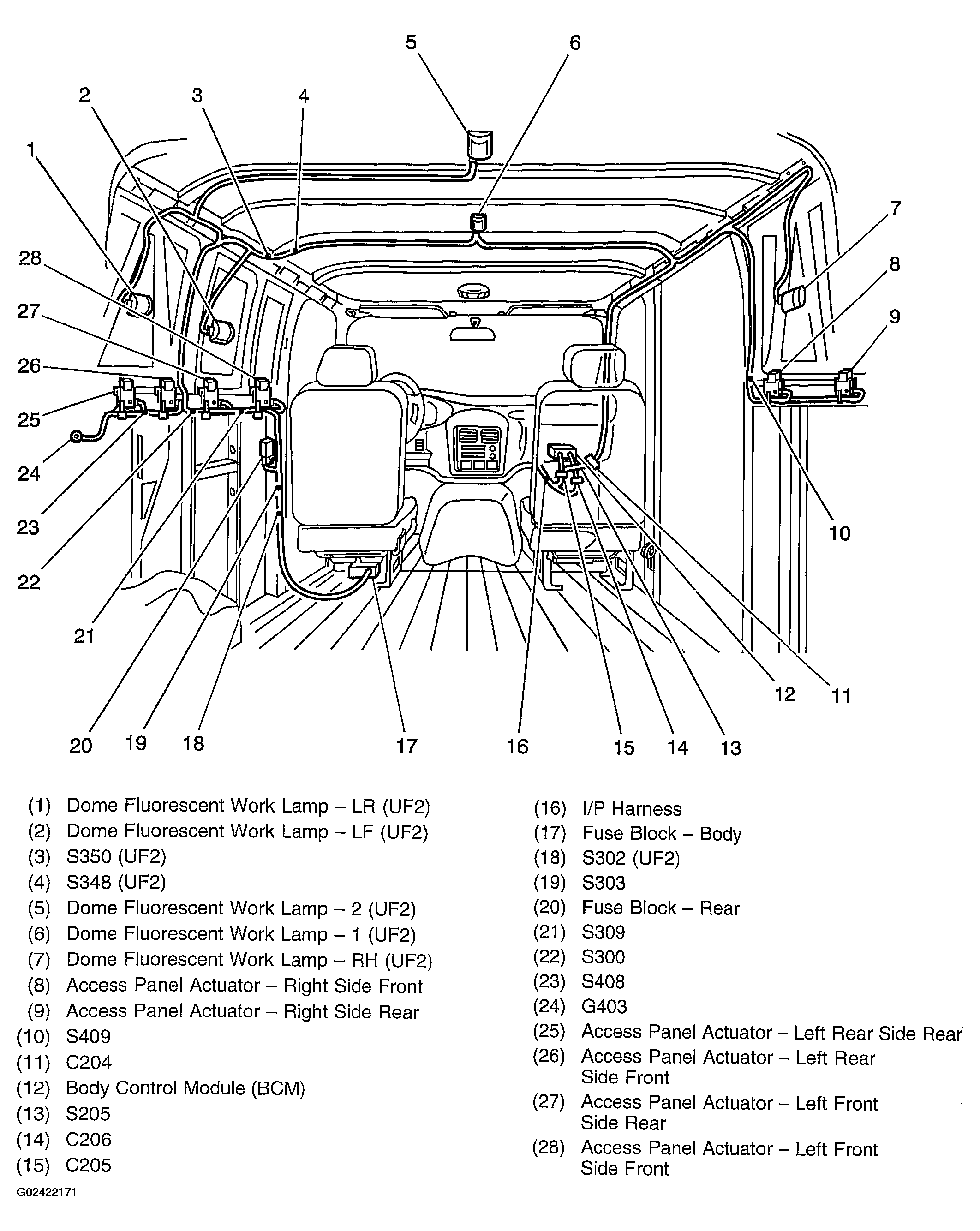

Fig 19: Pro Harness & Components (PRP)

G02422171

Courtesy of GENERAL MOTORS CORP.

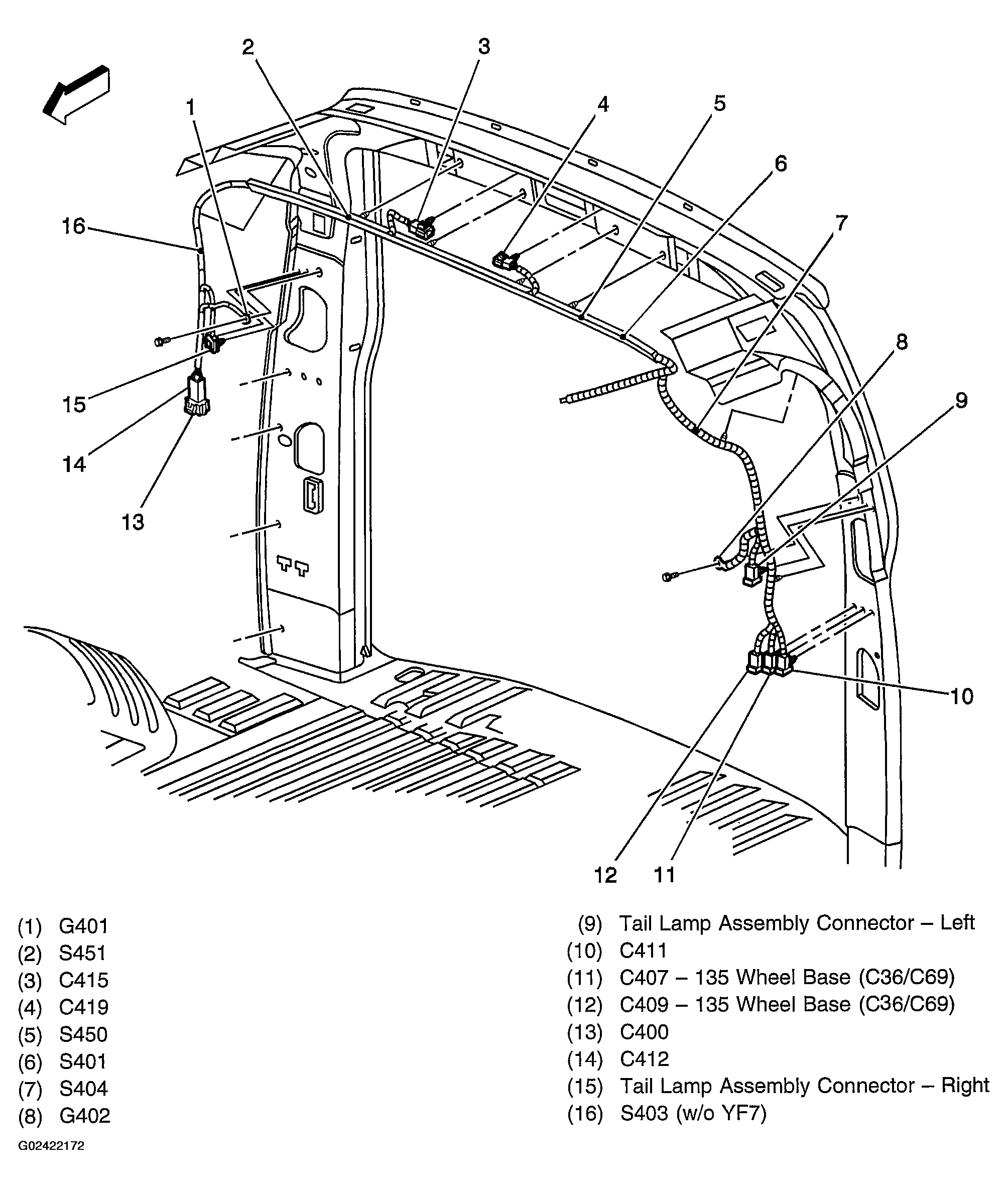

Fig 20: Body Harness Routing - Rear Of Passenger Compartment (Passenger/Cargo)

G02422172

Courtesy of GENERAL MOTORS CORP.

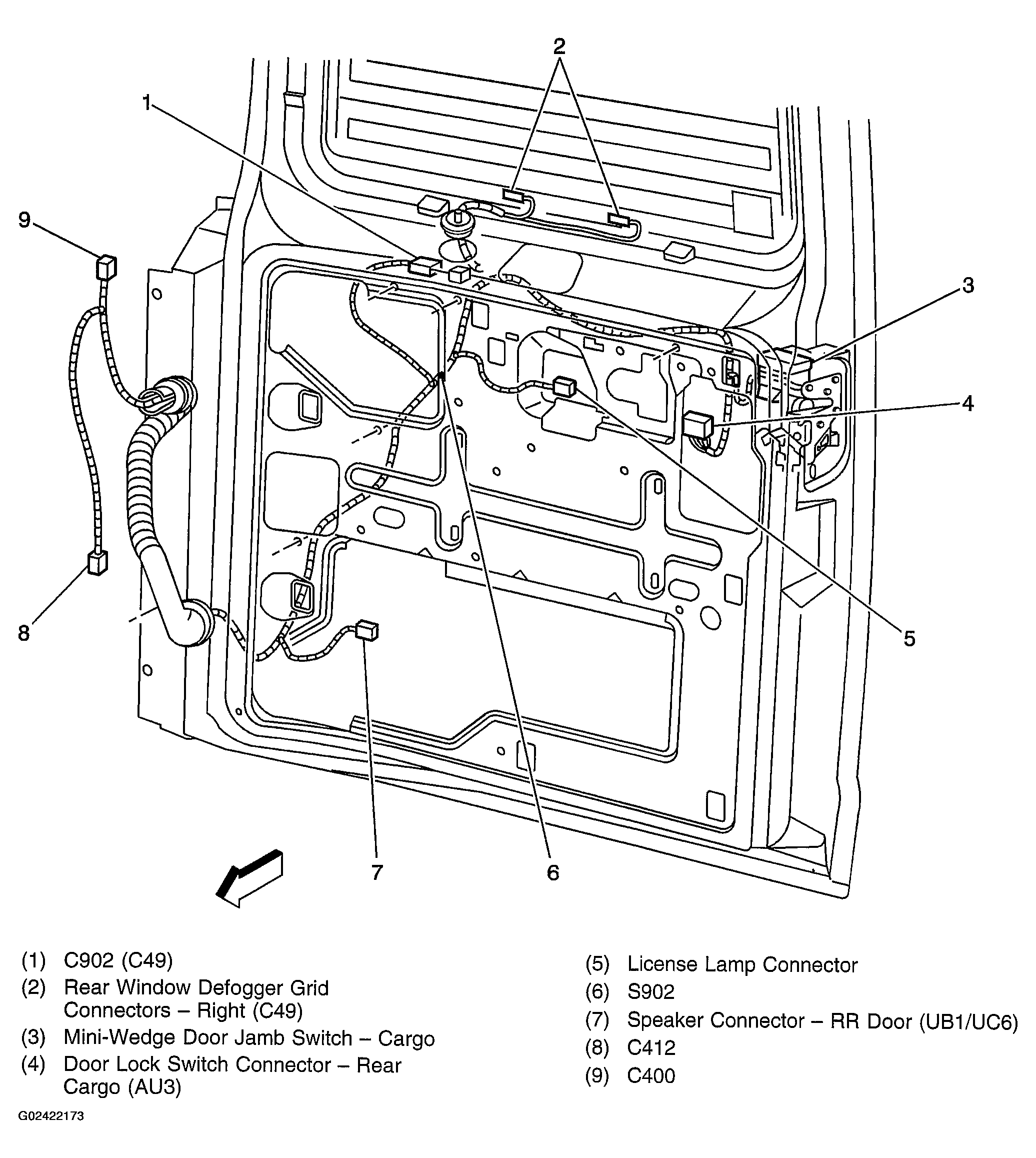

Fig 21: Right Rear Cargo Door Harness Routing (Passenger/Cargo)

G02422173

Courtesy of GENERAL MOTORS CORP.

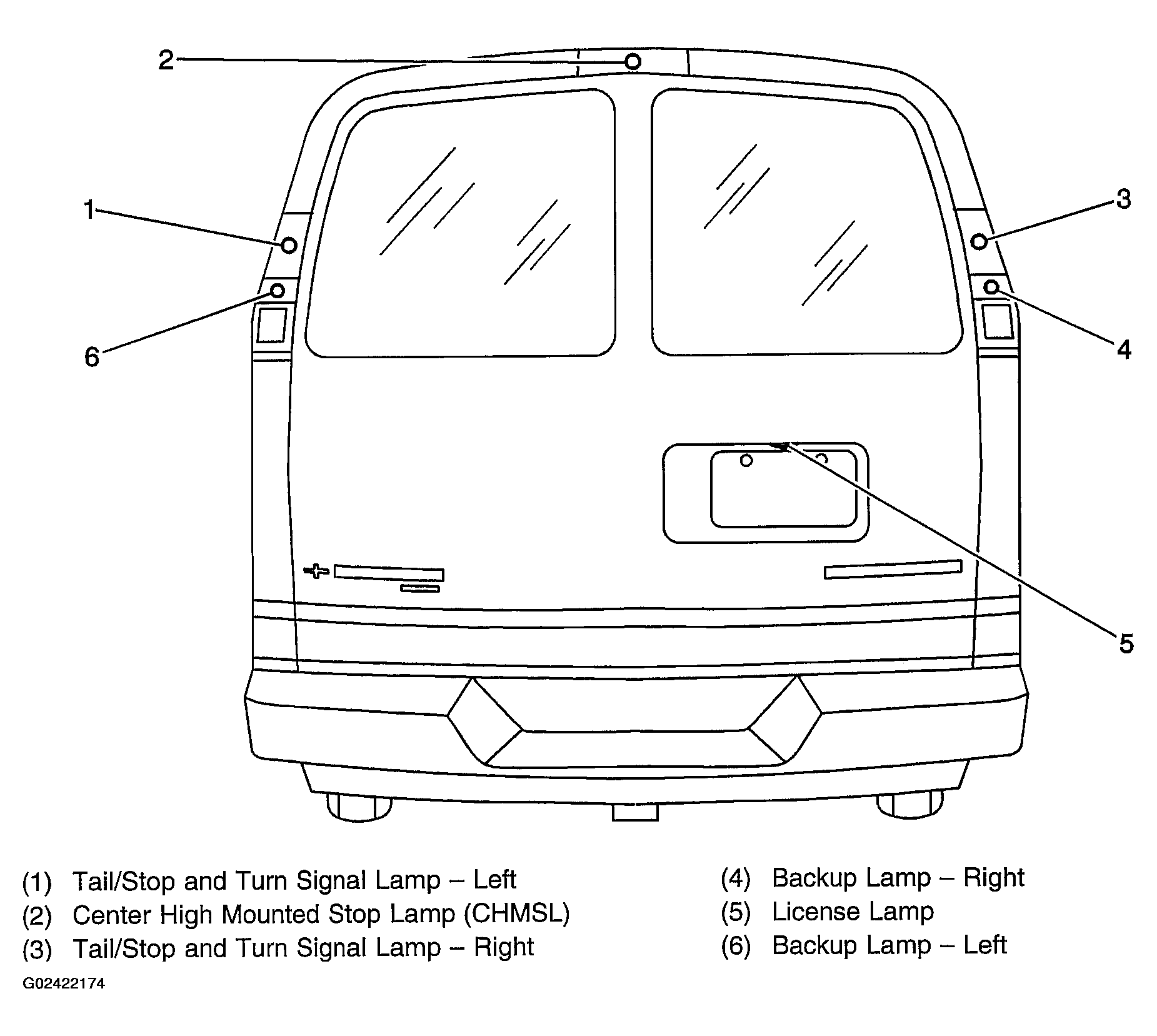

Fig 22: Rear Of Vehicle (Passenger/Cargo)

G02422174

Courtesy of GENERAL MOTORS CORP.
