Lighting Systems Connector End Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

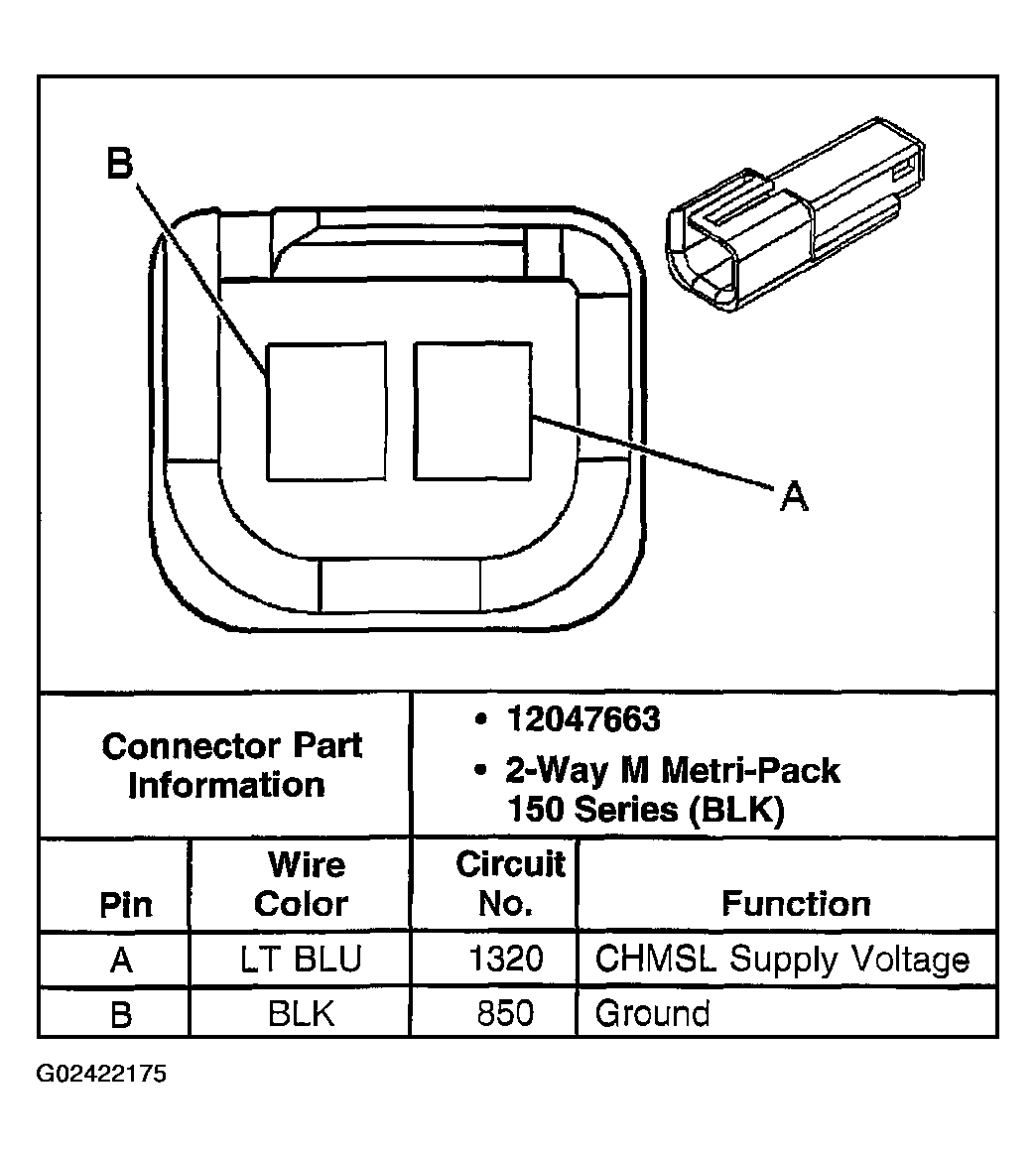

Fig 1: Center High Mounted Stop Lamp (CHMSL) Connector End View (Passenger/Cargo)

G02422175

Courtesy of GENERAL MOTORS CORP.

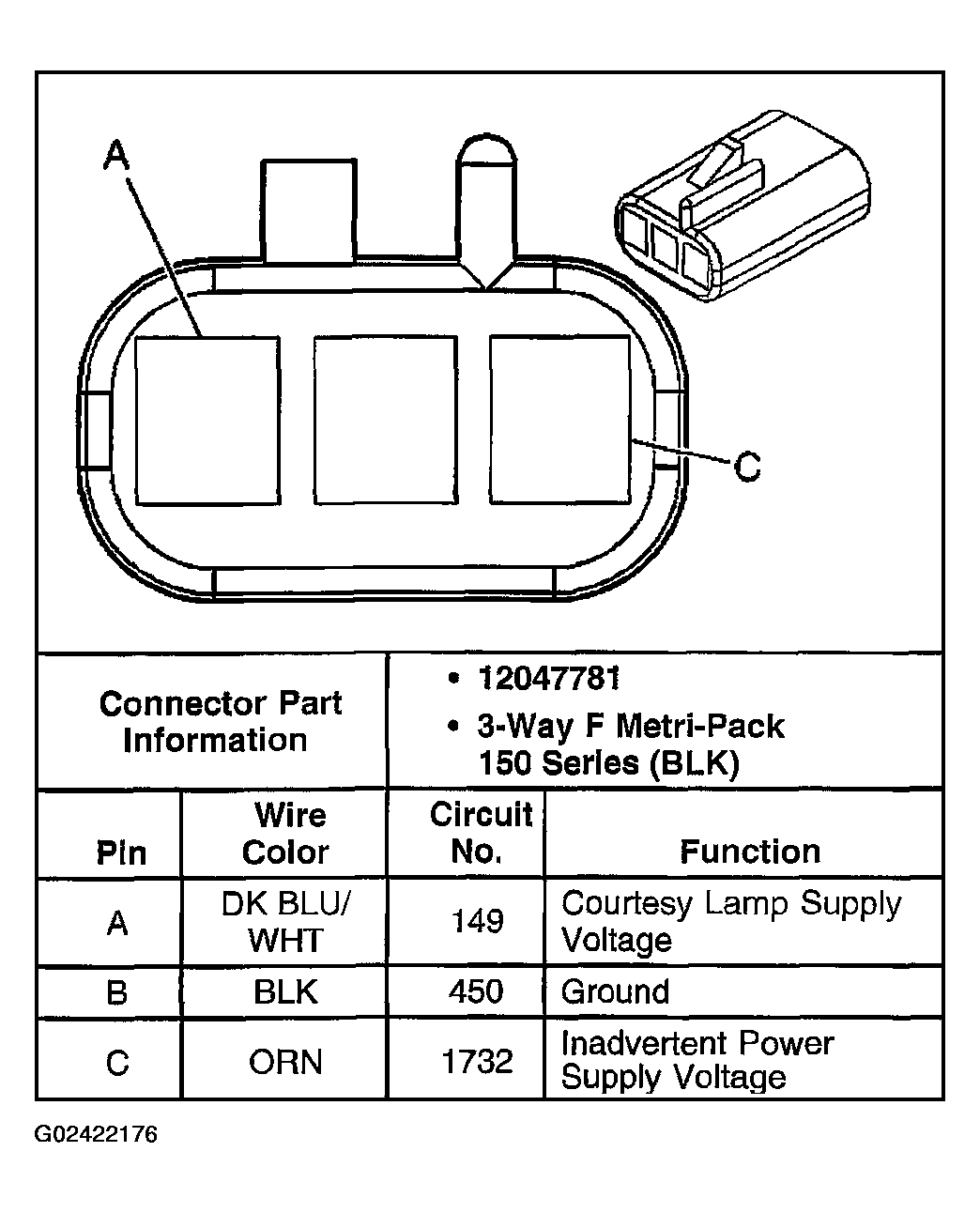

Fig 2: Courtesy/Reading Lamp Connector End View - Front

G02422176

Courtesy of GENERAL MOTORS CORP.

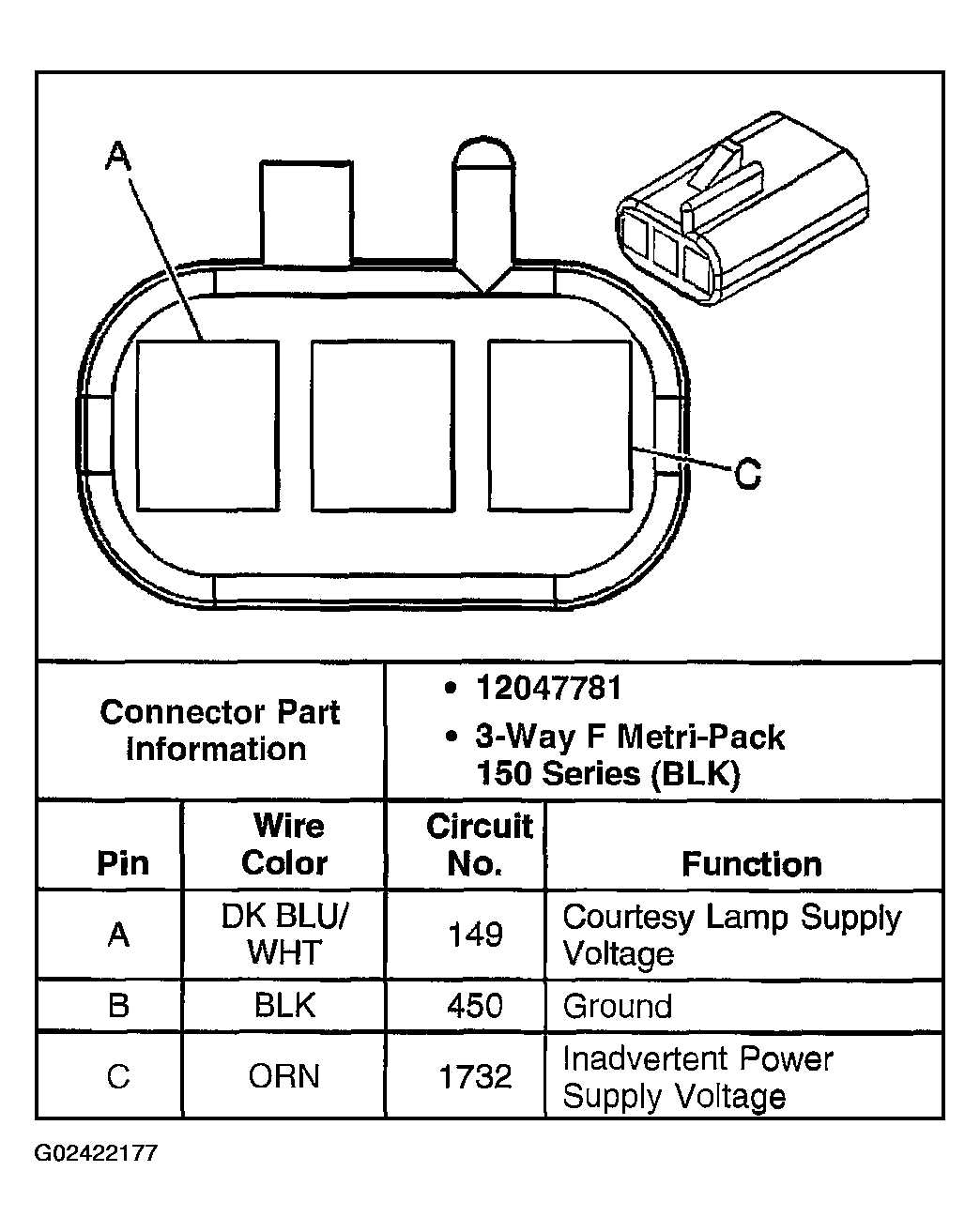

Fig 3: Courtesy/Reading Lamp Connector End View - Mid (Passenger/Cargo)

G02422177

Courtesy of GENERAL MOTORS CORP.

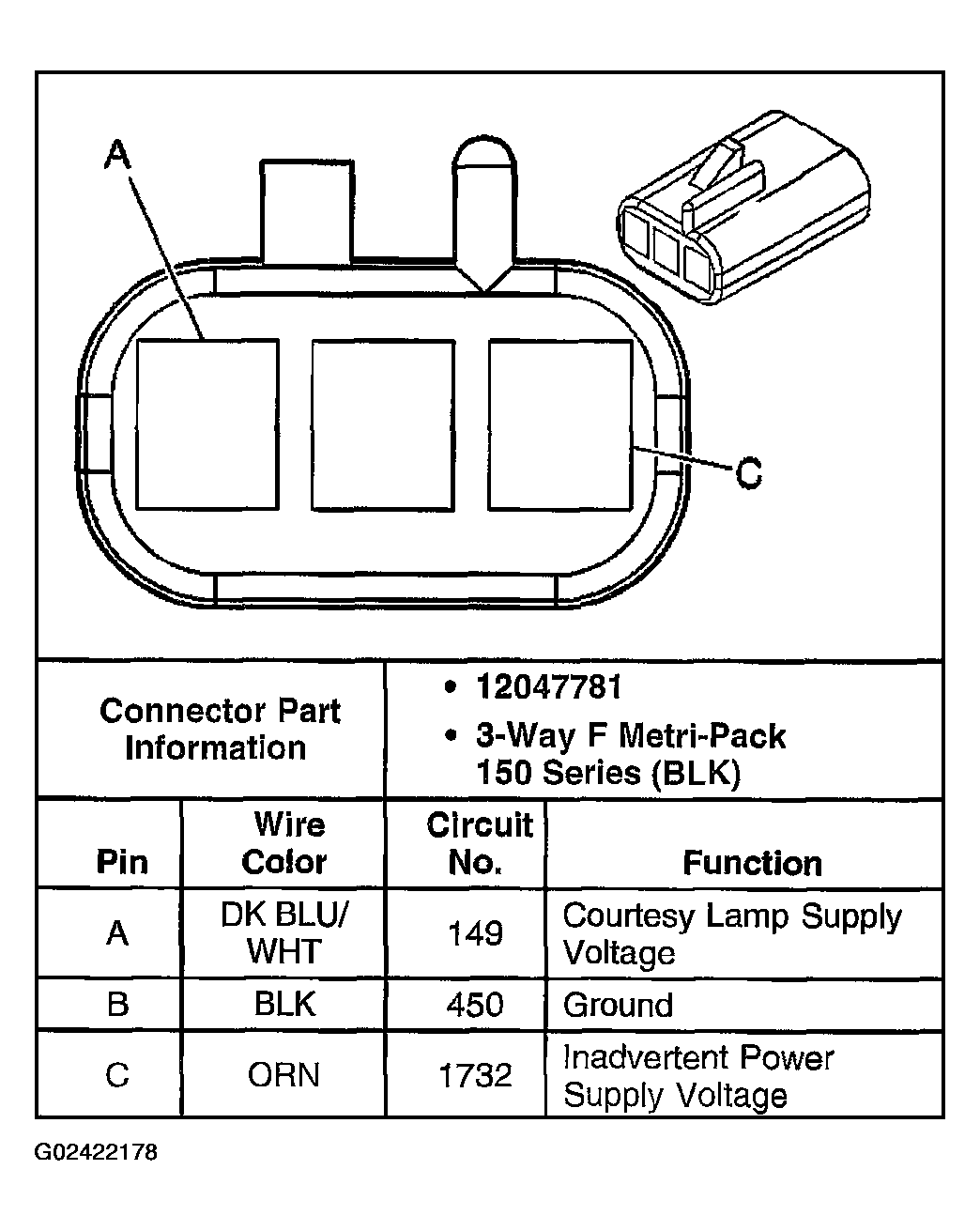

Fig 4: Courtesy/Reading Lamp Connector End View - Rear (Passenger/Cargo)

G02422178

Courtesy of GENERAL MOTORS CORP.

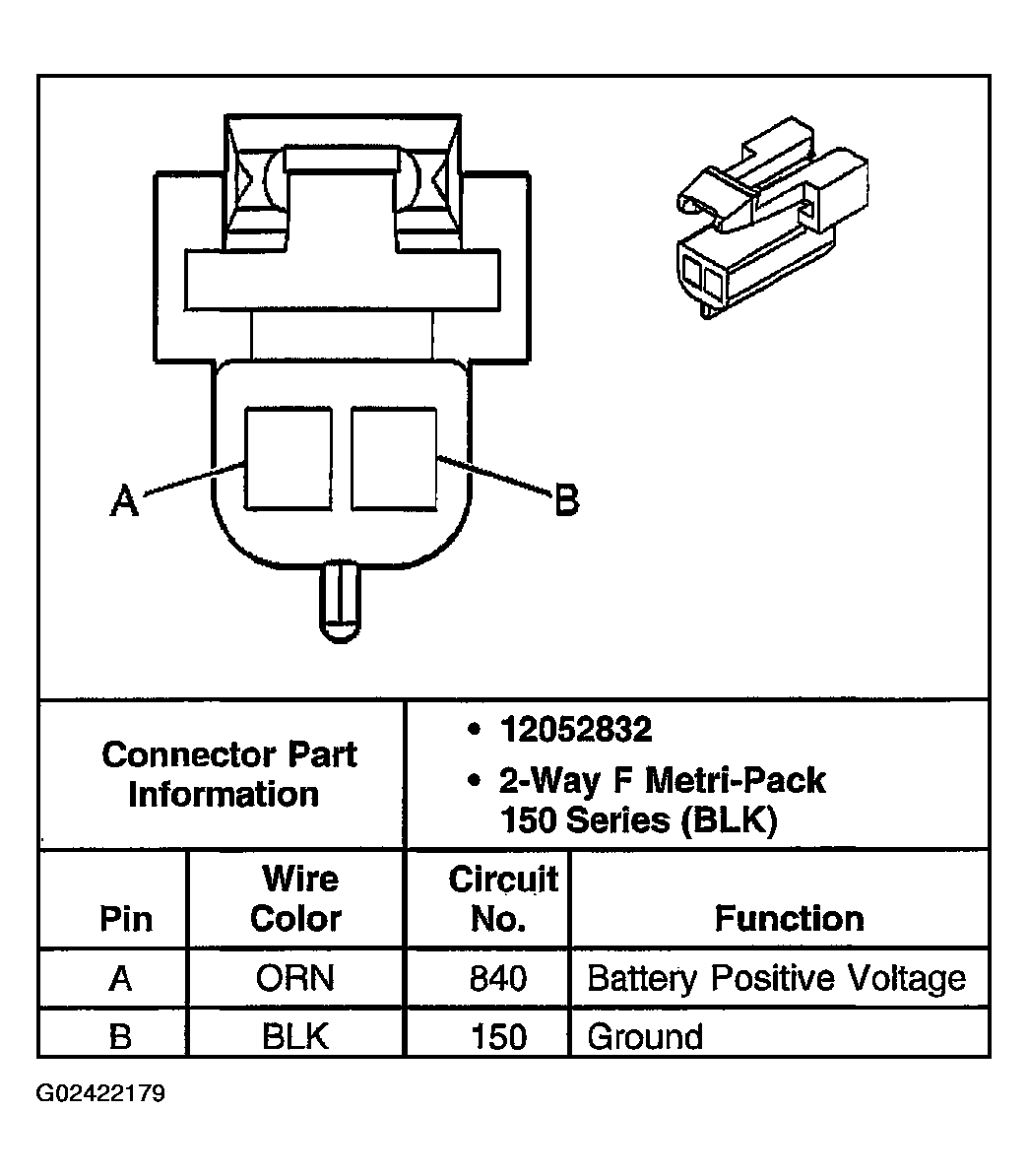

Fig 5: Dome Fluorescent Work Lamps Connector End View (PNP W/UF2, Cargo Lamp)

G02422179

Courtesy of GENERAL MOTORS CORP.

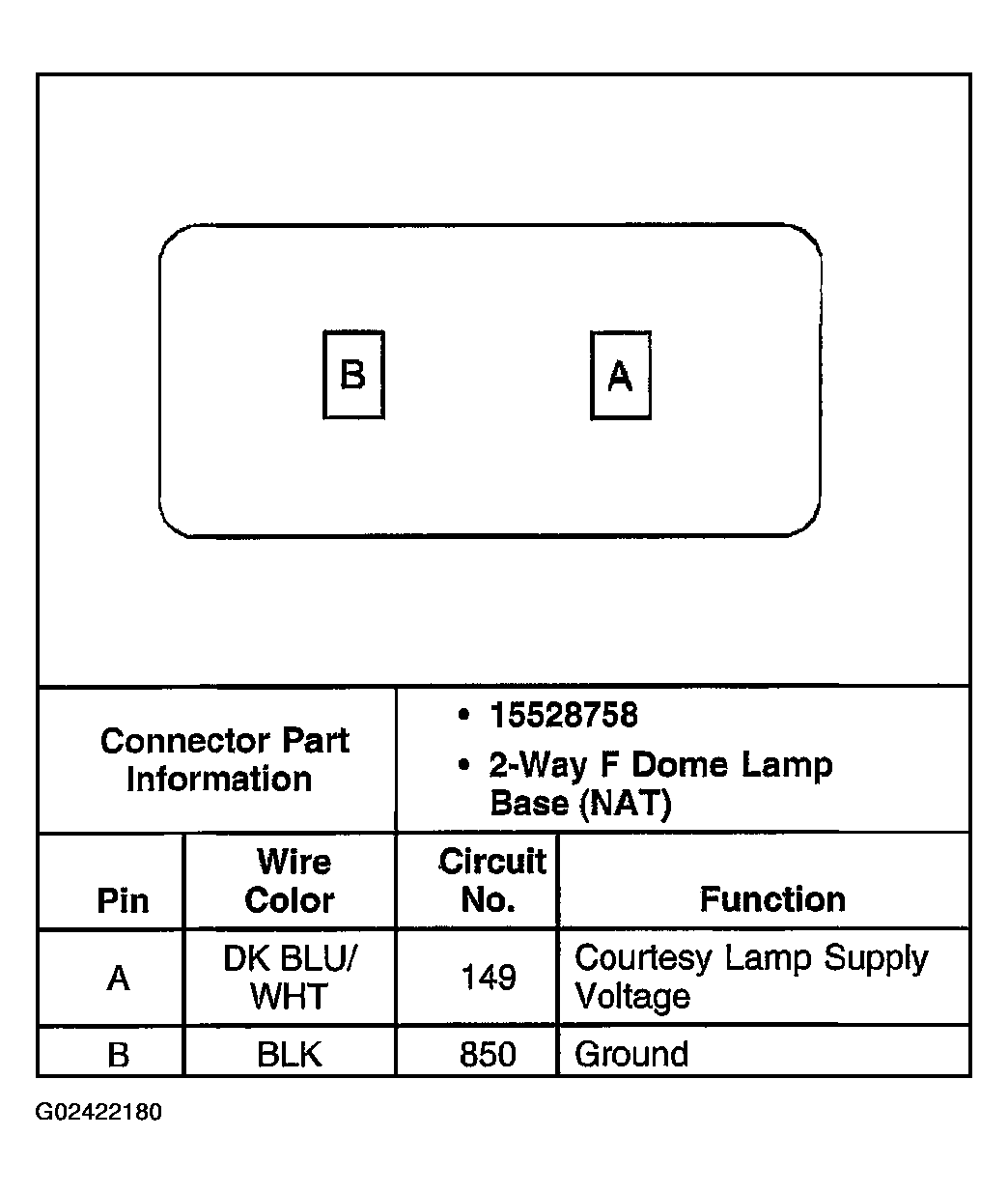

Fig 6: Dome Lamp Connector End View - Rear (Cargo)

G02422180

Courtesy of GENERAL MOTORS CORP.

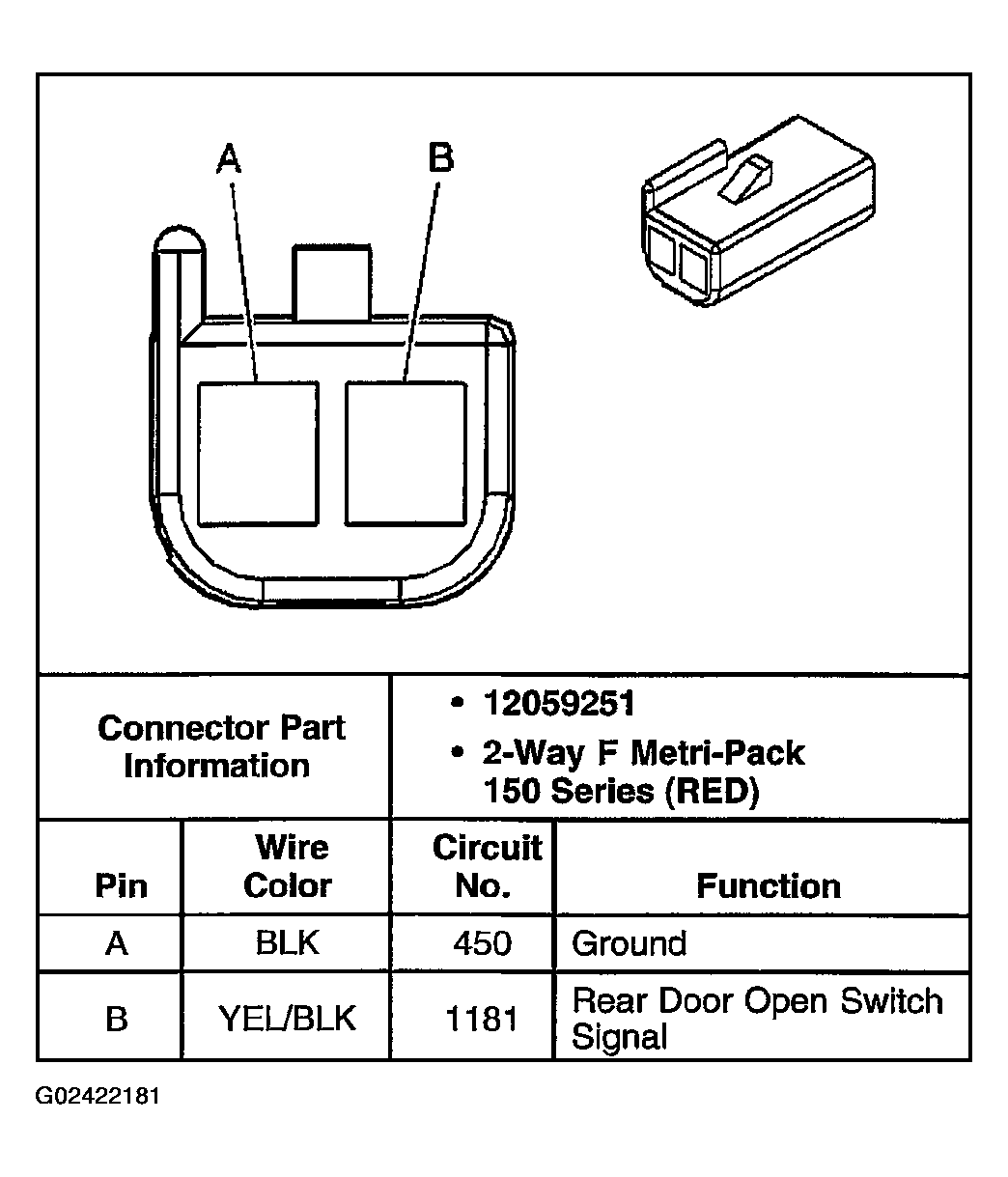

Fig 7: Door Ajar Switch Connector End View - LR (E26 RPO Code)

G02422181

Courtesy of GENERAL MOTORS CORP.

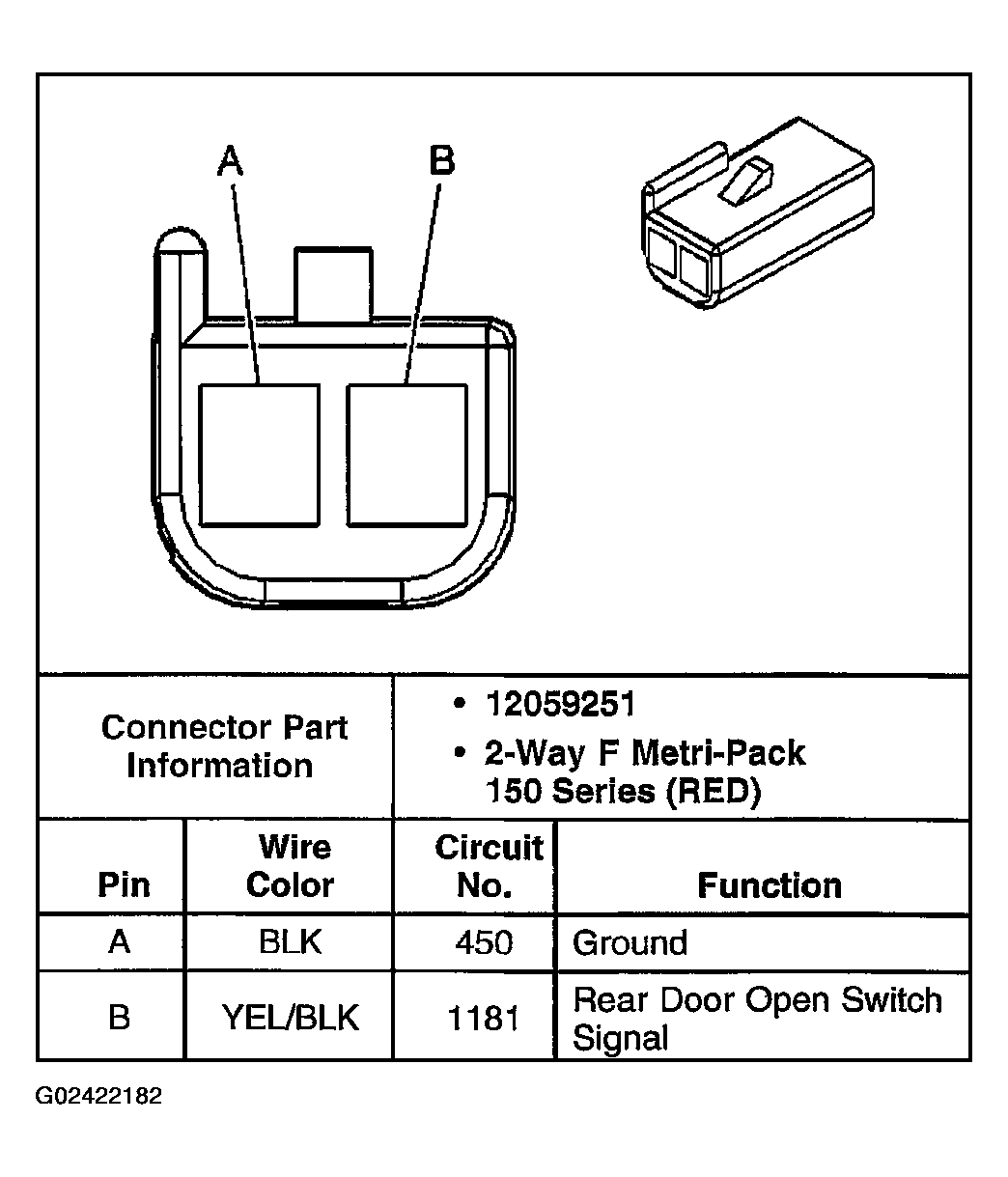

Fig 8: Door Ajar Switch Connector End View - RR (Passenger/Cargo)

G02422182

Courtesy of GENERAL MOTORS CORP.

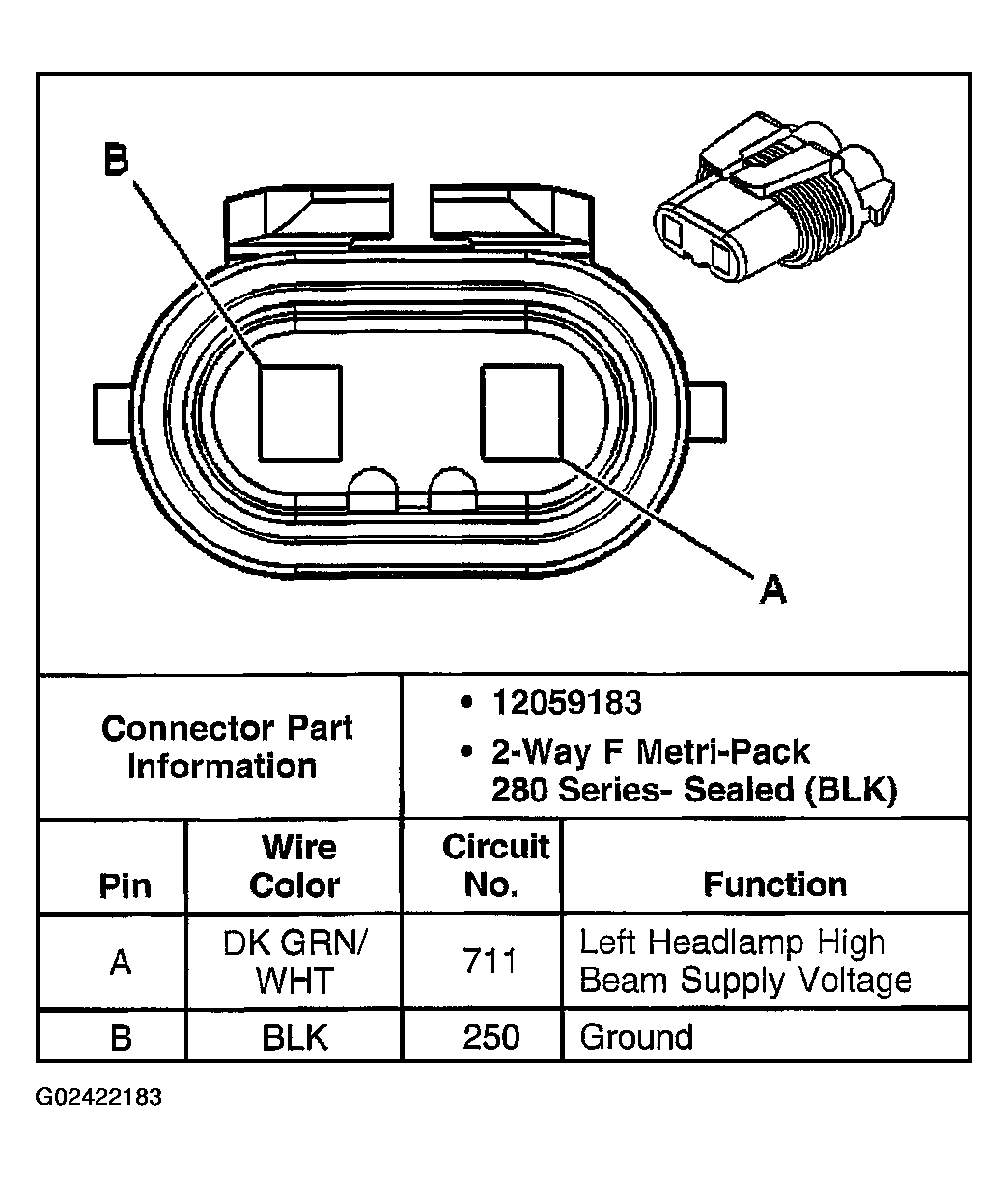

Fig 9: Headlamp Connector End View - High Beam, Left (Composite)

G02422183

Courtesy of GENERAL MOTORS CORP.

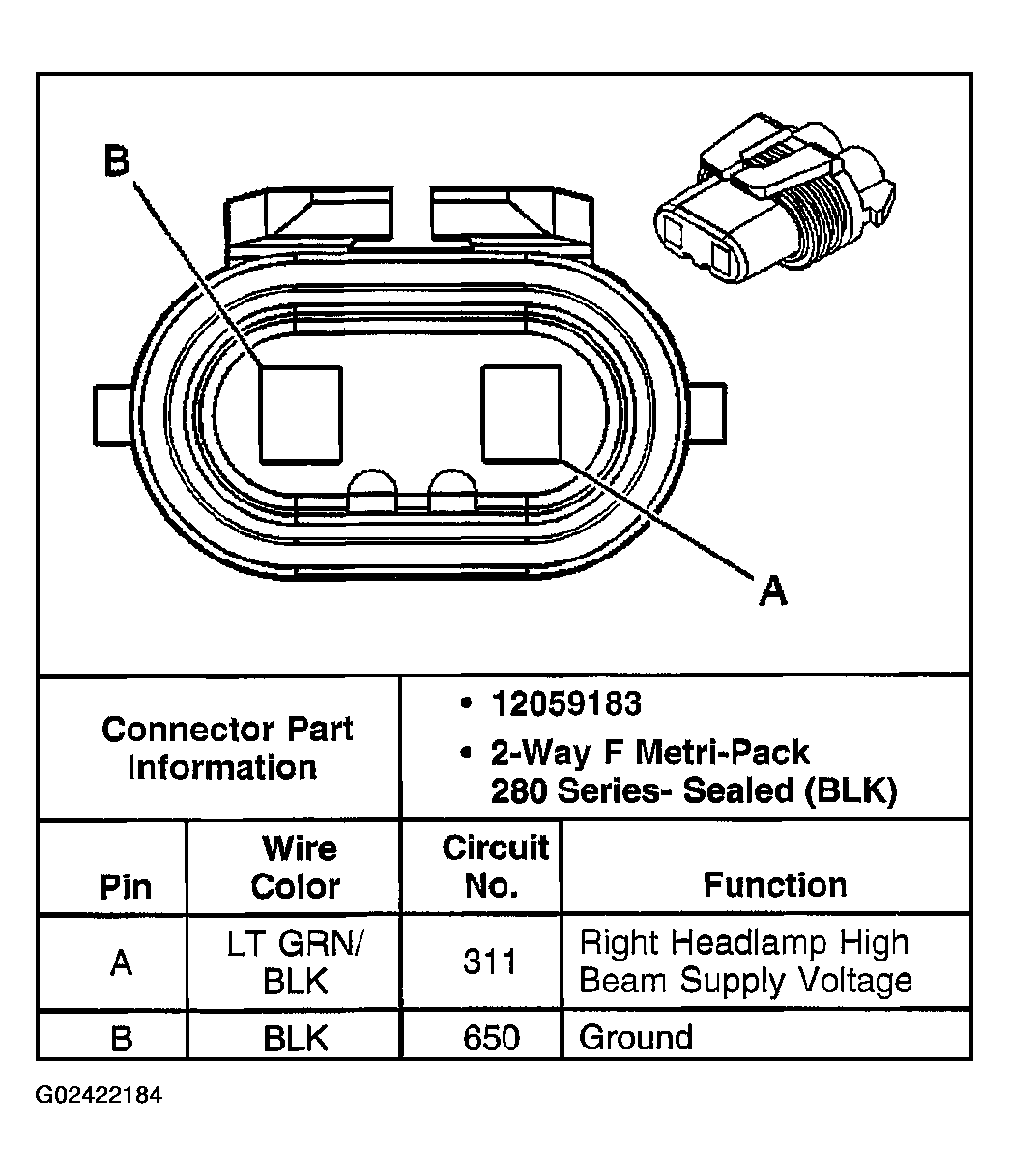

Fig 10: Headlamp Connector End View - High Beam, Right (Composite)

G02422184

Courtesy of GENERAL MOTORS CORP.

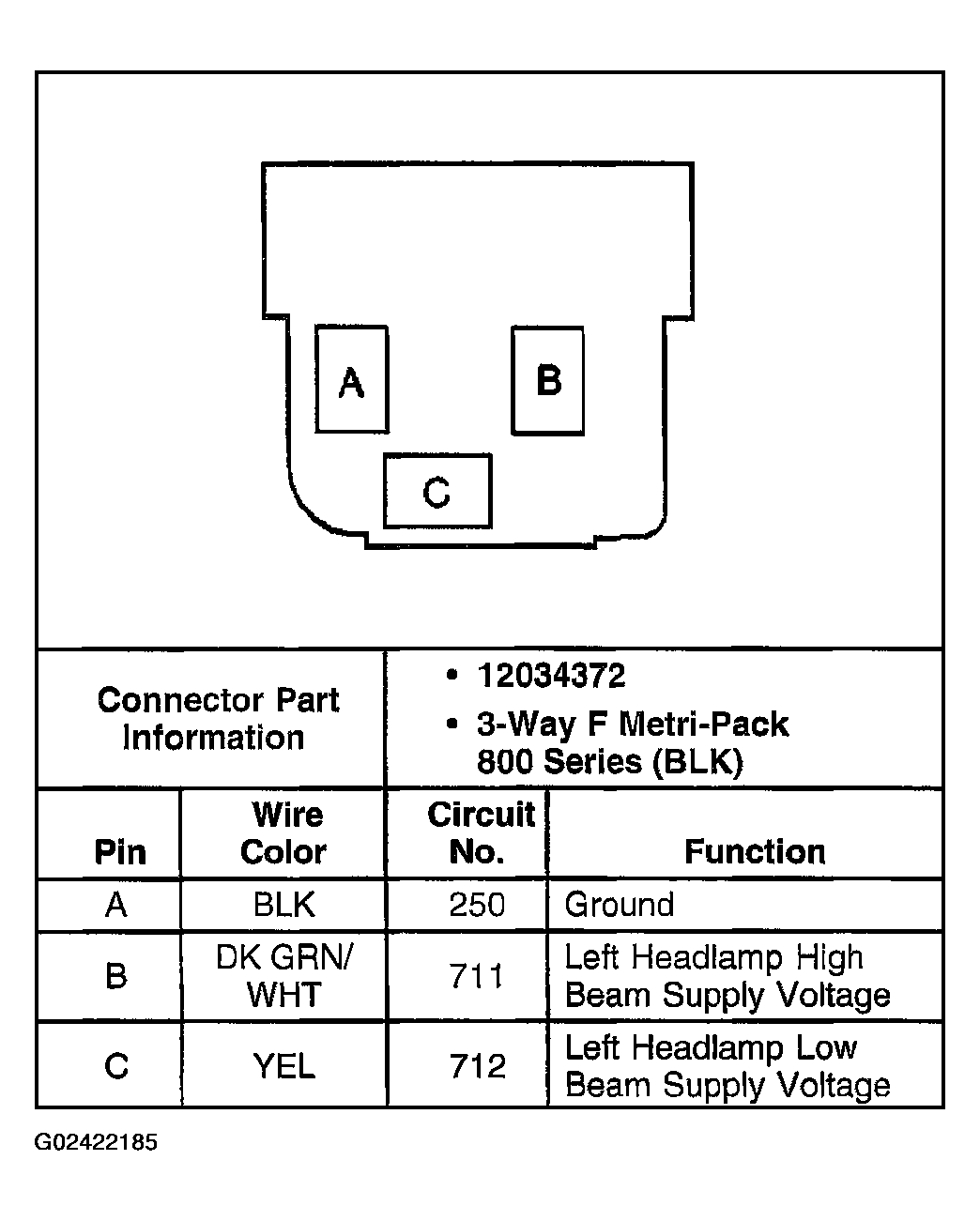

Fig 11: Headlamp Connector End View - Left (Sealed)

G02422185

Courtesy of GENERAL MOTORS CORP.

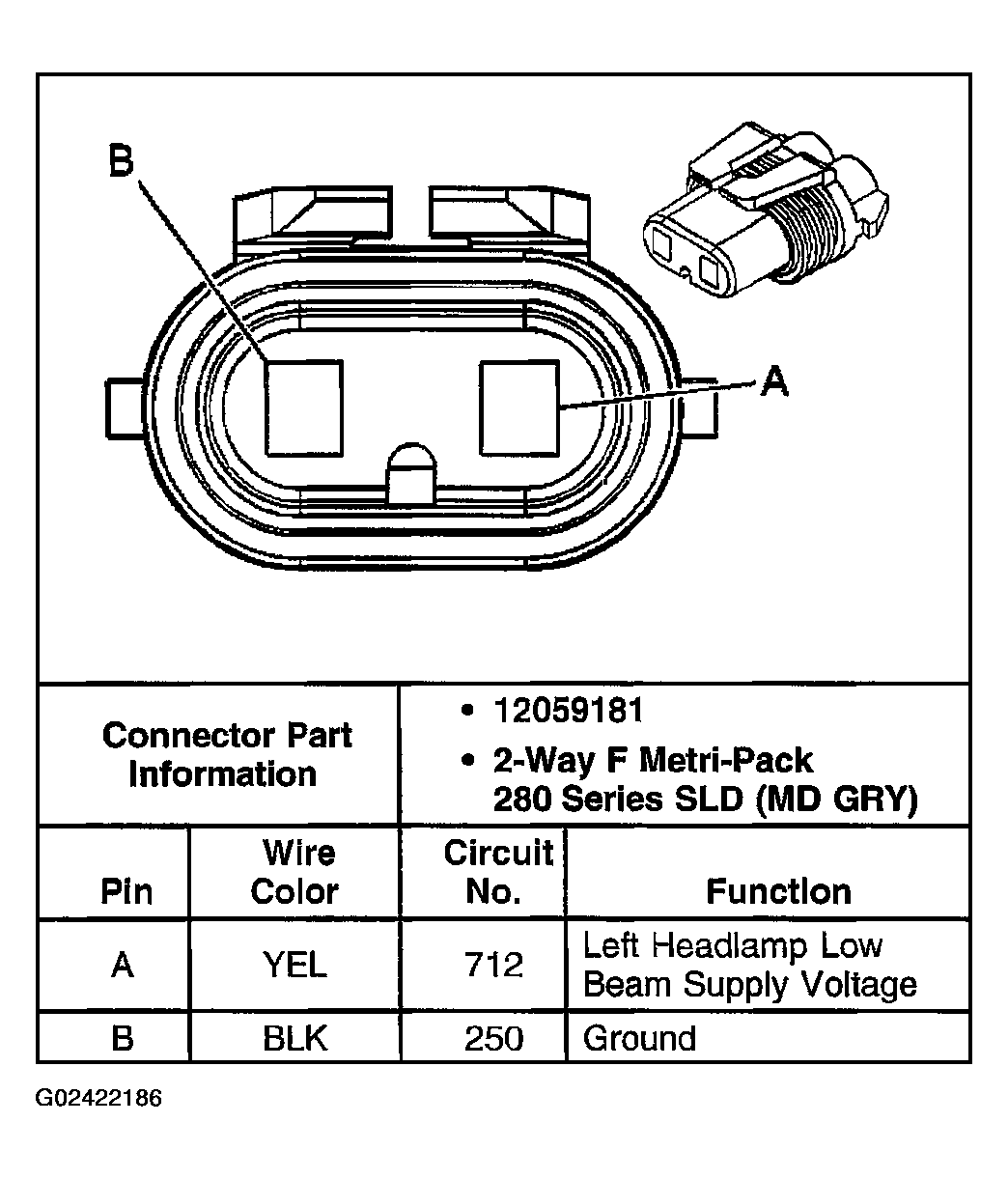

Fig 12: Headlamp Connector End View - Low Beam, Left (Composite)

G02422186

Courtesy of GENERAL MOTORS CORP.

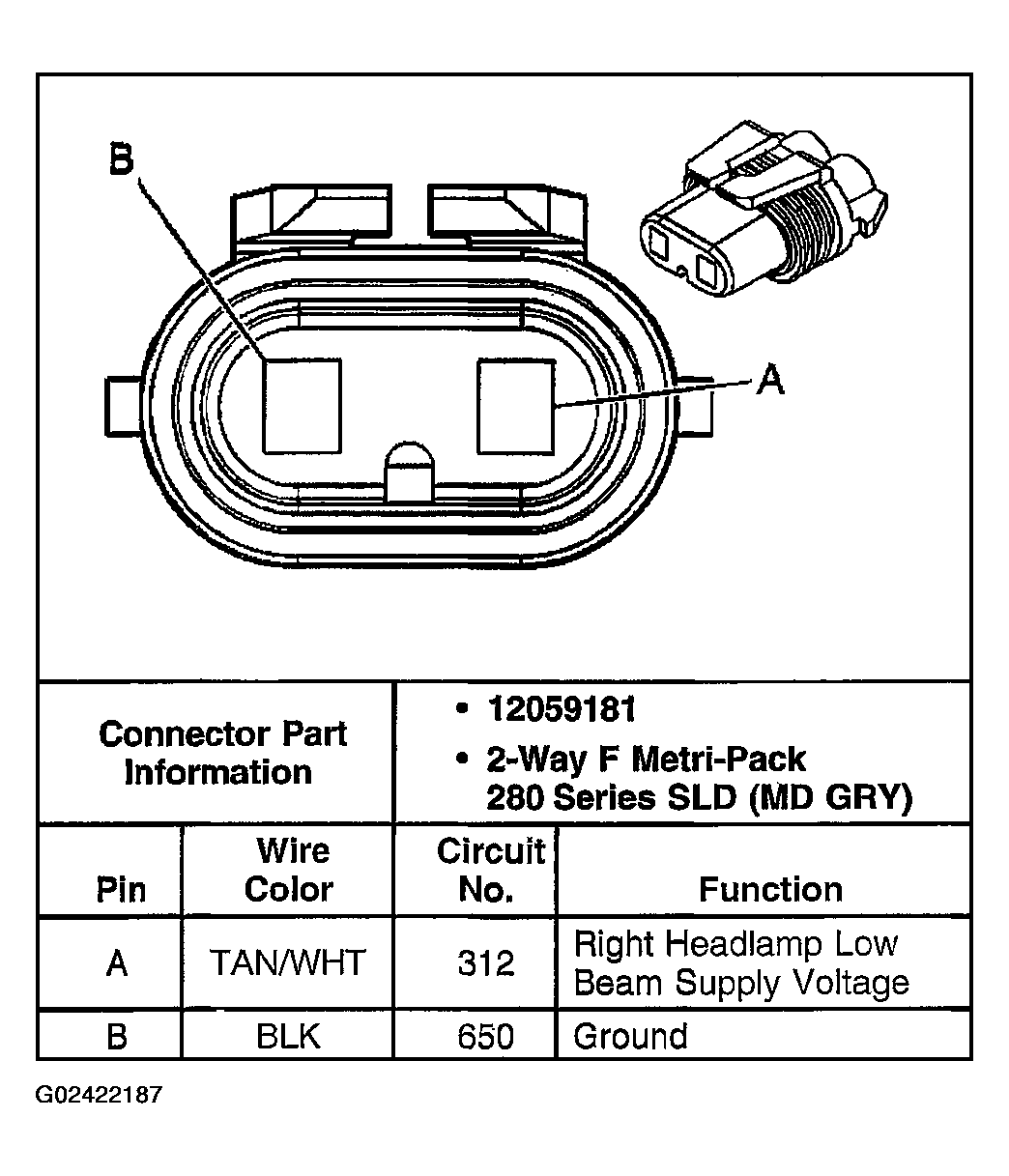

Fig 13: Headlamp Connector End View - Low Beam, Right (Composite)

G02422187

Courtesy of GENERAL MOTORS CORP.

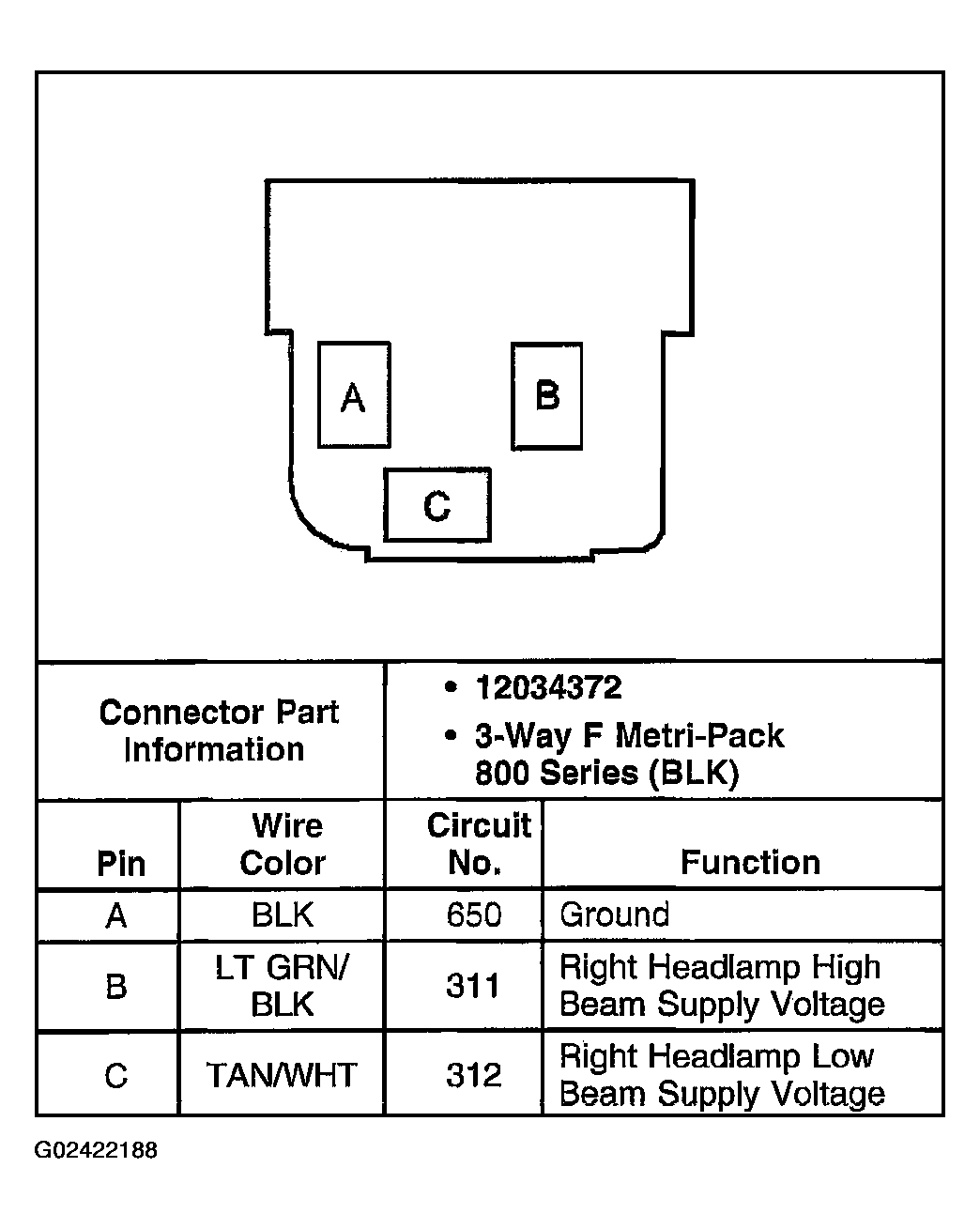

Fig 14: Headlamp Connector End View - Right (Sealed)

G02422188

Courtesy of GENERAL MOTORS CORP.

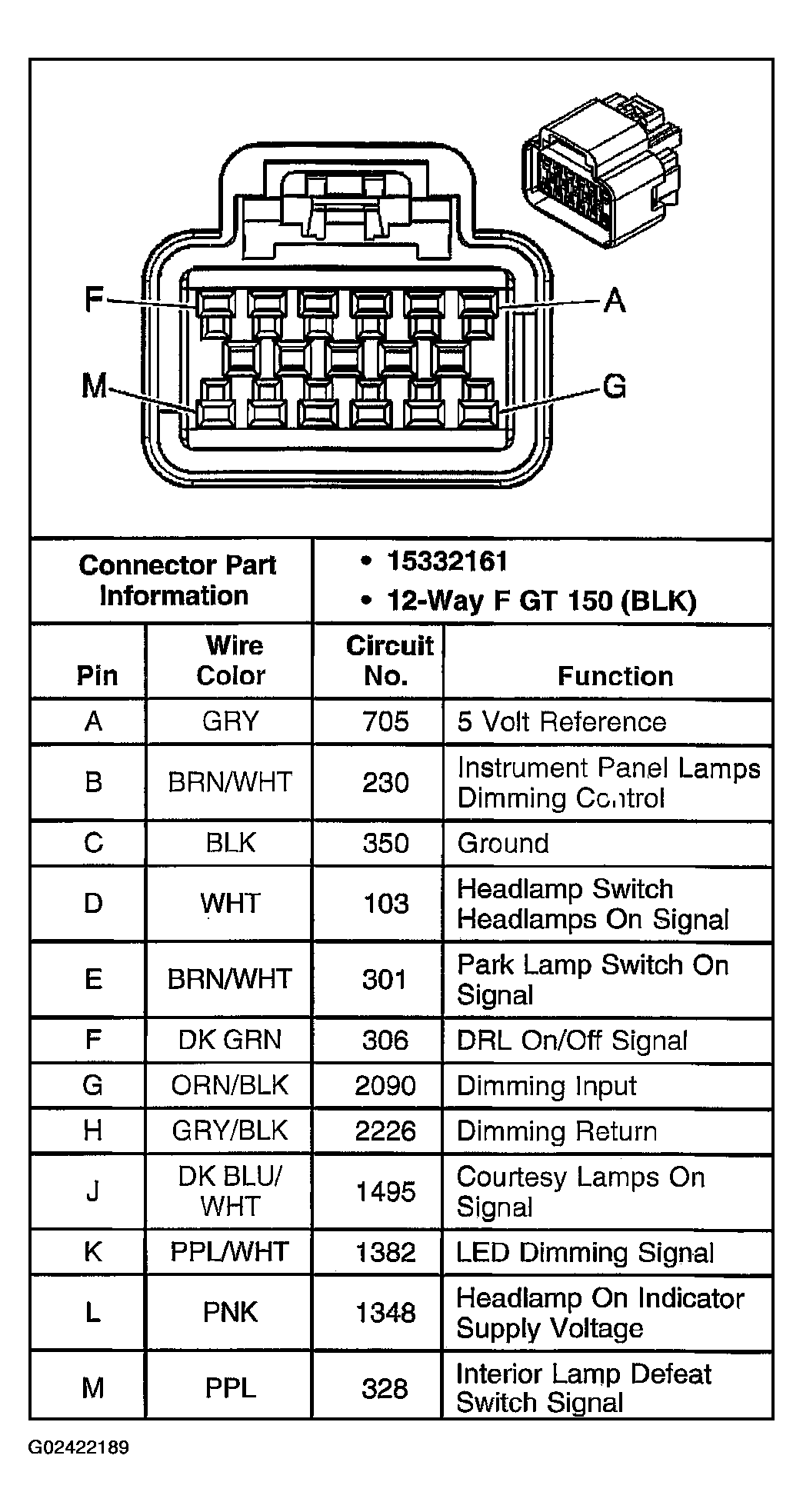

Fig 15: Headlamp & Panel Dimmer Switch Connector End View - C1

G02422189

Courtesy of GENERAL MOTORS CORP.

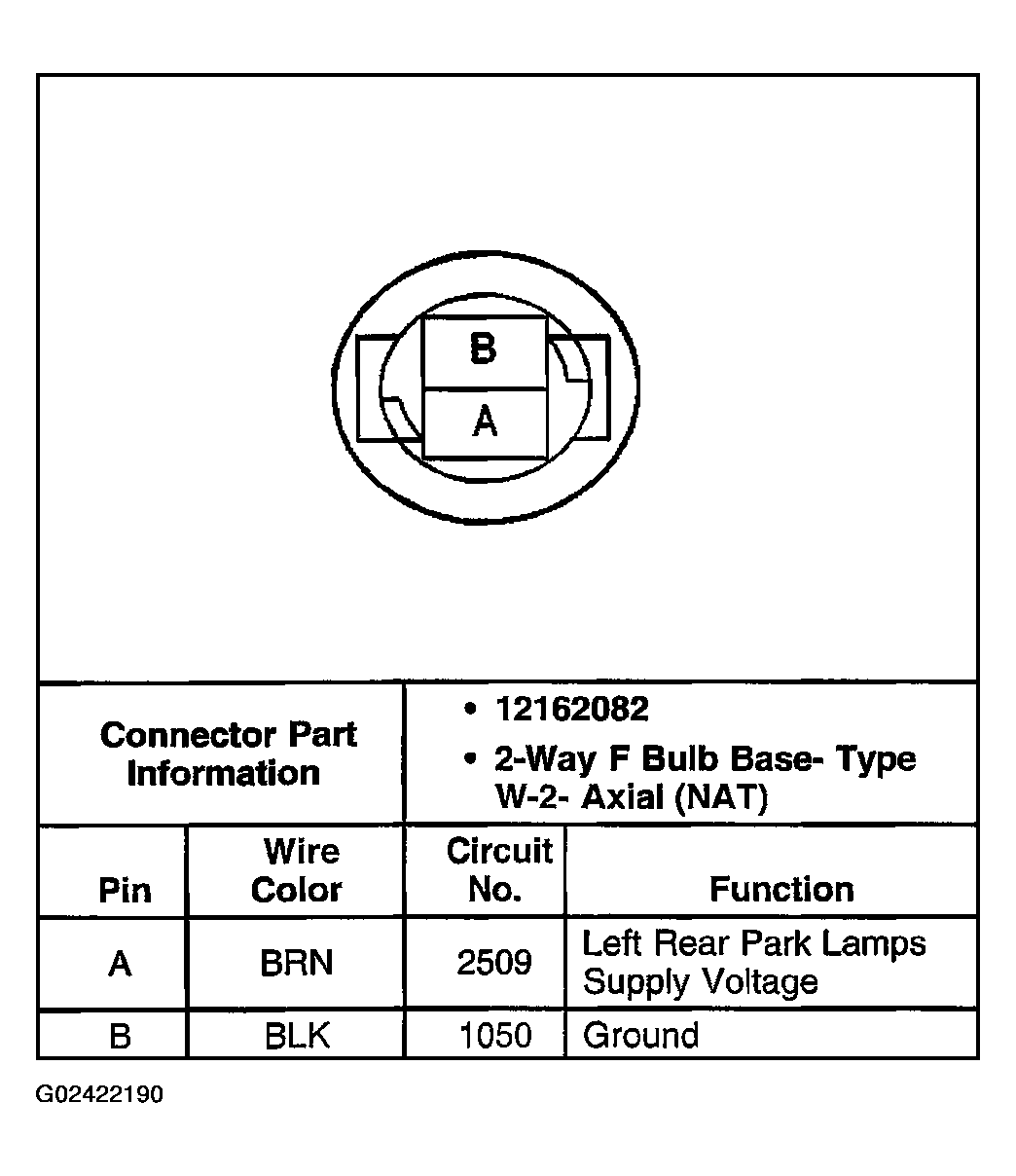

Fig 16: License Lamp Connector End View (Passenger/Cargo - Early Production)

G02422190

Courtesy of GENERAL MOTORS CORP.

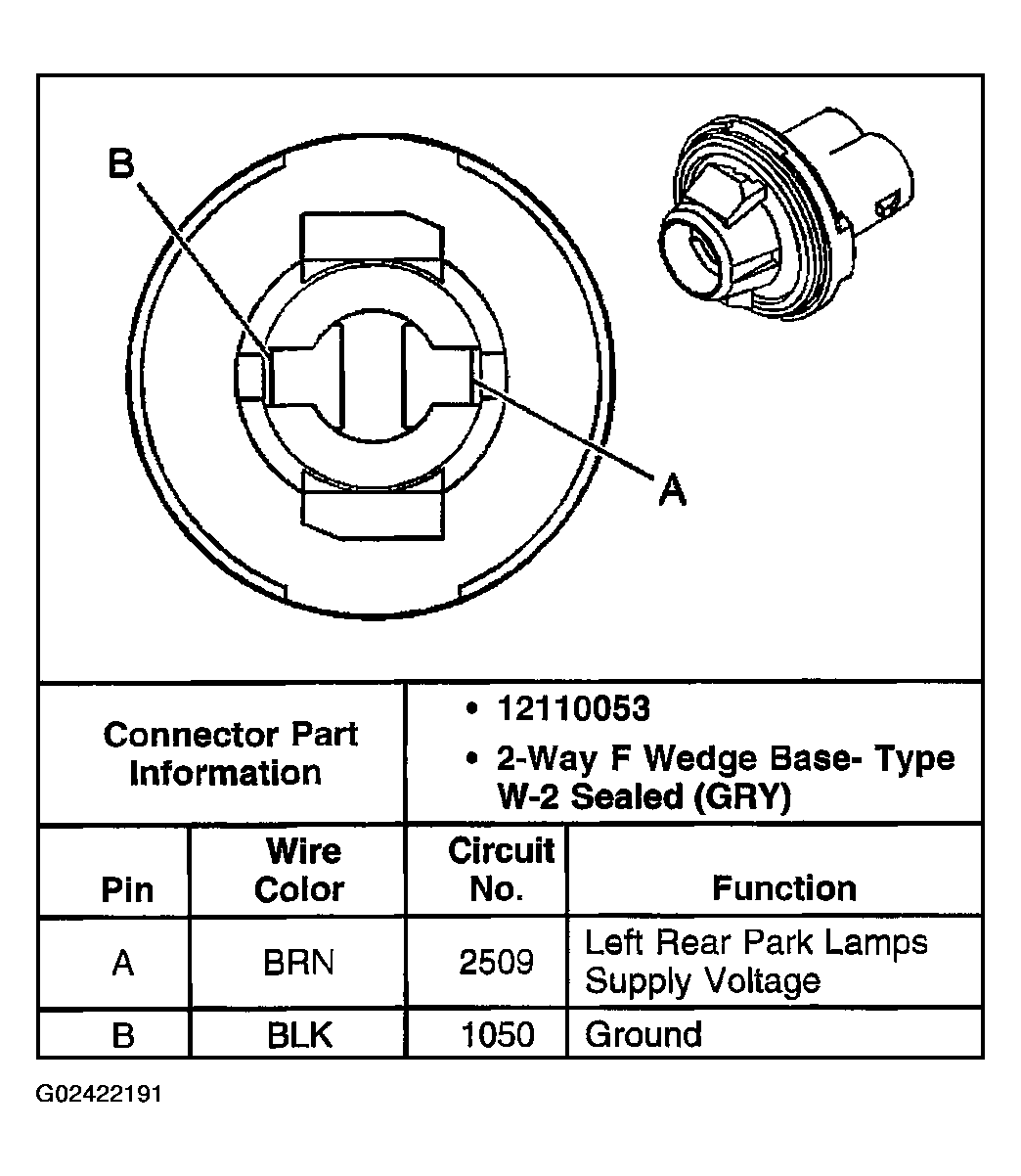

Fig 17: License Lamp Connector End View (Passenger/Cargo - Late Production)

G02422191

Courtesy of GENERAL MOTORS CORP.

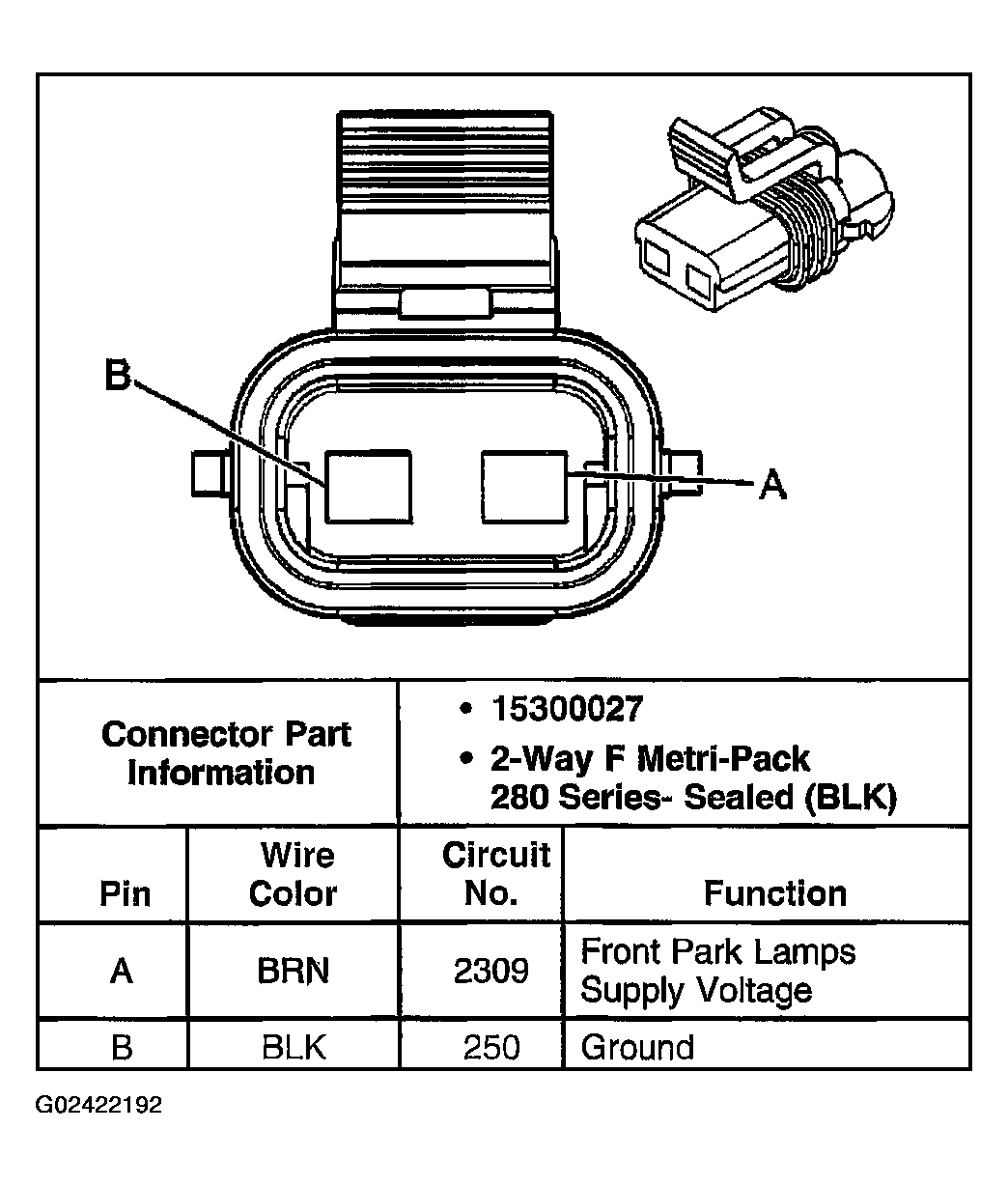

Fig 18: Marker Lamp Connector End View - LF

G02422192

Courtesy of GENERAL MOTORS CORP.

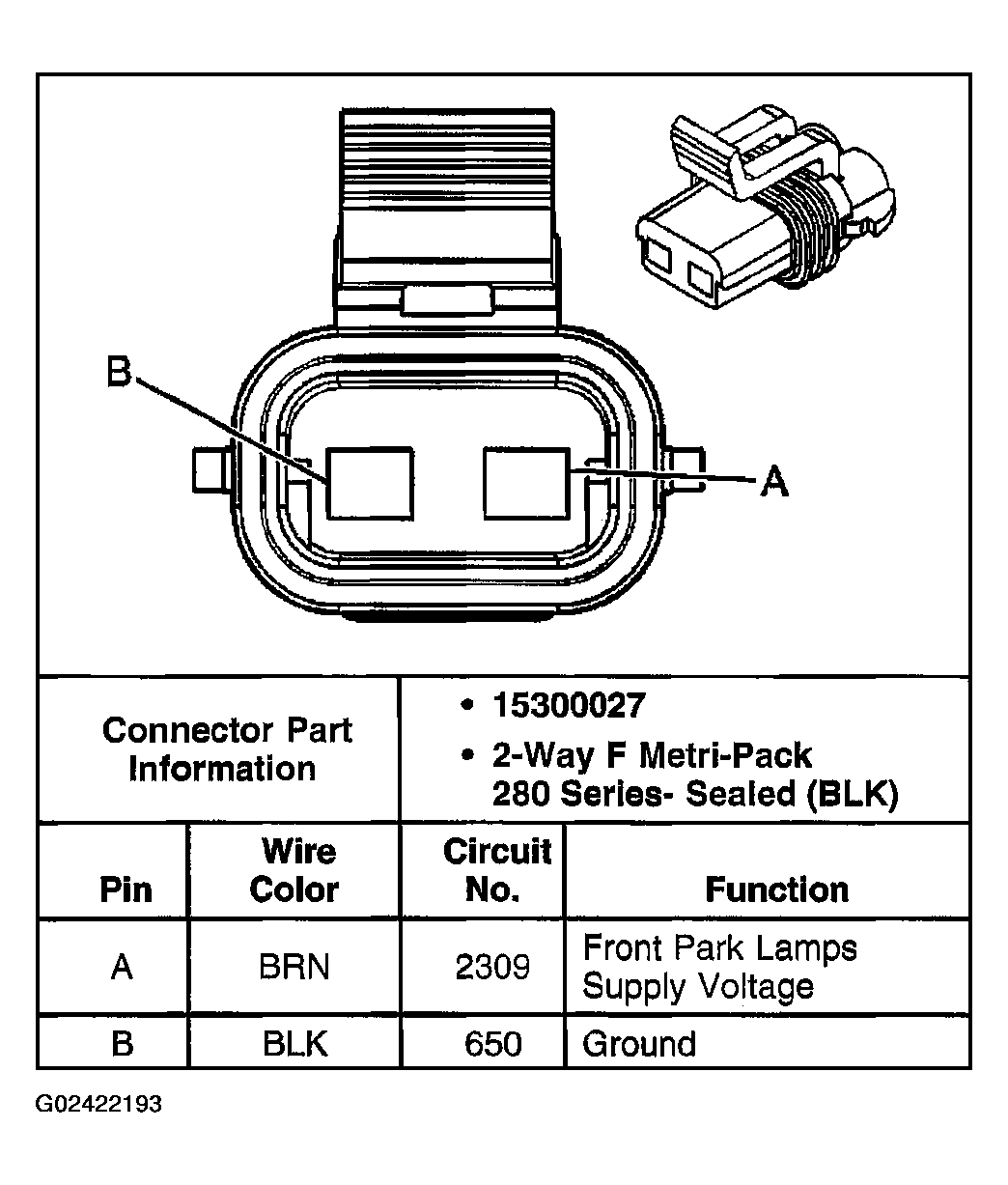

Fig 19: Marker Lamp Connector End View - RF

G02422193

Courtesy of GENERAL MOTORS CORP.

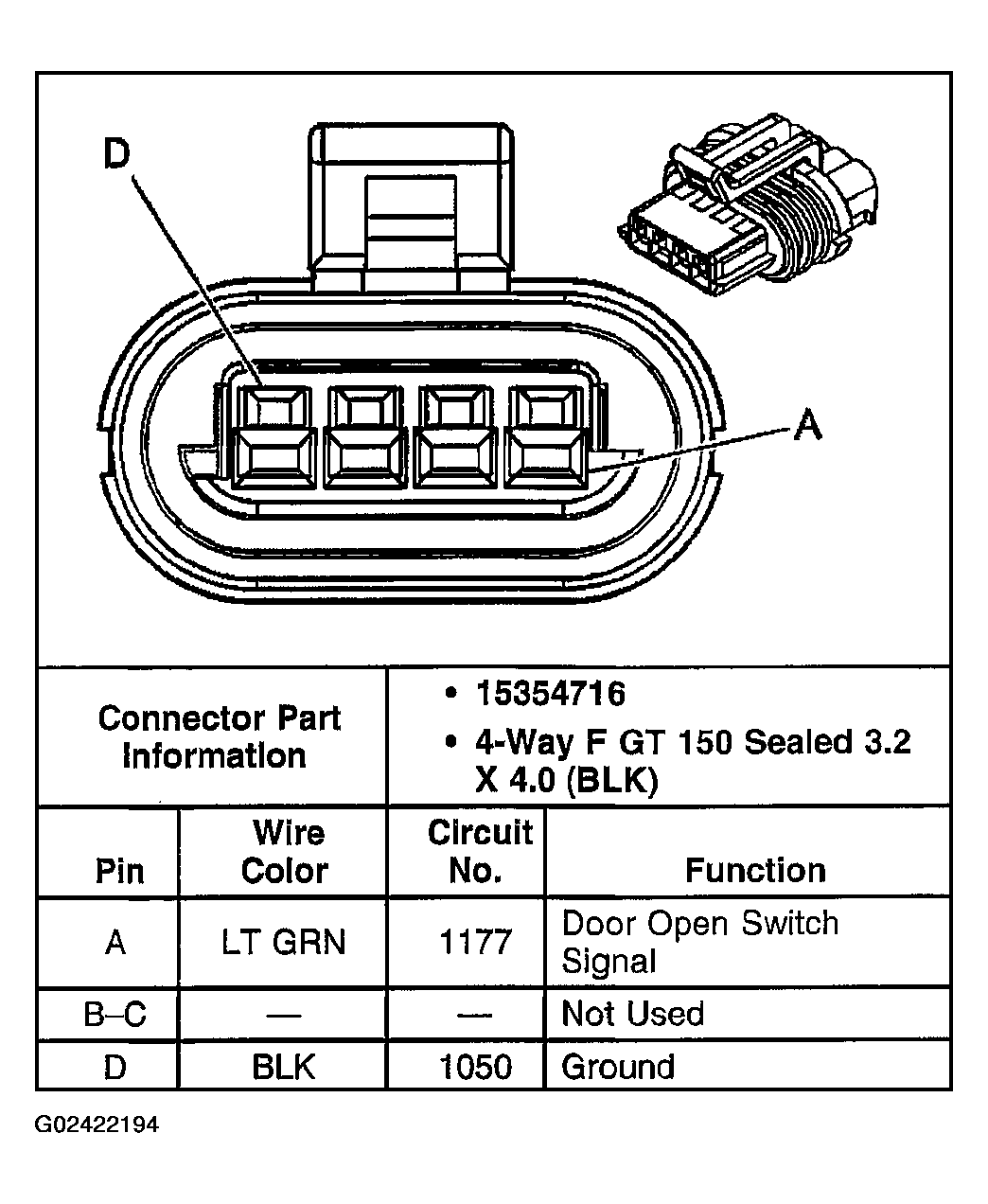

Fig 20: Mini Wedge Connector End View (Door Jamb Switch) - Cargo, C1

G02422194

Courtesy of GENERAL MOTORS CORP.

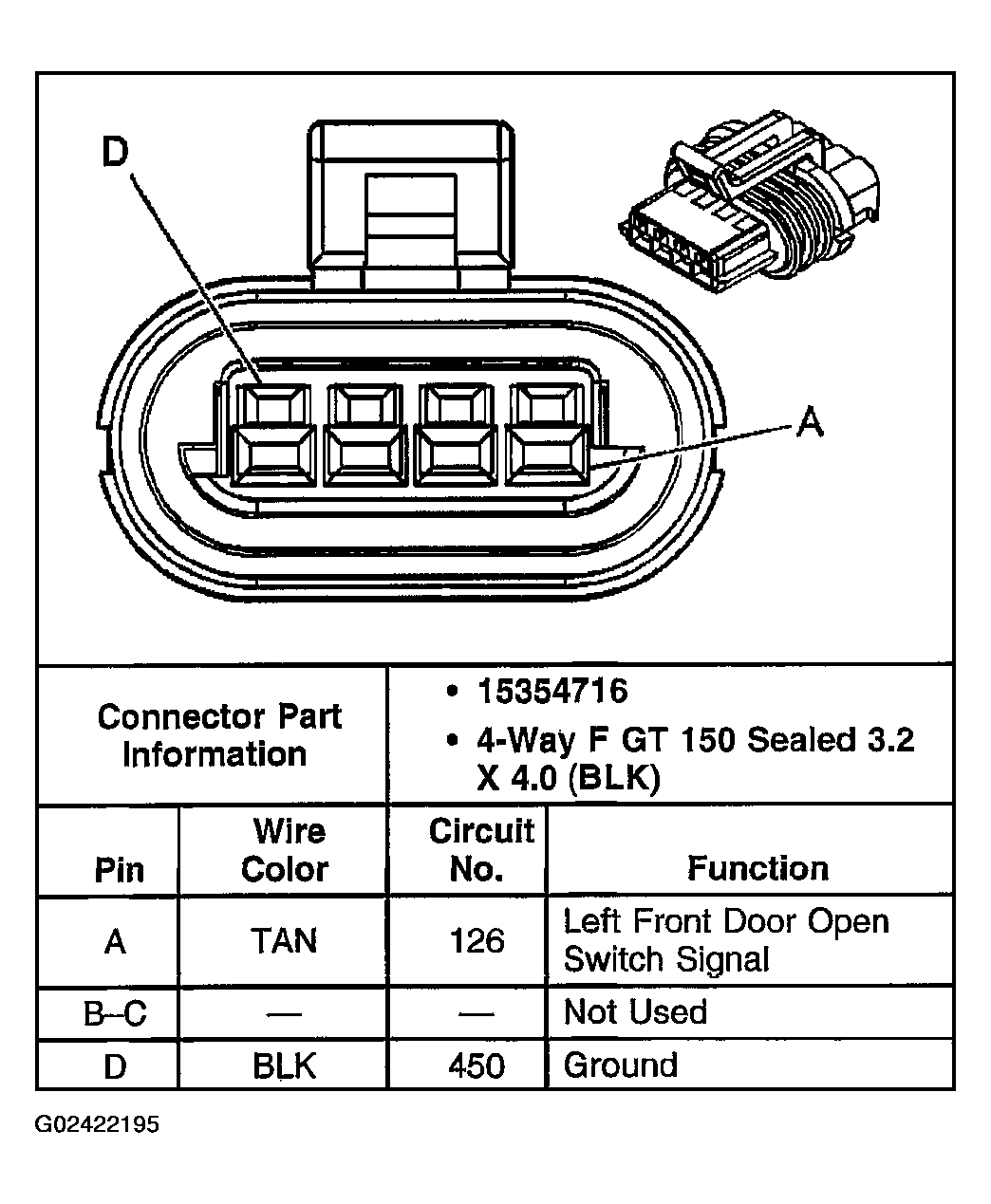

Fig 21: Mini Wedge Connector End View (Door Jamb Switch) - Driver, C1

G02422195

Courtesy of GENERAL MOTORS CORP.

Fig 22: Mini Wedge Connector End View (Door Jamb Switch) - Front Passenger, C1

G02422196

Courtesy of GENERAL MOTORS CORP.

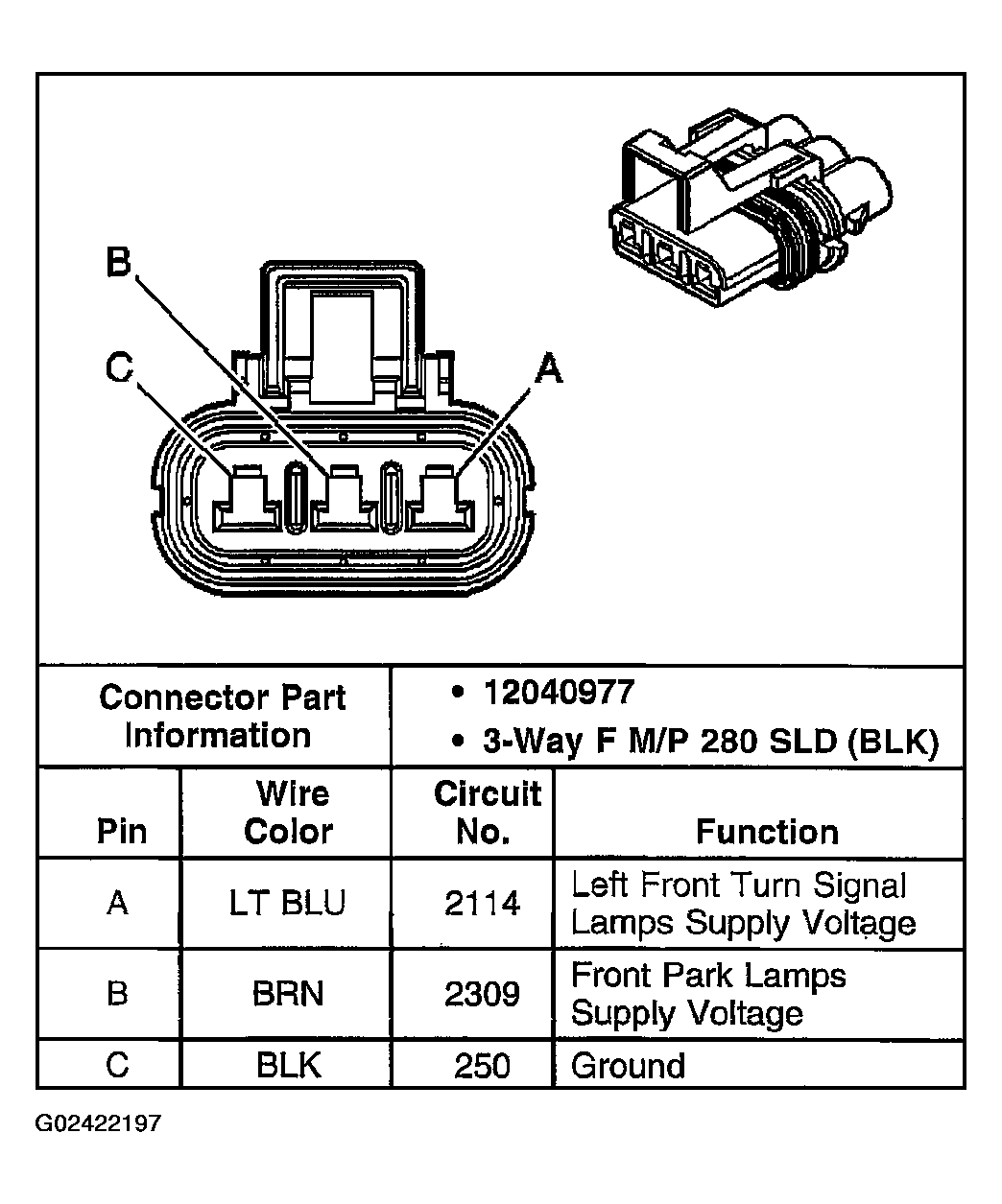

Fig 23: Park/Turn Signal Lamp Connector End View - LF

G02422197

Courtesy of GENERAL MOTORS CORP.

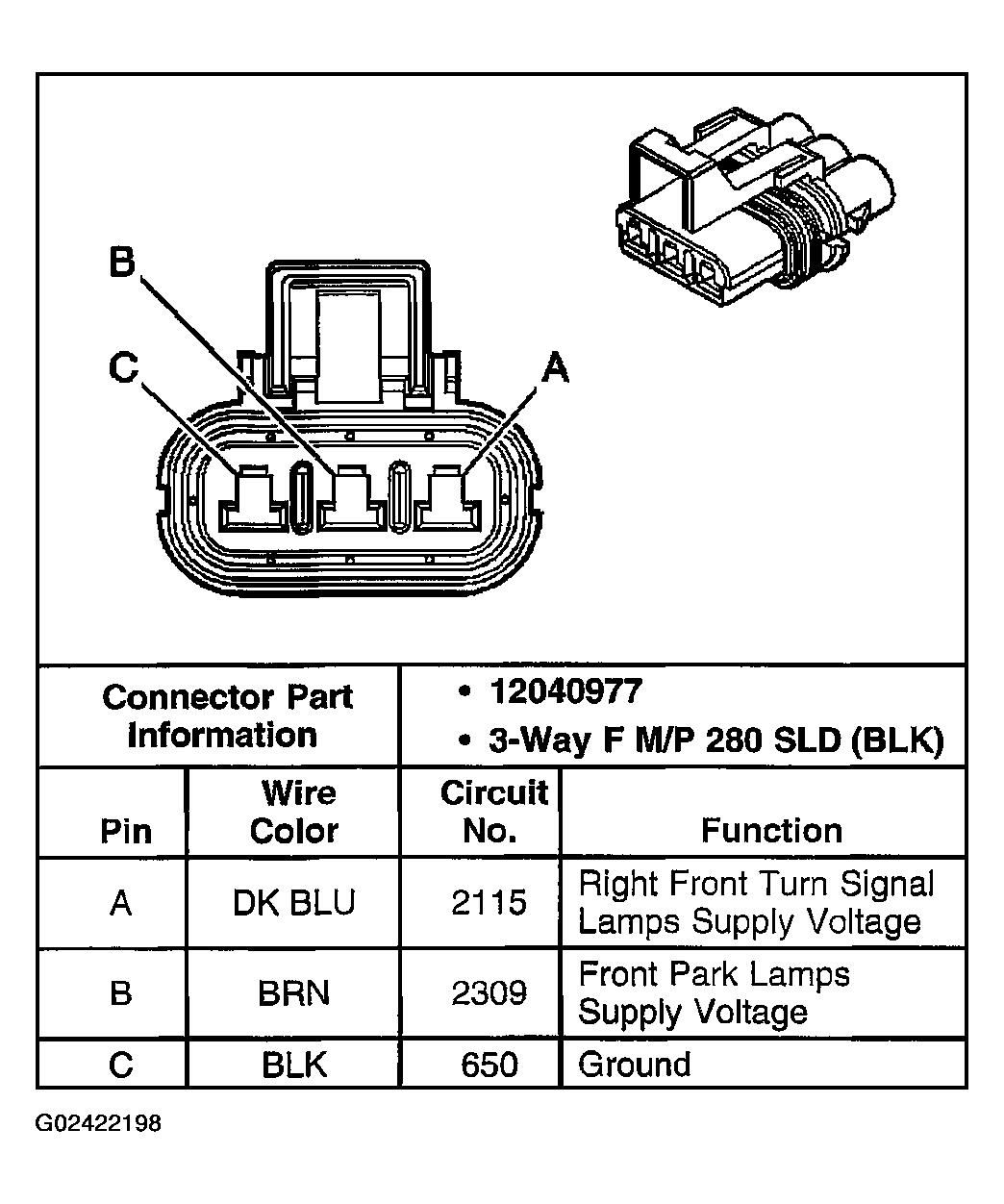

Fig 24: Park/Turn Signal Lamp Connector End View - RF

G02422198

Courtesy of GENERAL MOTORS CORP.

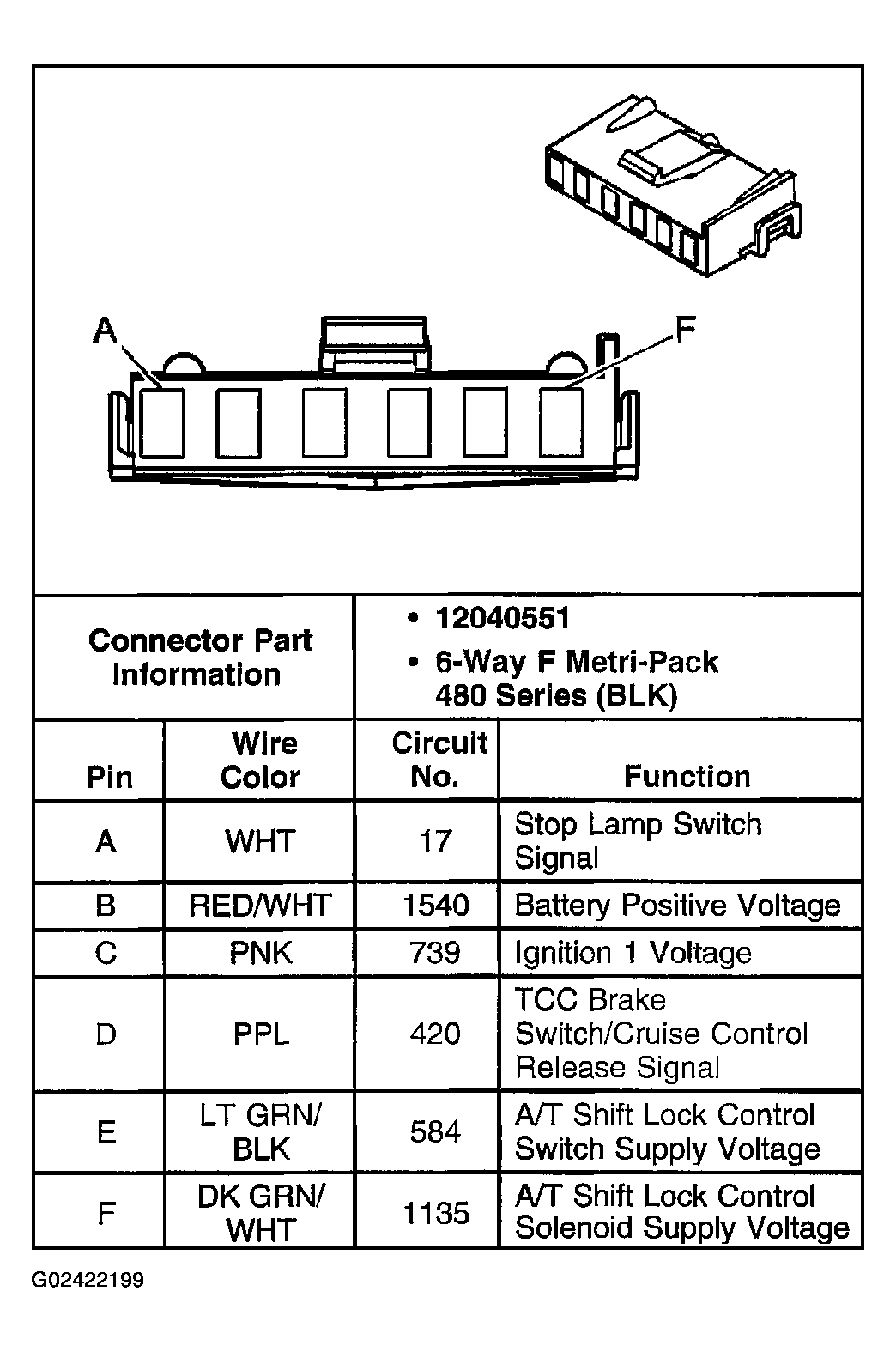

Fig 25: Stop Lamp Switch Connector End View

G02422199

Courtesy of GENERAL MOTORS CORP.

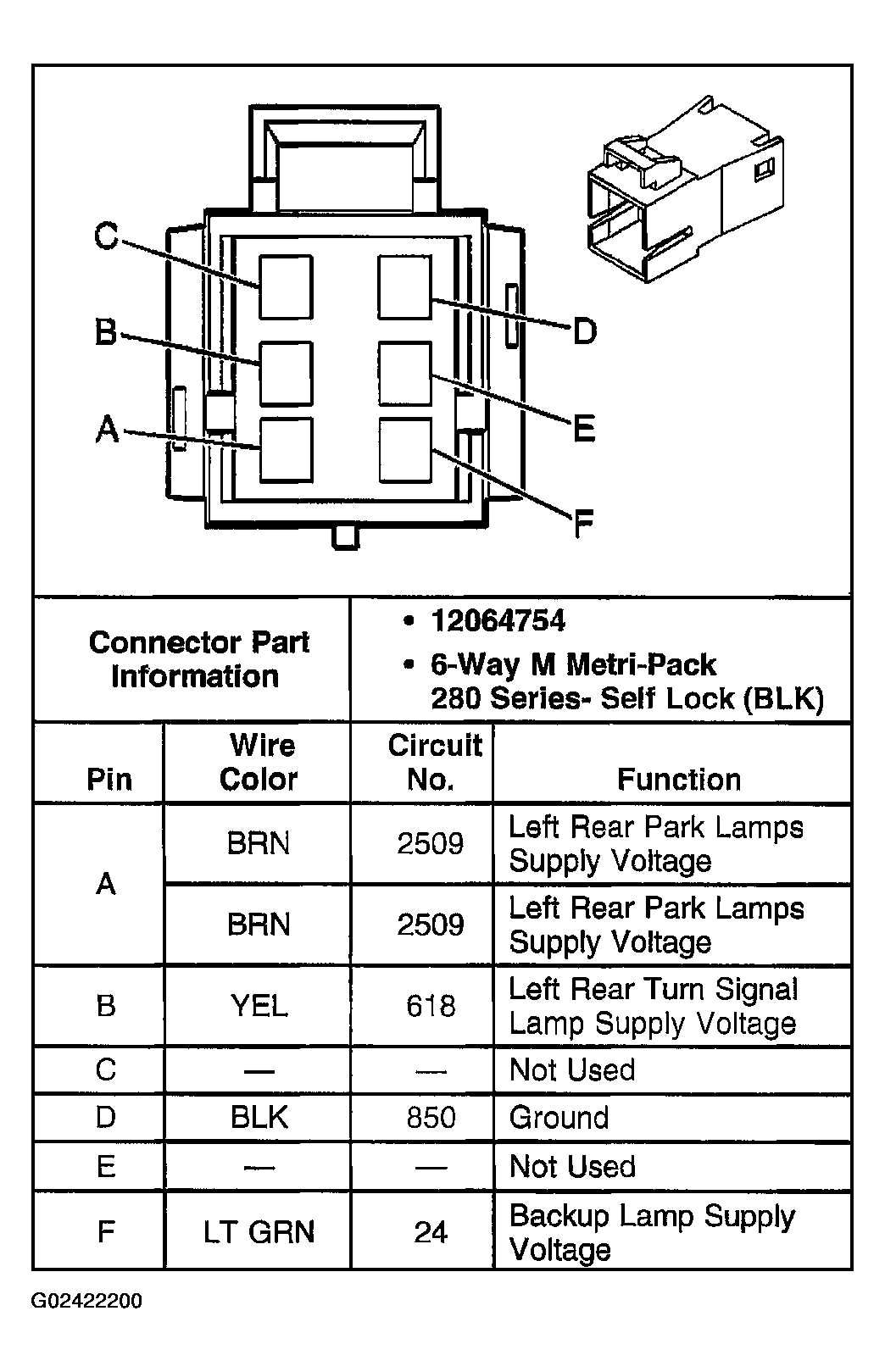

Fig 26: Tail Lamp Assembly Connector End View - Left (Passenger/Cargo)

G02422200

Courtesy of GENERAL MOTORS CORP.

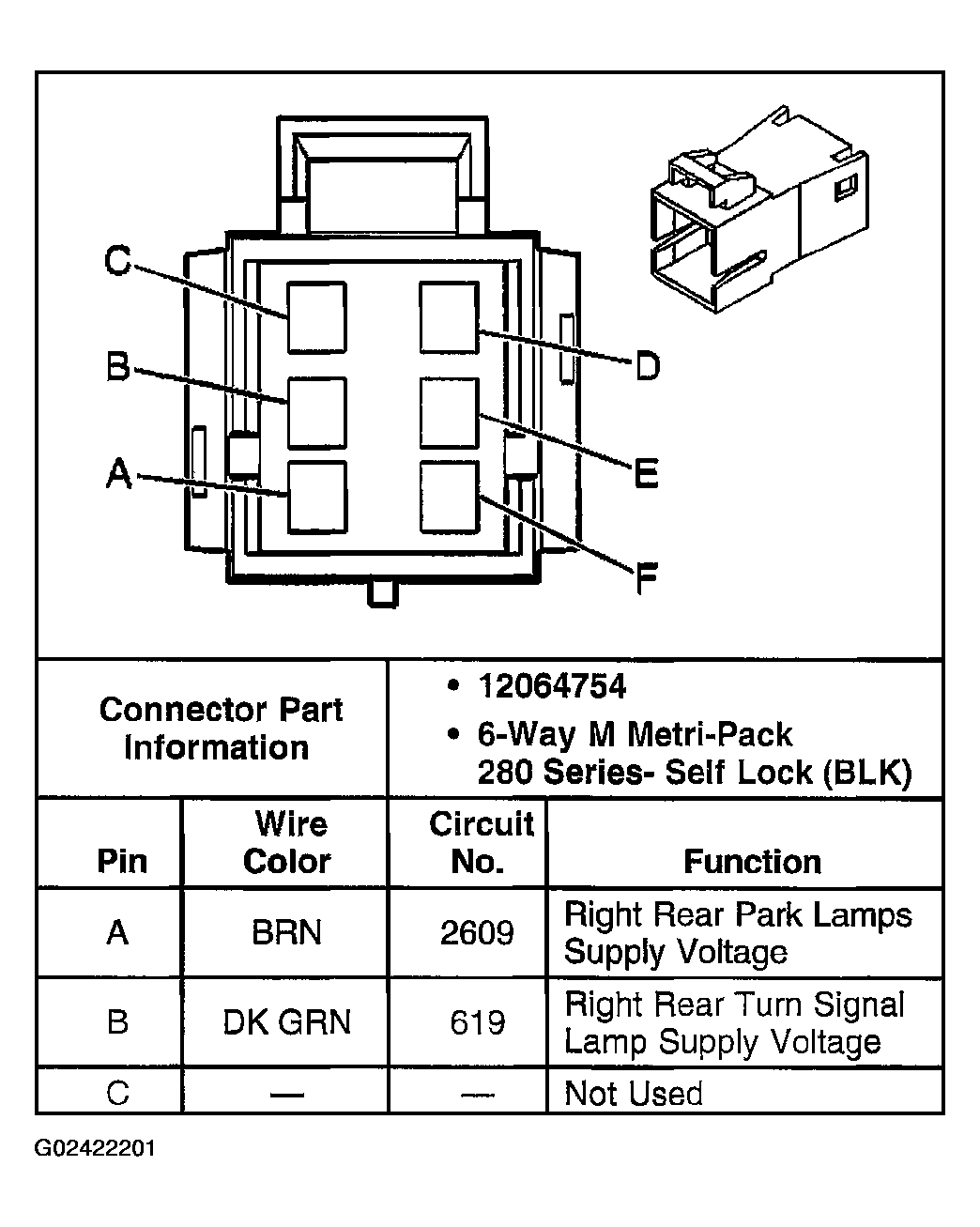

Fig 27: Tail Lamp Assembly Connector End View - Right (Passenger/Cargo - 1 Of 2)

G02422201

Courtesy of GENERAL MOTORS CORP.

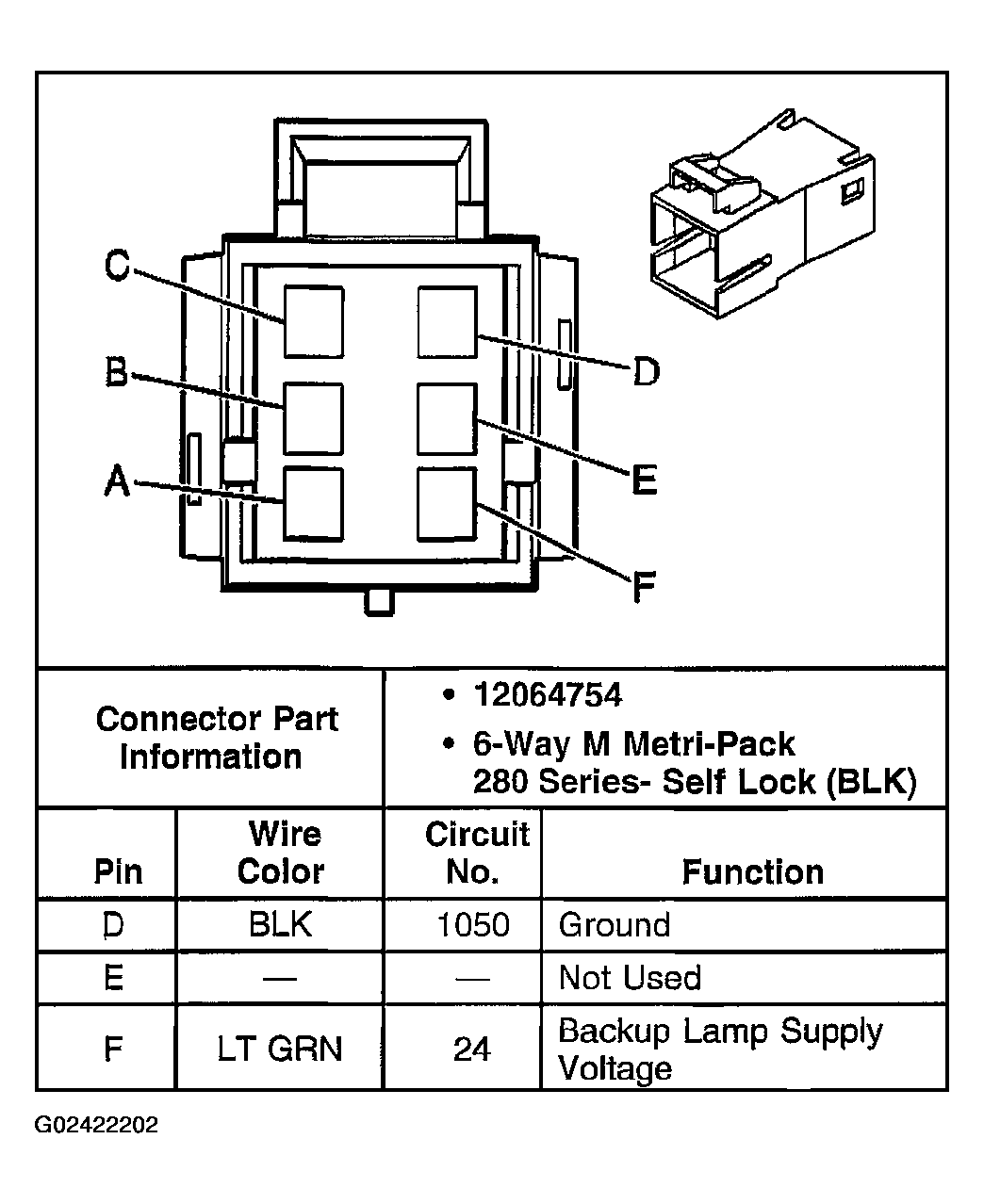

Fig 28: Tail Lamp Assembly Connector End View - Right (Passenger/Cargo - 2 Of 2)

G02422202

Courtesy of GENERAL MOTORS CORP.

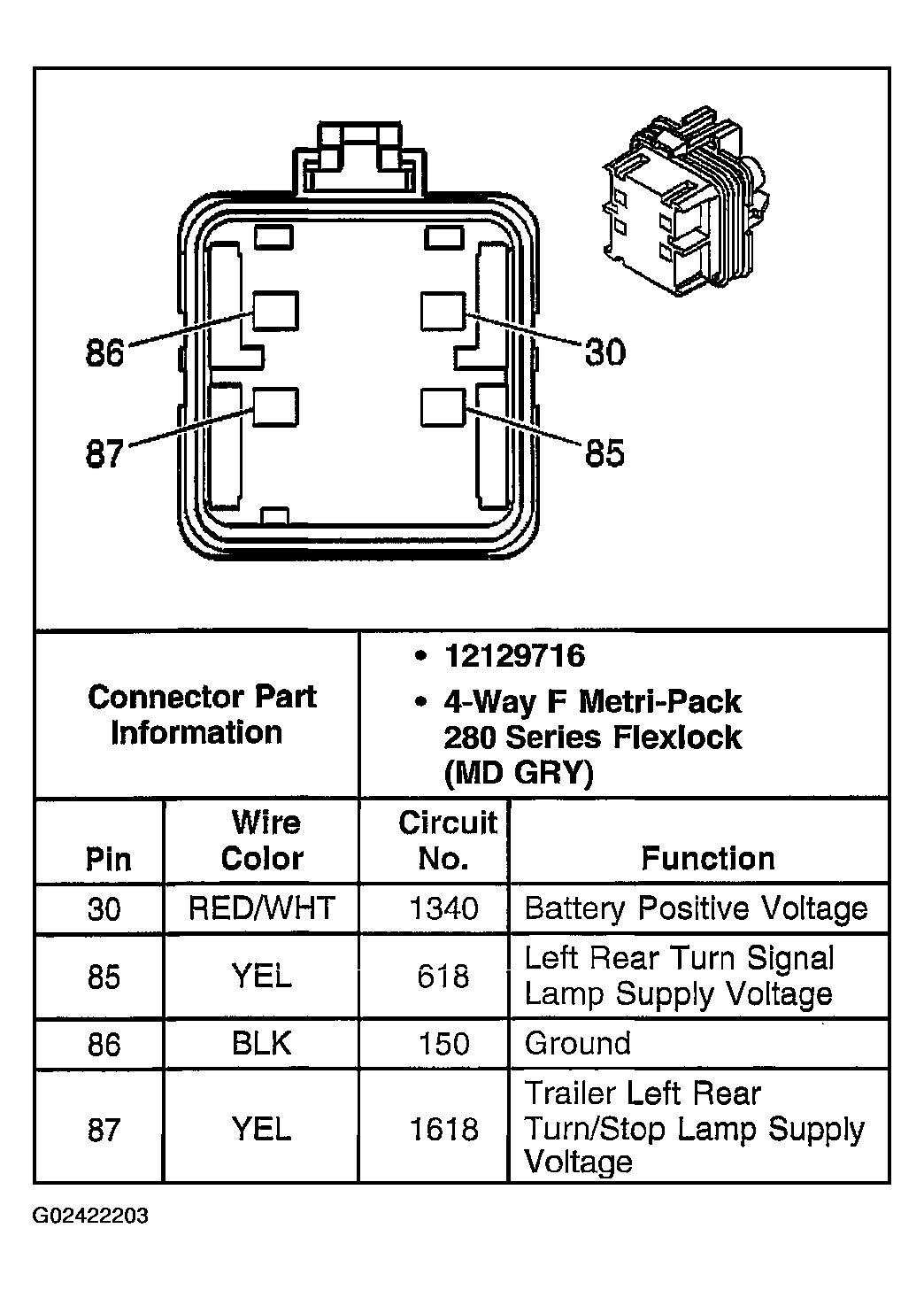

Fig 29: Trailer Stop/Turn Relay Connector End View - Left (UY7 RPO Code)

G02422203

Courtesy of GENERAL MOTORS CORP.

Fig 30: Trailer Stop/Turn Relay Connector End View - Right (UY7 RPO Code)

G02422204

Courtesy of GENERAL MOTORS CORP.

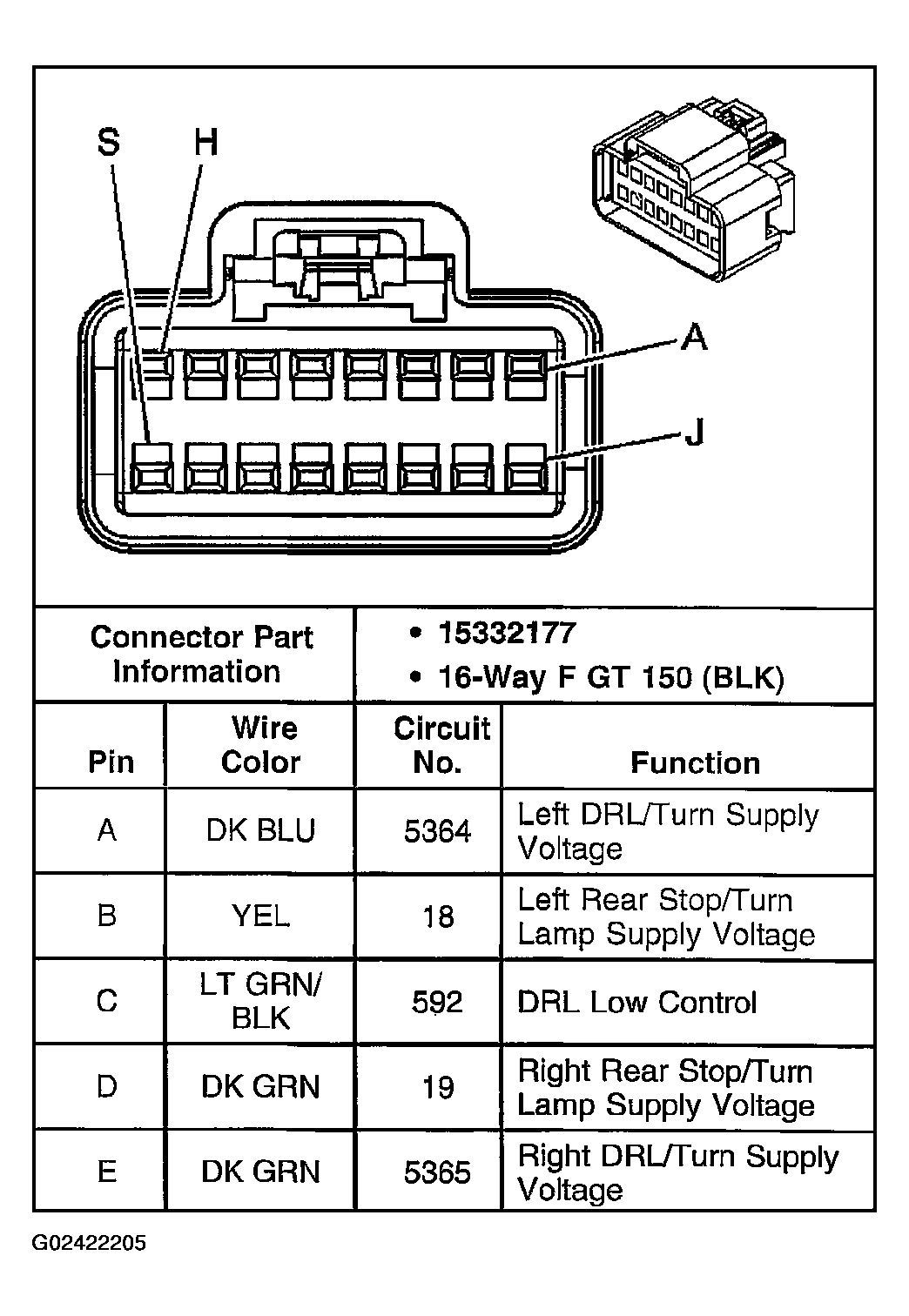

Fig 31: Turn Signal/Hazard Flasher Module Connector End View (1 Of 2)

G02422205

Courtesy of GENERAL MOTORS CORP.

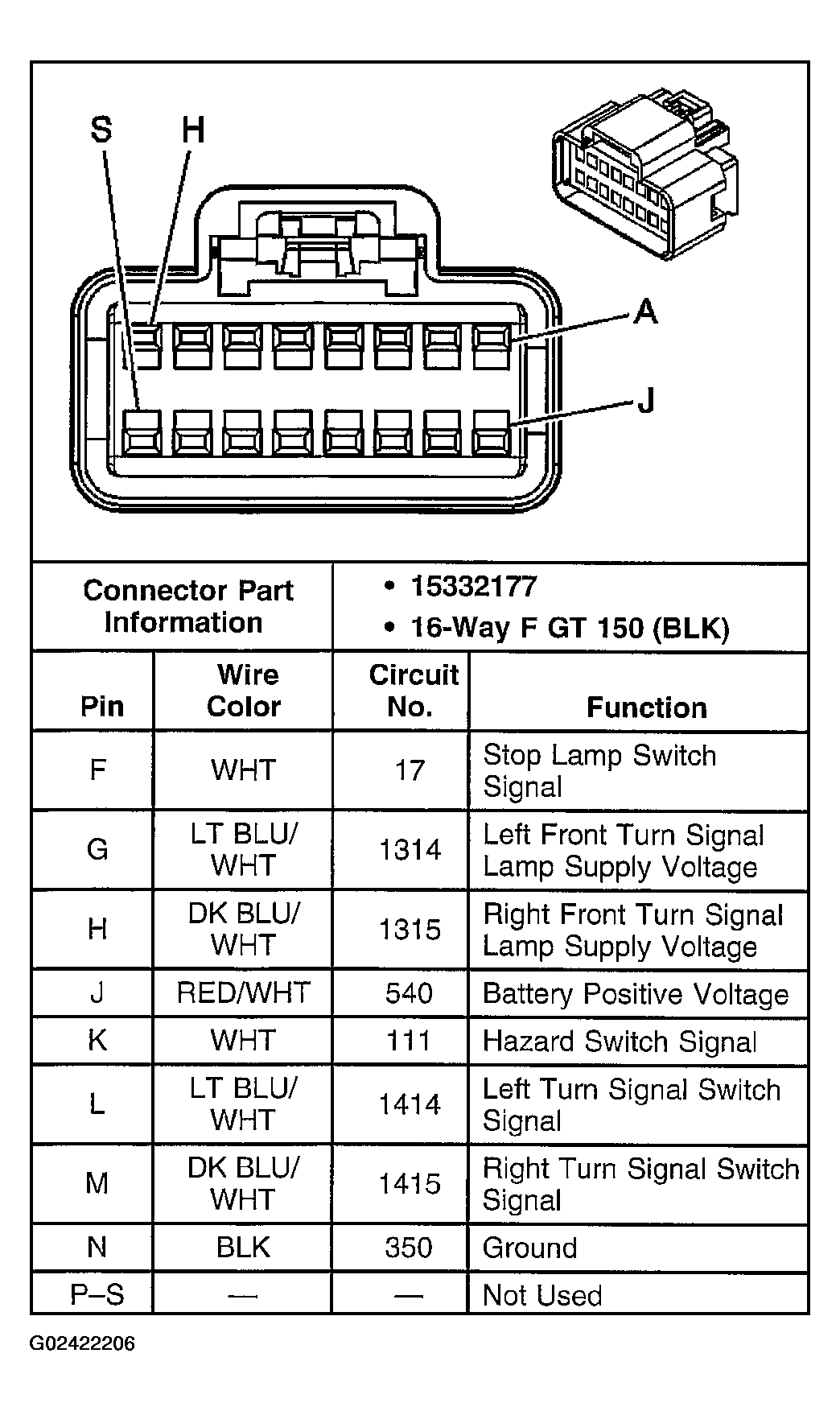

Fig 32: Turn Signal/Hazard Flasher Module Connector End View (2 Of 2)

G02422206

Courtesy of GENERAL MOTORS CORP.

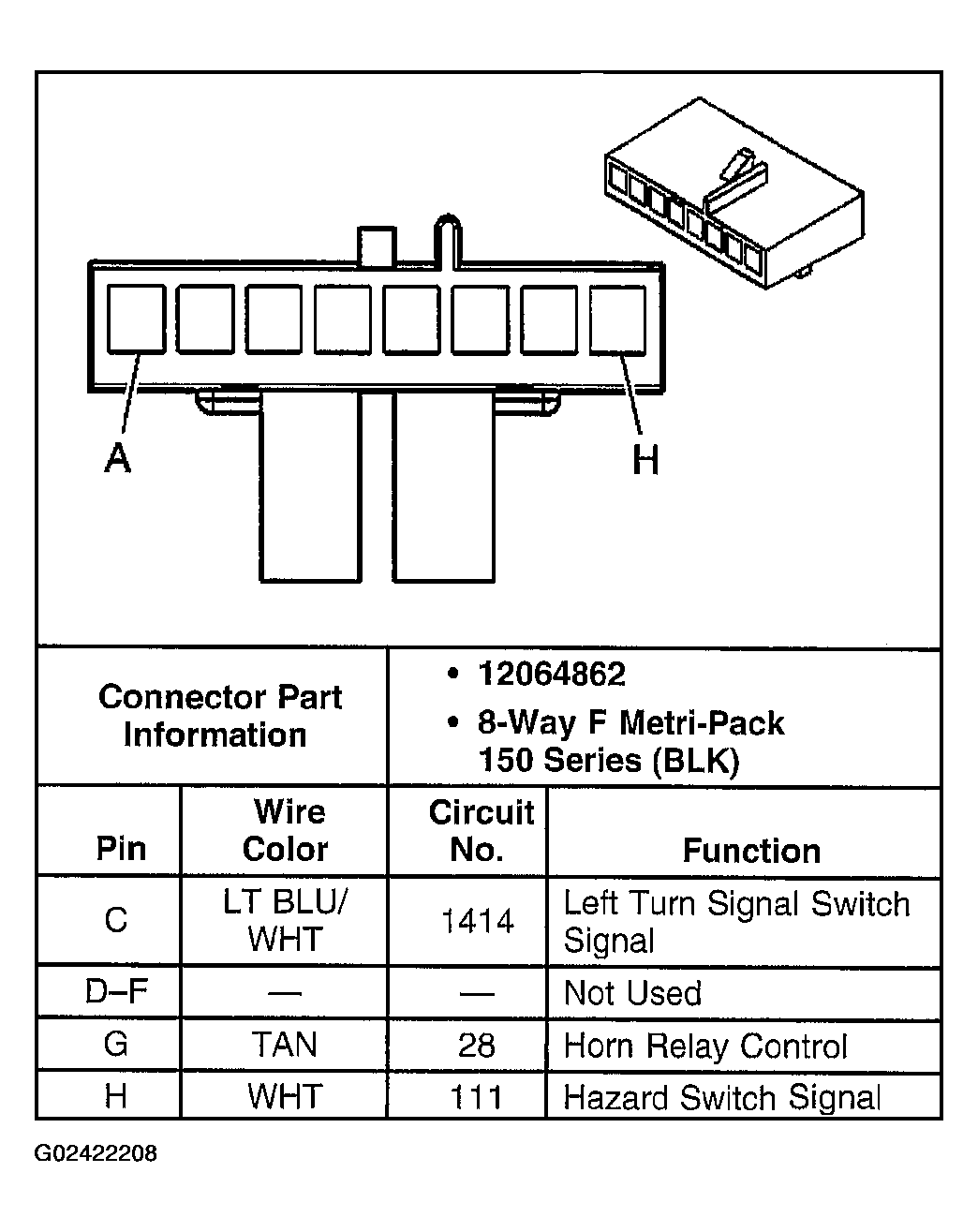

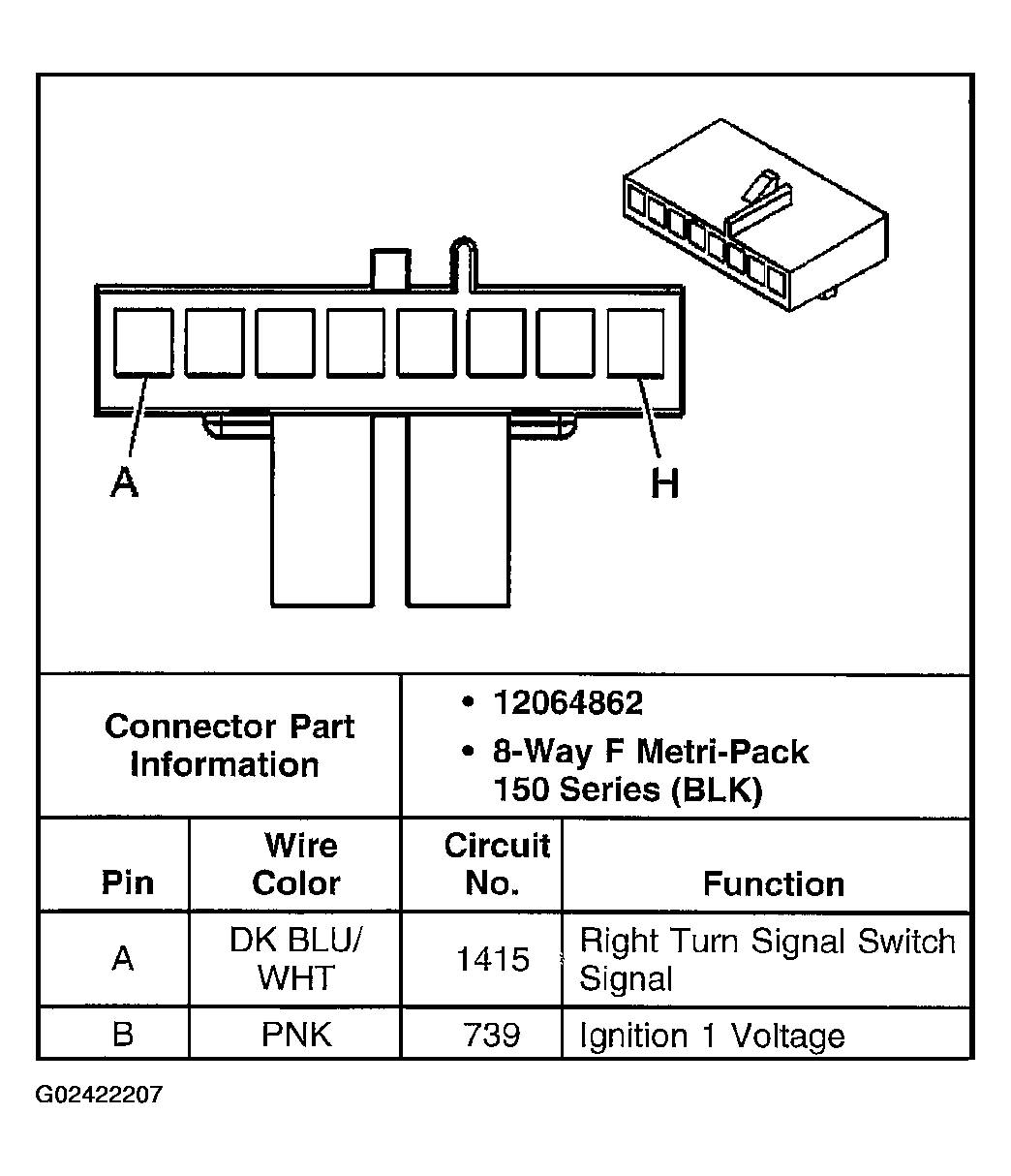

Fig 33: Turn Signal/Multifunction Switch Connector End View - C1 (1 Of 2)

G02422207

Courtesy of GENERAL MOTORS CORP.

Fig 34: Turn Signal/Multifunction Switch Connector End View - C1 (2 Of 2)

G02422208

Courtesy of GENERAL MOTORS CORP.

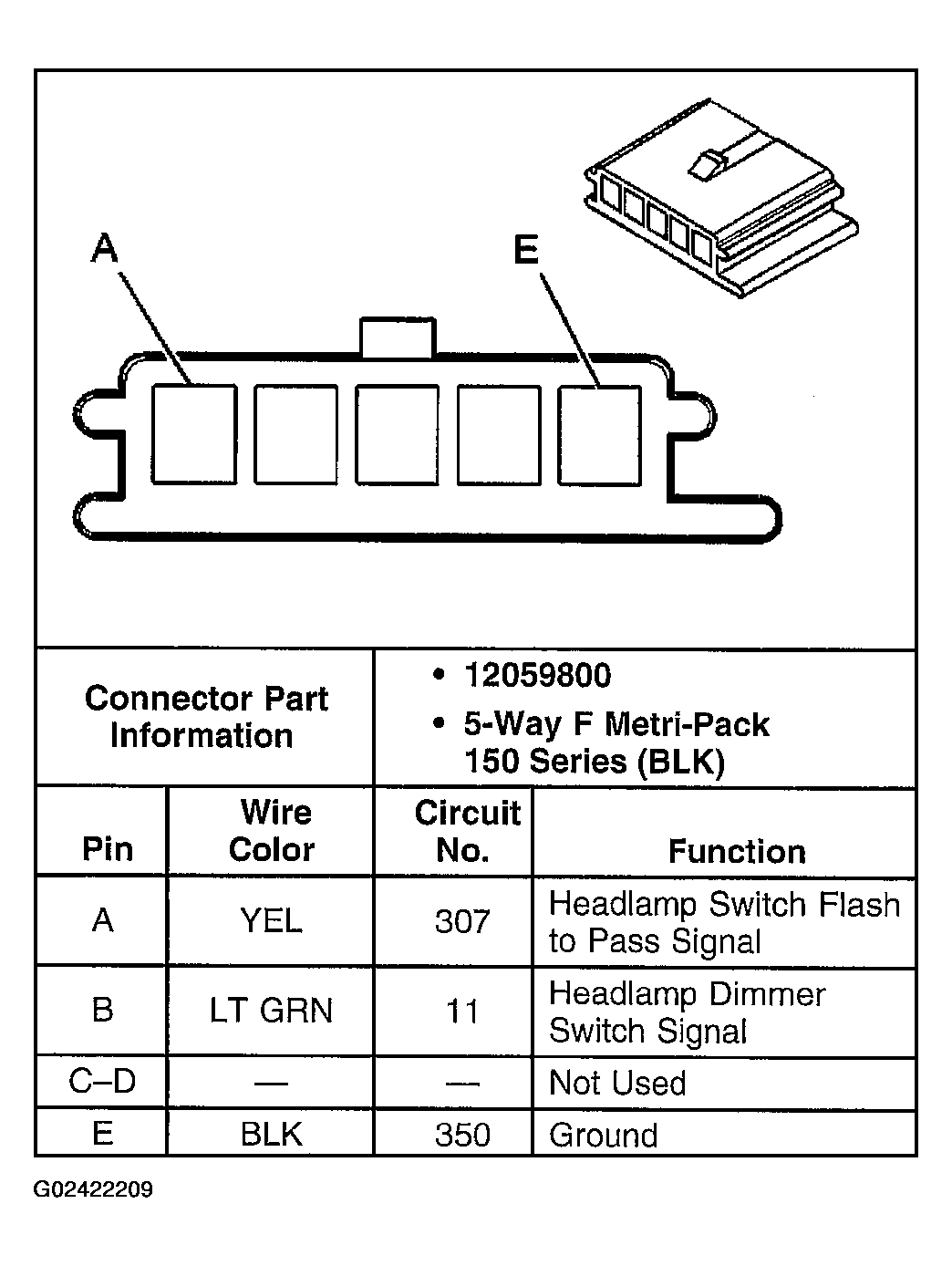

Fig 35: Turn Signal/Multifunction Switch Connector End View - C2

G02422209

Courtesy of GENERAL MOTORS CORP.

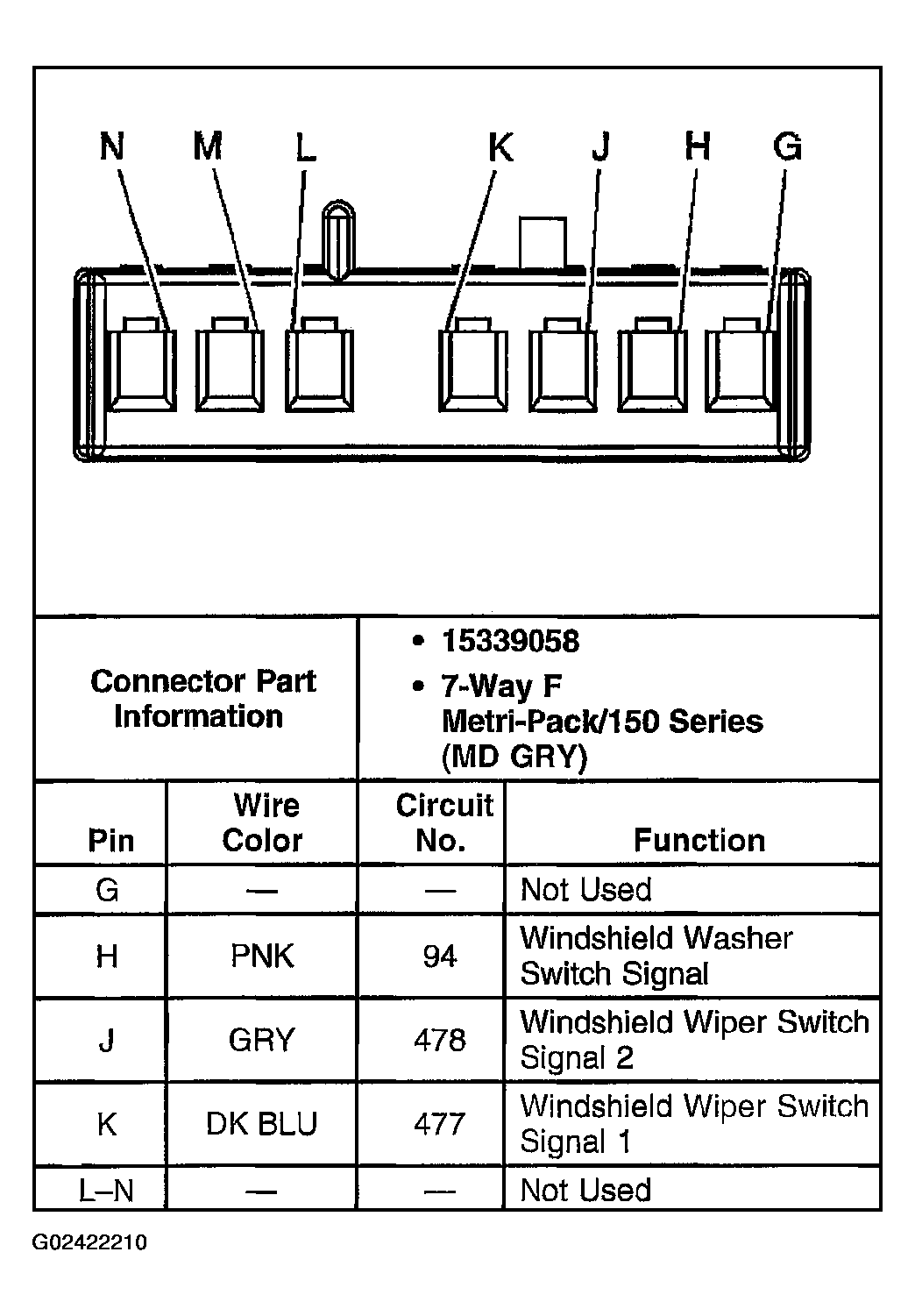

Fig 36: Turn Signal/Multifunction Switch Connector End View - C3

G02422210

Courtesy of GENERAL MOTORS CORP.

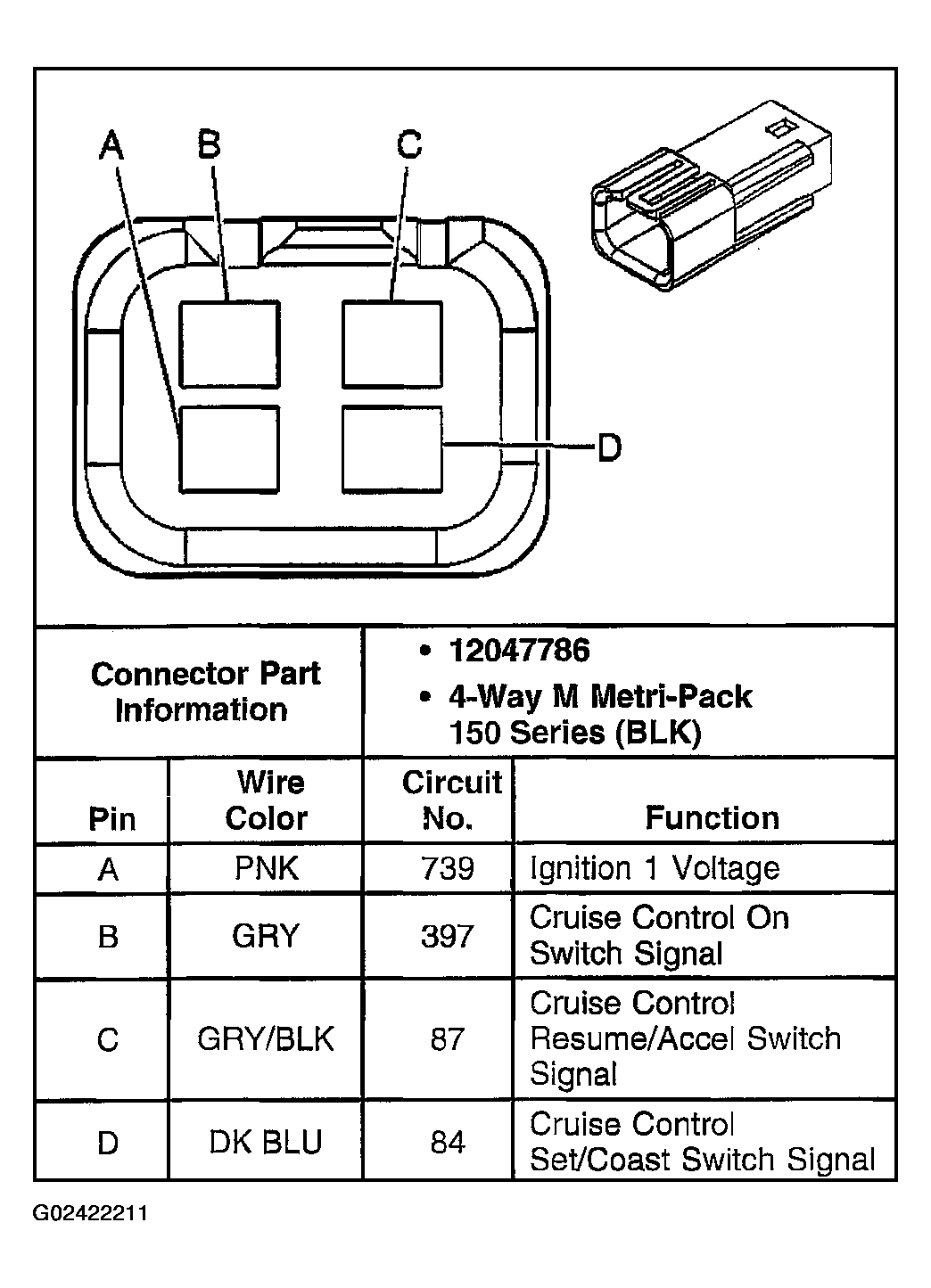

Fig 37: Turn Signal/Multifunction Switch Connector End View - C4 (K34 Cruise Control)

G02422211

Courtesy of GENERAL MOTORS CORP.

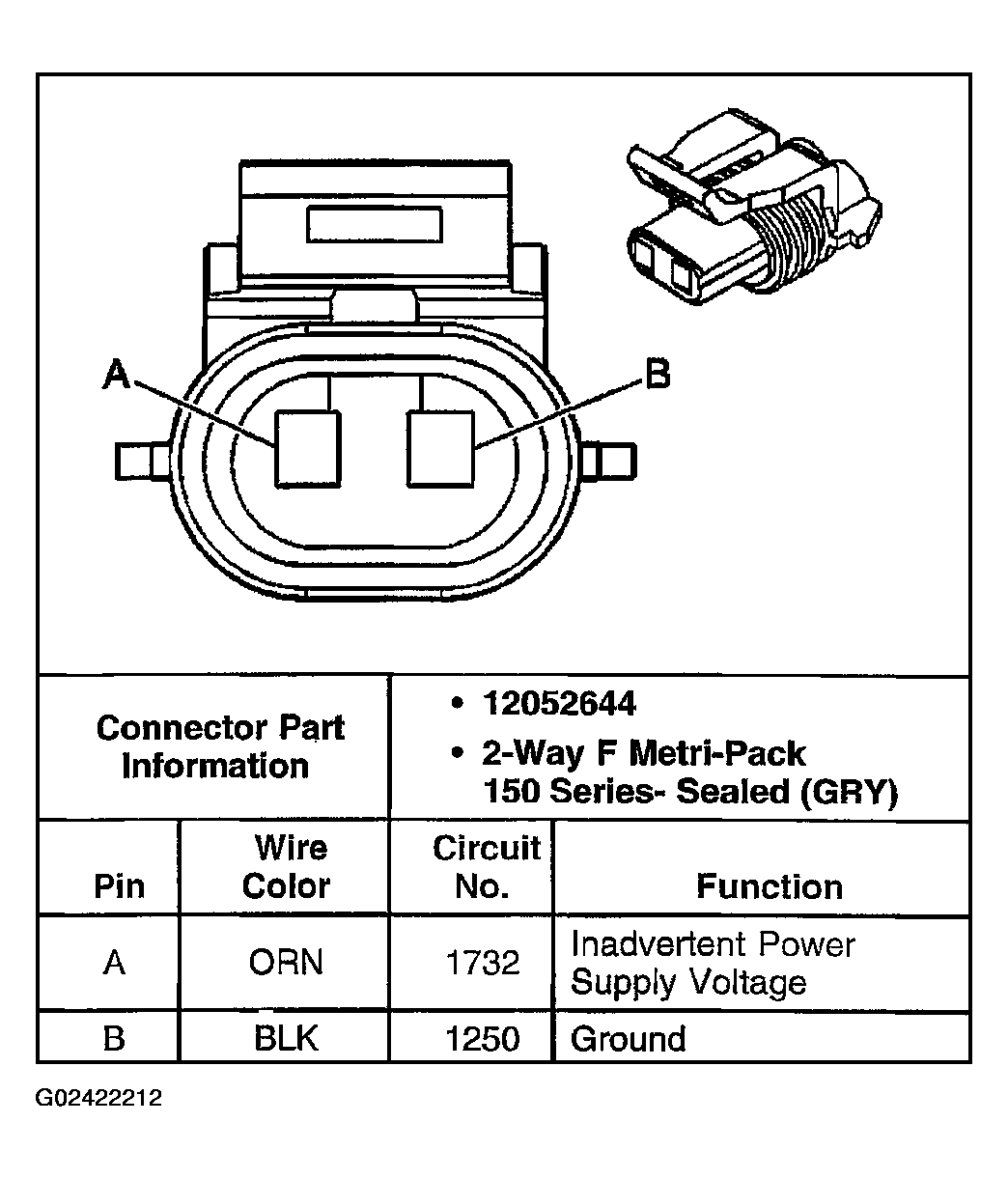

Fig 38: Underhood Lamp Connector End View

G02422212

Courtesy of GENERAL MOTORS CORP.

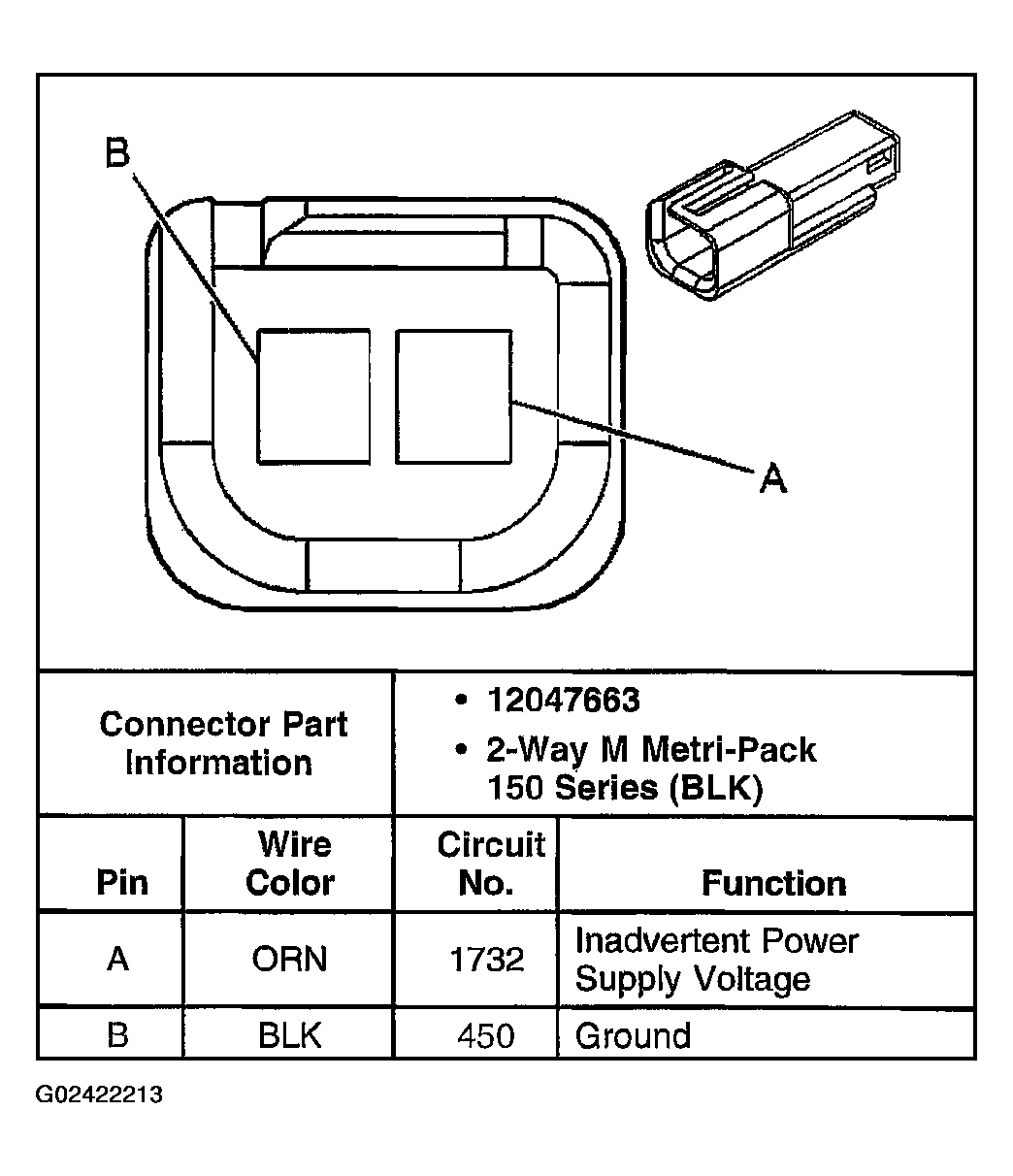

Fig 39: Vanity Mirror Lamp Connector End View - Left (DH6 RPO Code)

G02422213

Courtesy of GENERAL MOTORS CORP.

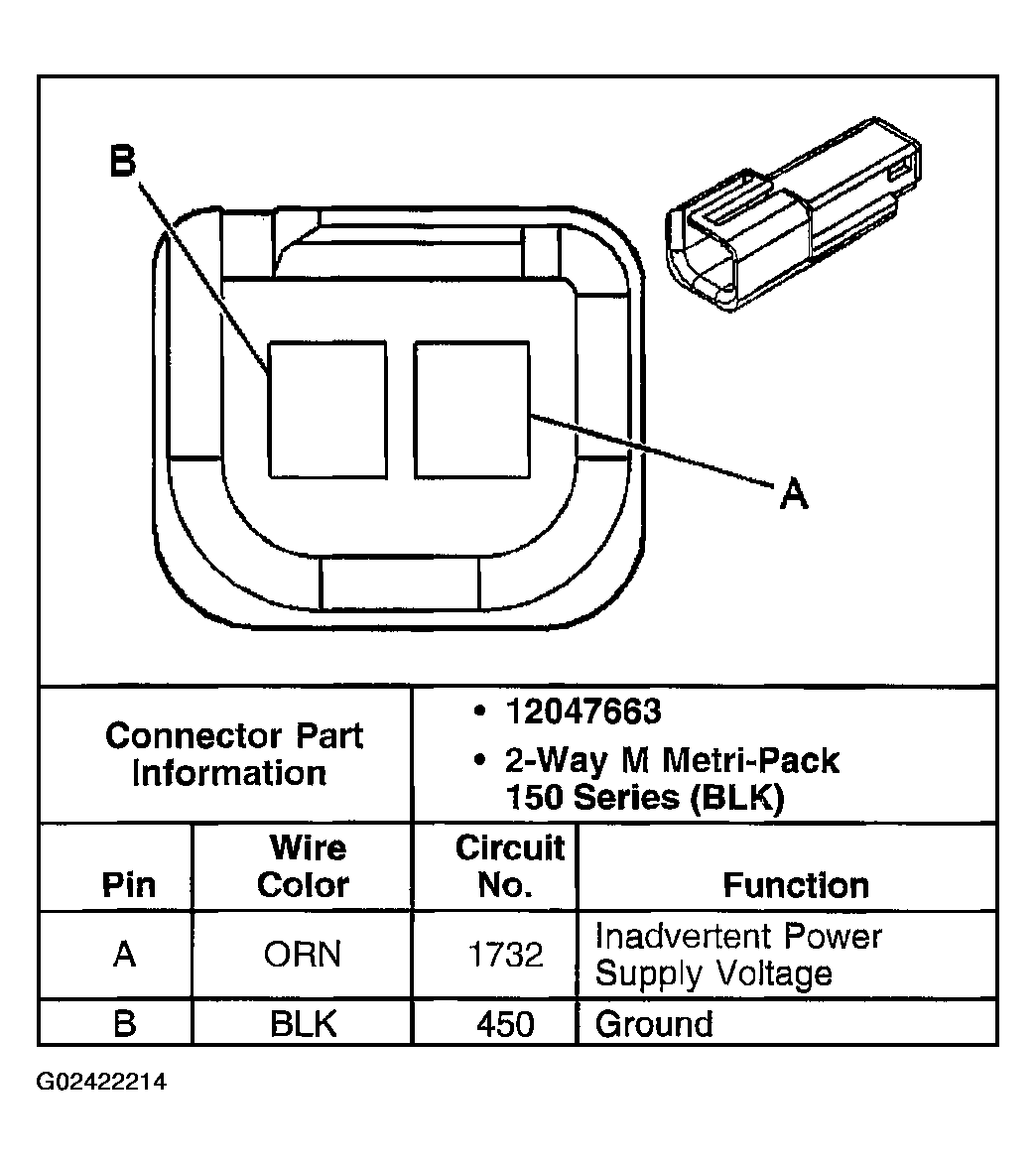

Fig 40: Vanity Mirror Lamp Connector End View - Right (DH6 RPO Code)

G02422214

Courtesy of GENERAL MOTORS CORP.
