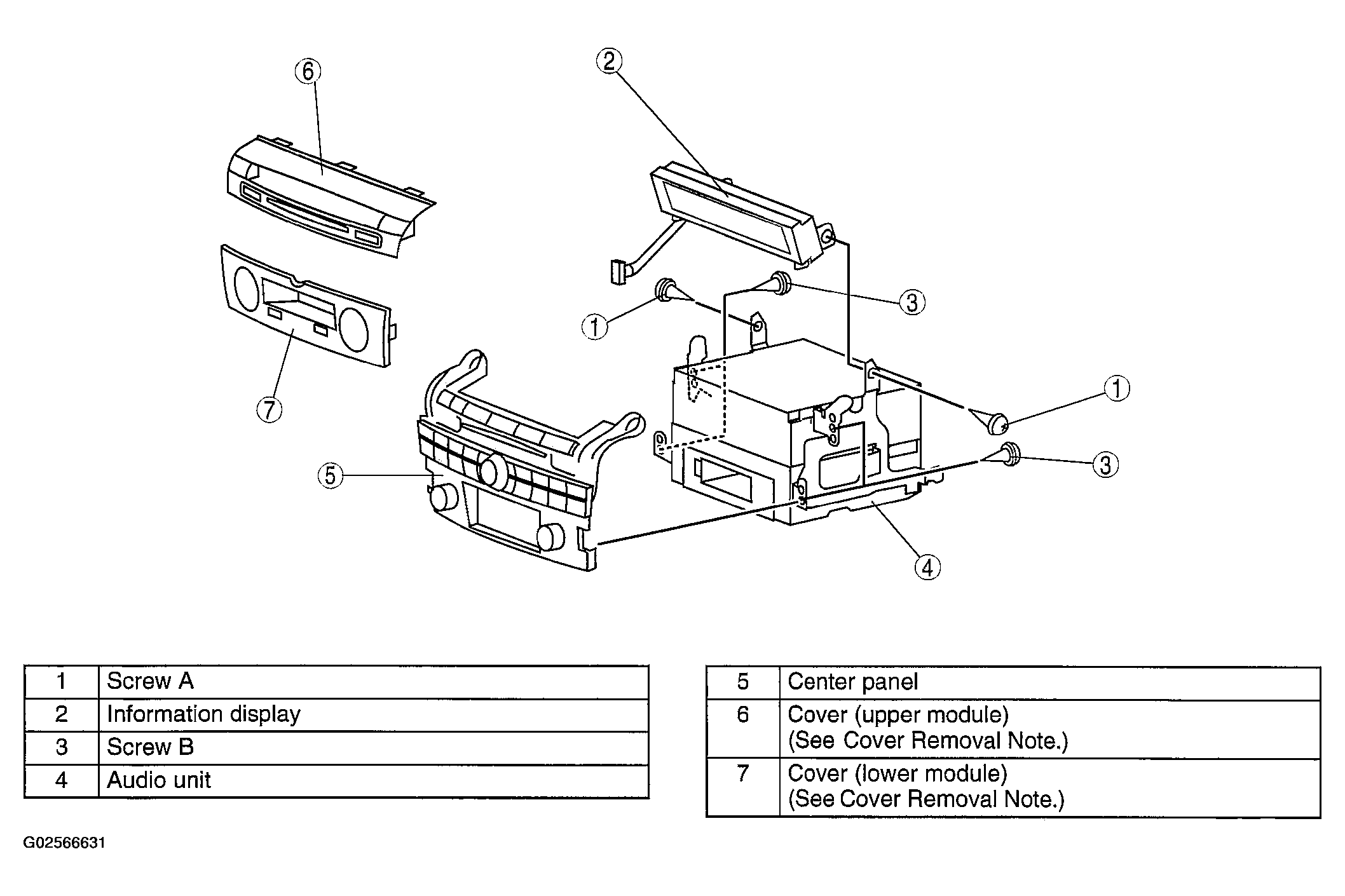

Center Panel Module Disassembly/Assembly: Notes
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Before disassembling the center panel module, spread a cloth on the floor to put the disassembled parts on. This protects the surface of the panel from scratches or dirt.
- Disassemble in the order indicated.
- Assemble in the reverse order of disassembly.
