Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors.

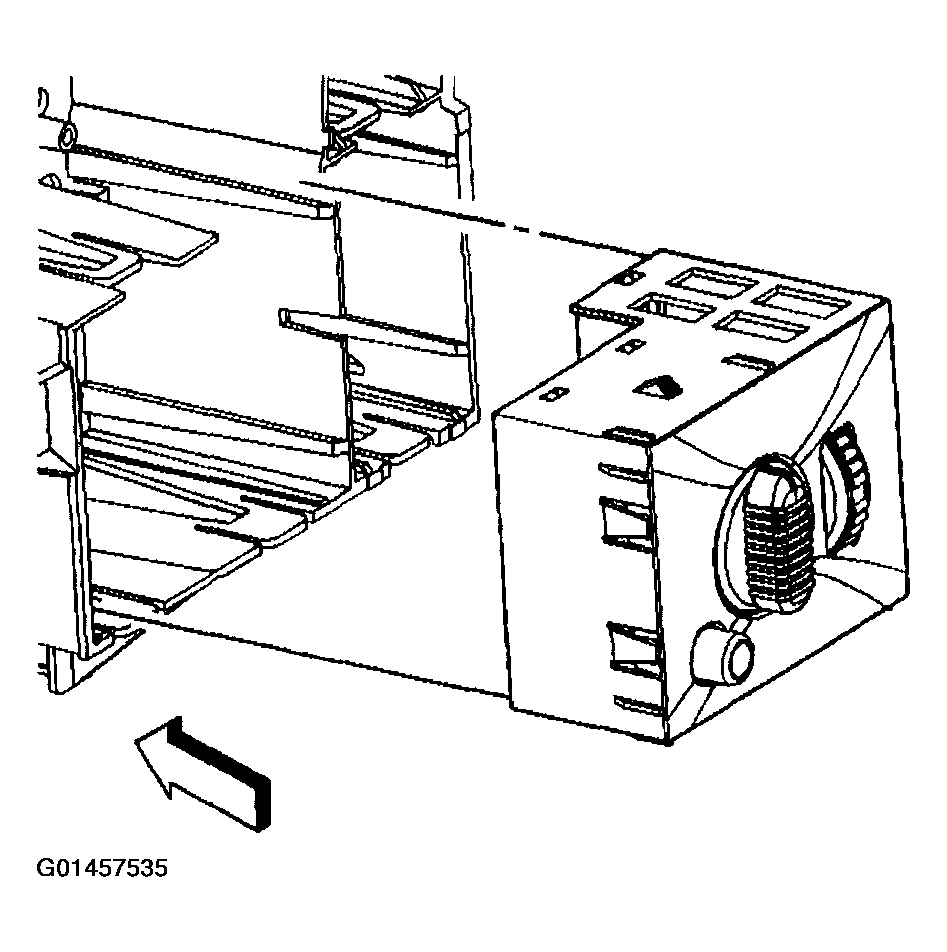

    2. Fig 1: Connecting Electrical Connectors
    G01457535Courtesy of GENERAL MOTORS CORP.
  2. Install the headlamp switch by snapping the headlamps switch into place.

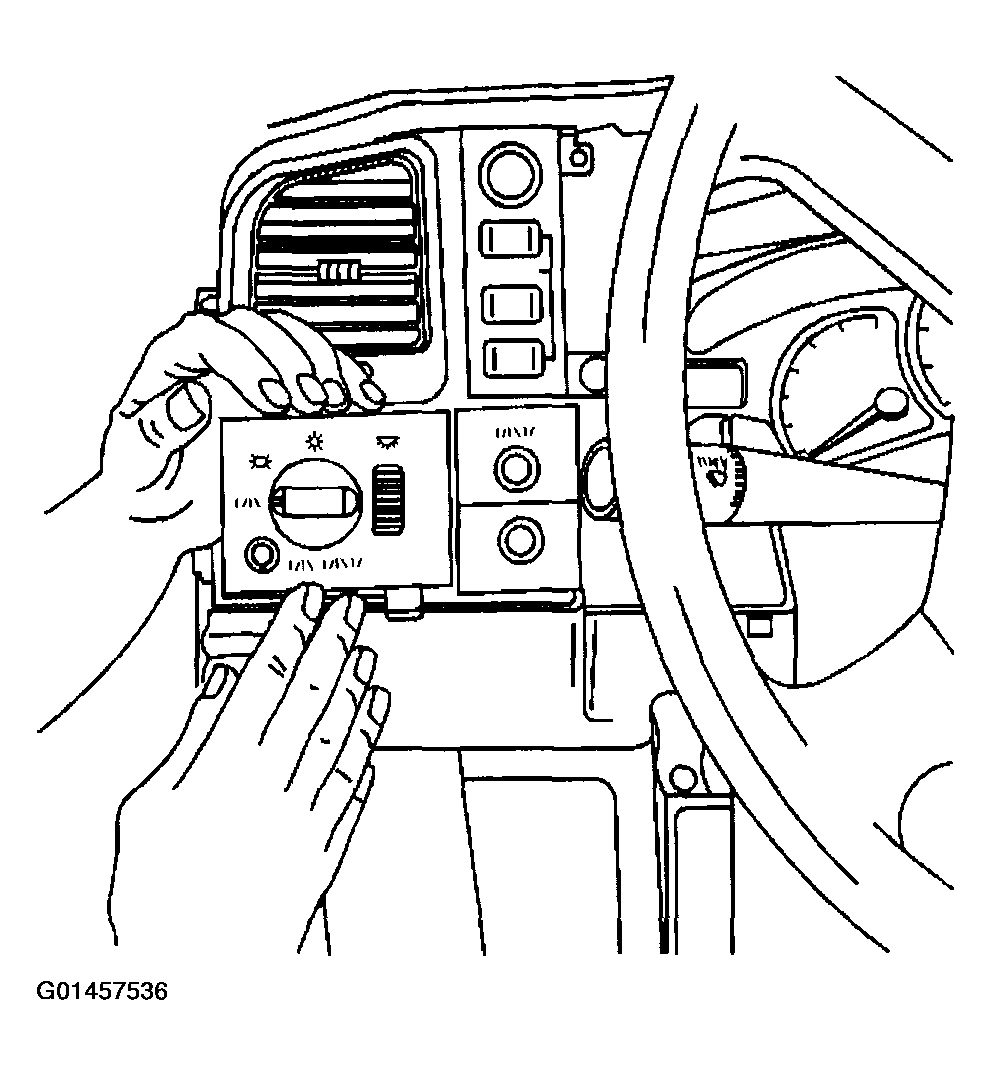

    3. Fig 2: Installing Bezel To Instrument Panel
    G01457536Courtesy of GENERAL MOTORS CORP.
  3. Install the bezel to the instrument panel. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT in INSTRUMENT PANEL, GAGES, AND CONSOLE .
