Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a stationary window into the opening. Refer to URETHANE ADHESIVE INSTALLATION OF STATIONARY WINDOWS .
  2. Install the lower garnish molding and the rear compartment front side trim panel. Refer to TRIM PANEL REPLACEMENT - REAR COMPARTMENT FRONT SIDE (COUPE) or TRIM PANEL REPLACEMENT - REAR COMPARTMENT FRONT SIDE (CONVERTIBLE) or TRIM PANEL REPLACEMENT - REAR COMPARTMENT FRONT SIDE (HARDTOP) in Interior Trim.
  3. Connect the rear window defogger connections.
  4. Connect the OnStar®, if equipped.
  5. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.

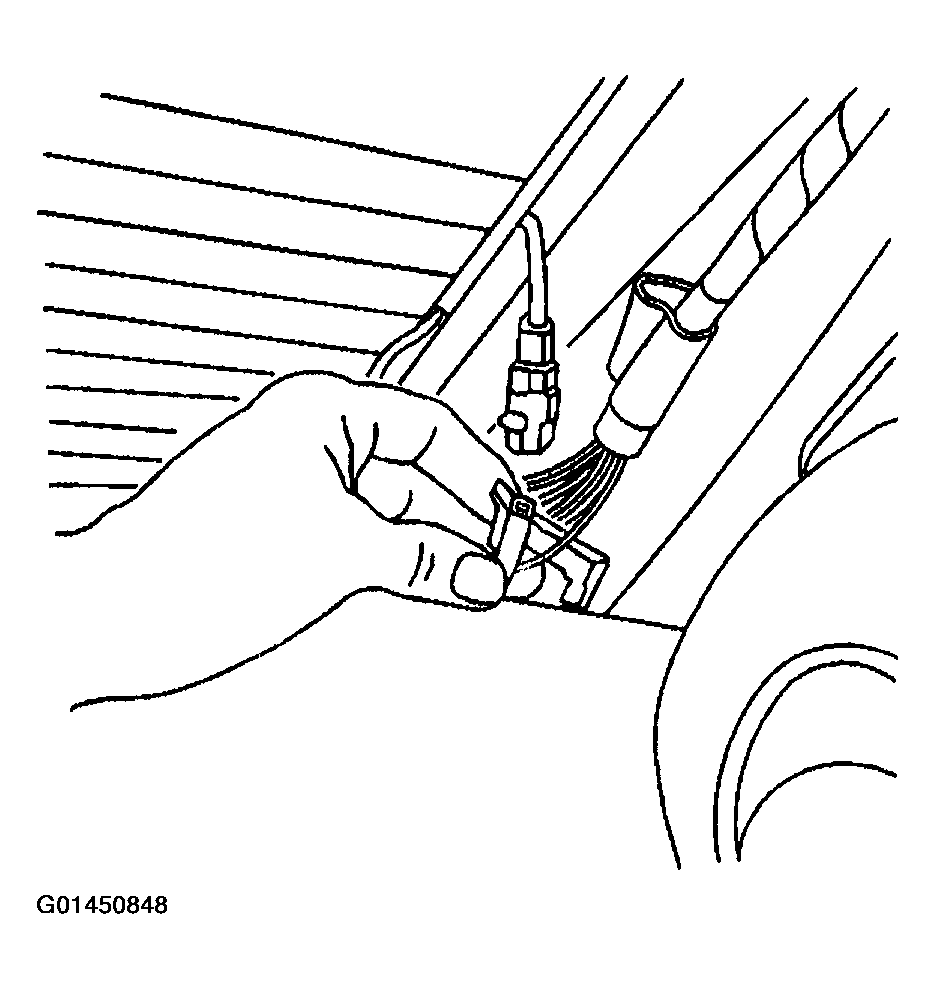

    Fig 1: Connecting Rear Window Defogger Connections
    G01450848Courtesy of GENERAL MOTORS CORP.
