Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply a continuous bead of sealant GM P/N 12345097, or equivalent, to the side window filler panel along the surface that will contact the windshield pillar as illustrated.
    Fig 1: Applying Sealant To Side Window Filler Panel
    G01450806Courtesy of GENERAL MOTORS CORP.
  2. Position the filler panel to the windshield pillar.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws attaching the side window filler panel.

    Tighten

    Tighten the filler panel screws to 2.5 N.m (22 lb in).

  4. Wipe off any excessive sealant that squeezed out around the filler panel.
  5. Install the windshield side reveal molding, the side weatherstrip retainer, and the weatherstrip. Refer to SIDE REVEAL MOLDING REPLACEMENT (COUPE AND CONVERTIBLE)  or SIDE REVEAL MOLDING REPLACEMENT (HARDTOP) .

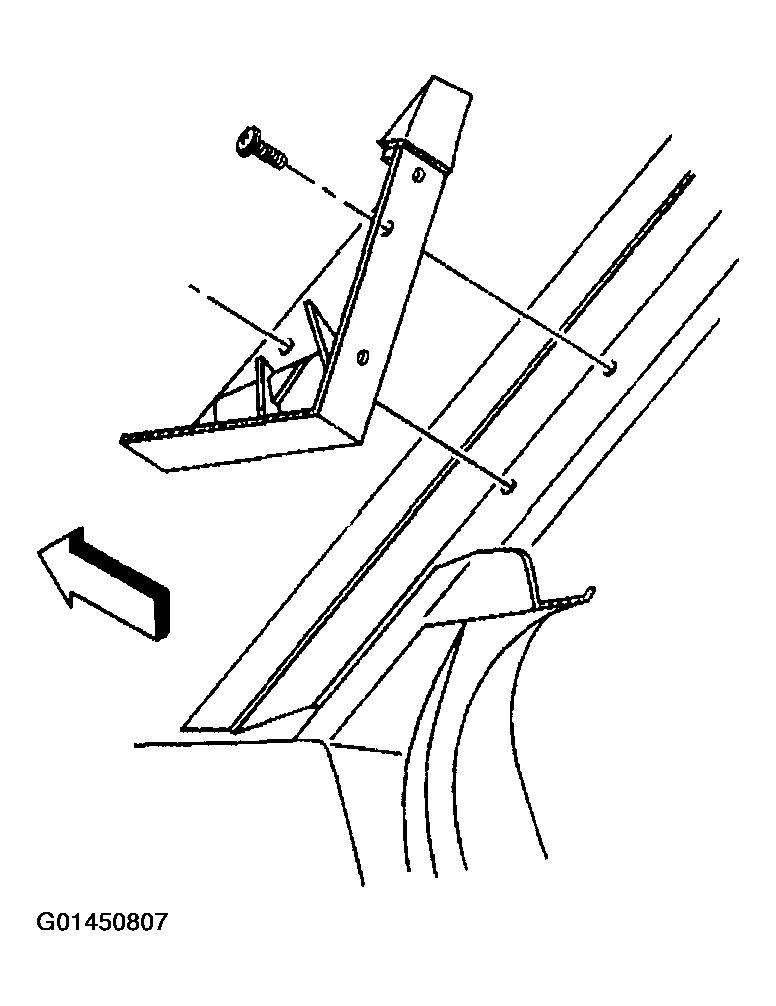

    Fig 2: Side Window Filler Panel
    G01450807Courtesy of GENERAL MOTORS CORP.
