Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Lower the door windows.

    Important:  Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and inner trim.

  3. Remove the windshield wiper arms. Refer to WIPER ARM REPLACEMENT in Wipers/Washer Systems.
  4. Remove the roof lift off panel (coupe) or lower the folding top (convertible).
    Fig 1: Roof Lift Off Panel
    G01450824Courtesy of GENERAL MOTORS CORP.
  5. Remove the hood air inlet screen seal. Refer to SEAL REPLACEMENT - HOOD REAR in Body Front End.

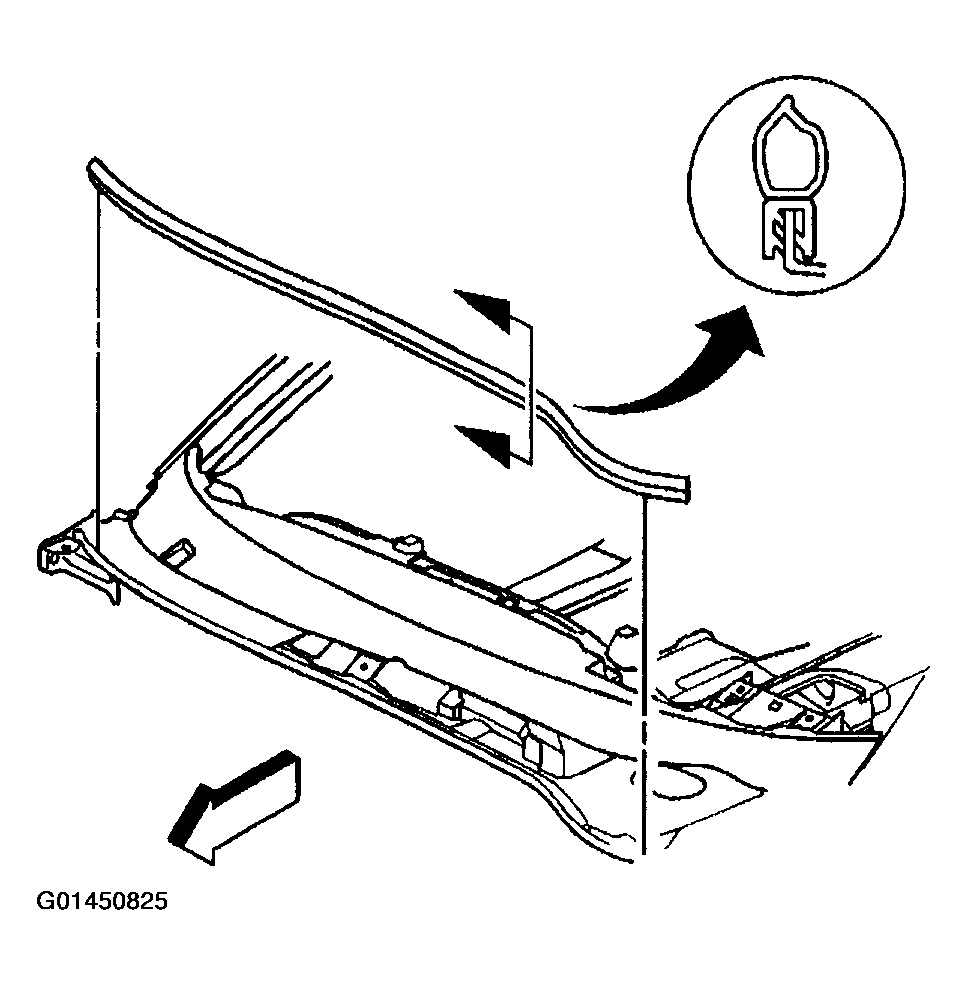

    Fig 2: Hood Air Inlet Screen Seal
    G01450825Courtesy of GENERAL MOTORS CORP.
  6. Remove the air inlet screen panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.

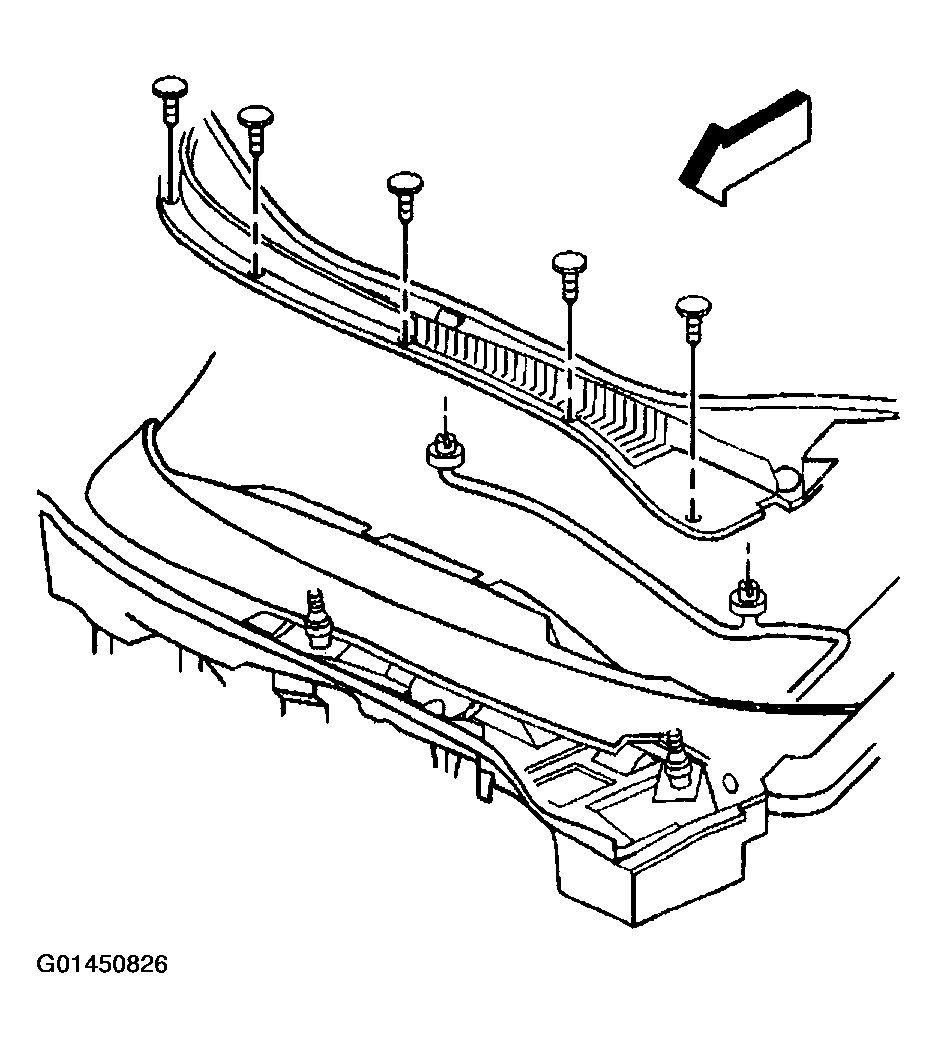

    Fig 3: Air Inlet Screen Panel
    G01450826Courtesy of GENERAL MOTORS CORP.
  7. Remove the lower windshield supports (1) from the cowl panel, if equipped.

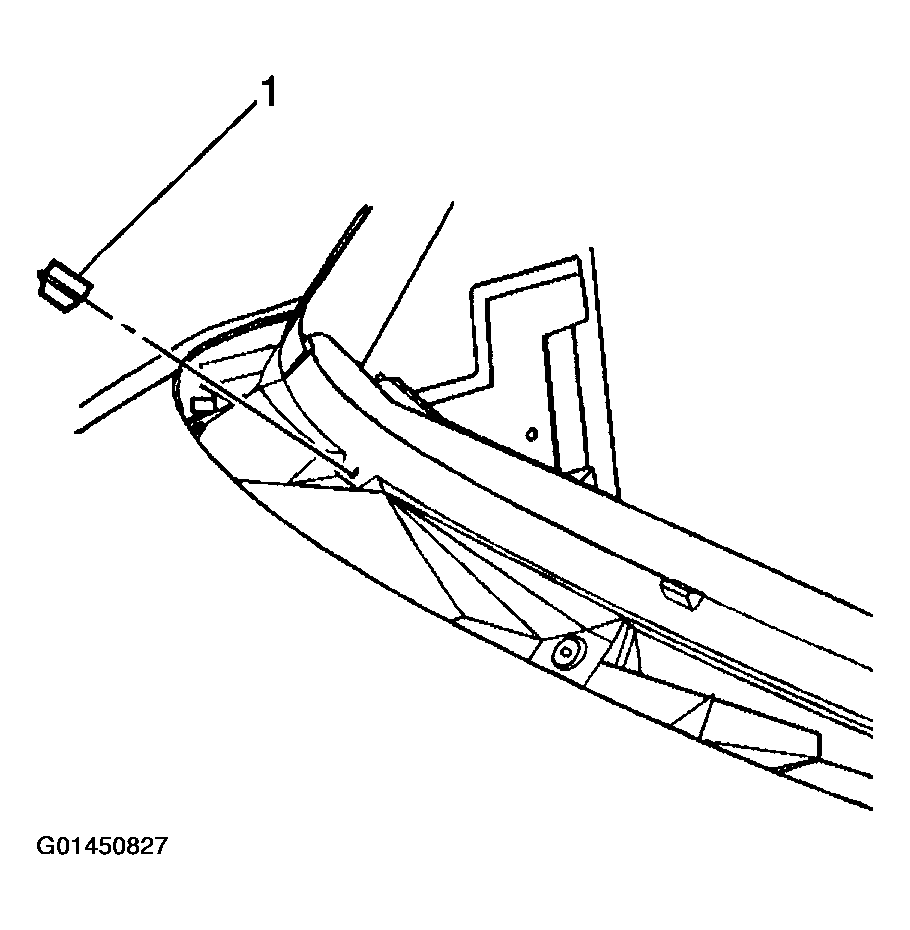

    Fig 4: Lower Windshield Supports
    G01450827Courtesy of GENERAL MOTORS CORP.
  8. Remove the rearview mirror. Refer to REARVIEW MIRROR REPLACEMENT (BASE)  or REARVIEW MIRROR REPLACEMENT (DD8) .
    CAUTION: Refer to DEFROSTER OUTLET CAUTION in Cautions and Notices.
  9. Cover to protect the following parts from broken glass:
    1. Upper dash pad.
    2. Defroster outlets and A/C outlets.
    3. Seats and carpeting.
    Fig 5: Removing Rearview Mirror
    G01450828Courtesy of GENERAL MOTORS CORP.
  10. Remove the windshield weather-strip. Refer to WEATHERSTRIP REPLACEMENT (COUPE AND CONVERTIBLE)  or WEATHERSTRIP REPLACEMENT (HARDTOP)  .

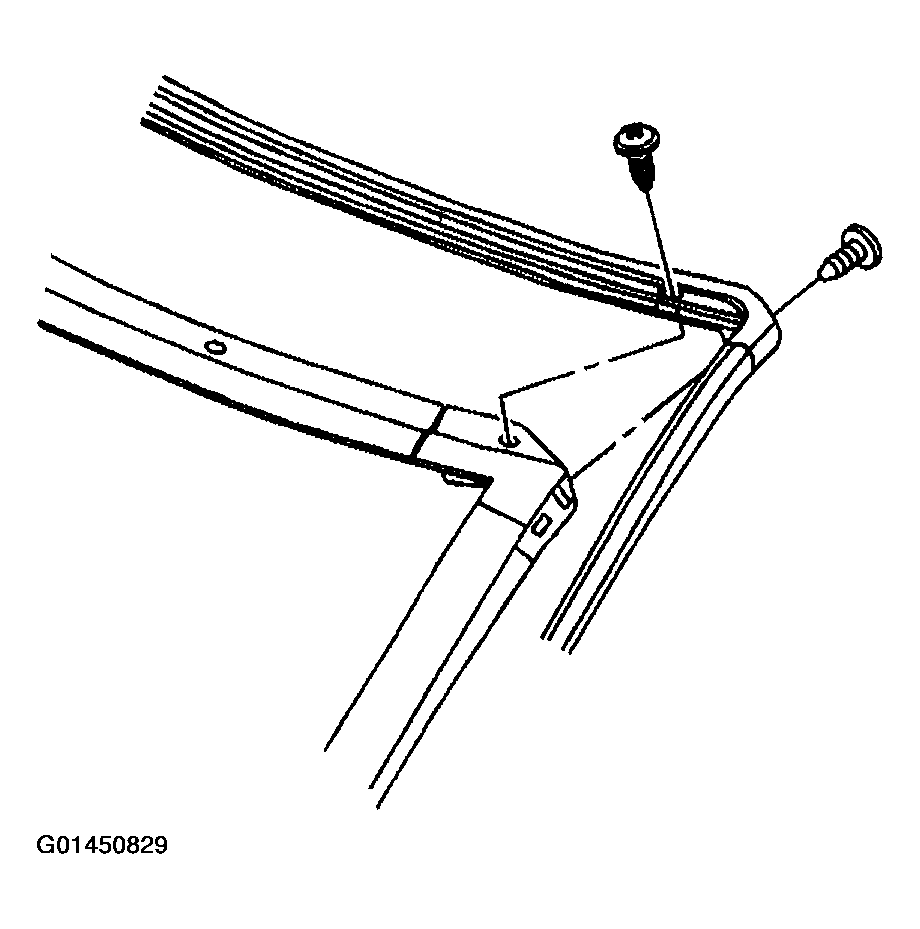

    Fig 6: Windshield Weather-Strip
    G01450829Courtesy of GENERAL MOTORS CORP.
  11. Remove the windshield side reveal moldings. Refer to SIDE REVEAL MOLDING REPLACEMENT (COUPE AND CONVERTIBLE)  or SIDE REVEAL MOLDING REPLACEMENT (HARDTOP) .
    Fig 7: Windshield Side Reveal Moldings
    G01450830Courtesy of GENERAL MOTORS CORP.
  12. Remove the windshield side garnish moldings and retainer clips from the windshield frame

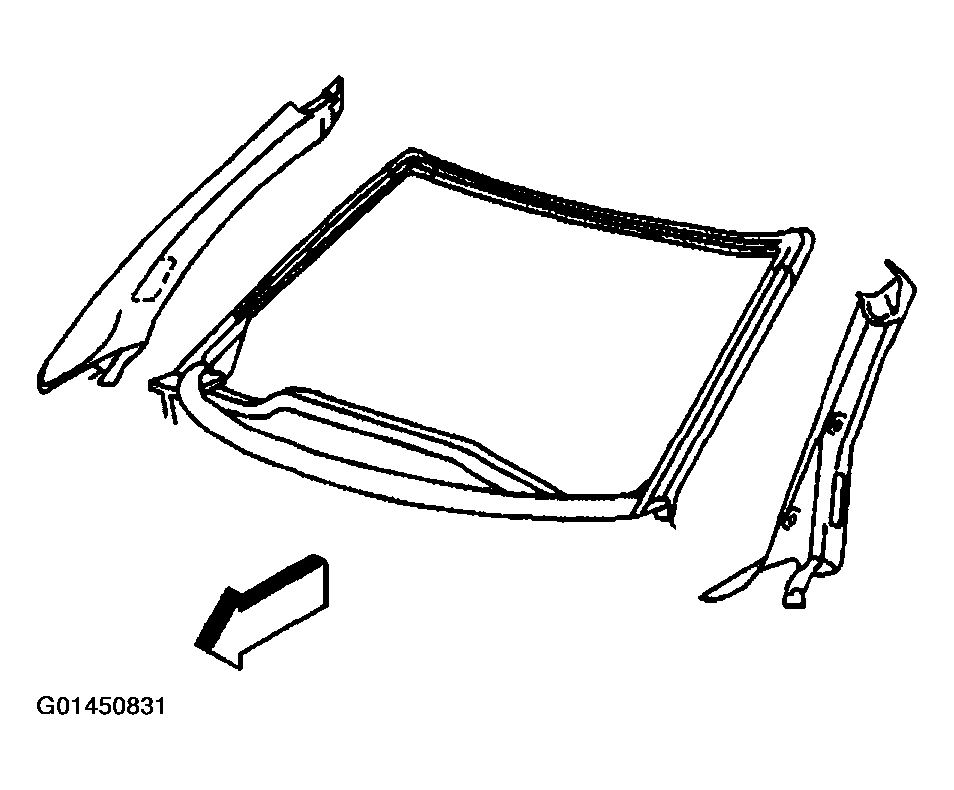

    Fig 8: Windshield Side Garnish Moldings & Retainer Clips
    G01450831Courtesy of GENERAL MOTORS CORP.
  13. Remove the 4 rearmost screws that attach the top of the fender to the wheelhouse.

    Important:  Tape or otherwise protect the fender from the cutting tool.

  14. Reposition the top of the fender for tool access.
    Fig 9: Top Of Fender
    G01450832Courtesy of GENERAL MOTORS CORP.

    Important:  Keep the cutting edge of the tool against the window.

  15. This will allow the urethane adhesive to be separated from the window.
    • Leave a base of urethane on the pinchweld flange.
    • The only suitable lubrication is clear water.
    • Use J 24402-A, J 39032  or equivalent in order to remove the window.

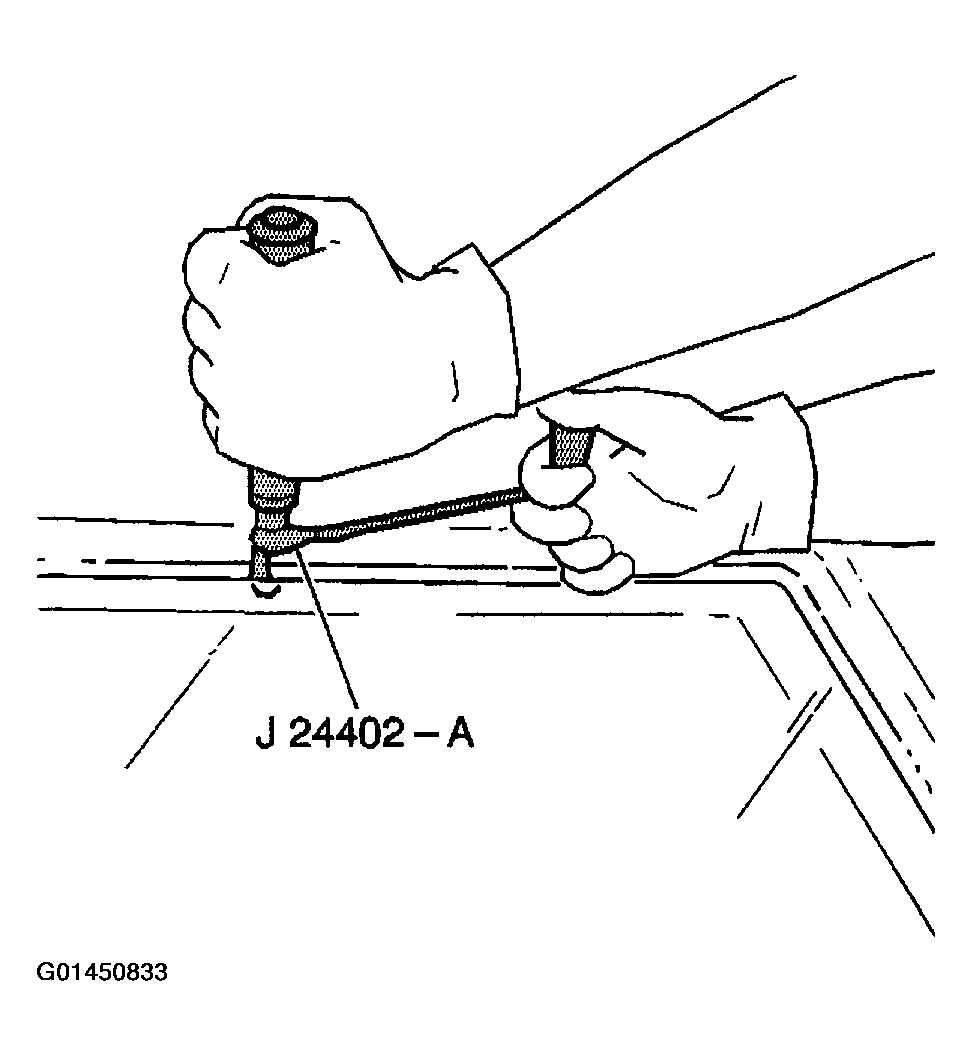

    Fig 10: Using J 24402-A To Remove Window
    G01450833Courtesy of GENERAL MOTORS CORP.
  16. Remove the bottom of the window from the urethane adhesive using a long utility knife or similar tool. Keep the cutting edge of the utility knife against the glass. Do this from inside the vehicle.

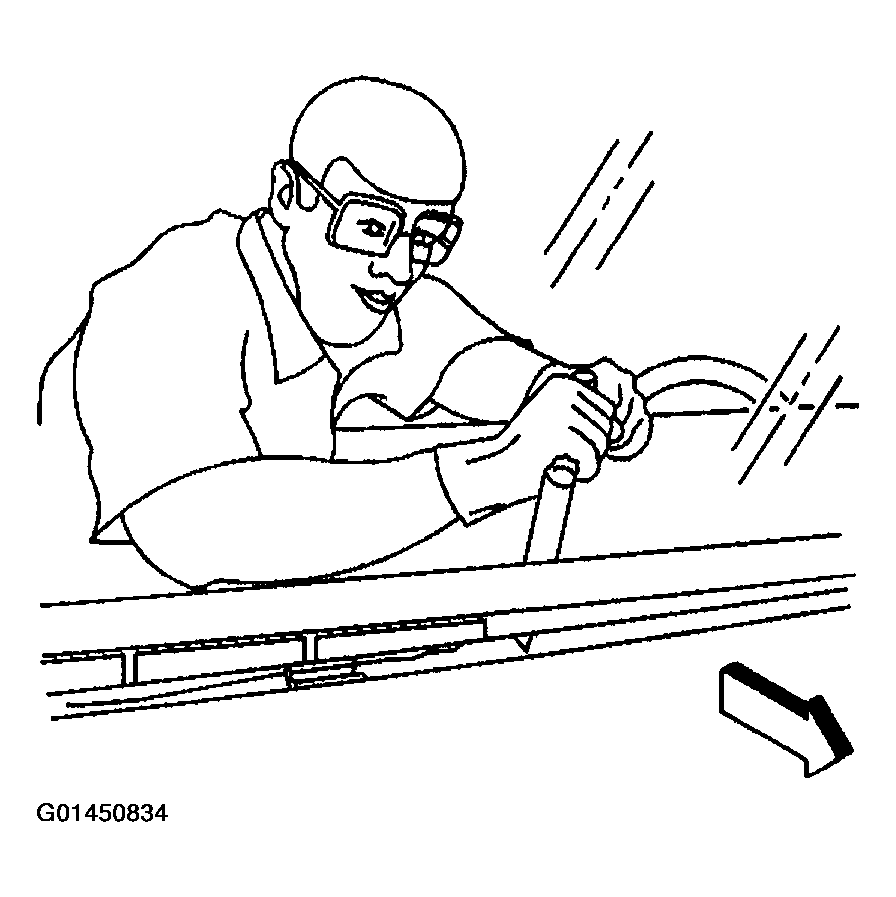

    Fig 11: Removing Bottom Of Window From Urethane Adhesive
    G01450834Courtesy of GENERAL MOTORS CORP.
  17. Remove the windshield (1) from the vehicle with the aid of an assistant (2).

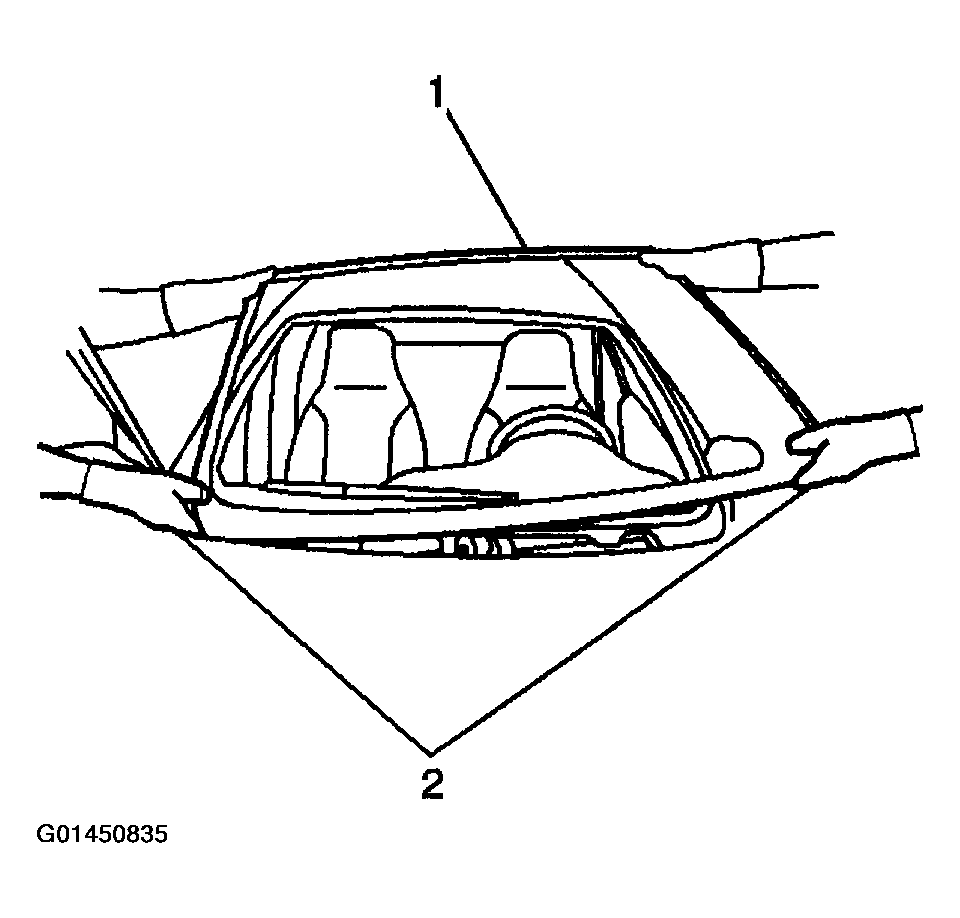

    Fig 12: Windshield
    G01450835Courtesy of GENERAL MOTORS CORP.
