ABS Connector End Views

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

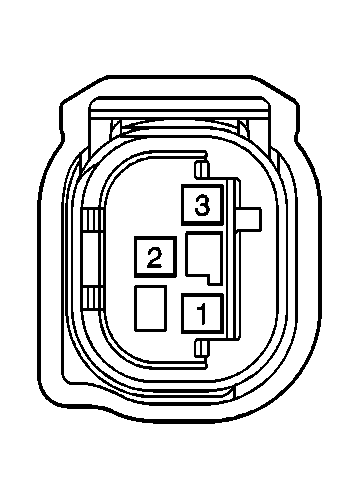

Brake Fluid Pressure Sensor Terminal Identification

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15324236 3-Way F Metri-Pack 150 Series (GRY)
Pin	Wire Color	Circuit No.	Function
1	GRY	556	Low Reference
2	BLK	2626	Brake Pressure Sensor Signal
3	ORN	1056	Steering Wheel Position Sensor 5V Reference Voltage

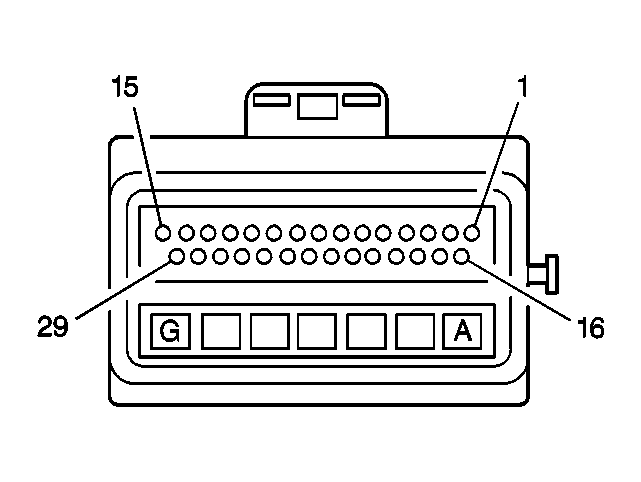

Electronic Brake Control Module Terminal Identification (EBCM)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		C1 - 15401425 7-Way F Metri-Pack 480, GT 150 Mixed Series (BLK) C2 - 15356700 29 Way F Micro-Pack 100 Series (GRY)
Pin	Wire Color	Circuit No.	Function
A	RED	1642	Battery Positive Voltage
B	BRN	641	Ignition 3 voltage
C	GRY	1787	Variable Effort Steering Actuator High Effort Control
D	WHT	345	Variable Effort Steering Actuator Low Effort Control
E	-	-	Not Used
F	BLK/WHT	1251	Ground
G	BLK	1250	Ground
1	-	-	Not Used
2	TAN/BLK	464	Delivered Torque Signal
3	LT GRN	1763	Steering Wheel Position Signal A
4	-	-	Not Used
5	LT GRN/BLK	1338	Lateral Accelerometer Input (JL4)
6	LT BLU	20	Stop lamp Supply Voltage
7	-	-	Not Used
8	RED	885	Left Rear Wheel Speed Sensor Low Reference
9	BRN	882	Right Rear Wheel Speed Sensor Signal
10	DK GRN	872	Right Front Wheel Speed Sensor Signal
11	LT BLU	830	Left Front Wheel Speed Sensor Signal
12	ORN/BLK	463	Requested Torque Signal
13	ORN/BLK	556	Low Reference
14-16	-	-	Not Used
17	BLK	2626	Brake Pressure Sensor Signal (JL4)
18	LT BLU	1764	Steering Wheel Position Signal B
19	DK BLU	716	Yaw Rate Sensor Signal (JL4)
20	-	-	Not Used
21	LT BLU	1122	ABS/TCS Class 2 Serial Data
22	BLK	884	Left Rear Wheel Speed Sensor Signal
23	WHT	883	Right Rear Wheel Speed Sensor Low Reference
24	TAN	833	Right Front Wheel Speed Sensor Low Reference
25	YEL	873	Left Front Wheel Speed Sensor Low Reference
26	-	-	Not Used
27	GRY	1056	Steering Wheel Position Sensor 5V Reference Voltage
28	LT BLU	2627	Steering Position Sensor Signal
29	-	-	Not Used

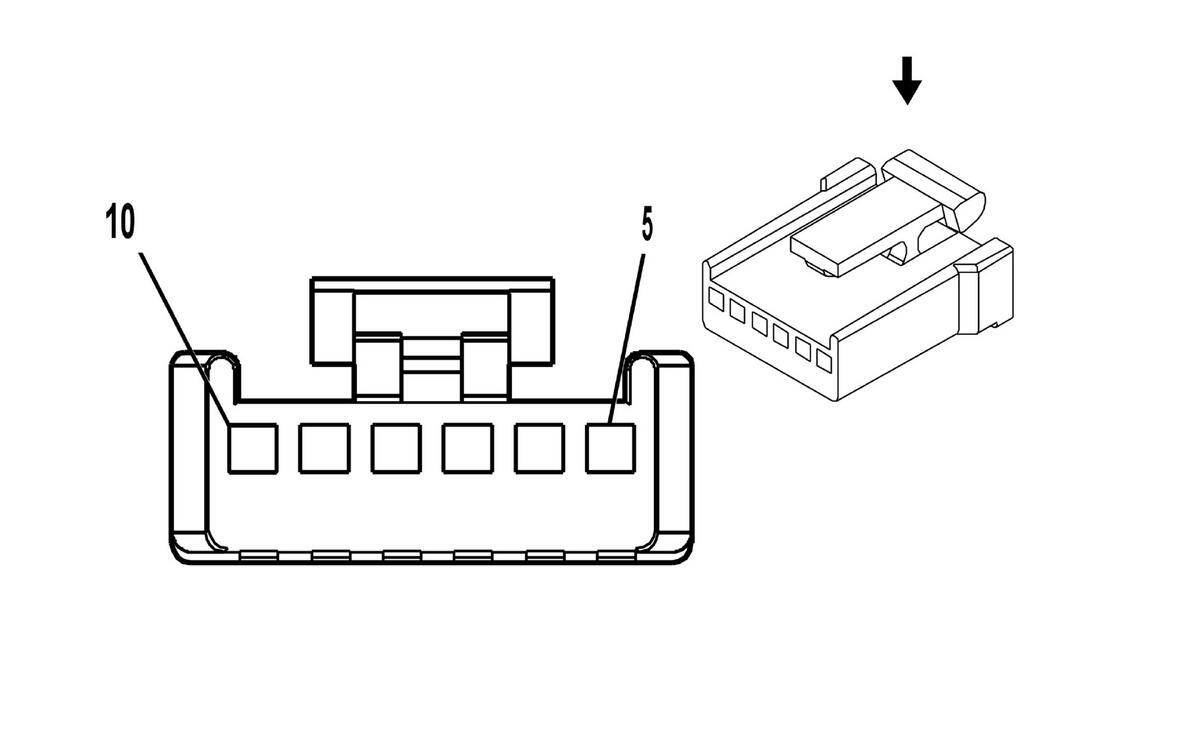

Electronic Traction/Suspension Control Switch Terminal Identification

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12040953 6-Way F Micro-Pack 100 Series (BLK)
Pin	Wire Color	Circuit No.	Function
5	BLK	150	Ground
6	BRN/WHT	1571	Traction Control Switch Signal
7	PNK/BLK	1385	Selective Ride Control Switch Low Reference
8	TAN/WHT	1384	Selective Ride Control Switch Signal
9	BRN/WHT	1244	Instrument Panel Lamp Supply Voltage - 2
10	ORN	2840	Battery Positive Voltage

Lateral Accelerometer Sensor Terminal Identification

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12146121 3-Way F Metri-Pack 150 Series (BRN)
Pin	Wire Color	Circuit No.	Function
A	GRY	1056	Steering Wheel Position Sensor 5V Reference Voltage
B	LT GRN/BLK	1338	Lateral Accelerometer Signal
C	ORN/BLK	556	Low Reference

Wheel Speed Sensor Terminal Identification (WSS) - LF

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052644 2 Way F Metri-Pack 150 Sealed (LT GRY)
Pin	Wire Color	Circuit No.	Function
A	WHT	873	Left Front Wheel Speed Sensor Low Reference
B	BLK	830	Left Front Wheel Speed Sensor Signal

Wheel Speed Sensor Terminal Identification (WSS) - LR

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12186686 2 Way F Metri-Pack 150 Sealed (LT GRY)
Pin	Wire Color	Circuit No.	Function
A	BLK	884	Left Rear Wheel Speed Sensor Signal
B	RED	885	Left Rear Wheel Speed Sensor Low Reference

Wheel Speed Sensor Terminal Identification (WSS) - RF

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052644 2 Way F Metri-Pack 150 Sealed (LT GRY)
Pin	Wire Color	Circuit No.	Function
A	WHT	872	Right Front Wheel Speed Sensor Signal
B	BLK	833	Right Front Wheel Speed Sensor Low Reference

Wheel Speed Sensor Terminal Identification (WSS) - RR

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12186686 2 Way F Metri-Pack 150 Sealed (LT GRY)
Pin	Wire Color	Circuit No.	Function
A	BRN	882	Right Rear Wheel Speed Sensor Signal
B	WHT	883	Right Rear Wheel Speed Sensor Low Reference

Yaw Rate Sensor Terminal Identification

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12064758 3-Way F 150 Metri-Pack Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	GRY	1056	Steering Wheel Position Sensor 5V Reference Voltage
B	ORN/BLK	556	Low Reference
C	DK BLU	716	Yaw Rate Sensor Signal
