ABS Component Views

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

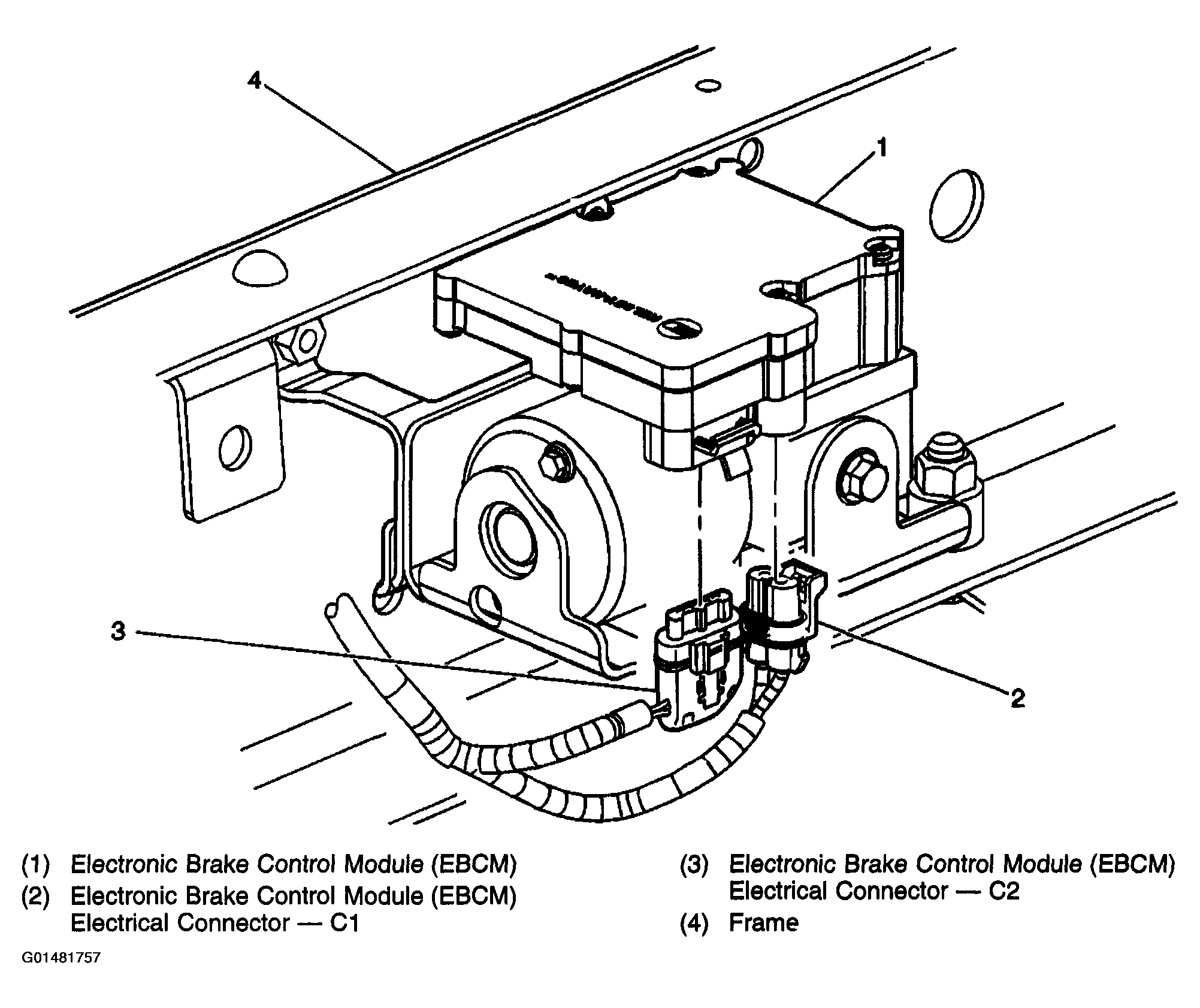

Fig 1: Electronic Brake Control Module (EBCM) Component View

Courtesy of GENERAL MOTORS CORP.

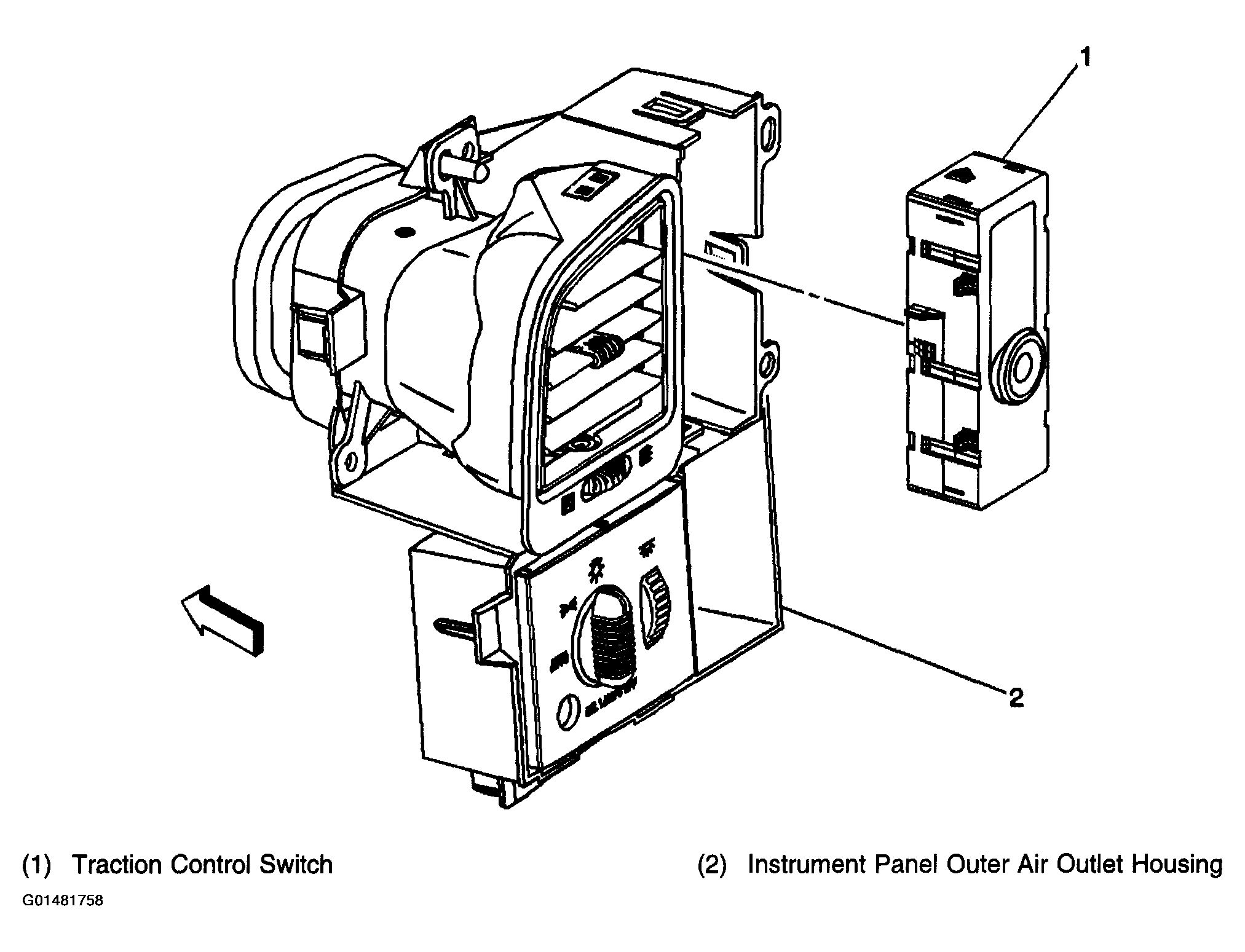

Fig 2: Traction Control Switch Component View

Courtesy of GENERAL MOTORS CORP.

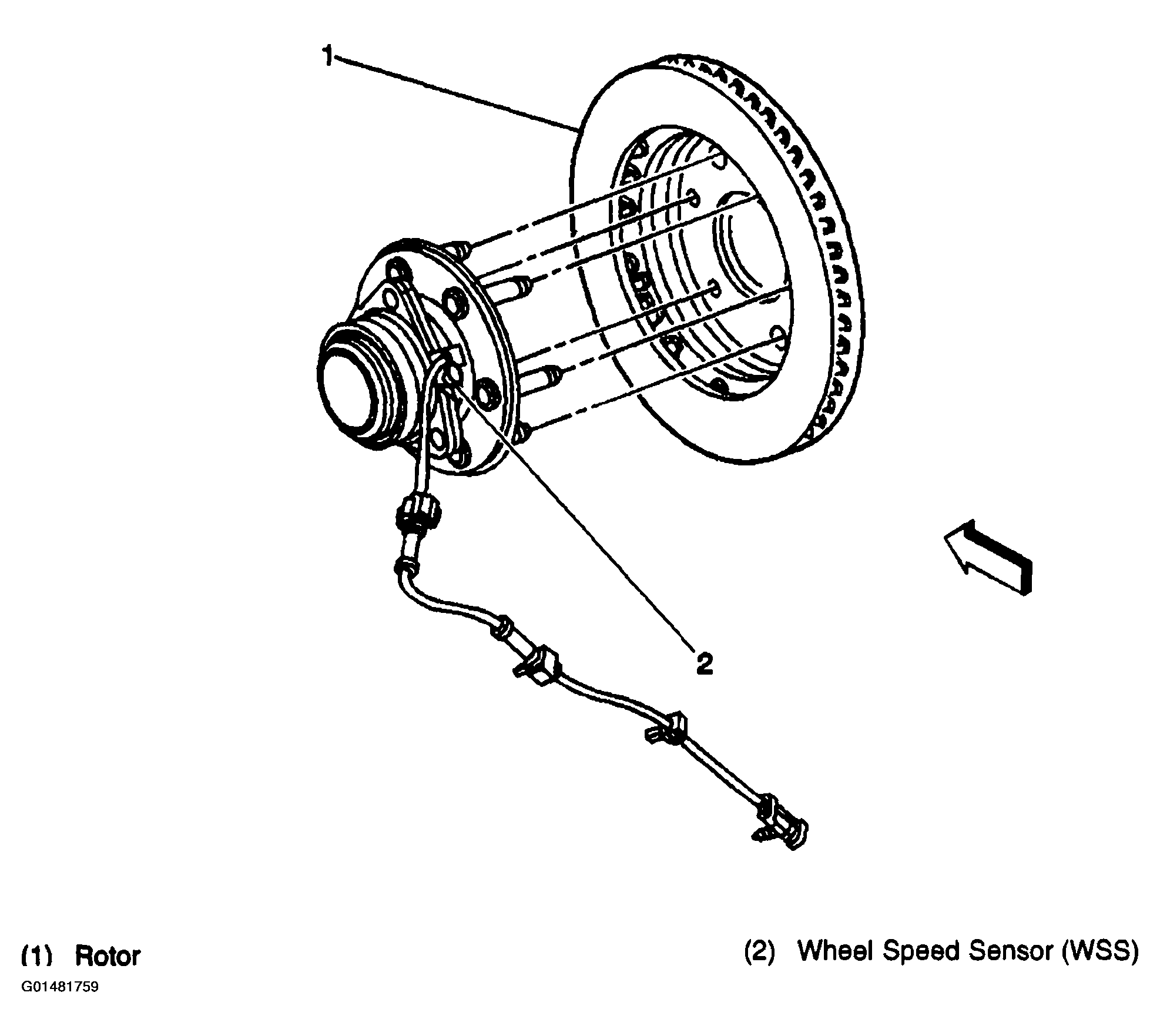

Fig 3: Wheel Speed Sensor - RF Component View (2WD)

Courtesy of GENERAL MOTORS CORP.

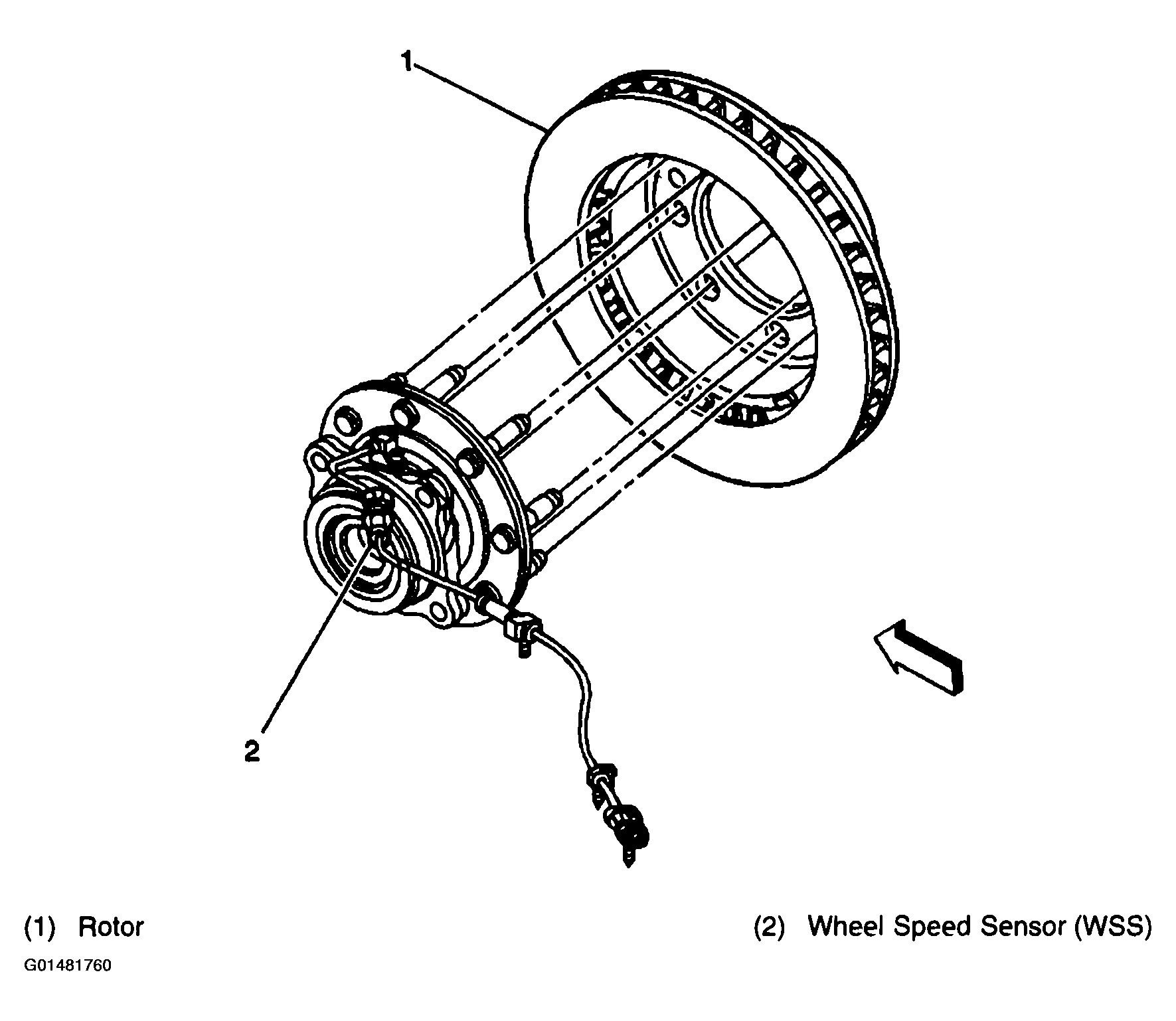

Fig 4: Wheel Speed Sensor - RF Component View (4WD)

Courtesy of GENERAL MOTORS CORP.

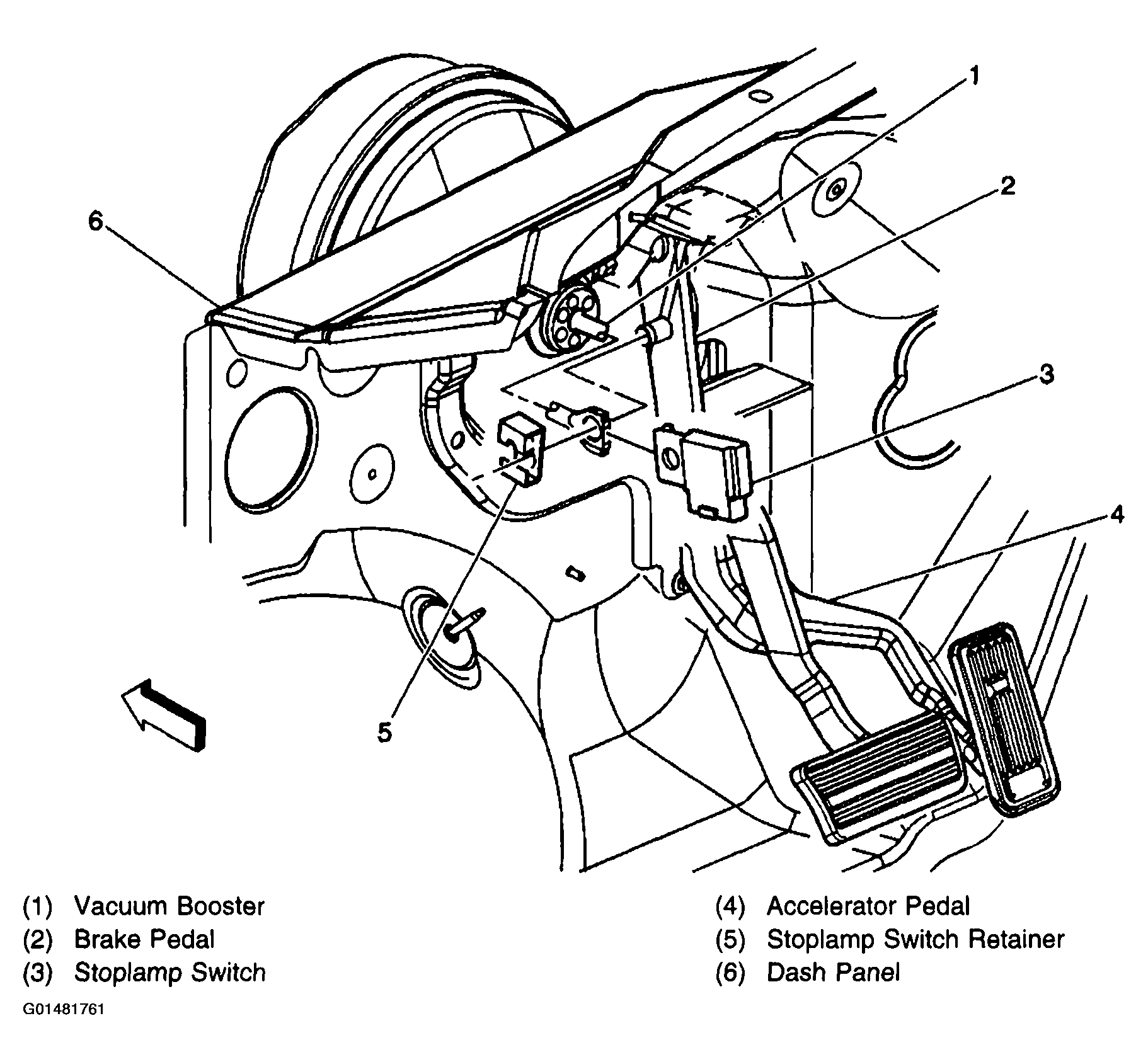

Fig 5: Stoplamp Switch Component View

Courtesy of GENERAL MOTORS CORP.
